Parker Needle Valves

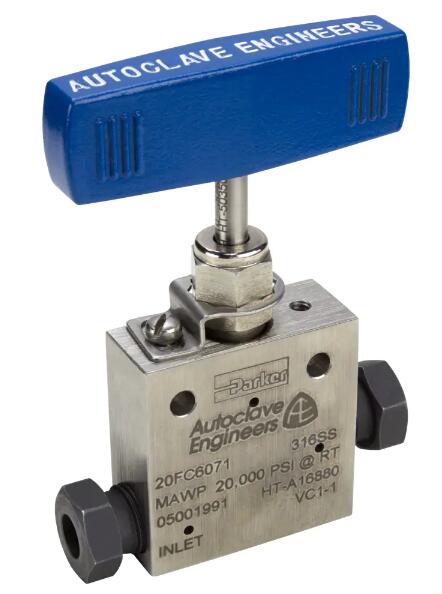

Needle Valve, FCNV Series - 22,500 PSI
Parker Autoclave's FCNV Series needle valve is specifically designed to interface with the FCC Flared Cone Connection to 22,500 psi (1,550 bar). The needle valves are available to connect with 1/4" to 1” O.D. Parker Autoclave tube sizes.
Parker Autoclave's FCNV Series needle valves are specifically designed to interface to tubing using Flared Cone Connection (FCC) technology. This unique patent-pending technology uses a single compression sleeve and a flared tube end to create a dual seal connection that is suitable for a wide range of medium pressure applications up to 22,500 PSI (1,550 bar).
The valves are available to suit 1/4", 3/8”, 9/16”, 3/4" and 1” O.D. tube sizes, with a choice of five body patterns including 2-way straight and angle, and three 3-way configurations. As standard, all the valves are manufactured from cold worked 316 stainless steel, with 2507 super duplex versions available as options. The 316 stainless steel versions have a pressure rating of 20,000 PSI (1,379 bar), while the 2507 Super Duplex versions are rated at 22,500 PSI (1,550 bar).
As standard, FCNV series needle valves with PTFE packing have an operating temperature range of -18 to 232?C (0 to 450?F). Various packing options are available to extend the lower limit to -73?C (-100?F) and the upper limit to 316?C (600?F).
All these needle valves feature a non-rotating rising stem to prevent stem/seat galling, utilise metal-to-metal seating to ensure bubble-tight shut-off, and incorporate connection weep holes for safety and leak detection.
Needle Valve, FCNV Series - 22,500 PSI
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research
Features/Benefits:
- FCC connection integral to valve body
- Tubing sizes available from 1/4” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tip.
- Available in five body patterns.
Applications:
- High Pressure Panels
- Chemical Injection Skids
- High Pressure Fluid Handling Systems
Technical Specifications
| Options: |
For extreme temperature and other options consult factory |
| Connection Size: |
FLC250, FLC375, FLC562, FLC750, FLC1000 |
| Orifice Size: |
0.109, 0.203, 0.312, 0.438, 0.562 inch, 2.76, 5.15, 7.92, 11.12, 14.27 mm |
| Flow Rate: |
0.31, 0.75, 1.30, 2.50, 4.40 Cv |
| Pressure Rating: |
20000 PSI (Stainless Steel as standard), 22500 PSI (Super Duplex option) psi, 1379 bar (Stainless Steel as standard), 1550 bar (Super Duplex option) bar |
| Tube Outside Diameter: |
1/4", 3/8", 9/16", 3/4", 1" inch |
| Stem Type: |
Non Rotating Vee Stem (on/off service), Non Rotating regulating stem (tapered tip for regulating and shutoff), Vee Stem with replaceable seat, Regulating Stem with replaceable seat |
| Body Type: |
2 way straight, 2 way angle, 3 way, 2 on pressure, 3 way, 1 on pressure, 3 way, 2 stem manifold valve |
Needle Valve, FCNV Series - 22,500 PSI 型号
| Part |
Tube O.D. (inch) |
Stem Type |
Body Pattern |
| FCNV12071 |
3/4" |
Non Rotating Vee Stem (on/off service) |
2 way straight |
| FCNV12072 |
3/4" |
Non Rotating Vee Stem (on/off service) |
2 way angle |
| FCNV12073 |
3/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 on pressure |
| FCNV12074 |
3/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 1 on pressure |
| FCNV12075 |
3/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 stem manifold valve |
| FCNV12081 |
3/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way straight |
| FCNV12082 |
3/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way angle |
| FCNV12083 |
3/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 on pressure |
| FCNV12084 |
3/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 1 on pressure |
| FCNV12085 |
3/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 stem manifold valve |
| FCNV12871 |
3/4" |
Vee Stem with replaceable seat |
2 way straight |
| FCNV12872 |
3/4" |
Vee Stem with replaceable seat |
2 way angle |
| FCNV12873 |
3/4" |
Vee Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV12874 |
3/4" |
Vee Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV12875 |
3/4" |
Vee Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV12881 |
3/4" |
Regulating Stem with replaceable seat |
2 way straight |
| FCNV12882 |
3/4" |
Regulating Stem with replaceable seat |
2 way angle |
| FCNV12883 |
3/4" |
Regulating Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV12884 |
3/4" |
Regulating Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV12885 |
3/4" |
Regulating Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV16071 |
1" |
Non Rotating Vee Stem (on/off service) |
2 way straight |
| FCNV16072 |
1" |
Non Rotating Vee Stem (on/off service) |
2 way angle |
| FCNV16073 |
1" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 on pressure |
| FCNV16074 |
1" |
Non Rotating Vee Stem (on/off service) |
3 way, 1 on pressure |
| FCNV16075 |
1" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 stem manifold valve |
| FCNV16081 |
1" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way straight |
| FCNV16082 |
1" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way angle |
| FCNV16083 |
1" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 on pressure |
| FCNV16084 |
1" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 1 on pressure |
| FCNV16085 |
1" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 stem manifold valve |
| FCNV16871 |
1" |
Vee Stem with replaceable seat |
2 way straight |
| FCNV16872 |
1" |
Vee Stem with replaceable seat |
2 way angle |
| FCNV16873 |
1" |
Vee Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV16874 |
1" |
Vee Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV16875 |
1" |
Vee Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV16881 |
1" |
Regulating Stem with replaceable seat |
2 way straight |
| FCNV16882 |
1" |
Regulating Stem with replaceable seat |
2 way angle |
| FCNV16883 |
1" |
Regulating Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV16884 |
1" |
Regulating Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV16885 |
1" |
Regulating Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV4071 |
1/4" |
Non Rotating Vee Stem (on/off service) |
2 way straight |
| FCNV4072 |
1/4" |
Non Rotating Vee Stem (on/off service) |
2 way angle |
| FCNV4073 |
1/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 on pressure |
| FCNV4074 |
1/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 1 on pressure |
| FCNV4075 |
1/4" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 stem manifold valve |
| FCNV4081 |
1/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way straight |
| FCNV4082 |
1/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way angle |
| FCNV4083 |
1/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 on pressure |
| FCNV4084 |
1/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 1 on pressure |
| FCNV4085 |
1/4" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 stem manifold valve |
| FCNV4871 |
1/4" |
Vee Stem with replaceable seat |
2 way straight |
| FCNV4872 |
1/4" |
Vee Stem with replaceable seat |
2 way angle |
| FCNV4873 |
1/4" |
Vee Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV4874 |
1/4" |
Vee Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV4875 |
1/4" |
Vee Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV4881 |
1/4" |
Regulating Stem with replaceable seat |
2 way straight |
| FCNV4882 |
1/4" |
Regulating Stem with replaceable seat |
2 way angle |
| FCNV4883 |
1/4" |
Regulating Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV4884 |
1/4" |
Regulating Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV4885 |
1/4" |
Regulating Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV6071 |
3/8" |
Non Rotating Vee Stem (on/off service) |
2 way straight |
| FCNV6072 |
3/8" |
Non Rotating Vee Stem (on/off service) |
2 way angle |
| FCNV6073 |
3/8" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 on pressure |
| FCNV6074 |
3/8" |
Non Rotating Vee Stem (on/off service) |
3 way, 1 on pressure |
| FCNV6075 |
3/8" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 stem manifold valve |
| FCNV6081 |
3/8" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way straight |
| FCNV6082 |
3/8" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way angle |
| FCNV6083 |
3/8" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 on pressure |
| FCNV6084 |
3/8" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 1 on pressure |
| FCNV6085 |
3/8" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 stem manifold valve |
| FCNV6871 |
3/8" |
Vee Stem with replaceable seat |
2 way straight |
| FCNV6872 |
3/8" |
Vee Stem with replaceable seat |
2 way angle |
| FCNV6873 |
3/8" |
Vee Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV6874 |
3/8" |
Vee Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV6875 |
3/8" |
Vee Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV6881 |
3/8" |
Regulating Stem with replaceable seat |
2 way straight |
| FCNV6882 |
3/8" |
Regulating Stem with replaceable seat |
2 way angle |
| FCNV6883 |
3/8" |
Regulating Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV6884 |
3/8" |
Regulating Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV6885 |
3/8" |
Regulating Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV9071 |
9/16" |
Non Rotating Vee Stem (on/off service) |
2 way straight |
| FCNV9072 |
9/16" |
Non Rotating Vee Stem (on/off service) |
2 way angle |
| FCNV9073 |
9/16" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 on pressure |
| FCNV9074 |
9/16" |
Non Rotating Vee Stem (on/off service) |
3 way, 1 on pressure |
| FCNV9075 |
9/16" |
Non Rotating Vee Stem (on/off service) |
3 way, 2 stem manifold valve |
| FCNV9081 |
9/16" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way straight |
| FCNV9082 |
9/16" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
2 way angle |
| FCNV9083 |
9/16" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 on pressure |
| FCNV9084 |
9/16" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 1 on pressure |
| FCNV9085 |
9/16" |
Non Rotating regulating stem (tapered tip for regulating and shutoff) |
3 way, 2 stem manifold valve |
| FCNV9871 |
9/16" |
Vee Stem with replaceable seat |
2 way straight |
| FCNV9872 |
9/16" |
Vee Stem with replaceable seat |
2 way angle |
| FCNV9873 |
9/16" |
Vee Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV9874 |
9/16" |
Vee Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV9875 |
9/16" |
Vee Stem with replaceable seat |
3 way, 2 stem manifold valve |
| FCNV9881 |
9/16" |
Regulating Stem with replaceable seat |
2 way straight |
| FCNV9882 |
9/16" |
Regulating Stem with replaceable seat |
2 way angle |
| FCNV9883 |
9/16" |
Regulating Stem with replaceable seat |
3 way, 2 on pressure |
| FCNV9884 |
9/16" |
Regulating Stem with replaceable seat |
3 way, 1 on pressure |
| FCNV9885 |
9/16" |
Regulating Stem with replaceable seat |
3 way, 2 stem manifold valve |
|
