Hose Fittings

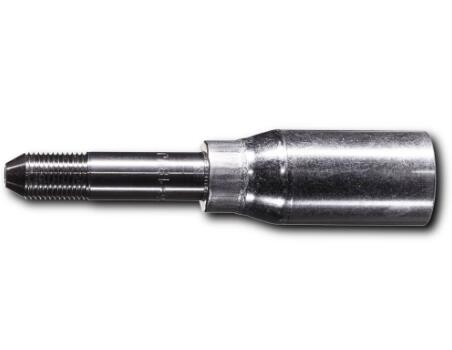

Crimped Thermoplastic UHP Hose Fittings, 2X Series
Parker High Pressure 2X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure from 280 up to 400 MPa.
Parker Polyflex High Pressure 2X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, 2X Series
Markets:
- Oil & Gas
- Industrial cleaning
- Marine cleaning
- Water jet cutting (only hoses > 2000 bar)
- All markets requiring pressures over 700bar for their cleaning and cutting applications.
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application..
Applications:
- Media transfer
- Construction and shipbuilding industrie (up to 300 MPa)
- Industrial cleaning
- Hydrodemolition and removal of accumulated dirt
- Water jet cutting with water only or with abrasive additives
- Compression forming (hydroforming)
- Water blasting
- Bolt tensioning
- Suitable for waterplast hose types with working pressure from 103.5 up to 110 MPa (40.600 up to 58.000 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN4 - 8 |
| Hose I.D. (size): |
21 |
| Hose Inside Diameter: |
5/32 - 1/4 inch |
| Connection Type: |
UNF, BSP, Metric, UNF-LH, Metric - LH |
| Length: |
61 - 125 mm, 154,94 - 317,50 inch |
| Maximum Operating Pressure: |
280 - 400 MPa |
| Shape: |
Straight |
| Product Style: |
Multiple Styles Available |
| Materials of Construction: |
Multiple Materials Available |
Crimped Thermoplastic UHP Hose Fittings, 2X Series型号
|
