Parker PFA Valves

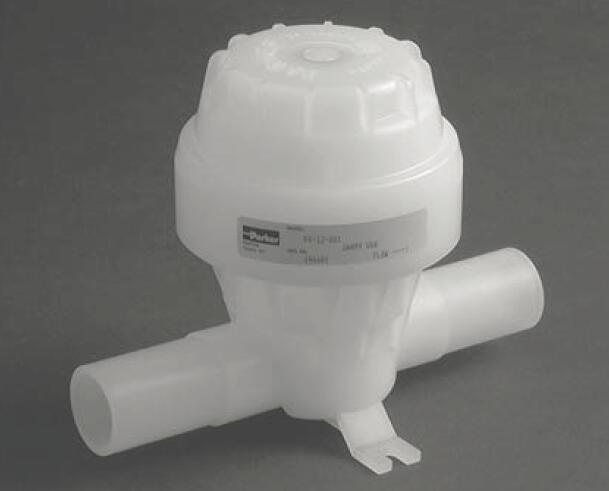

UHP PFA Air-operated Diaphragm (3/4 inch) 2 Way Valve – PV-16 Series
The PV-16 Series PFA Diaphragm Valve offers high leak integrity and excellent resistance to corrosion. It is available in 2-way configurations and is designed for ultra-high purity (UHP) and aggressive liquid and gas applications.
The PV-16 Series is a 3/4 inch PFA air-operated diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive fluid handling applications, including semiconductor manufacturing operations. The valve is available in 2-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.
The PV-16 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and higher cycle life than conventional PTFE. The valve also features an Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, PV-16 Series valves can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.
The PV-16 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in high cycle life, lower replacement costs, and isolation of process media from the actuator. The valve features a full 3/4 inch orifice with no restrictions for maximum flow in a compact package at working pressures up to 120 psig. Flow capacities are dictated by configuration and end type (up to 7.9 C?v for PV-16 with Parbond or Parflare connection). The valve's actuation pressure ranges from 60 – 120 psig.
UHP PFA Air-operated Diaphragm (3/4 inch) 2 Way Valve – PV-16 Series
Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Bidirectionally pressure rated from vacuum to 120 psig
- Available in 2-way configuration
- Compact actuator design has a 60 - 120 psig actuation pressure
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)
Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)
Technical Specifications
Wetted Material: |
PFA, Modified PTFE |
Non-Wetted Material: |
PVDF, Viton, PTFE Coated SS Spring |
Pressure Rating: |
0-120 psig (8.3 bar) |
Actuation Pressure: |
60 psig (4.1 bar) - 120 psig (8.3 bar) |
Maximum Ambient Temperature: |
66 °C, 150 °F |
Minimum Ambient Temperature: |
-17 °C, 0 °F |
Maximum Fluid Temperature: |
130 °C, 266 °F |
Minimum Fluid Temperature: |
-17 °C, 0 °F |
Port 2 Size: |
3/4 (Parflare), 3/4 (Parflare Long), 1 (Parflare), 3/4 (Parbond) inch |
Flow Rate: |
Cv: 5.8, 7.9 |
Flow Coefficient: |
Kv: 82.7 to 112.6 L/min |
UHP PFA Air-operated Diaphragm (3/4 inch) 2 Way Valve – PV-16 Series 型号
Part |
Port Connection 1 (inch) |
Nut Material |
Actuation |
Overall Length |
PV-16-1612 |
3/4" Parflare |
PVDF |
Normally Closed |
5.54 (140.72) mm |
PV-16-1612-01 |
3/4 Parflare Long |
PVDF |
Normally Closed |
6.48 (164.59) mm |
PV-16-1612-01-T |
3/4 Parflare Long |
PFA |
Normally Closed |
6.48 (164.59) mm |
PV-16-1612-T |
3/4" Parflare |
PFA |
Normally Closed |
5.54 (140.72) mm |
PV-16-1616 |
1" Parflare |
PVDF |
Normally Closed |
9.12 (231.65) mm |
PV-16-1616-T |
1" Parflare |
PFA |
Normally Closed |
9.12 (231.65) mm |
PV-16-1712 |
3/4" Parbond |
N/A |
Normally Closed |
5.90 (149.86) mm |
PV-16-2612 |
3/4" Parflare |
PVDF |
Normally Open |
5.54 (140.72) mm |
PV-16-2612-01 |
3/4" Parflare |
PVDF |
Normally Open |
6.48 (164.59) mm |
PV-16-2612-T |
3/4" Parflare |
PFA |
Normally Open |
5.54 (140.72) mm |
PV-16-2616 |
1" Parflare |
PVDF |
Normally Open |
9.12 (231.65) mm |
PV-16-2712 |
3/4" Parbond |
N/A |
Normally Open |
5.90 (149.86) mm |
|
