Parker 球阀
Parker Ball Valves

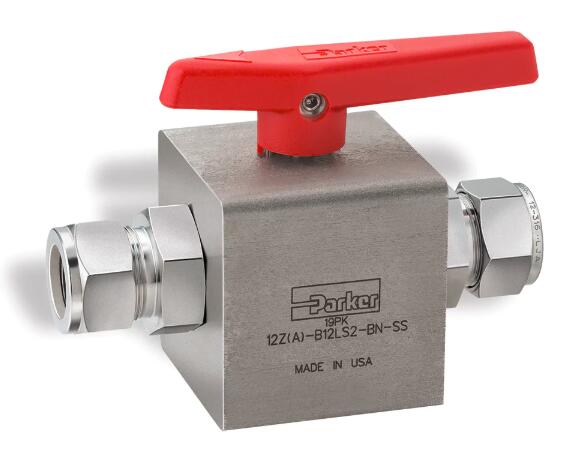

Ball Valve,4000 PSI - B12 Series

Parker's B12 Series Ball Valve, with a "free floating " ball design, offers superior performance in 3/4" and 1" tubing systems.





Parker's B12 Series Ball Valves are available to operate manually or pneumatically for large ?” and 1” tubing systems.. They provide quick on-off control of fluids utilized in process and instrumentation applications. The “free floating ball” design provides excellent seat wear compensation during cycling and creates an effective seal on the downstream side. This large ball valve works up to 4,000 PSI and temperatures up to 350F/177C.


Markets:

- Chemical Plants
- Refineries
- Power Plants
- Petrochemical Plants

Features/Benefits:

- Blow-out resistant stem
- Spring-loaded ball seats
- Bi-directional flow
- Stainless steel construction
- Micro-finished ball provides a positive seal
- Handle indicates flow direction
- Color coded handles
- Low operating torques
- Optional pneumatic actuation
- 100% factory tested

Applications:

- Flow Diversion
- Flow Selection
- Quick Fill Systems in Large Tubing Systems
- Instrument Panels





Technical Specifications

Maximum Operating Pressure: 4,000 psi, 276 bar
Maximum Operating Temperature: 350 °F, 177 °C
Minimum Operating Temperature: -54 °C
Connection 1 Size: 3/4", 1", Two Ferrule Compression, Single Ferrule Compression, NPT F
Connection 2 Size: 3/4", 1", Two Ferrule Compression, Single Ferrule Compression, NPT F
Seat Material: Fluorocarbon Rubber
Body Material: Stainless Steel



Ball Valve,4000 PSI - B12 Series 型号

Part Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Seat Material Body Material
12A-B12LS2-V-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Stainless Steel
12F-B12LS2-V-SS 3/4" 3/4" NPT F NPT F Fluorocarbon Rubber Stainless Steel
12Z-B12LS2-V-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Stainless Steel
16A-B12LS2-V-SS 1" 1" Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Stainless Steel
16F-B12LS2-V-SS 1" 1" NPT F NPT F Fluorocarbon Rubber Stainless Steel
16Z-B12LS2-V-SS 1" 1" Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Stainless Steel
