Parker 针阀
Parker Needle Valves

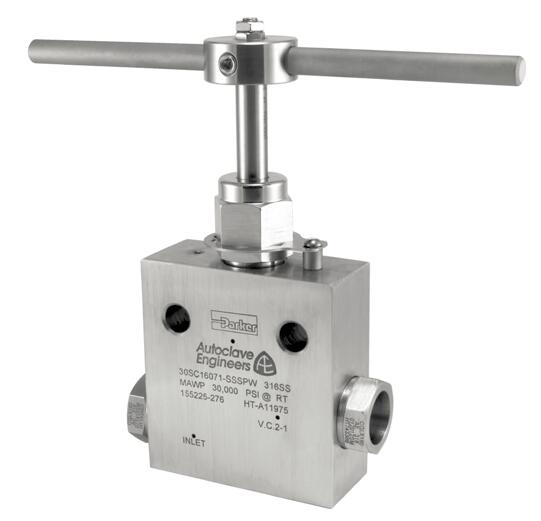

Needle Valve, High Pressure - SC Series

Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection.





Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, working pressures to 43,000 psi (2965 bar). Tubing sizes are 1" for this high pressure valve. Tubing connections utilizes Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may
be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C)

Along with their many features these valves provide dependable and trouble free service in wide variety of applications.



Needle Valve, High Pressure - SC Series



Markets:
- Oil and Gas
- Petrochemical
- Chemical


Features/Benefits:
- Tubing sizes from 1/4” to 1”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- For dependable stem and body sealing 30SC, 43SC and 30VM valves are furnished with PTFE encapsulated packing; the 40VM and 60VM valves feature nylon/leather packing below threads.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.


Applications:
- Large Diameter Tubing Lines
- High Pressure Skid Panels
- Chemical Injection
- High Pressure Fluid Handling Systems



Technical Specifications

Connection Type: 1" Cone and Thread
Stem Type: Vee, Reg
Body Type: 2 Way Straight, 2 Way Angle
Body Material: 316 Stainless Steel
Maximum Operating Pressure: 30,000, 43,000 psig



Needle Valve, High Pressure - SC Series 型号

Part Connection Style Stem Type Body Type Body Material Maximum Pressure (psig)
30SC16071 1" Cone and Thread Vee 2 Way Straight 316 Stainless Steel 30,000
30SC16072 1" Cone and Thread Vee 2 Way Angle 316 Stainless Steel 30,000
30SC16081 1" Cone and Thread Reg 2 Way Straight 316 Stainless Steel 30,000
30SC16082 1" Cone and Thread Reg 2 Way Angle 316 Stainless Steel 30,000
43SC16071 1" Cone and Thread Vee 2 Way Straight 316 Stainless Steel 43,000
43SC16072 1" Cone and Thread Vee 2 Way Angle 316 Stainless Steel 43,000
43SC16081 1" Cone and Thread Reg 2 Way Straight 316 Stainless Steel 43,000
43SC16082 1" Cone and Thread Reg 2 Way Angle 316 Stainless Steel 43,000
