Parker 针阀
Parker Needle Valves

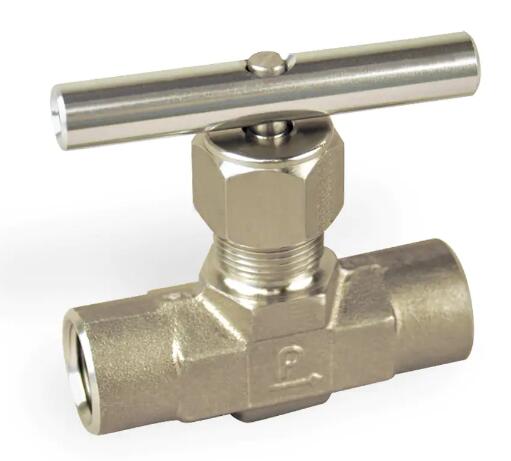

Needle Valve, 5000 PSI - V Series

Parker's V Series Needle Valves are designed for positive leak tight shut-off and regulation of fluids and gases. These valves are for instrumentation and general purpose applications up to 5,000 PSI.





Parker's V Series Needle Valves are designed for positive, leak tight shut-off and regulation of fluids in process, power, and instrumentation applications. These inline and angle pattern valves come with a wide variety of port sizes and styles, temperature capabilities ranging from -65°F to 450°F (-54°C to 232°C) and pressures to 5000 psig (345 bar) ). V Series Needle Valves provide the utmost in flexibility when designing instrumentation tubing or piping systems.



Needle Valve, 5000 PSI - V Series



Markets:

- Pulp and Paper
- Chemical
- Oil and Gas
- Power
- Laboratories

Features/Benefits:

- Choice of three stem types:
R-Stem – All metal, blunt stem tip
N-Stem – All metal, tapered needle stem tip
K-Stem – PCTFE stem tip
- Differential hardness between the strain hardened stem and cold formed body threads provides improved cycle life
- Choice of PTFE packing or elastomeric O-ring stem seals
- 316 Stainless Steel, Steel, Brass' and Monel? ,Alloy 400 construction
- Inline and angle patterns
- Wide variety of US Customary and SI ports
- Panel mountable
- 100% factory tested
- Optional color coded handles

Applications:

- Process System Control and Shut Off
- Sampling Bottles
- Instrument Air
- Control Panels



Technical Specifications

Body Material: 316 Stainless Steel
Connection 1 Size: 1/4"-1/2", Two Ferrule Compression, Single Ferrule Compression, NPT F, NPT M
Connection 2 Size: 1/4"-1/2", Two Ferrule Compression, Single Ferrule Compression, NPT F, NPT M
Stem Type: Needle, Blunt, PCTFE
Body Type: Inline



Needle Valve, 5000 PSI - V Series 型号

Part Body Material Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Stem Type Body Type Body Size (inch)
10A-V12AK-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/4"
10A-V12AK-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/4"
10A-V12AN-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/4"
10A-V12AN-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/4"
10A-V12AR-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/4"
10A-V12AR-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/4"
10A-V12LK-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression PCTFE InLine 3/4"
10A-V12LK-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression PCTFE InLine 3/4"
10A-V12LN-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Needle InLine 3/4"
10A-V12LN-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Needle InLine 3/4"
10A-V12LR-B Brass 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Blunt InLine 3/4"
10A-V12LR-SS 316 Stainless Steel 5/8" 5/8" Two Ferrule Compression Two Ferrule Compression Blunt InLine 3/4"
10Z-V12AK-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/4"
10Z-V12AK-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/4"
10Z-V12AN-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/4"
10Z-V12AN-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/4"
10Z-V12AR-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/4"
10Z-V12AR-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/4"
10Z-V12LK-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression PCTFE InLine 3/4"
10Z-V12LK-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression PCTFE InLine 3/4"
10Z-V12LN-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Needle InLine 3/4"
10Z-V12LN-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Needle InLine 3/4"
10Z-V12LR-B Brass 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Blunt InLine 3/4"
10Z-V12LR-SS 316 Stainless Steel 5/8" 5/8" Single Ferrule Compression Single Ferrule Compression Blunt InLine 3/4"
12A-V12AK-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/4"
12A-V12AK-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/4"
12A-V12AN-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/4"
12A-V12AN-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/4"
12A-V12AR-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/4"
12A-V12AR-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/4"
12A-V12LK-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression PCTFE InLine 3/4"
12A-V12LK-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression PCTFE InLine 3/4"
12A-V12LN-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Needle InLine 3/4"
12A-V12LN-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Needle InLine 3/4"
12A-V12LR-B Brass 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Blunt InLine 3/4"
12A-V12LR-SS 316 Stainless Steel 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression Blunt InLine 3/4"
12Z-V12AK-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/4"
12Z-V12AK-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/4"
12Z-V12AN-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/4"
12Z-V12AN-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/4"
12Z-V12AR-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/4"
12Z-V12AR-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/4"
12Z-V12LK-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression PCTFE InLine 3/4"
12Z-V12LK-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression PCTFE InLine 3/4"
12Z-V12LN-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Needle InLine 3/4"
12Z-V12LN-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Needle InLine 3/4"
12Z-V12LR-B Brass 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Blunt InLine 3/4"
12Z-V12LR-SS 316 Stainless Steel 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression Blunt InLine 3/4"
2A-V2AK-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/8"
2A-V2AK-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/8"
2A-V2AN-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/8"
2A-V2AN-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/8"
2A-V2AR-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/8"
2A-V2AR-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/8"
2A-V2LK-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/8"
2A-V2LK-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/8"
2A-V2LN-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/8"
2A-V2LN-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/8"
2A-V2LR-B Brass 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/8"
2A-V2LR-SS 316 Stainless Steel 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/8"
2F-V2AK-B Brass 1/8" 1/8" NPT F NPT F PCTFE Angle 1/8"
2F-V2AK-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F PCTFE Angle 1/8"
2F-V2AN-B Brass 1/8" 1/8" NPT F NPT F Needle Angle 1/8"
2F-V2AN-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F Needle Angle 1/8"
2F-V2AR-B Brass 1/8" 1/8" NPT F NPT F Blunt Angle 1/8"
2F-V2AR-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F Blunt Angle 1/8"
2F-V2LK-B Brass 1/8" 1/8" NPT F NPT F PCTFE Inline 1/8"
2F-V2LK-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F PCTFE Inline 1/8"
2F-V2LN-B Brass 1/8" 1/8" NPT F NPT F Needle Inline 1/8"
2F-V2LN-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F Needle Inline 1/8"
2F-V2LR-B Brass 1/8" 1/8" NPT F NPT F Blunt Inline 1/8"
2F-V2LR-SS 316 Stainless Steel 1/8" 1/8" NPT F NPT F Blunt Inline 1/8"
2M-V2AK-B Brass 1/8" 1/8" NPT M NPT M PCTFE Angle 1/8"
2M-V2AK-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M PCTFE Angle 1/8"
2M-V2AN-B Brass 1/8" 1/8" NPT M NPT M Needle Angle 1/8"
2M-V2AN-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M Needle Angle 1/8"
2M-V2AR-B Brass 1/8" 1/8" NPT M NPT M Blunt Angle 1/8"
2M-V2AR-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M Blunt Angle 1/8"
2M-V2LK-B Brass 1/8" 1/8" NPT M NPT M PCTFE Inline 1/8"
2M-V2LK-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M PCTFE Inline 1/8"
2M-V2LN-B Brass 1/8" 1/8" NPT M NPT M Needle Inline 1/8"
2M-V2LN-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M Needle Inline 1/8"
2M-V2LR-B Brass 1/8" 1/8" NPT M NPT M Blunt Inline 1/8"
2M-V2LR-SS 316 Stainless Steel 1/8" 1/8" NPT M NPT M Blunt Inline 1/8"
2Z-V2AK-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/8"
2Z-V2AK-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/8"
2Z-V2AN-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/8"
2Z-V2AN-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/8"
2Z-V2AR-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/8"
2Z-V2AR-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/8"
2Z-V2LK-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/8"
2Z-V2LK-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/8"
2Z-V2LN-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/8"
2Z-V2LN-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/8"
2Z-V2LR-B Brass 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/8"
2Z-V2LR-SS 316 Stainless Steel 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/8"
4A-V4AK-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/4"
4A-V4AK-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/4"
4A-V4AN-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/4"
4A-V4AN-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/4"
4A-V4AR-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/4"
4A-V4AR-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/4"
4A-V4LK-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/4"
4A-V4LK-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/4"
4A-V4LN-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/4"
4A-V4LN-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/4"
4A-V4LR-B Brass 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/4"
4A-V4LR-SS 316 Stainless Steel 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/4"
4F-V4AK-B Brass 1/4" 1/4" NPT F NPT F PCTFE Angle 1/4"
4F-V4AK-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F PCTFE Angle 1/4"
4F-V4AN-B Brass 1/4" 1/4" NPT F NPT F Needle Angle 1/4"
4F-V4AN-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Needle Angle 1/4"
4F-V4AR-B Brass 1/4" 1/4" NPT F NPT F Blunt Angle 1/4"
4F-V4AR-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Blunt Angle 1/4"
4F-V4LK-B Brass 1/4" 1/4" NPT F NPT F PCTFE Inline 1/4"
4F-V4LK-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F PCTFE Inline 1/4"
4F-V4LN-B Brass 1/4" 1/4" NPT F NPT F Needle Inline 1/4"
4F-V4LN-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Needle Inline 1/4"
4F-V4LR-B Brass 1/4" 1/4" NPT F NPT F Blunt Inline 1/4"
4F-V4LR-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Blunt Inline 1/4"
4F-V6AK-B Brass 1/4" 1/4" NPT F NPT F PCTFE Angle 3/8"
4F-V6AK-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F PCTFE Angle 3/8"
4F-V6AN-B Brass 1/4" 1/4" NPT F NPT F Needle Angle 3/8"
4F-V6AN-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Needle Angle 3/8"
4F-V6AR-B Brass 1/4" 1/4" NPT F NPT F Blunt Angle 3/8"
4F-V6AR-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Blunt Angle 3/8"
4F-V6LK-B Brass 1/4" 1/4" NPT F NPT F PCTFE Inline 3/8"
4F-V6LK-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F PCTFE Inline 3/8"
4F-V6LN-B Brass 1/4" 1/4" NPT F NPT F Needle Inline 3/8"
4F-V6LN-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Needle Inline 3/8"
4F-V6LR-B Brass 1/4" 1/4" NPT F NPT F Blunt Inline 3/8"
4F-V6LR-SS 316 Stainless Steel 1/4" 1/4" NPT F NPT F Blunt Inline 3/8"
4M-V4AK-B Brass 1/4" 1/4" NPT M NPT M PCTFE Angle 1/4"
4M-V4AK-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M PCTFE Angle 1/4"
4M-V4AN-B Brass 1/4" 1/4" NPT M NPT M Needle Angle 1/4"
4M-V4AN-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M Needle Angle 1/4"
4M-V4AR-B Brass 1/4" 1/4" NPT M NPT M Blunt Angle 1/4"
4M-V4AR-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M Blunt Angle 1/4"
4M-V4LK-B Brass 1/4" 1/4" NPT M NPT M PCTFE Inline 1/4"
4M-V4LK-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M PCTFE Inline 1/4"
4M-V4LN-B Brass 1/4" 1/4" NPT M NPT M Needle Inline 1/4"
4M-V4LN-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M Needle Inline 1/4"
4M-V4LR-B Brass 1/4" 1/4" NPT M NPT M Blunt Inline 1/4"
4M-V4LR-SS 316 Stainless Steel 1/4" 1/4" NPT M NPT M Blunt Inline 1/4"
4Z-V4AK-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/4"
4Z-V4AK-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/4"
4Z-V4AN-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/4"
4Z-V4AN-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/4"
4Z-V4AR-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/4"
4Z-V4AR-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/4"
4Z-V4LK-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/4"
4Z-V4LK-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/4"
4Z-V4LN-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/4"
4Z-V4LN-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/4"
4Z-V4LR-B Brass 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/4"
4Z-V4LR-SS 316 Stainless Steel 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/4"
6A-V6AK-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/8"
6A-V6AK-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/8"
6A-V6AN-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/8"
6A-V6AN-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/8"
6A-V6AR-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/8"
6A-V6AR-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/8"
6A-V6LK-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 3/8"
6A-V6LK-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 3/8"
6A-V6LN-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Needle Inline 3/8"
6A-V6LN-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Needle Inline 3/8"
6A-V6LR-B Brass 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Blunt Inline 3/8"
6A-V6LR-SS 316 Stainless Steel 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Blunt Inline 3/8"
6M-V6AK-B Brass 3/8" 3/8" NPT M NPT M PCTFE Angle 3/8"
6M-V6AK-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M PCTFE Angle 3/8"
6M-V6AN-B Brass 3/8" 3/8" NPT M NPT M Needle Angle 3/8"
6M-V6AN-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M Needle Angle 3/8"
6M-V6AR-B Brass 3/8" 3/8" NPT M NPT M Blunt Angle 3/8"
6M-V6AR-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M Blunt Angle 3/8"
6M-V6LK-B Brass 3/8" 3/8" NPT M NPT M PCTFE Inline 3/8"
6M-V6LK-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M PCTFE Inline 3/8"
6M-V6LN-B Brass 3/8" 3/8" NPT M NPT M Needle Inline 3/8"
6M-V6LN-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M Needle Inline 3/8"
6M-V6LR-B Brass 3/8" 3/8" NPT M NPT M Blunt Inline 3/8"
6M-V6LR-SS 316 Stainless Steel 3/8" 3/8" NPT M NPT M Blunt Inline 3/8"
6Z-V6AK-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/8"
6Z-V6AK-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/8"
6Z-V6AN-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/8"
6Z-V6AN-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/8"
6Z-V6AR-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/8"
6Z-V6AR-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/8"
6Z-V6LK-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 3/8"
6Z-V6LK-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 3/8"
6Z-V6LN-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Needle Inline 3/8"
6Z-V6LN-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Needle Inline 3/8"
6Z-V6LR-B Brass 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Blunt Inline 3/8"
6Z-V6LR-SS 316 Stainless Steel 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Blunt Inline 3/8"
8A-V6AK-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/8"
8A-V6AK-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 3/8"
8A-V6AN-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/8"
8A-V6AN-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Angle 3/8"
8A-V6AR-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/8"
8A-V6AR-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Angle 3/8"
8A-V6LK-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 3/8"
8A-V6LK-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 3/8"
8A-V6LN-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Inline 3/8"
8A-V6LN-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Inline 3/8"
8A-V6LR-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Inline 3/8"
8A-V6LR-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Inline 3/8"
8A-V8AK-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/2"
8A-V8AK-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Angle 1/2"
8A-V8AN-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/2"
8A-V8AN-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Angle 1/2"
8A-V8AR-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/2"
8A-V8AR-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Angle 1/2"
8A-V8LK-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/2"
8A-V8LK-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression PCTFE Inline 1/2"
8A-V8LN-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/2"
8A-V8LN-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Needle Inline 1/2"
8A-V8LR-B Brass 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/2"
8A-V8LR-SS 316 Stainless Steel 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Blunt Inline 1/2"
8F-V12AK-B Brass 1/2" 1/2" NPT F NPT F PCTFE Angle 3/4"
8F-V12AK-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F PCTFE Angle 3/4"
8F-V12AN-B Brass 1/2" 1/2" NPT F NPT F Needle Angle 3/4"
8F-V12AN-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Needle Angle 3/4"
8F-V12AR-B Brass 1/2" 1/2" NPT F NPT F Blunt Angle 3/4"
8F-V12AR-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Blunt Angle 3/4"
8F-V12LK-B Brass 1/2" 1/2" NPT F NPT F PCTFE InLine 3/4"
8F-V12LK-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F PCTFE InLine 3/4"
8F-V12LN-B Brass 1/2" 1/2" NPT F NPT F Needle InLine 3/4"
8F-V12LN-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Needle InLine 3/4"
8F-V12LR-B Brass 1/2" 1/2" NPT F NPT F Blunt InLine 3/4"
8F-V12LR-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Blunt InLine 3/4"
8F-V8AK-B Brass 1/2" 1/2" NPT F NPT F PCTFE Angle 1/2"
8F-V8AK-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F PCTFE Angle 1/2"
8F-V8AN-B Brass 1/2" 1/2" NPT F NPT F Needle Angle 1/2"
8F-V8AN-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Needle Angle 1/2"
8F-V8AR-B Brass 1/2" 1/2" NPT F NPT F Blunt Angle 1/2"
8F-V8AR-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Blunt Angle 1/2"
8F-V8LK-B Brass 1/2" 1/2" NPT F NPT F PCTFE Inline 1/2"
8F-V8LK-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F PCTFE Inline 1/2"
8F-V8LN-B Brass 1/2" 1/2" NPT F NPT F Needle Inline 1/2"
8F-V8LN-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Needle Inline 1/2"
8F-V8LR-B Brass 1/2" 1/2" NPT F NPT F Blunt Inline 1/2"
8F-V8LR-SS 316 Stainless Steel 1/2" 1/2" NPT F NPT F Blunt Inline 1/2"
8M-V8AK-B Brass 1/2" 1/2" NPT M NPT M PCTFE Angle 1/2"
8M-V8AK-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M PCTFE Angle 1/2"
8M-V8AN-B Brass 1/2" 1/2" NPT M NPT M Needle Angle 1/2"
8M-V8AN-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M Needle Angle 1/2"
8M-V8AR-B Brass 1/2" 1/2" NPT M NPT M Blunt Angle 1/2"
8M-V8AR-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M Blunt Angle 1/2"
8M-V8LK-B Brass 1/2" 1/2" NPT M NPT M PCTFE Inline 1/2"
8M-V8LK-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M PCTFE Inline 1/2"
8M-V8LN-B Brass 1/2" 1/2" NPT M NPT M Needle Inline 1/2"
8M-V8LN-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M Needle Inline 1/2"
8M-V8LR-B Brass 1/2" 1/2" NPT M NPT M Blunt Inline 1/2"
8M-V8LR-SS 316 Stainless Steel 1/2" 1/2" NPT M NPT M Blunt Inline 1/2"
8W-V12AK-B Brass 1/2" 1/2" Socket Weld Socket Weld PCTFE Angle 3/4"
8W-V12AK-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld PCTFE Angle 3/4"
8W-V12AN-B Brass 1/2" 1/2" Socket Weld Socket Weld Needle Angle 3/4"
8W-V12AN-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld Needle Angle 3/4"
8W-V12AR-B Brass 1/2" 1/2" Socket Weld Socket Weld Blunt Angle 3/4"
8W-V12AR-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld Blunt Angle 3/4"
8W-V12LK-B Brass 1/2" 1/2" Socket Weld Socket Weld PCTFE InLine 3/4"
8W-V12LK-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld PCTFE InLine 3/4"
8W-V12LN-B Brass 1/2" 1/2" Socket Weld Socket Weld Needle InLine 3/4"
8W-V12LN-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld Needle InLine 3/4"
8W-V12LR-B Brass 1/2" 1/2" Socket Weld Socket Weld Blunt InLine 3/4"
8W-V12LR-SS 316 Stainless Steel 1/2" 1/2" Socket Weld Socket Weld Blunt InLine 3/4"
8Z-V6AK-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/8"
8Z-V6AK-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 3/8"
8Z-V6AN-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/8"
8Z-V6AN-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Angle 3/8"
8Z-V6AR-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/8"
8Z-V6AR-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Angle 3/8"
8Z-V6LK-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 3/8"
8Z-V6LK-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 3/8"
8Z-V6LN-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Inline 3/8"
8Z-V6LN-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Inline 3/8"
8Z-V6LR-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Inline 3/8"
8Z-V6LR-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Inline 3/8"
8Z-V8AK-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/2"
8Z-V8AK-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Angle 1/2"
8Z-V8AN-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/2"
8Z-V8AN-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Angle 1/2"
8Z-V8AR-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/2"
8Z-V8AR-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Angle 1/2"
8Z-V8LK-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/2"
8Z-V8LK-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression PCTFE Inline 1/2"
8Z-V8LN-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/2"
8Z-V8LN-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Needle Inline 1/2"
8Z-V8LR-B Brass 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/2"
8Z-V8LR-SS 316 Stainless Steel 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Blunt Inline 1/2"









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
