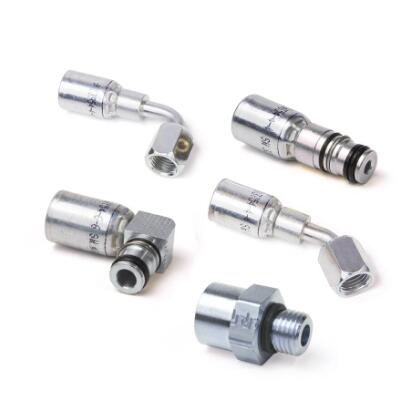

Rapid Assembly Fittings for 515 Hose – 54 Series
54 Series are used with Parflex 515H hoses. The rapid assembly fittings allow for quick connections.
Parker's Rapid Assembly Fittings are designed to be used with Parflex 515H Compact Hose and their quick connect design offers plug and play convenience in a very compact, economical system. The connector design is durable and easy to install, eliminating the need for wrenches and other tools which allows the 515H hose the advantage of easy installation and improved assembly time. The Parflex Rapid Assembly series fittings are not live swivels; therefore, care should be taken to insure that relative movement between the adapter and the hose fitting is eliminated. Sealing is achieved through the use of petroleum and synthetic hydraulic oil resistant elastomeric o-rings. Download our latest literature for more information.
Rapid Assembly Fittings for 515 Hose – 54 Series
Markets:
- Construction
- Agriculture
- Turf Care
Features/Benefits:
- Compact for improved assembly time
- Light weight for reduced system weight
- Quick connecting fittings eliminate the need for additional tools
Applications:
- Hydraulic and pneumatic systems where a small O.D. hose is necessary
- Pilot lines
- Joystick controls
Technical Specifications
| Application: |
Various |
| Connection Type: |
Crimped, Seal-Lok; Flare, 37°; SAE ORB |
| Hose Inside Diameter: |
3/16, 1/4, 5/16, 3/8, 1/2 inch, 5, 6, 8, 10, 13 mm |
| Materials of Construction: |
Steel, Stainless Steel |
| Shape: |
Straight, 45°, 90° |
| Tube Stem Outside Diameter: |
0.250 - 0.375 inch |
| Connection Thread Size: |
Varies |
| Length: |
Varies, Varies mm |
| Fitting Type: |
Crimp (Permanent) |
| Product Style: |
Female, Male |
Rapid Assembly Fittings for 515 Hose – 54 Series 型号
| Part |
Shape |
Hose I.D. (inch) |
Port Size (inch) |
Thread Type |
| 10654-4-4 |
Straight |
0.25 |
0.25 |
Flare, 37° |
| 10654-6-6 |
Straight |
0.375 |
0.375 |
Flare, 37° |
| 13754-4-4 |
Elbow, 45° |
0.25 |
0.25 |
Flare, 37° |
| 13954-4-4 |
Elbow, 90° |
0.25 |
0.25 |
Flare, 37° |
| 13954-6-6 |
Elbow, 90° |
0.375 |
0.375 |
Flare, 37° |
| 1J754-4-4 |
Elbow, 45° |
0.25 |
0.25 |
Seal-Lok |
| 1J954-4-4 |
Elbow, 90° |
0.25 |
0.25 |
Seal-Lok |
| 1J954-6-6 |
Elbow, 90° |
0.375 |
0.375 |
Seal-Lok |
| 1JC54-4-4 |
Straight |
0.25 |
0.25 |
Seal-Lok |
| 1JC54-6-6 |
Straight |
0.375 |
0.375 |
Seal-Lok |
| 1WU54-4-4 |
Straight |
0.25 |
na |
na |
| 1WU54-6-6 |
Straight |
0.375 |
na |
na |
| 1WW54-4-4 |
Elbow, 45° |
0.25 |
na |
na |
| 1WW54-6-6 |
Elbow, 45° |
0.375 |
na |
na |
| 1WY54-4-4 |
Elbow, 90° |
0.25 |
na |
na |
| 1WY54-6-6 |
Elbow, 90° |
0.375 |
na |
na |
| 685RA-4-4 |
Straight |
0.25 |
0.25 |
SAE ORB |
| 685RA-4-6 |
Straight |
0.375 |
0.25 |
SAE ORB |
| 685RA-6-4 |
Straight |
0.25 |
0.375 |
SAE ORB |
| 685RA-6-6 |
Straight |
0.375 |
0.375 |
SAE ORB |
|
