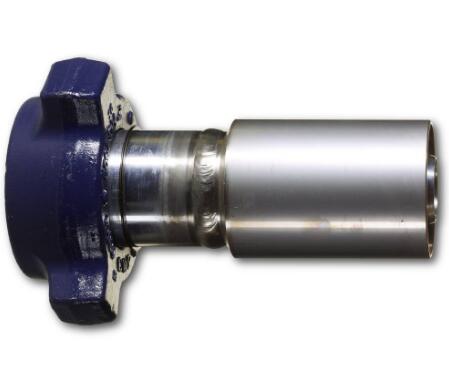

Crimped Thermoplastic UHP Hose Fittings, 5X Series
Parker High Pressure 5X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hydraulic hose types with working pressure from 140 up to 250 MPa.
Parker Polyflex High Pressure 5X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, 5X Series
Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Marine
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- High and Ultra High pressure cleaning and jetting
- Media transfer (petroleum, synthetic hydraulic fluids, gas and chemical fluids)
- Especially suitable for hydraulic pre-tensioning equibment, test rigs, as well as in offshore oil applications
- Suitable for hydraulic hose types with working pressure from 140 up to 250 MPa (20.300 up to 36.250 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
5, 12, 20 mm |
| Hose I.D. (size): |
-3, -8, -12 |
| Hose Inside Diameter: |
3/16, 1/2, 3/4 inch |
| Connection Thread Size: |
14x1.5, 24x1.5, 36x2, 52 x 2 mm |
| Connection Type: |
BSP, UNF, Metric, UNF-LH, LH , NPT, Acme , UNF - LH, UNF - 2B |
| Length: |
3,1, 2,6, 3,2, 2,5, 3,4, 3,6, 3,8, 4,2, 9,1, 9,6, 9,8, 4,3, 5,6, 15,6, 10,9, 11,5, 15,9, 10,7, 6,4, 6,9, 5,5, 4 inch |
| Maximum Operating Pressure: |
36250, 26100, 20300, 20000, 10000, 15000, 5000 psi |
| Shape: |
Straight |
| Product Style: |
BSP female swivel (60° cone), Type ?M? female swivel, Metric female swivel light series, Metric female swivel heavy series with O-ring, High pressure tube nipple UNF ? LH thread, Medium pressure tube nipple, NPT Male fitting, API flange, swivel, Type ?M? |
| Materials of Construction: |
Nipple: very high strength carbon steel, zinc plated |
| Shell and nut: high strength carbon steel, zinc plated, Special materials, Nipple: very high strength stainless steel |
| Shell: stainless steel, Stainless Steel |
