Parker Needle Valves

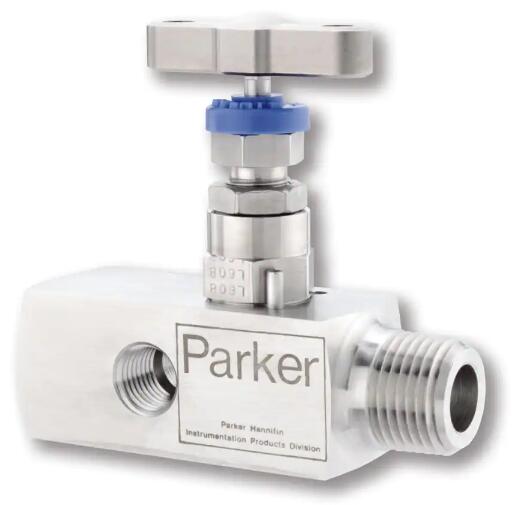

Needle Valve (6,000 PSI) - Single Port HVG Series

Parker?'s single port gauge valves with vent are purpose designed valves for operation with any fluid up to 6,000 psi (414 bar) rating.

Parker's HVG series single-port gauge valves are rated at 6,000 PSI (414 bar) and provide a single 1/4" NPT port for the optional fitting of a captive bleed/vent valve or blanking plug. All HVG series gauge valves have a self centering, non-rotating spindle tip to ensure 100% bubble-tight shut-off and offer a choice of tip materials as well as PCTFE or PEEK seating alternatives to metal-to-metal, for gas applications. As standard, the valves feature PTFE gland packing. Fire-safe graphite packing to meet BS 6755 Part 2 and API 607 is available as an option. The spindle is equipped with a backstop for blowout prevention and the gland is externally adjustable. Parker's gauge valves are manufactured from 316 stainless steel as standard, NACE compliant and other types of materials are also available.

Needle Valve (6,000 PSI) - Single Port HVG Series

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation

Features/Benefits:
Temperature range of -54 to 538?C (-65 to 1000?F)
- NACE compliant
- 100% repeatable bubble-tight shut-off
- Heat code traceable
- Oxygen clean

Applications:
- Process to instrument interface
- Pressure & Flow measurement
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment

Technical Specifications

Needle Valve (6,000 PSI) - Single Port HVG Series 型号
