Parker Needle Valves

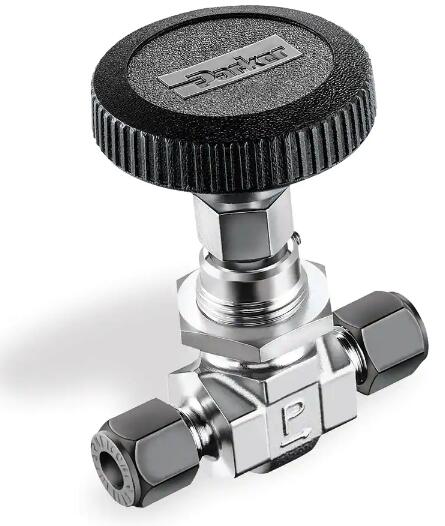

Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series

Parker's NP6 needle valves are designed with packing below the stem threads and a two-piece stem for critical applications up to 6,000 PSI (414 BAR).

Parker's NP6 Needle Valves are severe service, needle valves. They are designed with the packing below the stem threads and a two-piece stem for critical systems up to 6,000 PSI (414 BAR). The packing below the threads protects the flow stream from thread lubricant contamination or washout and also protects the stem threads from potential damaging effects of the media. The two-piece stem produces a non-rotating lower stem for superior, repeatable sealing and reduced packing wear.

Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series

Markets:
- Chemical
- Petrochemical
- Oil and Gas
- Power

Features/Benefits:
- Packing below power threads protects thread lubricants from media and isolates the media from the lubricant for severe service applications
- O-ring dust seal in bonnet protects stem threads from external contamination
- Choice of two non-rotating stem types: R-Stem – All metal, blunt stem tip, K-Stem – PCTFE stem tip
- Non rotating lower stem extends packing and valve life
- 316 stainless steel construction
- Inline and angle patterns
- Wide variety of US Customary and SI ports
- Panel mountable
- 100% factory tested
- Optional color coded handles

Applications:
- Solvent Systems
- Critical Shut – Off Systems

Technical Specifications

Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series 型号
