Parker 针阀
Parker Needle Valves

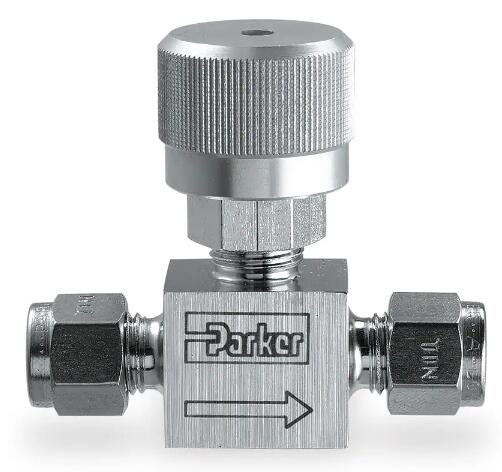

Needle Valve,Integral Bonnet 6000 PSI - SN6 Series

Parker's SN6 Series needle valves are compact, integral bonnet valves for shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR).





Parker's SN6 Series Needle Valves provide shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR). These compact, rugged valves are manufactured from 316 stainless steel bar stock and are integral bonnet designs with packing above the stem threads. The SN6 valve offers the installer the ability to place this valve in environments from 350?F with PTFE or up to critical environments up to 700?F with Grafoil packing while still in the same small, compact design. Other similar valves do not offer that application flexibility.



Needle Valve,Integral Bonnet 6000 PSI - SN6 Series




Markets:
- Petrochemical
- Chemical
- General Industry
- Power


Features/Benefits:

- Integral bonnet design
- 316 stainless steel construction
- Choice of two stem types:
R-Stem – All metal, blunt stem tip
K-Stem – PCTFE stem tip
- Choice of PTFE or Grafoil packing
- Inline and angle patterns
- 100% factory tested


Applications:
- Sample Cylinders
- Control Panels



Technical Specifications

Connection 1 Size: 1/4", Two Ferrule Compression, NPT F, NPT M, Single Ferrule Compression
Connection 2 Size: 1/4", Two Ferrule Compression, NPT F, NPT M, Single Ferrule Compression
Stem Type: BLUNT, SOFT TIP
Packing Material: PTFE
Maximum Operating Pressure: 6,000, 3,000 psi, 414, 207 bar
Maximum Operating Temperature: 450 °F, 232 °C
Minimum Operating Temperature: -65 °F, -54 °C
Body Style: Inline



Needle Valve,Integral Bonnet 6000 PSI - SN6 Series 型号

Part Connection 1 Size Connection 2 Size Stem Type Packing Material Maximum Operating Pressure (psi) Maximum Operating Pressure (bar) Connection 1 Style Connection 2 Style Maximum Working Temperature (F) Maximum Working Temperature (°C) Minimum Working Temperature (F) Minimum Working Temperature (C) Body Style
4A-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 Two Ferrule Compression Two Ferrule Compression 450 232 -65 -54 Angle
4A-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 Two Ferrule Compression Two Ferrule Compression 700 371 -65 -54 Angle
4A-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 Two Ferrule Compression Two Ferrule Compression 450 232 -65 -54 Angle
4A-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 Two Ferrule Compression Two Ferrule Compression 450 232 -65 -54 Inline
4A-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 Two Ferrule Compression Two Ferrule Compression 700 371 -65 -54 Inline
4A-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 Two Ferrule Compression Two Ferrule Compression 450 232 -65 -54 Inline
4F-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT F NPT F 450 232 -65 -54 Angle
4F-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT F NPT F 700 371 -65 -54 Angle
4F-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT F NPT F 450 232 -65 -54 Angle
4F-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT F NPT F 450 232 -65 -54 Inline
4F-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT F NPT F 700 371 -65 -54 Inline
4F-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT F NPT F 450 232 -65 -54 Inline
4M-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M NPT M 450 232 -65 -54 Angle
4M-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M NPT M 700 371 -65 -54 Angle
4M-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M NPT M 450 232 -65 -54 Angle
4M-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M NPT M 450 232 -65 -54 Inline
4M-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M NPT M 700 371 -65 -54 Inline
4M-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M NPT M 450 232 -65 -54 Inline
4M4A-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M Two Ferrule Compression 450 232 -65 -54 Angle
4M4A-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M Two Ferrule Compression 700 371 -65 -54 Angle
4M4A-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M Two Ferrule Compression 450 232 -65 -54 Angle
4M4A-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M Two Ferrule Compression 450 232 -65 -54 Inline
4M4A-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M Two Ferrule Compression 700 371 -65 -54 Inline
4M4A-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M Two Ferrule Compression 450 232 -65 -54 Inline
4M4F-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M NPT F 450 232 -65 -54 Angle
4M4F-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M NPT F 700 371 -65 -54 Angle
4M4F-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M NPT F 450 232 -65 -54 Angle
4M4F-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M NPT F 450 232 -65 -54 Inline
4M4F-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M NPT F 700 371 -65 -54 Inline
4M4F-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M NPT F 450 232 -65 -54 Inline
4M4Z-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M Single Ferrule Compression 450 232 -65 -54 Angle
4M4Z-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M Single Ferrule Compression 700 371 -65 -54 Angle
4M4Z-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M Single Ferrule Compression 450 232 -65 -54 Angle
4M4Z-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 NPT M Single Ferrule Compression 450 232 -65 -54 Inline
4M4Z-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 NPT M Single Ferrule Compression 700 371 -65 -54 Inline
4M4Z-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 NPT M Single Ferrule Compression 450 232 -65 -54 Inline
4Z-SN6AK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 Single Ferrule Compression Single Ferrule Compression 450 232 -65 -54 Angle
4Z-SN6AR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 Single Ferrule Compression Single Ferrule Compression 700 371 -65 -54 Angle
4Z-SN6AR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 Single Ferrule Compression Single Ferrule Compression 450 232 -65 -54 Angle
4Z-SN6LK-SS 1/4" 1/4" SOFT TIP PTFE 3,000 207 Single Ferrule Compression Single Ferrule Compression 450 232 -65 -54 Inline
4Z-SN6LR-G-SS 1/4" 1/4" BLUNT Grafoil 6,000 414 Single Ferrule Compression Single Ferrule Compression 700 371 -65 -54 Inline
4Z-SN6LR-SS 1/4" 1/4" BLUNT PTFE 6,000 414 Single Ferrule Compression Single Ferrule Compression 450 232 -65 -54 Inline
