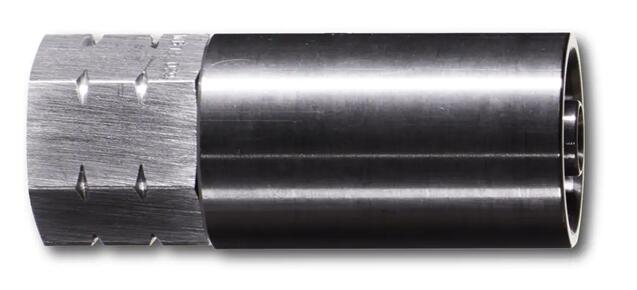

Crimped Thermoplastic UHP Hose Fittings, 8X Series
Parker Polyflex High Pressure 8X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hydraulic hose types with working pressure from 42 up to 103.4 MPa
Parker Polyflex High Pressure 8X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, 8X Series
Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Mining
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- High pressure applications where non-conductivity is required
- Construction and shipbuilding industry
- Industrial cleaning
- Media transfer
- Industrial hydraulics (high kink resistance and high flexibility for hydraulic tools, straightening benches, clamps)
- Hydraulic applications in mining environment
- Suitable for hydraulic hose types with working pressure from 42 up to 103.4 MPa (6090 up to 15000 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
4, 10, 12, 6, 8 mm |
| Hose I.D. (size): |
-25, -6, -8, -4, -5 |
| Hose Inside Diameter: |
5/32, 3/8, 1/2, 1/4, 5/16 inch |
| Connection Type: |
NPT, UNF, NPSM, Metric, BSP, UNF - LH |
| Length: |
51, 59, 71, 76, 79, 60, 65, 67, 61, 70, 74, 77, 83, 62, 55, 57, 56, 64, 50, 81, 96, 95, 78, 85, 69, 87, 48, 63, 49, 52, 54, 58, 108,2, 59,5 mm, 2, 2,3, 2,8, 3, 3,1, 2,4, 2,6, 2,9, 3,3, 2,2, 2,5, 3,2, 3,8, 3,7, 2,7, 3,4, 1,9, 2,1, 4,3 inch |
| Maximum Operating Pressure: |
2, 2,3, 2,8, 3, 3,1, 2,4, 2,6, 2,9, 3,3, 2,2, 2,5, 3,2, 3,8, 3,7, 2,7, 3,4, 1,9, 2,1, 4,3 psi |
| Shape: |
Straight, 45° Elbow, 90° Elbow |
Crimped Thermoplastic UHP Hose Fittings, 8X Series 型号
| Part |
Maximum Working Pressure (MPa) |
Hose I.D. (mm) |
Fitting Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Style |
Material |
| 1018X-2-025 |
75 |
4 |
1 |
1/8 |
NA |
NPT male |
Carbon steel, zinc plated |
| 1018X-2-04 |
103.4 |
6.4 |
1 |
1/8 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-4-025 |
75 |
4 |
1 |
1/4 |
NA |
NPT male |
Carbon steel, zinc plated |
| 1018X-4-04 |
103.4 |
6.4 |
1 |
1/4 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-4-04C |
103.4 |
6.4 |
1 |
1/4 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1018X-4-04ZE |
103.4 |
6.4 |
1 |
1/4 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-6-04 |
103.4 |
6.4 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-6-04C |
103.4 |
6.4 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1018X-6-04ZE |
103.4 |
6.4 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-6-05 |
103.4 |
7.9 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Carbon steel, zinc plated |
| 1018X-6-05C |
103.4 |
7.9 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1018X-6-06 |
103.4 |
9.5 |
1 |
3/8 |
NA |
NPT male |
Carbon steel, zinc plated |
| 1018X-6-06C |
103.4 |
9.5 |
1 |
3/8 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1018X-8-06 |
103.4 |
9.5 |
1 |
1/2 |
NA |
NPT male |
Carbon steel, zinc plated |
| 1018X-8-06C |
103.4 |
9.5 |
1 |
1/2 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1018X-8-08 |
103.4 |
12.7 |
1 |
1/2 |
NA |
NPT male |
Carbon steel, zinc plated |
| 1018X-8-08C |
103.4 |
12.7 |
1 |
1/2 |
NA |
National Pipe Tapered (NPT) male |
Stainless steel |
| 1058X-4-04 |
80 |
6.4 |
5 |
7/16 - 20 |
NA |
UNF male with O-ring |
Special materials |
| 1058X-6-04 |
80 |
6.4 |
5 |
9/16 - 18 |
NA |
UNF male with O-ring |
Special materials |
| 1068X-10-08 |
69 |
12.7 |
6 |
7/8 - 14 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-4-04 |
69 |
6.4 |
6 |
7/16 - 20 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-4-04C |
69 |
6.4 |
6 |
7/16 - 20 |
NA |
JIC female swivel |
Stainless steel |
| 1068X-5-04 |
80 |
6.4 |
6 |
1/2 - 20 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-5-04C |
80 |
6.4 |
6 |
1/2 - 20 |
NA |
JIC female swivel |
Stainless steel |
| 1068X-6-04 |
80 |
6.4 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-6-04C |
80 |
6.4 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Stainless steel |
| 1068X-6-05 |
69 |
7.9 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-6-05C |
69 |
7.9 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Stainless steel |
| 1068X-6-06 |
69 |
9.5 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-6-06C |
69 |
9.5 |
6 |
9/16 - 18 |
NA |
JIC female swivel |
Stainless steel |
| 1068X-8-06 |
69 |
9.5 |
6 |
3/4 - 16 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-8-06C |
69 |
NA |
6 |
3/4 - 16 |
NA |
JIC female swivel fitting |
Stainless steel |
| 1068X-8-08 |
69 |
12.7 |
6 |
3/4 - 16 |
NA |
JIC female swivel |
Carbon steel, zinc plated, C: Stainless steel |
| 1068X-8-08C |
69 |
12.7 |
6 |
3/4 - 16 |
NA |
JIC female swivel |
Stainless steel |
| 1078X-4-04 |
80 |
6.4 |
7 |
1/4 - 18 |
NA |
NPSM female swivel |
Carbon steel, zinc plated |
| 1078X-4-04C2W |
80 |
6.4 |
7 |
1/4 - 18 |
NA |
NPSM female swivel |
Stainless steel nipple |
| 1078X-6-06 |
57.5 |
9.5 |
7 |
3/8 - 18 |
NA |
NPSM female swivel |
Carbon steel, zinc plated |
| 1078X-6-06C2W |
57.5 |
9.5 |
7 |
3/8 - 18 |
NA |
NPSM female swivel |
Carbon steel, zinc plated stainless steel nipple (material 1.4301) |
| 1078X-8-08 |
55 |
12.7 |
7 |
1/2 - 14 |
NA |
NPSM female swivel |
Carbon steel, zinc plated |
| 10C8X-12-06 |
63 |
9.5 |
0C |
NA |
20x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 10C8X-14-06 |
63 |
9.5 |
0C |
NA |
22x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 10C8X-16-08 |
63 |
12.7 |
0C |
NA |
24x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 11C8X-14-06 |
63 |
9.5 |
1C |
NA |
22x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 11C8X-16-08 |
63 |
12.7 |
1C |
NA |
24x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 13B8X-4-025 |
75 |
4 |
3B |
1/4 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-4-04 |
80 |
6.4 |
3B |
1/4 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-6-04 |
80 |
6.4 |
3B |
3/8 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-6-05 |
62.5 |
7.9 |
3B |
3/8 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-6-06 |
57.5 |
9.5 |
3B |
3/8 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-8-06 |
57.5 |
9.5 |
3B |
1/2 |
NA |
BSP male |
Carbon steel, zinc plated |
| 13B8X-8-08 |
55 |
12.7 |
3B |
1/2 |
NA |
BSP male |
Carbon steel, zinc plated |
| 1928X-4-025 |
75 |
4 |
92 |
1/4 |
NA |
BSP female swivel (60° cone) |
Carbon steel, zinc plated |
| 1928X-4-04 |
80 |
6.4 |
92 |
1/4 |
NA |
BSP female swivel (60° cone) |
Carbon steel, zinc plated |
| 1928X-4-04C |
80 |
6.4 |
92 |
1/4 |
NA |
BSP female swivel (60° cone) |
Stainless steel |
| 1928X-6-06 |
57.5 |
9.5 |
92 |
3/8 |
NA |
BSP female swivel (60° cone) |
Carbon steel, zinc plated |
| 1928X-6-06C |
57.5 |
9.5 |
92 |
3/8 |
NA |
BSP female swivel (60° cone) |
Stainless steel |
| 1928X-8-06 |
57.5 |
9.5 |
92 |
1/2 |
NA |
BSP female swivel (60° cone) |
Carbon steel, zinc plated |
| 1928X-8-06C |
57.5 |
9.5 |
92 |
1/2 |
NA |
BSP female swivel (60° cone) |
Stainless steel |
| 1928X-8-08 |
55 |
12.7 |
92 |
1/2 |
NA |
BSP female swivel (60° cone) |
Carbon steel, zinc plated |
| 1AY8X-6-04 |
80 |
6.4 |
AY |
9/16 - 18 |
NA |
Type ?M? female swivel |
Carbon steel, zinc plated |
| 1AY8X-6-04C |
103.5 |
NA |
AY |
9/16 - 18 |
NA |
Type ?M? female swivel fitting |
Stainless steel |
| 1C38X-12-06 |
57.5 |
9.5 |
C3 |
NA |
18x1.5 |
Metric female swivel light series |
Carbon steel, zinc plated |
| 1C38X-15-08 |
55 |
12.7 |
C3 |
NA |
22x1.5 |
Metric female swivel light series |
Carbon steel, zinc plated |
| 1C68X-16-08 |
55 |
12.7 |
C6 |
NA |
24x1.5 |
Metric female swivel heavy series |
Carbon steel, zinc plated |
| 1C98X-10-04 |
80 |
6.4 |
C9 |
NA |
18x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-10-04C |
80 |
6.4 |
C9 |
NA |
18x1.5 |
Metric female swivel heavy series with O-ring |
Stainless steel |
| 1C98X-12-04 |
80 |
6.4 |
C9 |
NA |
20x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-12-05 |
63 |
7.9 |
C9 |
NA |
20x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-12-06 |
63 |
9.5 |
C9 |
NA |
20x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-12-06C |
63 |
9.5 |
C9 |
NA |
20x1.5 |
Metric female swivel heavy series with O-ring |
Stainless steel |
| 1C98X-14-06 |
63 |
9.5 |
C9 |
NA |
22x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-14-06C |
63 |
9.5 |
C9 |
NA |
22x1.5 |
Metric female swivel heavy series with O-ring |
Stainless steel |
| 1C98X-16-08 |
63 |
12.7 |
C9 |
NA |
24x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-8-025 |
75 |
4 |
C9 |
NA |
16x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-8-025C |
75 |
4 |
C9 |
NA |
16x1.5 |
Metric female swivel heavy series with O-ring |
Stainless steel |
| 1C98X-8-04 |
80 |
6.4 |
C9 |
NA |
16x1.5 |
Metric female swivel heavy series with O-ring |
Carbon steel, zinc plated |
| 1C98X-8-04C |
69 |
6.4 |
C9 |
NA |
16x1.5 |
Metric female swivel heavy series with O-ring |
Stainless steel |
| 1D28X-14-06 |
63 |
9.5 |
D2 |
NA |
22x1.5 |
Metric male heavy series |
Carbon steel, zinc plated |
| 1D28X-16-08 |
63 |
12.7 |
D2 |
NA |
24x1.5 |
Metric male heavy series |
Carbon steel, zinc plated |
| 1D98X-4-04 |
80 |
6.4 |
D9 |
1/4 |
NA |
BSP male |
Carbon steel, zinc plated |
| 1D98X-4-04C |
80 |
6.4 |
D9 |
1/4 |
NA |
BSP male |
Stainless steel |
| 1D98X-6-04 |
80 |
6.4 |
D9 |
3/8 |
NA |
BSP male |
Carbon steel, zinc plated |
| 1D98X-6-06 |
575 |
9.5 |
D9 |
3/8 |
NA |
BSP male |
Carbon steel, zinc plated |
| 1U08X-4-04 |
80 |
6.4 |
U0 |
1/4 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1U08X-4-04C2W |
80 |
6.4 |
U0 |
1/4 |
NA |
BSP female swivel (ballnose) |
Stainless steel nipple |
| 1U08X-6-04 |
80 |
6.4 |
U0 |
3/8 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1U08X-6-04C2W |
80 |
6.4 |
U0 |
3/8 |
NA |
BSP female swivel (ballnose) |
Stainless steel nipple |
| 1U08X-6-05 |
62.5 |
7.9 |
U0 |
3/8 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1U08X-6-06 |
57.5 |
9.5 |
U0 |
3/8 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1U08X-8-06 |
53.5 |
9.5 |
U0 |
1/2 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1U08X-8-06C2W |
53.5 |
9.5 |
U0 |
1/2 |
NA |
BSP female swivel (ballnose) |
Stainless steel nipple |
| 1U08X-8-08 |
55 |
12.7 |
U0 |
1/2 |
NA |
BSP female swivel (ballnose) |
Carbon steel, zinc plated |
| 1Y28X-6-04C |
138 |
NA |
Y2 |
3/8 - 24 |
NA |
Medium pressure tube nipple |
Stainless steel |
|
