Parker Fittings接头
Hose Fittings

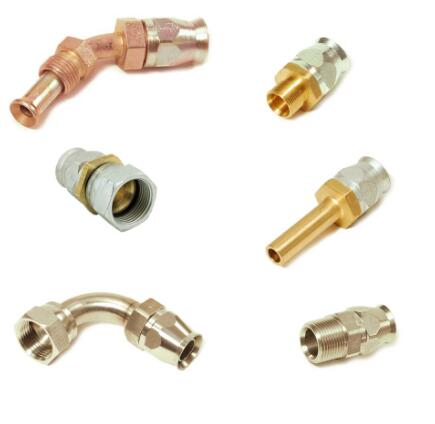

Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Parker's 90 Series fittings are used with 919 and 919B PTFE hoses from the Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. This series also includes fitting components to reduce inventory or replace part of the fitting when required.

Field Attachable Fittings for PTFE Hose - 90 Series

Markets:
- Industrial
- Air & Gas compressors
- Packaging machinery
- Printing and marking equipment

Features:
- No crimper needed for installation

Applications:
- Chemical transfer lines
- General hydraulics
- Compressed air/gases
- Adhesive dispensing
- Coolant lines

Technical Specifications

Connection Type:	Pipe, NPTF, '37° Flare, '45° Flare, Inverted '45° Flare, Specialty, Flare SAE, 45°, Field-Attachable
Port Size:	0.125 - 1.250 inch
Shape:	Straight, 45°, 90°
Application:	Various
Hose Inside Diameter:	3/16, 1/4, 5/16, 13/32, 1/2, 5/8, 7/8, 1-1/8 inch, 5, 6, 8, 10, 13, 16, 19, 22, 29 mm
Materials of Construction:	Brass, Steel, Stainless Steel
Tube Outside Diameter:	0.500 - 0.750 inch
Length:	0.313 - 3.830 inch

Field Attachable Fittings for PTFE Hose - 90 Series 型号

Part	Shape	Style	Hose I.D. (inch)	Port Connection (inch)	Connection Thread Size (inch)	Material
090- 8B	na	Replacement Ferrule	0.40625	na	na	Brass
090-10B	na	Replacement Ferrule	0.5	na	na	Brass
090-12B	na	Replacement Ferrule	0.625	na	na	Brass
090-16B	na	Replacement Ferrule	0.875	na	na	Brass
090-20B	na	Replacement Ferrule	1	na	na	Brass
090-4B	na	Replacement Ferrule	0.1875	na	na	Brass
090-5B	na	Replacement Ferrule	0.25	na	na	Brass
090-6B	na	Replacement Ferrule	0.3125	na	na	Brass
20090- 8	na	Replacement Socket	0.40625	na	na	Steel
20090-10	na	Replacement Socket	0.5	na	na	Steel
20090-12	na	Replacement Socket	0.625	na	na	Steel
20090-16	na	Replacement Socket	0.875	na	na	Steel
20090-20	na	Replacement Socket	1	na	na	Steel
20090-4	na	Replacement Socket	0.1875	na	na	Steel
20090-5	na	Replacement Socket	0.25	na	na	Steel
20090-6	na	Replacement Socket	0.3125	na	na	Steel
20190-12-12	Straight	Male NPTF Pipe - Rigid - Straight	0.625	0.75	3/4-14	Brass
20190-12-16	Straight	Male NPTF Pipe - Rigid - Straight	0.875	0.75	3/4-14	Brass
20190-16-16	Straight	Male NPTF Pipe - Rigid - Straight	0.875	1	1-11-1/2	Brass
20190-2-4	Straight	Male NPTF Pipe - Rigid - Straight	0.1875	0.125	1/8-27	Brass
20190-2-4C	Straight	Male NPTF Pipe - Rigid - Straight	0.1875	0.125	1/8-27	Stainless Steel
20190-20-20	Straight	Male NPTF Pipe - Rigid - Straight	1	1.25	1-1/4-11-1/2	Brass
20190-4-4	Straight	Male NPTF Pipe - Rigid - Straight	0.1875	0.25	1/4-18	Brass
20190-4-5	Straight	Male NPTF Pipe - Rigid - Straight	0.25	0.25	1/4-18	Brass
20190-4-6	Straight	Male NPTF Pipe - Rigid - Straight	0.3125	0.25	1/4-18	Brass
20190-6-6	Straight	Male NPTF Pipe - Rigid - Straight	0.3125	0.375	3/8-18	Brass
20190-6-8	Straight	Male NPTF Pipe - Rigid - Straight	0.40625	0.375	3/8-18	Brass
20190-8-10	Straight	Male NPTF Pipe - Rigid - Straight	0.5	0.5	1/2-14	Brass
20190-8-8	Straight	Male NPTF Pipe - Rigid - Straight	0.40625	0.5	1/2-14	Brass
20690-10-10	Straight	Female JIC 37° - Swivel - Straight	0.5	0.625	7/8-14	Brass
20690-10-10C	Straight	Female JIC 37° - Swivel - Straight	0.5	0.625	7/8-14	Stainless Steel
20690-12-12	Straight	Female JIC 37° - Swivel - Straight	0.625	0.75	1-1/16-12	Brass
20690-12-12C	Straight	Female JIC 37° - Swivel - Straight	0.625	0.75	1-1/16-12	Stainless Steel
20690-16-16	Straight	Female JIC 37° - Swivel - Straight	0.875	1	1-5/16-12	Brass
20690-16-16C	Straight	Female JIC 37° - Swivel - Straight	0.875	1	1-5/16-12	Stainless Steel
20690-20-20	Straight	Female JIC 37° - Swivel - Straight	1	1.25	1-5/8-12	Brass
20690-20-20C	Straight	Female JIC 37° - Swivel - Straight	1	1.25	1-5/8-12	Stainless Steel
20690-4-4	Straight	Female JIC 37° - Swivel - Straight	0.1875	0.25	7/16-20	Brass
20690-4-4C	Straight	Female JIC 37° - Swivel - Straight	0.1875	0.25	7/16-20	Stainless Steel
20690-5-5	Straight	Female JIC 37° - Swivel - Straight	0.25	0.313	1/2-20	Brass
20690-5-5C	Straight	Female JIC 37° - Swivel - Straight	0.25	0.313	1/2-20	Stainless Steel
20690-6-6	Straight	Female JIC 37° - Swivel - Straight	0.3125	0.375	9/16-18	Brass
20690-6-6C	Straight	Female JIC 37° - Swivel - Straight	0.3125	0.375	9/16-18	Stainless Steel
20690-8-10	Straight	Female JIC 37° - Swivel - Straight	0.5	0.5	3/4-16	Brass
20690-8-6	Straight	Female JIC 37° - Swivel - Straight	0.3125	0.5	3/4-16	Brass
20690-8-8	Straight	Female JIC 37° - Swivel - Straight	0.40625	0.5	3/4-16	Brass
20690-8-8C	Straight	Female JIC 37° - Swivel - Straight	0.40625	0.5	3/4-16	Stainless Steel
20890-12-12	Straight	Female SAE 45° - Swivel - Straight	0.625	0.75	1-1/16-14	Brass
20890-6-6	Straight	Female SAE 45° - Swivel - Straight	0.3125	0.375	5/8-18	Brass
22890-10-10	Straight	Male Inverted SAE 45° - Swivel - Straight	0.5	0.625	7/8-18	Brass
22890-12-12	Straight	Male Inverted SAE 45° - Swivel - Straight	0.625	0.75	1-1/16-16	Brass
22890-4-4	Straight	Male Inverted SAE 45° - Swivel - Straight	0.1875	0.25	7/16-24	Brass
22890-5-5	Straight	Male Inverted SAE 45° - Swivel - Straight	0.25	0.313	1/2-20	Brass
22890-5-6	Straight	Male Inverted SAE 45° - Swivel - Straight	0.3125	0.313	1/2-20	Brass
22890-6-6	Straight	Male Inverted SAE 45° - Swivel - Straight	0.3125	0.375	5/8-18	Brass
22890-8-8	Straight	Male Inverted SAE 45° - Swivel - Straight	0.40625	0.5	3/4-18	Brass
23490-10-10	Straight	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	0.5	0.625	na	Brass
23490-10-8	Straight	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	0.40625	0.625	na	Brass
23490-12-12	Straight	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	0.625	0.75	na	Brass
23490-8-10	Straight	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	0.5	0.5	na	Brass
23490-8-8	Straight	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	0.40625	0.5	na	Brass
23790-10-10	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.5	0.625	7/8-14	Brass
23790-12-12	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.625	0.75	1-1/16-12	Brass
23790-16-16	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.875	1	1-5/16-12	Brass
23790-20-20	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	1	1.25	1-5/8-12	Brass
23790-4-4	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.1875	0.25	7/16-20	Brass
23790-5-5	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.25	0.313	1/2-20	Brass
23790-6-6	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.3125	0.375	9/16-18	Brass
23790-8-6	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.3125	0.5	3/4-16	Brass
23790-8-8	45° Elbow - Short Drop	Female JIC 37° - Swivel - 45° Elbow - Short Drop	0.40625	0.5	3/4-16	Brass
23990-10-10	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.5	0.625	7/8-14	Brass
23990-12-12	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.625	0.75	1-1/16-12	Brass
23990-16-16	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.875	1	1-5/16-12	Brass
23990-20-20	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	1	1.25	1-5/8-12	Brass
23990-4-4	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.1875	0.25	7/16-20	Brass
23990-5-5	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.25	0.313	1/2-20	Brass
23990-6-6	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.3125	0.375	9/16-18	Brass
23990-8-6	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.3125	0.5	3/4-16	Brass
23990-8-8	90° Elbow - Short Drop	Female JIC 37° - Swivel - 90° Elbow - Short Drop	0.40625	0.5	3/4-16	Brass
26190-10-10	Compression	Compression Air Brake	0.5	0.625	13/16-18	Brass
26190-12-10	Compression	Compression Air Brake	0.5	0.75	1-18	Brass
26190-12-12	Compression	Compression Air Brake	0.625	0.75	1-18	Brass
26190-8-10	Compression	Compression Air Brake	0.5	0.5	11/16-20	Brass
26190-8-8	Compression	Compression Air Brake	0.40625	0.5	11/16-20	Brass
26790-10-10	45° Elbow	Male Inverted Swivel 45° Elbow	0.5	0.625	7/8-18	Brass
26790-12-12	45° Elbow	Male Inverted Swivel 45° Elbow	0.625	0.75	1-1/16-16	Brass
26790-4-4	45° Elbow	Male Inverted Swivel 45° Elbow	0.1875	0.25	7/16-24	Brass
26790-5-5	45° Elbow	Male Inverted Swivel 45° Elbow	0.25	0.313	1/2-20	Brass
26790-5-6	45° Elbow	Male Inverted Swivel 45° Elbow	0.3125	0.313	1/2-20	Brass
26790-6-6	45° Elbow	Male Inverted Swivel 45° Elbow	0.3125	0.375	5/8-18	Brass
26790-8-10	45° Elbow	Male Inverted Swivel 45° Elbow	0.5	0.5	3/4-18	Brass
26790-8-8	45° Elbow	Male Inverted Swivel 45° Elbow	0.40625	0.5	3/4-18	Brass
26990-10-10	90° Elbow	Male Inverted Swivel 90° Elbow	0.5	0.625	7/8-18	Brass
26990-12-12	90° Elbow	Male Inverted Swivel 90° Elbow	0.625	0.75	1-1/16-16	Brass
26990-4-4	90° Elbow	Male Inverted Swivel 90° Elbow	0.1875	0.25	7/16-24	Brass
26990-5-5	90° Elbow	Male Inverted Swivel 90° Elbow	0.25	0.313	1/2-20	Brass
26990-5-6	90° Elbow	Male Inverted Swivel 90° Elbow	0.3125	0.313	1/2-20	Brass
26990-6-6	90° Elbow	Male Inverted Swivel 90° Elbow	0.3125	0.375	5/8-18	Brass
26990-8-10	90° Elbow	Male Inverted Swivel 90° Elbow	0.5	0.5	3/4-18	Brass
26990-8-8	90° Elbow	Male Inverted Swivel 90° Elbow	0.40625	0.5	3/4-18	Brass
27790-12-12	45° Elbow	Female SAE 45 / Swivel - 45° Elbow	0.625	0.75	1-1/16-14	Brass
27790-6-6	45° Elbow	Female SAE 45 / Swivel - 45° Elbow	0.3125	0.375	5/8-18	Brass
27990-12-12	90° Elbow	Female SAE 45 / Swivel - 45° Elbow	0.625	0.75	1-1/16-14	Brass
27990-6-6	90° Elbow	Female SAE 45 / Swivel - 45° Elbow	0.3125	0.375	5/8-18	Brass
60HAB-10	na	Replacement Compression Sleeve	0.5	na	na	Brass
60HAB-12	na	Replacement Compression Sleeve	0.625	na	na	Brass
60HAB-4	na	Replacement Compression Sleeve	0.1875	na	na	Brass
60HAB-6	na	Replacement Compression Sleeve	0.3125	na	na	Brass
60HAB-8	na	Replacement Compression Sleeve	0.40625	na	na	Brass
61HAB- 8	na	Replacement Compression Nut	0.40625	na	11/16-20	Brass
61HAB-10	na	Replacement Compression Nut	0.5	na	13/16-18	Brass
61HAB-12	na	Replacement Compression Nut	0.625	na	1-18	Brass
61HAB-4	na	Replacement Ferrule	0.1875	na	7/16-24	Brass
61HAB-6	na	Replacement Compression Nut	0.3125	na	7/32-24	Brass
