Parker Fittings接头
Grease Fittings

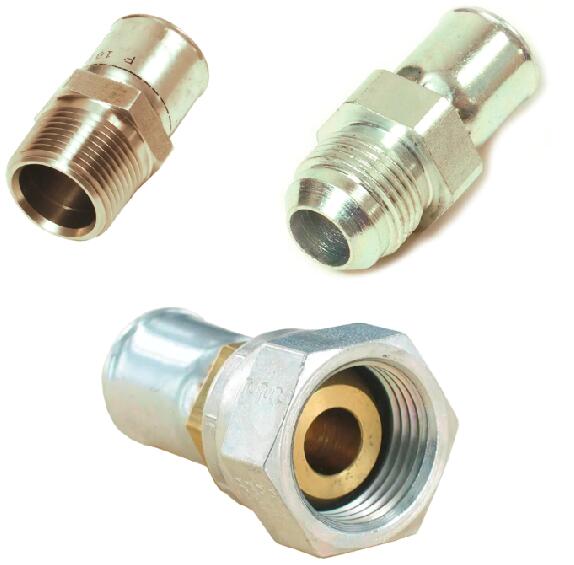

Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.





Parker's 91/91N Series fittings are used with smooth bore, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok? designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign? system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.



Permanent Fittings for PTFE Hose - 91/91N





Markets:
- Industrial
- Air & Gas compressors
- Packaging machinery
- Printing and marking equipment

Features:
- Lead-in design
- Parkalign dies

Applications:
- Chemical transfer lines
- General hydraulics
- Compressed air/gases
- Adhesive dispensing
- Coolant lines





Technical Specifications

Materials of Construction: Brass, Steel, Stainless Steel
Product Style: Crimp (Permanent)
Hose Inside Diameter: 3/16, 1/4, 5/16, 13/32, 1/2, 5/8, 7/8, 1-1/8 inch, 5, 6, 8, 10, 13, 16, 19, 22, 29 mm
Application: Various
Connection Type: Crimped, Pipe, NPTF and NPSM; Flare; Specialty; Seal-Lok; Metric, BSPP, UNF
Connection Thread Size: Varies
Tube Outside Diameter: Varies
Shape: Straight, Elbow, Flange, Stub End



Permanent Fittings for PTFE Hose - 91/91N型号

Part Port Connection (inch) Hose I.D. (inch) Length (inch) Style Material
10191-20-20 1.25 1 3.05 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-12-12 0.75 0.625 2.19 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-12-12C 0.75 0.625 2.19 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-16-16 1 0.875 2.46 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-16-16C 1 0.875 2.46 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-2-4 0.125 0.1875 1.27 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-2-4B 0.125 0.1875 1.27 Male NPTF Pipe - Rigid - Straight Brass
10191N-2-4C 0.125 0.1875 1.27 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-4-4 0.25 0.1875 1.5 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-4-4C 0.25 0.1875 1.5 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-4-5 0.25 0.25 1.55 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-4-5C 0.25 0.25 1.55 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-4-6 0.25 0.3125 1.6 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-4-6C 0.25 0.3125 1.6 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-6-6 0.375 0.3125 1.65 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-6-6C 0.375 0.3125 1.65 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-6-8 0.375 0.40625 1.71 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-6-8C 0.375 0.40625 1.71 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-8-10 0.5 0.5 1.96 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-8-10C 0.5 0.5 1.96 Male NPTF Pipe - Rigid - Straight Stainless Steel
10191N-8-12 0.5 0.625 2.42 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-8-8 0.5 0.40625 1.94 Male NPTF Pipe - Rigid - Straight Brass nipple, steel shell
10191N-8-8C 0.5 0.40625 1.94 Male NPTF Pipe - Rigid - Straight Stainless Steel
10391N-10-10 0.625 0.5 2.07 Male JIC 37° - Rigid - Straight Steel
10391N-12-12 0.75 0.625 2.1 Male JIC 37° - Rigid - Straight Steel
10391N-16-16 1 0.875 2.43 Male JIC 37° - Rigid - Straight Steel
10391N-4-4 0.25 0.1875 1.37 Male JIC 37° - Rigid - Straight Steel
10391N-6-6 0.375 0.3125 1.64 Male JIC 37° - Rigid - Straight Steel
10391N-8-6 0.5 0.3125 1.73 Male JIC 37° - Rigid - Straight Steel
10391N-8-8 0.5 0.40625 1.79 Male JIC 37° - Rigid - Straight Steel
10691-20-20 1.25 1 2.98 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691-20-20C 1.25 1 2.98 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-10-10 0.625 0.5 2.03 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-10-10-RD 0.625 0.5 1.91 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-10-10C 0.625 0.5 2.03 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-10-10S 0.625 0.5 2.03 Female JIC 37° - Swivel - Straight Steel
10691N-12-12 0.75 0.625 2.15 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-12-12-RD 0.75 0.625 2.09 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-12-12C 0.75 0.625 2.15 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-12-12S 0.75 0.625 2.15 Female JIC 37° - Swivel - Straight Steel
10691N-16-16 1 0.875 2.45 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-16-16-RD 1 0.875 2.27 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-16-16C 1 0.875 2.45 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-16-16S 1 0.875 2.45 Female JIC 37° - Swivel - Straight Steel
10691N-4-4 0.25 0.1875 1.43 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-4-4-RD 0.25 0.1875 1.34 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-4-4B 0.25 0.1875 1.43 Female JIC 37° - Swivel - Straight Brass
10691N-4-4C 0.25 0.1875 1.43 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-4-4S 0.25 0.1875 1.43 Female JIC 37° - Swivel - Straight Steel
10691N-5-5 0.313 0.25 1.56 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-5-5-RD 0.313 0.25 1.51 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-5-5C 0.313 0.25 1.56 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-5-5S 0.313 0.25 1.56 Female JIC 37° - Swivel - Straight Steel
10691N-6-6 0.375 0.3125 1.63 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-6-6-RD 0.375 0.3125 1.6 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-6-6B 0.375 0.3125 1.63 Female JIC 37° - Swivel - Straight Brass
10691N-6-6C 0.375 0.3125 1.63 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-6-6S 0.375 0.3125 1.63 Female JIC 37° - Swivel - Straight Steel
10691N-6-8 0.375 0.40625 1.69 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-8-10 0.5 0.5 1.86 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-8-10C 0.5 0.5 1.86 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-8-8 0.5 0.40625 1.89 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-8-8-RD 0.5 0.40625 1.79 Female JIC 37° - Swivel - Straight Brass nipple, steel nut and shell
10691N-8-8C 0.5 0.40625 1.89 Female JIC 37° - Swivel - Straight Stainless Steel
10691N-8-8S 0.5 0.40625 1.89 Female JIC 37° - Swivel - Straight Steel
10791N-12-12 0.75 0.625 2.26 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10791N-12-12C 0.75 0.625 2.26 Female NPSM Pipe - Swivel - Straight (60° Cone) Stainless Steel
10791N-16-16 1 1 2.26 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10791N-16-16C 1 1 2.26 Female NPSM Pipe - Swivel - Straight (60° Cone) Stainless Steel
10791N-4-4 0.25 0.1875 1.5 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10791N-4-4C 0.25 0.1875 1.5 Female NPSM Pipe - Swivel - Straight (60° Cone) Stainless Steel
10791N-6-6 0.375 0.3125 1.67 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10791N-6-6C 0.375 0.3125 1.67 Female NPSM Pipe - Swivel - Straight (60° Cone) Stainless Steel
10791N-8-8 0.5 0.40625 1.83 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10791N-8-8C 0.5 0.40625 1.83 Female NPSM Pipe - Swivel - Straight (60° Cone) Stainless Steel
10891N-12-12 0.75 0.625 2.15 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
10891N-6-6 0.375 0.3125 1.69 Female NPSM Pipe - Swivel - Straight (60° Cone) Brass nipple, steel nut and shell
12891N-10-10 0.625 0.5 2.43 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-12-12 0.75 0.625 2.5 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-4-4 0.25 0.1875 2.09 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-5-5 0.313 0.25 2.15 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-5-6 0.313 0.3125 2.23 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-6-6 0.375 0.3125 2.23 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
12891N-8-8 0.5 0.40625 2.31 Female NPSM Pipe - Swivel - Straight (60° Cone) Steel
13491N-10-10 0.625 0.625 2.96 Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) Brass nipple, steel nut and shell
13491N-12-12 0.75 0.75 3.37 Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) Brass nipple, steel nut and shell
13491N-8-10 0.5 0.5 2.81 Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) Brass nipple, steel nut and shell
13491N-8-8 0.5 0.5 2.8 Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) Brass nipple, steel nut and shell
13791-20-20 1.25 1 3.67 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-10-10 0.625 0.5 2.42 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-10-10C 0.625 0.5 2.42 Female JIC 37° - Swivel - 45° Elbow - Short Drop Stainless Steel
13791N-12-12 0.75 0.625 2.83 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-16-16 1 0.875 3.18 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-4-4 0.25 0.1875 1.74 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-4-4C 0.25 0.1875 1.74 Female JIC 37° - Swivel - 45° Elbow - Short Drop Stainless Steel
13791N-5-5 0.313 0.25 1.87 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-6-6 0.375 0.3125 1.94 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-6-6C 0.375 0.3125 1.94 Female JIC 37° - Swivel - 45° Elbow - Short Drop Stainless Steel
13791N-8-8 0.5 0.40625 2.28 Female JIC 37° - Swivel - 45° Elbow - Short Drop Steel
13791N-8-8C 0.5 0.40625 2.28 Female JIC 37° - Swivel - 45° Elbow - Short Drop Stainless Steel
13991-20-20 1.25 1 3.53 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-10-10 0.625 0.5 2.27 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-10-10C 0.625 0.5 2.27 Female JIC 37° - Swivel - 90° Elbow - Short Drop Stainless Steel
13991N-12-12 0.75 0.625 2.75 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-16-16 1 0.875 3.15 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-4-4 0.25 0.1875 1.62 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-4-4C 0.25 0.1875 1.62 Female JIC 37° - Swivel - 90° Elbow - Short Drop Stainless Steel
13991N-5-5 0.313 0.25 1.71 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-6-6 0.375 0.3125 1.91 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-8-8 0.5 0.40625 2.03 Female JIC 37° - Swivel - 90° Elbow - Short Drop Steel
13991N-8-8C 0.5 0.40625 2.03 Female JIC 37° - Swivel - 90° Elbow - Short Drop Stainless Steel
14191-20-20 1.25 1 4 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-10-10 0.625 0.5 2.34 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-12-12 0.75 0.625 2.63 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-16-16 1 0.875 3.15 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-4-4 0.25 0.1875 1.66 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-5-5 0.313 0.25 1.72 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-6-6 0.375 0.3125 1.93 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
14191N-8-8 0.5 0.40625 2.11 Female JIC 37° - Swivel - 90° Elbow - Long Drop Steel
16191N-10-10 0.625 0.5 1.82 Compression Air Brake Brass nipple, steel shell
16191N-12-12 0.75 0.625 1.93 Compression Air Brake Brass nipple, steel shell
16191N-8-10 0.5 0.5 1.61 Compression Air Brake Brass nipple, steel shell
16191N-8-8 0.5 0.40625 1.61 Compression Air Brake Brass nipple, steel shell
16791N-10-10 0.625 0.5 3.3 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16791N-12-12 0.75 0.625 3.64 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16791N-4-4 0.25 0.1875 2.05 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16791N-5-5 0.313 0.25 2.48 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16791N-6-6 0.375 0.3125 2.6 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16791N-8-8 0.5 0.40625 2.85 Male Inverted SAE 45° - Swivel - 45° Elbow Steel
16991N-10-10 0.625 0.5 3.02 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-12-12 0.75 0.625 3.36 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-4-4 0.25 0.1875 1.72 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-5-5 0.313 0.25 1.98 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-5-6 0.3125 0.3125 2.03 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-6-6 0.375 0.3125 2.08 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
16991N-8-8 0.5 0.40625 2.18 Male Inverted SAE 45° - Swivel - 90° Elbow Steel
17791N-12-12 0.75 0.625 3.07 Female SAE 45 / Swivel - 45° Elbow Steel
17791N-6-6 0.375 0.3125 2.06 Female SAE 45 / Swivel - 45° Elbow Steel
17991N-12-12 0.75 0.625 2.92 Female SAE 45 / Swivel - 90° Elbow Steel
17991N-6-6 0.375 0.3125 2.06 Female SAE 45 / Swivel - 90° Elbow Steel
19291N-12-12 0.75 0.625 2.35 Female BSP Parallel Pipe - Swivel - Straight (60° Cone) Steel
19291N-8-8 0.5 0.40625 1.99 Female BSP Parallel Pipe - Swivel - Straight (60° Cone) Steel
1AL91N-12-12C 0.75 0.625 1.86 Female A-Lok? Compression Stainless Steel
1AL91N-12-12NC 0.75 0.625 1.86 Female A-Lok? Compression w/o nut-ferrule Stainless Steel
1AL91N-16-16C 1 0.875 2.11 Female A-Lok? Compression Stainless Steel
1AL91N-4-4C 0.25 0.1875 1.3 Female A-Lok? Compression Stainless Steel
1AL91N-4-4NC 0.25 0.1875 1.3 Female A-Lok? Compression w/o nut-ferrule Stainless Steel
1AL91N-4-5C 0.25 0.25 1.35 Female A-Lok? Compression Stainless Steel
1AL91N-6-6C 0.375 0.3125 1.53 Female A-Lok? Compression Stainless Steel
1AL91N-6-6NC 0.375 0.3125 1.53 Female A-Lok? Compression w/o nut-ferrule Stainless Steel
1AL91N-8-8C 0.5 0.40625 1.61 Female A-Lok? Compression Stainless Steel
1AL91N-8-8NC 0.5 0.40625 1.61 Female A-Lok? Compression w/o nut-ferrule Stainless Steel
1B291N-12-12 0.75 0.625 2.93 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) Steel
1B291N-8-8 0.5 0.40625 2.04 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) Steel
1FN91N-16-16C 1 0.875 1.96 Sanitary Flange Stainless Steel
1J191N-10-10 0.625 0.5 1.25 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-12-12 0.75 0.625 2.65 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-16-16 1 0.875 3.15 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-4-4 0.25 0.1875 1.66 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-4-5 0.25 0.25 1.78 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-6-5 0.375 0.25 1.92 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-6-6 0.375 0.3125 1.92 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-8-6 0.5 0.3125 2 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J191N-8-8 0.5 0.40625 2.15 Female Seal-Lok - Swivel - 90° Elbow - Long Drop Steel
1J791N-10-10 0.625 0.5 2.47 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-12-12 0.75 0.625 2.74 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-16-16 1 0.875 3.5 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-4-4 0.25 0.1875 1.73 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-4-6 0.25 0.3125 1.91 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-6-6 0.375 0.3125 2.02 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-8-10 0.5 0.406 2.39 Female Seal-Lok - Swivel - 45° Elbow Steel
1J791N-8-8 0.5 0.40625 2.18 Female Seal-Lok - Swivel - 45° Elbow Steel
1J991N-10-10 0.625 0.5 2.18 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-12-10 0.75 0.5 2.39 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-12-12 0.75 0.625 2.39 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-16-16 1 0.875 2.47 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-4-4 0.25 0.1875 1.73 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-6-6 0.375 0.3125 1.91 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1J991N-8-8 0.5 0.406 2.02 Female Seal-Lok - Swivel - 90° Elbow - Short Drop Steel
1JC91-20-20 1.25 1 2.68 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-10-10 0.625 0.5 2.05 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-10-10C 0.625 0.5 2.05 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-12-10 0.75 0.5 2.05 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-12-10C 0.75 0.5 2.05 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-12-12 0.75 0.625 2.05 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-12-12C 0.75 0.625 2.05 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-16-16 1 0.875 2.56 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-16-16C 1 0.875 2.56 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-20-16 1.25 0.875 2.3 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-4-4 0.25 0.25 1.46 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-4-4C 0.25 0.25 1.46 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-6-6 0.375 0.3125 1.62 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-6-6C 0.375 0.3125 1.62 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1JC91N-8-8 0.5 0.40625 1.93 Female Seal-Lok - Swivel - Straight - Short Steel
1JC91N-8-8C 0.5 0.40625 1.93 Female Seal-Lok - Swivel - Straight - Short Stainless Steel
1P691N-4-4C 0.25 0.1875 1.3 Compression CPI Stainless Steel
1P691N-6-6C 0.375 0.3125 1.53 Compression CPI Stainless Steel
1P691N-8-8C 0.5 0.40625 1.61 Compression CPI Stainless Steel
1TU91N-10-10C 0.625 0.5 2.14 Universal Tube Stub Stainless Steel
1TU91N-12-12C 0.75 0.625 2.24 Universal Tube Stub Stainless Steel
1TU91N-16-16C 1 0.875 2.73 Universal Tube Stub Stainless Steel
1TU91N-4-4C 0.25 0.1875 1.63 Universal Tube Stub Stainless Steel
1TU91N-4-5C 0.25 0.25 1.7 Universal Tube Stub Stainless Steel
1TU91N-6-6C 0.375 0.3125 1.81 Universal Tube Stub Stainless Steel
1TU91N-8-10C 0.5 0.5 2.14 Universal Tube Stub Stainless Steel
1TU91N-8-8C 0.5 0.40625 2.72 Universal Tube Stub Stainless Steel
2GK-NUT na na 0.188 Bulkhead Nut Steel
NA-6520 na na 0.54 Grease Zerk Fitting









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
