Compression Fittings

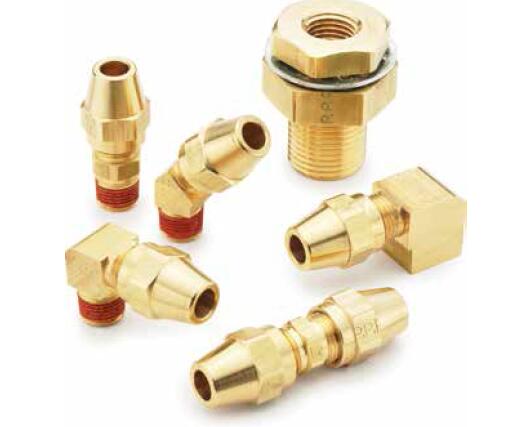

Air Brake D.O.T. compression style fittings, AB
Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.
Being the world's leader in leak free technologies Parker's air brake - AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. AB fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with copper air brake tubing or the following Parker Parflex Division tubing.
- 1120 Nylon Air Brake Tubing (with a tube support)
- 1320 Quantum Elastomeric Air Brake Tubing (with a tube support)
Air Brake D.O.T. compression style fittings, AB
Markets:
- Heavy duty truck
- Trailer
- Mobile
Features/Benefits:
- D.O.T. compression style fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
- Meets D.O.T. FMVSS571.106 performance
- Meets functional requirements of SAE J246
- All brass air brake fitting
- Reusable
- Use with copper tubing in air brake systems
- Pre-applied thread sealant
Applications:
- Copper air brake lines
- Coolant lines
- Fuel lines
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Compression, Thread |
| Shape: |
Various |
| Minimum Operating Temperature: |
-65 °F, -53 °C |
| Maximum Operating Temperature: |
250 °F, 121 °C |
| Maximum Operating Pressure: |
400 psi, 27 bar |
| Tube Material: |
Annealed Copper |
| Application: |
Air Brake |
| Specifications Met: |
DOT FMVSS 571.106, SAE J246 |
| Materials of Construction: |
Brass |
| Nut Material: |
Brass |
| Sleeve Material: |
BrassThread Sealant |
| Material: |
Vibra-Seal 516 |
Air Brake D.O.T. compression style fittings, AB型号
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
| 264AB-10 |
Tee |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
| 264AB-4 |
Tee |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 264AB-6 |
Tee |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 264AB-8 |
Tee |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 265AB-10 |
90° Elbow |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
| 265AB-4 |
90° Elbow |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 265AB-6 |
90° Elbow |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 265AB-8 |
90° Elbow |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 270AB-10-8 |
90° Elbow |
Tube to Female Pipe |
5/8 |
Compression |
1/2 |
na |
Female Pipe |
| 270AB-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
| 270AB-4-4 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
| 270AB-6-2 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
1/8 |
na |
Female Pipe |
| 270AB-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
| 270AB-6-6 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
3/8 |
na |
Female Pipe |
| 270AB-8-6 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
| 270AB-8-8 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Compression |
1/2 |
na |
Female Pipe |
| 60AB-10 |
Sleeve |
Tube |
5/8 |
Compression |
na |
na |
na |
| 60AB-12 |
Sleeve |
Tube |
3/4 |
Compression |
na |
na |
na |
| 60AB-4 |
Sleeve |
Tube |
1/4 |
Compression |
na |
na |
na |
| 60AB-6 |
Sleeve |
Tube |
3/8 |
Compression |
na |
na |
na |
| 60AB-8 |
Sleeve |
Tube |
1/2 |
Compression |
na |
na |
na |
| 61AB-10 |
Nut |
Tube |
5/8 |
Compression |
na |
na |
na |
| 61AB-12 |
Nut |
Tube |
3/4 |
Compression |
na |
na |
na |
| 61AB-4 |
Nut |
Tube |
1/4 |
Compression |
na |
na |
na |
| 61AB-6 |
Nut |
Tube |
3/8 |
Compression |
na |
na |
na |
| 61AB-8 |
Nut |
Tube |
1/2 |
Compression |
na |
na |
na |
| 62AB-10 |
Union |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
| 62AB-12 |
Union |
Tube to Tube |
3/4 |
Compression |
na |
3/4 |
Compression |
| 62AB-4 |
Union |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62AB-6 |
Union |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62AB-8 |
Union |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 62ABH-4 |
Bulkhead |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62ABH-6 |
Bulkhead |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62ABH-8 |
Bulkhead |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 66AB-10-6 |
Connector |
Tube to Female Pipe |
5/8 |
Compression |
3/8 |
na |
Female Pipe |
| 66AB-10-8 |
Connector |
Tube to Female Pipe |
5/8 |
Compression |
1/2 |
na |
Female Pipe |
| 66AB-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
| 66AB-4-4 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
| 66AB-6-2 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
1/8 |
na |
Female Pipe |
| 66AB-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
| 66AB-6-6 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
3/8 |
na |
Female Pipe |
| 66AB-8-6 |
Connector |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
| 66AB-8-8 |
Connector |
Tube to Female Pipe |
1/2 |
Compression |
1/2 |
na |
Female Pipe |
| VS269AB-10-6 |
90° Elbow |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS269AB-10-8 |
90° Elbow |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS269AB-12-12 |
90° Elbow |
Tube to Pipe |
3/4 |
Compression |
3/4 |
na |
Male Pipe |
| VS269AB-12-8 |
90° Elbow |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
| VS269AB-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| VS269AB-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| VS269AB-4-6 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
| VS269AB-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| VS269AB-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| VS269AB-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS269AB-6-8 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS269AB-8-4 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
| VS269AB-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| VS269AB-8-8 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
| VS271AB-10-8 |
Run Tee |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS271AB-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| VS271AB-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| VS271AB-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| VS271AB-6-6 |
Run Tee |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS271AB-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| VS271AB-8-8 |
Run Tee |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
| VS272AB-10-8 |
Branch Tee |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS272AB-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| VS272AB-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| VS272AB-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| VS272AB-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| VS272AB-6-6 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS272AB-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| VS272AB-8-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
| VS279AB-10-6 |
45° Elbow |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS279AB-10-8 |
45° Elbow |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS279AB-12-8 |
45° Elbow |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
| VS279AB-4-2 |
45° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| VS279AB-4-4 |
45° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| VS279AB-6-2 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| VS279AB-6-4 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| VS279AB-6-6 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS279AB-6-8 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS279AB-8-6 |
45° Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| VS279AB-8-8 |
45° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
| VS68AB-10-6 |
Connector |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS68AB-10-8 |
Connector |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS68AB-12-12 |
Connector |
Tube to Pipe |
3/4 |
Compression |
3/4 |
na |
Male Pipe |
| VS68AB-12-8 |
Connector |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
| VS68AB-4-2 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| VS68AB-4-4 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| VS68AB-4-6 |
Connector |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
| VS68AB-6-2 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| VS68AB-6-4 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| VS68AB-6-6 |
Connector |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| VS68AB-6-8 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
| VS68AB-8-4 |
Connector |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
| VS68AB-8-6 |
Connector |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| VS68AB-8-8 |
Connector |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
|
