Compression Fittings

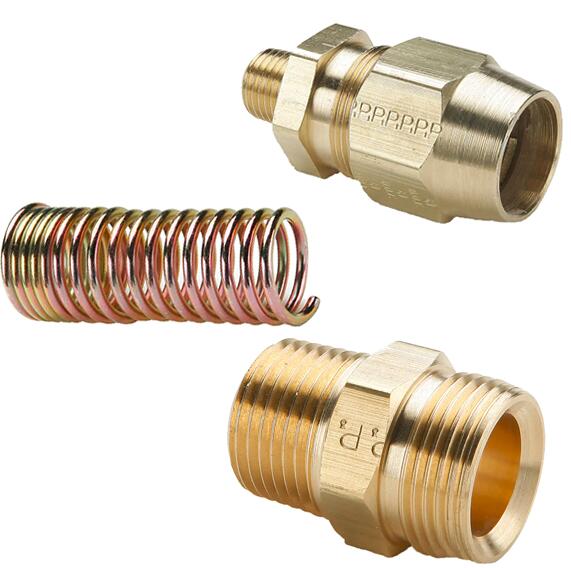

Air Brake Hose End Fittings
Parker's air brake hose end fittings meets D.O.T. FMVSS 571.106 standards when used with SAE J1402 air brake hose.
Parker's air brake hose fittings are field attachable fittings for use with Parker 271air brake hose. Easy to assemble and disassemble, air brake hose fittings meet D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose. Air brake hose fittings utilize a slotted sleeve for compression and positive grip.
Use Parker 271 air brake hose or SAE J1402 air brake hose with air brake hose fittings.
Air Brake Hose End Fittings
Markets:
- Heavy duty truck
- Trailer
Features/Benefits:
- All brass construction
- Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
- Easy to assemble & disassemble
- Slotted sleeve for compression and positive grip
Applications:
- Air lines from frame to axle
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Hose, Thread |
| Shape: |
Various |
| Minimum Operating Temperature: |
-65 °F, -53.8 °C |
| Maximum Operating Temperature: |
250 °F, 121 °C |
| Maximum Operating Pressure: |
400 psi, 27.5 bar |
| Tube Material: |
Parker 271 Hose |
| Application: |
Air Brake |
| Specifications Met: |
DOT FMVSS 571.106, SAE J1402 |
| Materials of Construction: |
Brass |
| Nut Material: |
Brass |
Air Brake Hose End Fittings型号
| Part |
Shape |
Style |
Connection 1 Hose I.D. (inch) |
Connection 1 Style |
Connection 2 Hose I.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Style |
| 56RBSG-6 |
Spring |
Hose |
3/8 |
Hose |
na |
na |
na |
| 56RBSG-8 |
Spring |
Hose |
1/2 |
Hose |
na |
na |
na |
| 60RB-6 |
Sleeve |
Hose |
3/8 |
Hose |
na |
na |
na |
| 60RB-8 |
Sleeve |
Hose |
1/2 |
Hose |
na |
na |
na |
| 61RB-6 |
Nut |
Hose |
3/8 |
Hose |
na |
na |
na |
| 61RB-8 |
Nut |
Hose |
1/2 |
Hose |
na |
na |
na |
| 61RBSG-6 |
Spring Guard Nut |
Hose |
3/8 |
Hose |
na |
na |
na |
| 61RBSG-8 |
Spring Guard Nut |
Hose |
1/2 |
Hose |
na |
na |
na |
| 62RB-6 |
Union |
Hose to Hose |
3/8 |
Hose |
3/8 |
na |
Hose |
| 62RB-8 |
Union |
Hose to Hose |
1/2 |
Hose |
1/2 |
na |
Hose |
| 66RBSV-6-3/4 |
Connector |
Hose to Straight Thread |
3/8 |
Hose |
na |
3/4-20 |
Straight Thread |
| 66RBSV-8-7/8 |
Connector |
Hose to Straight Thread |
1/2 |
Hose |
na |
7/8-20 |
Straight Thread |
| 67RBSG-6 |
Hose Nut/Spring Guard |
Hose |
3/8 |
Hose |
na |
na |
na |
| 67RBSG-8 |
Hose Nut/Spring Guard |
Hose |
1/2 |
Hose |
na |
na |
na |
| 68RB-6-4 |
Connector |
Hose to Pipe |
3/8 |
Hose |
na |
1/4 |
Male Pipe |
| 68RB-6-4B |
Connector Body |
Hose to Pipe |
3/8 |
Hose |
na |
1/4 |
Male Pipe |
| 68RB-6-6 |
Connector |
Hose to Pipe |
3/8 |
Hose |
na |
3/8 |
Male Pipe |
| 68RB-6-6B |
Connector Body |
Hose to Pipe |
3/8 |
Hose |
na |
3/8 |
Male Pipe |
| 68RB-6-8 |
Connector |
Hose to Pipe |
3/8 |
Hose |
na |
1/2 |
Male Pipe |
| 68RB-6-8B |
Connector Body |
Hose to Pipe |
3/8 |
Hose |
na |
1/2 |
Male Pipe |
| 68RB-8-6 |
Connector |
Hose to Pipe |
1/2 |
Hose |
na |
3/8 |
Male Pipe |
| 68RB-8-6B |
Connector Body |
Hose to Pipe |
1/2 |
Hose |
na |
3/8 |
Male Pipe |
| 68RB-8-8 |
Connector |
Hose to Pipe |
1/2 |
Hose |
na |
1/2 |
Male Pipe |
| 68RB-8-8B |
Connector Body |
Hose to Pipe |
1/2 |
Hose |
na |
1/2 |
Male Pipe |
| 68RBSG-6-4 |
Connector with Spring Guard |
Hose to Pipe |
3/8 |
Hose |
na |
1/4 |
Male Pipe |
| 68RBSG-6-6 |
Connector with Spring Guard |
Hose to Pipe |
3/8 |
Hose |
na |
3/8 |
Male Pipe |
| 68RBSG-6-8 |
Connector with Spring Guard |
Hose to Pipe |
3/8 |
Hose |
na |
1/2 |
Male Pipe |
| 68RBSG-8-6 |
Connector with Spring Guard |
Hose to Pipe |
1/2 |
Hose |
na |
3/8 |
Male Pipe |
| 68RBSG-8-8 |
Connector with Spring Guard |
Hose to Pipe |
1/2 |
Hose |
na |
1/2 |
Male Pipe |
| 76RB-3/4-4 |
Adapter |
Straight Thread to Pipe |
3/4-20 |
Straight Thread |
na |
1/4 |
Male Pipe |
| 76RB-3/4-6 |
Adapter |
Straight Thread to Pipe |
3/4-20 |
Straight Thread |
na |
3/8 |
Male Pipe |
| 76RB-7/8-6 |
Adapter |
Straight Thread to Pipe |
7/8-20 |
Straight Thread |
na |
3/8 |
Male Pipe |
| 76RB-7/8-8 |
Adapter |
Straight Thread to Pipe |
7/8-20 |
Straight Thread |
na |
1/2 |
Male Pipe |
|
