Assembly machines for EO/EO-2 and Triple-Lok

EOMAT machines are designed to match EO-2, EO PSR/DPR rings and Triple Lok? standards. The assembly is achieved with high precision and repeatability even under severe construction site working conditions.

EOMAT machines are designed to match EO-2, EO PSR/DPR rings and Triple Lok standards. The assembly is achieved with high precision and repeatability.

Assembly machines for EO/EO-2 and Triple-Lok

Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Transportation

Applications:
- EOMAT ECO: Portable machine for repair and workshops
- EOMAT UNI: Universal assembly machine for workshop
- EOMAT PRO: Cost effective commercial production

Features/ Benefits of assembly machines for EO-2 and Triple-Lok:
- Universal: Assembly of EO-2, EO PSR/DPR rings and 37° flaring for Triple-Lok can be done with just 1 machine.
- Efficient: With a cycle time of some 12 to 15 seconds the EOMAT machine greatly saves assembly time and effort. The investment pays back quickly.
- Safe: Proper pre-assembly greatly reduces the danger of leaking fittings or even hazardous tube blow out.

All machines are designed for reliable workshop use even under severe construction site working conditions. Tool handling and machine operation are simple. The following EOMAT machines are available:

EOMAT ECO
EO-2: Pressure controlled
D/DPR/PSR: Pressure controlled
Material: Steel, Stainless Steel
Outside diameter: 6-42 mm
Minimum U-bend: 75 mm
Wall thickness: No limitation
EO-2/PSR/DPR, Triple-Lok?: not applicable
Operation setting: Manual pressure adjustment according to selection chart.
Process control: Pressure gauge
Error detection: no
Memory function: no
Oil temperature control: no
Foot operating switch: Not available
Performance: 1 Phase, 230 V
Overall cycle time (sec.):
EO-2: 20
DPR/PSR: 25
Economic production quantity: max. 50 assemblies per day
Continuous operating: 50%
Weight: approx.. 30 kg

EOMAT UNI
Assembly method:
EO-2: Pressure controlled
D/DPR/PSR: Pressure controlled
Conventional 37° flaring
Material: Steel, Stainless Steel
Outside diameter: 6-42 mm
Minimum U-bend: 65 mm
Wall thickness: No limitation
EO-2/PSR/DPR/Triple-Lok?: 6×1 to 38×4 or 42×3 mm
(Tube O.D. × wall thickness)
Manual pressure adjustment according to selection chart
Depending on: Assembly type, tube dimension, tube material
Process control: Pressure gauge
Error detection: no
Memory function: no
Oil temperature control: no
Foot operating switch: Not available
Performance: 1 Phase, 230 V
EO-2: 12
DPR/PSR: 15
37° flaring: 15
Economic production quantity: max. 300 assemblies per day
Continuous operating: 80%
Weight: approx.. 66 kg

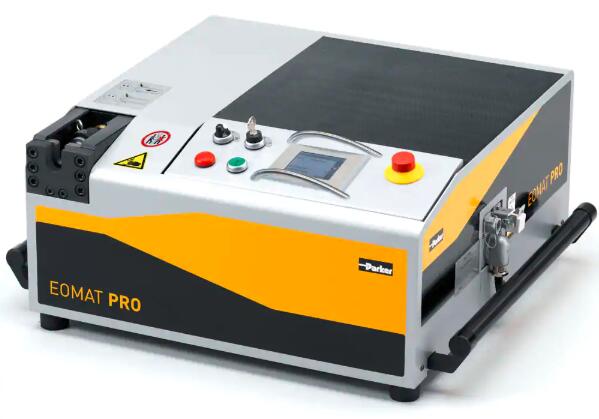

EOMAT PRO
Assembly method:
EO-2: Pressure controlled
D/DPR/PSR: Stroke controlled
Tube specification:
Material: Steel, Stainless Steel, Copper, nylon
PRO22/PRO42: 4-22/4-42 mm
PRO22/PRO42: approx. 35/70 mm
Wall thickness: No limitation
Tool detection and automatic adjustment
Manual adjustment of pressure is possible
Process control: PLC with display
Error detection: Warning light and message displayed, if deviations in assembly process occur
Memory function: Memory options for custom application on MOK transponderchip
Oil temperature control: Warning light and message displayed
Foot operating switch: Available
Performance: 400 V, 50 Hz, 3-phase
PRO22 / Pro42: approx. 8/10 seconds
PRO22 / Pro42: approx. 10/12 seconds
37° flaring
Economic production quantity: 100 or more assemblies per day
Continuous operating: 100%
Weight: approx.. 90 kg
