Parker Ball Valves

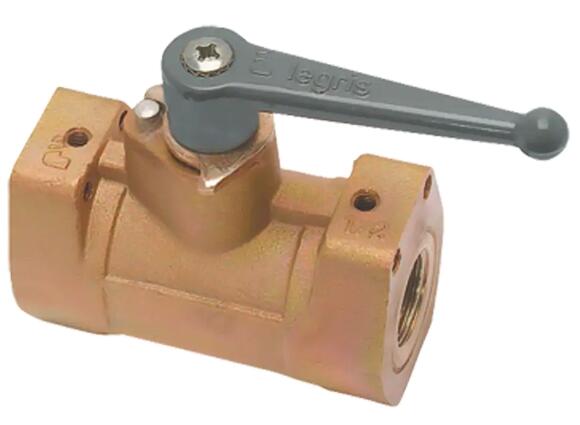

Ball Valves High Pressure Series

These valves are suitable for applications with pressures up to 300 bar.
High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

These valves are suitable for applications with pressures up to 300 bar.

High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

Features/Benefits:

- High Pressure & Safety

- Good sealing at low and high pressure
- Robust design with secure, non-removable inlet and outlet ports
- Forged brass providing excellent long-term strength under severe conditions of use
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Easy-to-Use

- Fixing screws for through-bulkhead mounting
- The lever may be repositioned or replaced with a handwheel
- Low operating torque

Markets:

- Vehicle Assembly Facilities
- Primary Metal Refining and Processing
- Wearing Apparel
- Power Generation Equipment

Applications:

- Allow/Stop Compressed Air Circulation for High Pressure Applications
- Suitable for Vacuum Applications
- Deep-Sea Diving

Technologies:

- Industrial valve
- High pressure valve
- High pressure ball valve
- Pressure regulator valve
- High pressure equipment
- Regulating valve
- Pneumatic ball valve
- Pneumatic valve

Technical Characteristics:

- Fluids: Compressed air
- Materials: zamak, PTFE, treated steel, polished brass, NBR, dichromate-treated zinc-plated brass, stainless steel, silicone free
- Pressure: Vacuum to 300 bar
- Temperature: -15°C to +80°C

Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)

Product Types:

- 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread

Technical Specifications

Ball Valves High Pressure Series 型号
