Parker 球阀
Parker Ball Valves

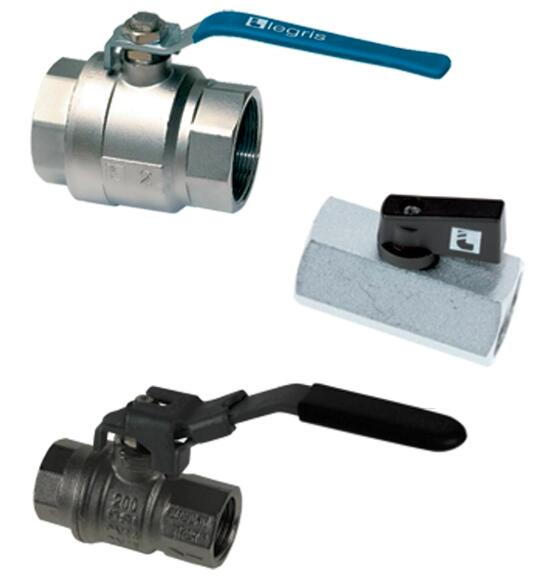

Ball Valves Standard Series

This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.

This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.

Features/Benefits:

- Optimised Installation

- Full fluid flow
- Long or butterfly lever
- Corrosion resistance
- A lockable version for operational safety
- Good value/performance ratio

- Wide Compatibility

- Numerous compatible fluids
- Can be used for low and medium pressure applications
- Surface treatment for corrosion protection

Markets:

- Machine Tools
- Agricultural Machinery
- Wearing Apparel
- Plumbing
- Air Conditioning
- Heating

Applications:

- Allow/Stop Industrial Fluids Circulation on Industrial Circuits
- Suitable for Low and High Temperatures

Technologies:

- Industrial valves
- Lockable valve
- Standard valve
- Compact valve
- Corrosion resistance
- Ball valve manufacturer

Technical Characteristics:

- Fluids: Compressed air, gas, water, water vapour, oil and all fluids compatible with the component materials
- Materials: steel with plastic sleeve, technical polymer, treated zamak, treated steel, PTFE, galvanised steel, nickel-plated brass, nickel-plated or chromium-plated shot-blasted brass, nickel-plated or hard chromium-plated brass, FPM, silicone free
- Pressure:
Standard and Lockable Series: 0 to 40 bar
Compact series: 0 to 35 bar
- Temperature:
Standard and Lockable Series: -20°C to +130°C
Compact series: -10°C to +90°C

Regulations:

- DI: 97/23/EC (module PED A - EC diameters greater than 25 mm)
- DI: Machinery Directive 2006/42/EC
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 89/392/EC

Product Types:

- 2/2 Standard In-Line Ball Valve, Female BSPP Thread
- 2/2 Standard Compact In-Line Ball Valve, Male/Female BSPP Thread
- 2/2 Standard Compact In-Line Ball Valve, Female BSPP Thread
- 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
- 2/2 In-Line Lockable Vented Ball Valve, Female BSPP Thread

Technical Specifications

Ball Valves Standard Series 型号
