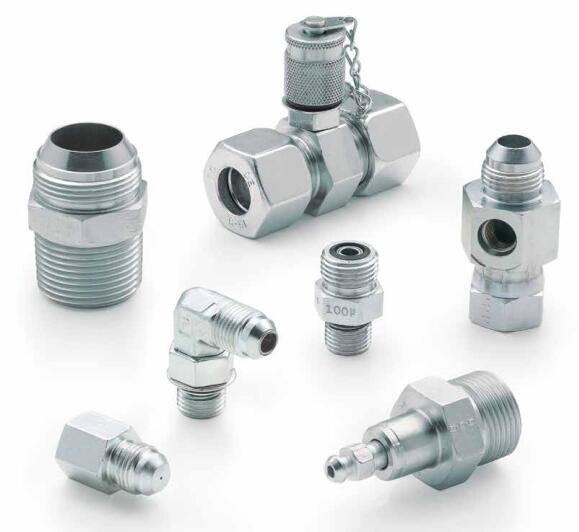

Parker Adapters
Bleed Adapters
Parker's Bleed Adapters allow for bleeding hydraulic systems without "cracking" hydraulic connections.
Parker's Bleed Adapters are designed specifically for installation directly to O-ring Face Seal (ORFS) type fittings or into SAE or NPT manifolds and valves where bleeding is often required. Bleed adapters are especially beneficial in hydraulic system applications where elastomeric seals can be extruded and/or damaged during bleeding done by "cracking" a connection.
Bleed Adapters
Markets:
- Construction
- Agriculture
- Mining
- Oil & Gas
- Transportation
- Alternative fuel
Features/Benefits:
- Uses standard automotive bleed screw design which is permanently crimped into body housing for blowout prevention.
- Easily bleed a hydraulic systems without “cracking,” protecting against the possible high force of larger size fittings or the potential for elastomeric seals extruding or becoming damaged.
- In-port options with SAE and NPT male studs and tube and hose connection options to male and female ORFS fittings.
- Available in steel in sizes 1 1/4” through 1 ?” with working pressures of up to 12,000 psi.
Applications:
- Hydraulic fluid handling connections
Technical Specifications
| Maximum Operating Pressure: |
9200 (Dynamic Pressure) psi, 63 (Dynamic Pressure) MPa, 634 (Dynamic Pressure) bar |
| Connection Type: |
Bleed Adapter |
| Materials of Construction: |
Steel, Zinc Plated |
| Application: |
Various |
| Shape: |
Straight |
| Connection 2 Size: |
SAE-ORB size 7/16-20 and NPTF size 1/4-18 |
| Maximum Static Pressure: |
6500 to 12000 psi |
Bleed Adapters型号
| Part |
Connection 1 Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Thread Size (inch) |
O-Ring Material |
| 1/4 HPBA-S |
Male NPTF |
na |
1/4-18 |
na |
| 10 FNLBA-S |
Female O-ring Face Seal |
5/8 |
na |
na |
| 10 PNLOBA-S |
Male O-ring Face Seal |
5/8 |
na |
90 Durometer Nitrile |
| 12 FNLBA-S |
Female O-ring Face Seal |
3/4 |
na |
na |
| 12 PNLOBA-S |
Male O-ring Face Seal |
3/4 |
na |
90 Durometer Nitrile |
| 12 PNLOBA-S FKM |
Male O-ring Face Seal |
3/4 |
na |
90 Durometer Fluorocarbon |
| 12 PNLOBA-S V0894 |
Male O-ring Face Seal |
3/4 |
na |
90 Durometer Fluorocarbon |
| 16 FNLBA-S |
Female O-ring Face Seal |
1 |
na |
na |
| 16 PNLOBA-S |
Male O-ring Face Seal |
1 |
na |
90 Durometer Nitrile |
| 16 PNLOBA-S FKM |
Male O-ring Face Seal |
1 |
na |
90 Durometer Fluorocarbon |
| 16 PNLOBA-S V0894 |
Male O-ring Face Seal |
1 |
na |
90 Durometer Fluorocarbon |
| 20 FNLBA-S |
Female O-ring Face Seal |
1 1/4 |
na |
na |
| 24 FNLBA-S |
Female O-ring Face Seal |
1 1/2 |
na |
na |
| 24 PNLOBA-S |
Male O-ring Face Seal |
1 1/2 |
na |
90 Durometer Nitrile |
| 4 P5ONBA-S |
Male SAE-ORB |
na |
1/8-27 |
90 Durometer Nitrile |
| 4 PNLOBA-S |
Male O-ring Face Seal |
1/4 |
na |
90 Durometer Nitrile |
| 6 PNLOBA-S |
Male O-ring Face Seal |
3/8 |
na |
90 Durometer Nitrile |
| 6 PNLOBA-S FKM |
Male O-ring Face Seal |
3/8 |
na |
90 Durometer Fluorocarbon |
| 6 PNLOBA-S V0894 |
Male O-ring Face Seal |
3/8 |
na |
90 Durometer Fluorocarbon |
| 8 FNLBA-S |
Female O-ring Face Seal |
1/2 |
na |
na |
| 8 PNLOBA-S |
Male O-ring Face Seal |
1/2 |
na |
90 Durometer Nitrile |
|
