Parker Fittings接头
Flare Fittings

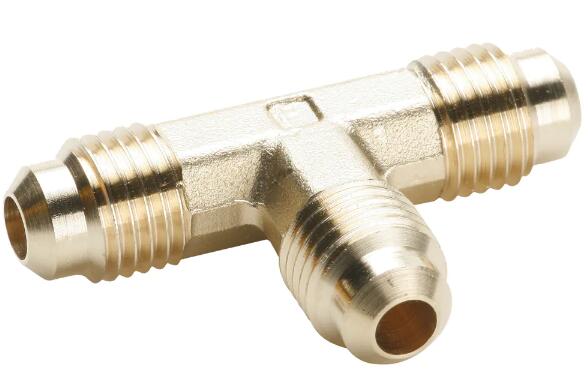

Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.





Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.



Brass 45° Flare Fittings



Markets:
- Refrigeration
- Heavy Duty Truck
- Mobile
- Industrial
- Heating
- Air conditioning

Features/Benefits:
- All brass construction
- Forged nuts for refrigeration applications
- Long nuts for vibration
- U.L. listed for flammable liquids
- Functional requirements of SAE J512 & SAE J513
- Economical
- Metal-to-metal seal
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared

Applications:
- Refrigerant lines
- Propane lines
- Fuels
- Natural Gas
- Oil burners
- Adapters

Custom configurations and sizes are available upon request. Contact us for additional information.





Technical Specifications

Connection Type: Flare, Thread
Shape: Various
Minimum Operating Temperature: -65 °F, -53 °C
Maximum Operating Temperature: 250 °F, 121 °C
Maximum Operating Pressure: 1/8 (2800), 3/16 (1900), 1/4 (1400), 5/16 (1200), 3/8 (1000), 1/2 (750), 5/8 (650), 3/4 (550) psi, 1/8 (193), 3/16 (131), 1/4 (96), 5/16 (82), 3/8 (68), 1/2 (52), 5/8 (45), 3/4 (38) bar
Tube Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Application: Pumps, Gas Grills, Coffee Makers, Adapters
Specifications Met: SAE J512, SAE J513
Materials of Construction: Brass



Brass 45° Flare Fittings型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Thread Size (mm) Connection 2 Style
144F-10 Tee Flare to Flare 5/8 Flare na 5/8 na Flare
144F-3 Tee Flare to Flare 3/16 Flare na 3/16 na Flare
144F-4 Tee Flare to Flare 1/4 Flare na 1/4 na Flare
144F-5 Tee Flare to Flare 5/16 Flare na 5/16 na Flare
144F-6 Tee Flare to Flare 3/8 Flare na 3/8 na Flare
144F-6-6-4 Tee Flare to Flare 3/8 Flare na 1/4 na Flare
144F-8 Tee Flare to Flare 1/2 Flare na 1/2 na Flare
144F-8-8-6 Tee Flare to Flare 1/2 Flare na 3/8 na Flare
145F-10-8 Branch Tee Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
145F-2-2 Branch Tee Flare to Pipe 1/8 Flare 1/8 na na Male Pipe
145F-4-2 Branch Tee Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
145F-4-4 Branch Tee Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
145F-5-4 Branch Tee Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
145F-6-4 Branch Tee Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
145F-6-6 Branch Tee Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
145F-6-8 Branch Tee Flare to Pipe 3/8 Flare 1/2 na na Male Pipe
145F-8-6 Branch Tee Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
145F-8-8 Branch Tee Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
147F-6 Cross Flare to Flare 3/8 Flare na 3/8 na Male Pipe
1495F-12-12 90° Forged Elbow Flare to Pipe 3/4 Flare 1 1/16-12 na na Straight Thread
1495F-12-8 90° Forged Elbow Flare to Pipe 3/4 Flare 3/4-16 na na Straight Thread
149F-10-12 90° Forged Elbow Flare to Pipe 5/8 Flare 3/4 na na Male Pipe
149F-10-4 90° Forged Elbow Flare to Pipe 5/8 Flare 1/4 na na Male Pipe
149F-10-6 90° Forged Elbow Flare to Pipe 5/8 Flare 3/8 na na Male Pipe
149F-10-8 90° Forged Elbow Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
149F-12-12 90° Forged Elbow Flare to Pipe 3/4 Flare 3/4 na na Male Pipe
149F-12-8 90° Forged Elbow Flare to Pipe 3/4 Flare 1/2 na na Male Pipe
149F-14-12 90° Forged Elbow Flare to Pipe 7/8 Flare 3/4 na na Male Pipe
149F-2-2 90° Forged Elbow Flare to Pipe 1/8 Flare 1/8 na na Male Pipe
149F-3-2 90° Forged Elbow Flare to Pipe 3/16 Flare 1/8 na na Male Pipe
149F-4-2 90° Forged Elbow Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
149F-4-4 90° Forged Elbow Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
149F-4-6 90° Forged Elbow Flare to Pipe 1/4 Flare 3/8 na na Male Pipe
149F-4-8 90° Forged Elbow Flare to Pipe 1/4 Flare 1/2 na na Male Pipe
149F-5-2 90° Forged Elbow Flare to Pipe 5/16 Flare 1/8 na na Male Pipe
149F-5-4 90° Forged Elbow Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
149F-5-6 90° Forged Elbow Flare to Pipe 5/16 Flare 3/8 na na Male Pipe
149F-6-12 90° Forged Elbow Flare to Pipe 3/8 Flare 3/4 na na Male Pipe
149F-6-2 90° Forged Elbow Flare to Pipe 3/8 Flare 1/8 na na Male Pipe
149F-6-4 90° Forged Elbow Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
149F-6-6 90° Forged Elbow Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
149F-6-8 90° Forged Elbow Flare to Pipe 3/8 Flare 1/2 na na Male Pipe
149F-8-12 90° Forged Elbow Flare to Pipe 1/2 Flare 3/4 na na Male Pipe
149F-8-4 90° Forged Elbow Flare to Pipe 1/2 Flare 1/4 na na Male Pipe
149F-8-6 90° Forged Elbow Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
149F-8-8 90° Forged Elbow Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
14FL-10 Long Forged Nut Flare 5/8 Flare na na na na
14FL-4 Long Forged Nut Flare 1/4 Flare na na na na
14FL-6 Long Forged Nut Flare 3/8 Flare na na na na
14FL-8 Long Forged Nut Flare 1/2 Flare na na na na
14FS-10-8 Forged Reducing Nut Tube to Tube 5/8 Flare na 1/2 na Flare
14FS-6-4 Forged Reducing Nut Tube to Tube 3/8 Flare na 1/4 na Flare
14FS-8-6 Forged Reducing Nut Tube to Tube 1/2 Flare na 3/8 na Flare
14FSV-10 Swivel Nut Connector Tube to Tube 5/8 NPT Swivel Nut na 5/8 na NPT Swivel Nut
14FSV-4 Swivel Nut Connector Tube to Tube 1/4 NPT Swivel Nut na 1/4 na NPT Swivel Nut
14FSV-6 Swivel Nut Connector Tube to Tube 3/8 NPT Swivel Nut na 3/8 na NPT Swivel Nut
14FSV-8 Swivel Nut Connector Tube to Tube 1/2 NPT Swivel Nut na 1/2 na NPT Swivel Nut
14FSX-10 Short Forged Nut Flare 5/8 Flare na na na na
14FSX-12 Short Forged Nut Flare 3/4 Flare na na na na
14FSX-4 Short Forged Nut Flare 1/4 Flare na na na na
14FSX-5 Short Forged Nut Flare 5/16 Flare na na na na
14FSX-6 Short Forged Nut Flare 3/8 Flare na na na na
14FSX-8 Short Forged Nut Flare 1/2 Flare na na na na
150F-10-12 90° Forged Elbow Flare to Female Pipe 5/8 Flare 3/4 na na Female Pipe
150F-10-8 90° Forged Elbow Flare to Female Pipe 5/8 Flare 1/2 na na Female Pipe
150F-4-2 90° Forged Elbow Flare to Female Pipe 1/4 Flare 1/8 na na Female Pipe
150F-4-4 90° Forged Elbow Flare to Female Pipe 1/4 Flare 1/4 na na Female Pipe
150F-5-4 90° Forged Elbow Flare to Female Pipe 5/16 Flare 1/4 na na Female Pipe
150F-6-2 90° Forged Elbow Flare to Female Pipe 3/8 Flare 1/8 na na Female Pipe
150F-6-4 90° Forged Elbow Flare to Female Pipe 3/8 Flare 1/4 na na Female Pipe
150F-6-6 90° Forged Elbow Flare to Female Pipe 3/8 Flare 3/8 na na Female Pipe
150F-6-8 90° Forged Elbow Flare to Female Pipe 3/8 Flare 1/2 na na Female Pipe
150F-8-12 90° Forged Elbow Flare to Female Pipe 1/2 Flare 3/4 na na Female Pipe
150F-8-6 90° Forged Elbow Flare to Female Pipe 1/2 Flare 3/8 na na Female Pipe
150F-8-8 90° Forged Elbow Flare to Female Pipe 1/2 Flare 1/2 na na Female Pipe
151F-10-8 Run Tee Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
151F-4-2 Run Tee Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
151F-4-4 Run Tee Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
151F-5-4 Run Tee Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
151F-6-4 Run Tee Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
151F-6-6 Run Tee Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
151F-6-8 Run Tee Flare to Pipe 3/8 Flare 1/2 na na Male Pipe
151F-8-6 Run Tee Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
151F-8-8 Run Tee Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
155F-10 90° Forged Elbow Flare to Flare 5/8 Flare na 5/8 na Flare
155F-12 90° Forged Elbow Flare to Flare 3/4 Flare na 3/4 na Flare
155F-2 90° Forged Elbow Flare to Flare 1/8 Flare na 1/8 na Flare
155F-3 90° Forged Elbow Flare to Flare 3/16 Flare na 3/16 na Flare
155F-4 90° Forged Elbow Flare to Flare 1/4 Flare na 1/4 na Flare
155F-5 90° Forged Elbow Flare to Flare 5/16 Flare na 5/16 na Flare
155F-6 90° Forged Elbow Flare to Flare 3/8 Flare na 3/8 na Flare
155F-8 90° Forged Elbow Flare to Flare 1/2 Flare na 1/2 na Flare
1595F-12-12 45° Forged Elbow Flare to Straight Thread 3/4 Flare 1 1/16-12 na na Straight Thread
1595F-12-8 45° Forged Elbow Flare to Straight Thread 3/4 Flare 3/4-16 na na Straight Thread
1595F-8-8 45° Forged Elbow Flare to Straight Thread 1/2 Flare 3/4-16 na na Straight Thread
159F-10-6 45° Forged Elbow Flare to Pipe 5/8 Flare 3/8 na na Male Pipe
159F-10-8 45° Forged Elbow Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
159F-12-8 45° Forged Elbow Flare to Pipe 3/4 Flare 1/2 na na Male Pipe
159F-4-2 45° Forged Elbow Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
159F-4-4 45° Forged Elbow Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
159F-5-2 45° Forged Elbow Flare to Pipe 5/16 Flare 1/8 na na Male Pipe
159F-5-4 45° Forged Elbow Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
159F-6-2 45° Forged Elbow Flare to Pipe 3/8 Flare 1/8 na na Male Pipe
159F-6-4 45° Forged Elbow Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
159F-6-6 45° Forged Elbow Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
159F-8-4 45° Forged Elbow Flare to Pipe 1/2 Flare 1/4 na na Male Pipe
159F-8-6 45° Forged Elbow Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
159F-8-8 45° Forged Elbow Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
166FSV-10-10 90° Swivel Elbow Flare to Female Flare Swivel 5/8 Flare na 5/8 na NPT Swivel Nut
166FSV-12-12 90° Swivel Elbow Flare to Female Flare Swivel 3/4 Flare na 3/4 na NPT Swivel Nut
166FSV-4-4 90° Swivel Elbow Flare to Female Flare Swivel 1/4 Flare na 1/4 na NPT Swivel Nut
166FSV-6-6 90° Swivel Elbow Flare to Female Flare Swivel 3/8 Flare na 3/8 na NPT Swivel Nut
166FSV-8-8 90° Swivel Elbow Flare to Female Flare Swivel 1/2 Flare na 1/2 na NPT Swivel Nut
1F-4-12 Drum adapter Flare to Female Pipe 1/4 Flare 3/4 na na Female Pipe
1F-4-8 Drum adapter Flare to Female Pipe 1/4 Flare 1/2 na na Female Pipe
1F-6-12 Drum adapter Flare to Female Pipe 3/8 Flare 3/4 na na Female Pipe
1F-8-12 Drum adapter Flare to Female Pipe 1/2 Flare 1/2 na na Female Pipe
244F-4 90° Extruded Elbow Flare to Flare 1/4 Flare na 1/4 na Flare
249F-10-8 90° Extruded Elbow Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
249F-3-2 90° Extruded Elbow Flare to Pipe 3/16 Flare 1/8 na na Male Pipe
249F-4-2 90° Extruded Elbow Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
249F-4-4 90° Extruded Elbow Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
249F-4-6 90° Extruded Elbow Flare to Pipe 1/4 Flare 3/8 na na Male Pipe
249F-5-2 90° Extruded Elbow Flare to Pipe 5/16 Flare 1/8 na na Male Pipe
249F-5-4 90° Extruded Elbow Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
249F-6-2 90° Extruded Elbow Flare to Pipe 3/8 Flare 1/8 na na Male Pipe
249F-6-4 90° Extruded Elbow Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
249F-6-6 90° Extruded Elbow Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
249F-6-8 90° Extruded Elbow Flare to Pipe 3/8 Flare 1/2 na na Male Pipe
249F-8-6 90° Extruded Elbow Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
249F-8-8 90° Extruded Elbow Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
256F-4-2 Adapter Tee Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
259F-4-2 45° Extruded Elbow Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
259F-4-4 45° Extruded Elbow Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
259F-6-4 45° Extruded Elbow Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
259F-6-6 45° Extruded Elbow Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
259F-8-6 45° Extruded Elbow Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
2GF-10 Flare Gasket Flare 5/8 Flare na na na na
2GF-12 Flare Gasket Flare 3/4 Flare na na na na
2GF-3 Flare Gasket Flare 3/16 Flare na na na na
2GF-4 Flare Gasket Flare 1/4 Flare na na na na
2GF-5 Flare Gasket Flare 5/16 Flare na na na na
2GF-6 Flare Gasket Flare 3/8 Flare na na na na
2GF-8 Flare Gasket Flare 1/2 Flare na na na na
3GF-10 Seal Bonnet Flare 5/8 Flare na na na na
3GF-12 Seal Bonnet Flare 3/4 Flare na na na na
3GF-3 Seal Bonnet Flare 3/16 Flare na na na na
3GF-4 Seal Bonnet Flare 1/4 Flare na na na na
3GF-5 Seal Bonnet Flare 5/16 Flare na na na na
3GF-6 Seal Bonnet Flare 3/8 Flare na na na na
3GF-8 Seal Bonnet Flare 1/2 Flare na na na na
41FL-10 Long Extruded Nut Flare 5/8 Flare na na na na
41FL-12 Long Extruded Nut Flare 3/4 Flare na na na na
41FL-2 Long Extruded Nut Flare 1/8 Flare na na na na
41FL-3 Long Extruded Nut Flare 3/16 Flare na na na na
41FL-4 Long Extruded Nut Flare 1/4 Flare na na na na
41FL-5 Long Extruded Nut Flare 5/16 Flare na na na na
41FL-6 Long Extruded Nut Flare 3/8 Flare na na na na
41FL-8 Long Extruded Nut Flare 1/2 Flare na na na na
41FS-10 Short Extruded Nut Flare 5/8 Flare na na na na
41FS-12 Short Extruded Nut Flare 3/4 Flare na na na na
41FS-14 Short Extruded Nut Flare 7/8 Flare na na na na
41FS-2 Short Extruded Nut Flare 1/8 Flare na na na na
41FS-3 Short Extruded Nut Flare 3/16 Flare na na na na
41FS-4 Short Extruded Nut Flare 1/4 Flare na na na na
41FS-5 Short Extruded Nut Flare 5/16 Flare na na na na
41FS-6 Short Extruded Nut Flare 3/8 Flare na na na na
41FS-8 Short Extruded Nut Flare 1/2 Flare na na na na
41FX-10 Shorter Extruded Nut Flare 5/8 Flare na na na na
41FX-12 Shorter Extruded Nut Flare 3/4 Flare na na na na
41FX-6 Shorter Extruded Nut Flare 3/8 Flare na na na na
41FX-8 Shorter Extruded Nut Flare 1/2 Flare na na na na
42F-10 Union Flare to Flare 5/8 Flare 5/8 na na Flare
42F-10-6 Union Flare to Flare 5/8 Flare 3/8 na na Flare
42F-10-8 Union Flare to Flare 5/8 Flare na 1/2 na Flare
42F-12 Union Flare to Flare 3/4 Flare na 3/4 na Flare
42F-14 Union Flare to Flare 7/8 Flare na 7/8 na Flare
42F-2 Union Flare to Flare 1/8 Flare na 1/8 na Flare
42F-3 Union Flare to Flare 3/16 Flare na 3/16 na Flare
42F-4 Union Flare to Flare 1/4 Flare na 1/4 na Flare
42F-5 Union Flare to Flare 5/16 Flare na 5/16 na Flare
42F-6 Union Flare to Flare 3/8 Flare na 3/8 na Flare
42F-6-4 Union Flare to Flare 3/8 Flare na 1/4 na Flare
42F-6-5 Union Flare to Flare 3/8 Flare na 5/16 na Flare
42F-8 Union Flare to Flare 1/2 Flare na 1/2 na Flare
42F-8-4 Union Flare to Flare 1/2 Flare na 1/4 na Flare
42F-8-6 Union Flare to Flare 1/2 Flare na 3/8 na Flare
43F-10-10 Connector Flare to Solder 5/8 Flare na 5/8 na Solder O D
43F-10-12 Connector Flare to Solder 5/8 Flare na 3/4 na Solder O D
43F-10-8 Connector Flare to Solder 5/8 Flare na 1/2 na Solder O D
43F-12-12 Connector Flare to Solder 3/4 Flare na 3/4 na Solder O D
43F-12-14 Connector Flare to Solder 3/4 Flare na 7/8 na Solder O D
43F-4-4 Connector Flare to Solder 1/4 Flare na 1/4 na Solder O D
43F-4-5 Connector Flare to Solder 1/4 Flare na 5/16 na Solder O D
43F-4-6 Connector Flare to Solder 1/4 Flare na 3/8 na Solder O D
43F-6-10 Connector Flare to Solder 3/8 Flare na 5/8 na Solder O D
43F-6-4 Connector Flare to Solder 3/8 Flare na 1/4 na Solder O D
43F-6-5 Connector Flare to Solder 3/8 Flare na 5/16 na Solder O D
43F-6-6 Connector Flare to Solder 3/8 Flare na 3/8 na Solder O D
43F-6-8 Connector Flare to Solder 3/8 Flare na 1/2 na Solder O D
43F-8-10 Connector Flare to Solder 1/2 Flare na 5/8 na Solder O D
43F-8-6 Connector Flare to Solder 1/2 Flare na 3/8 na Solder O D
43F-8-8 Connector Flare to Solder 1/2 Flare na 1/2 na Solder O D
46F-10-12 Connector Flare to Female Pipe 5/8 Flare 3/4 na na Female Pipe
46F-10-6 Connector Flare to Female Pipe 5/8 Flare 3/8 na na Female Pipe
46F-10-8 Connector Flare to Female Pipe 5/8 Flare 1/2 na na Female Pipe
46F-2-2 Connector Flare to Female Pipe 1/8 Flare 1/8 na na Female Pipe
46F-3-2 Connector Flare to Female Pipe 3/16 Flare 1/8 na na Female Pipe
46F-4-2 Connector Flare to Female Pipe 1/4 Flare 1/8 na na Female Pipe
46F-4-4 Connector Flare to Female Pipe 1/4 Flare 1/4 na na Female Pipe
46F-4-6 Connector Flare to Female Pipe 1/4 Flare 3/8 na na Female Pipe
46F-5-2 Connector Flare to Female Pipe 5/16 Flare 1/8 na na Female Pipe
46F-5-4 Connector Flare to Female Pipe 5/16 Flare 1/4 na na Female Pipe
46F-6-2 Connector Flare to Female Pipe 3/8 Flare 1/8 na na Female Pipe
46F-6-4 Connector Flare to Female Pipe 3/8 Flare 1/4 na na Female Pipe
46F-6-6 Connector Flare to Female Pipe 3/8 Flare 3/8 na na Female Pipe
46F-6-8 Connector Flare to Female Pipe 3/8 Flare 1/2 na na Female Pipe
46F-8-12 Connector Flare to Female Pipe 1/2 Flare 3/4 na na Female Pipe
46F-8-4 Connector Flare to Female Pipe 1/2 Flare 1/4 na na Female Pipe
46F-8-6 Connector Flare to Female Pipe 1/2 Flare 3/8 na na Female Pipe
46F-8-8 Connector Flare to Female Pipe 1/2 Flare 1/2 na na Female Pipe
485F-12-12 Connector Flare to Straight Thread 3/4 Flare 1 1/16-12 na na Straight Thread
485F-12-8 Connector Flare to Straight Thread 3/4 Flare 3/4-16 na na Straight Thread
48F-10-12 Connector Flare to Pipe 5/8 Flare 3/4 na na Male Pipe
48F-10-4 Connector Flare to Pipe 5/8 Flare 1/4 na na Male Pipe
48F-10-6 Connector Flare to Pipe 5/8 Flare 3/8 na na Male Pipe
48F-10-8 Connector Flare to Pipe 5/8 Flare 1/2 na na Male Pipe
48F-12-12 Connector Flare to Pipe 3/4 Flare 3/4 na na Male Pipe
48F-12-8 Connector Flare to Pipe 3/4 Flare 1/2 na na Male Pipe
48F-14-12 Connector Flare to Pipe 7/8 Flare 3/4 na na Male Pipe
48F-2-2 Connector Flare to Pipe 1/8 Flare 1/8 na na Male Pipe
48F-3-2 Connector Flare to Pipe 3/16 Flare 1/8 na na Male Pipe
48F-3-4 Connector Flare to Pipe 3/16 Flare 1/4 na na Male Pipe
48F-4-2 Connector Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
48F-4-4 Connector Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
48F-4-6 Connector Flare to Pipe 1/4 Flare 3/8 na na Male Pipe
48F-4-8 Connector Flare to Pipe 1/4 Flare 1/2 na na Male Pipe
48F-5-2 Connector Flare to Pipe 5/16 Flare 1/8 na na Male Pipe
48F-5-4 Connector Flare to Pipe 5/16 Flare 1/4 na na Male Pipe
48F-5-6 Connector Flare to Pipe 5/16 Flare 3/8 na na Male Pipe
48F-6-12 Connector Flare to Pipe 3/8 Flare 3/4 na na Male Pipe
48F-6-2 Connector Flare to Pipe 3/8 Flare 1/8 na na Male Pipe
48F-6-4 Connector Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
48F-6-6 Connector Flare to Pipe 3/8 Flare 3/8 na na Male Pipe
48F-6-8 Connector Flare to Pipe 3/8 Flare 1/2 na na Male Pipe
48F-8-12 Connector Flare to Pipe 1/2 Flare 3/4 na na Male Pipe
48F-8-4 Connector Flare to Pipe 1/2 Flare 1/4 na na Male Pipe
48F-8-6 Connector Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
48F-8-8 Connector Flare to Pipe 1/2 Flare 1/2 na na Male Pipe
639F-10 Seal Plug Flare 5/8 Flare na na na na
639F-4 Seal Plug Flare 1/4 Flare na na na na
639F-5 Seal Plug Flare 5/16 Flare na na na na
639F-6 Seal Plug Flare 3/8 Flare na na na na
639F-8 Seal Plug Flare 1/2 Flare na na na na
640F-10 Cap Flare 5/8 Flare na na na na
640F-3 Cap Flare 3/16 Flare na na na na
640F-4 Cap Flare 1/4 Flare na na na na
640F-5 Cap Flare 5/16 Flare na na na na
640F-6 Cap Flare 3/8 Flare na na na na
640F-8 Cap Flare 1/2 Flare na na na na
660FHD-10 Union Female Flare to Female Flare 5/8 Flare na 5/8 na Flare
660FHD-4 Union Female Flare to Female Flare 1/4 Flare na 1/4 na Flare
660FHD-6 Union Female Flare to Female Flare 3/8 Flare na 3/8 na Flare
660FHD-8 Union Female Flare to Female Flare 1/2 Flare na 1/2 na Flare
661FHD-10-12 Connector Male Flare to Female Flare 5/8 Flare na 3/4 na Flare
661FHD-10-8 Connector Male Flare to Female Flare 5/8 Flare na 1/2 na Flare
661FHD-12-10 Connector Male Flare to Female Flare 3/4 Flare na 5/8 na Flare
661FHD-4-6 Connector Male Flare to Female Flare 1/4 Flare na 3/8 na Flare
661FHD-4-8 Connector Male Flare to Female Flare 1/4 Flare na 1/2 na Flare
661FHD-6-4 Connector Male Flare to Female Flare 3/8 Flare na 1/4 na Flare
661FHD-6-8 Connector Male Flare to Female Flare 3/8 Flare na 1/2 na Flare
661FHD-8-10 Connector Male Flare to Female Flare 1/2 Flare na 5/8 na Flare
661FHD-8-6 Connector Male Flare to Female Flare 1/2 Flare na 3/8 na Flare
664FHD-4-2 Connector Female Flare to Pipe 1/4 Flare 1/8 na na Male Pipe
664FHD-4-4 Connector Female Flare to Pipe 1/4 Flare 1/4 na na Male Pipe
664FHD-6-4 Connector Female Flare to Pipe 3/8 Flare 1/4 na na Male Pipe
664FHD-8-6 Connector Female Flare to Pipe 1/2 Flare 3/8 na na Male Pipe
US5-4 Flare Adapter Flare to Tube Stem 1/4 Flare Nut na 1/4 na Tube
US5-6 Flare Adapter Flare to Tube Stem 3/8 Flare Nut na 3/8 na Tube
US5-8 Flare Adapter Flare to Tube Stem 1/2 Flare Nut na 1/2 na Tube








信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
