Parker Ball Valves

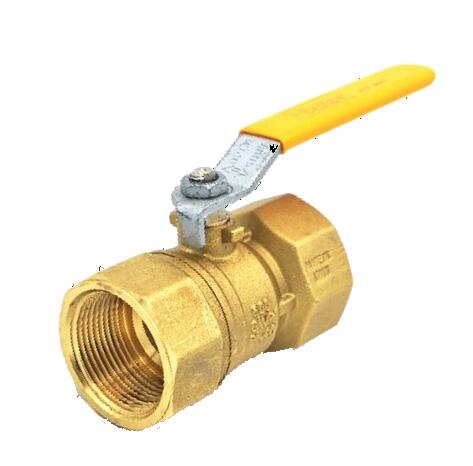

Brass Ball Valve Series 525 - Standard Port Female Threads
Ball Valve Series 525 features a standard port at an economical price, designed for years of service.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Virgin PTFE seals ensure a minimum of 10% contatct between the ball and seal, reducing the possiblity of leaks. Batch coding printed on every valve produced for complete traceability. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's 525 brass ball valves are available in:
- Female x Female NPT
Markets:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
Features/Benefits:
- Standard Port Design
- Forged Body for Added Strength
- Chrome Plated Brass Ball
- PTFE Seats and Seals
Applications:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Air Service lines
- Water Service Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Flow Coefficient: |
8.4, 16, 22, 38, 52, 78 |
| Connection Type: |
NPT |
| Handle Type: |
Lever |
| Minimum Operating Temperature: |
-40F or -40C |
| Maximum Operating Temperature: |
350F or 177C |
| Maximum Operating Pressure: |
600 PSI or 41.4 Bar |
| Body Material: |
Brass |
| Ball Material: |
Chrome Plated Brass |
| Seat Material: |
PTFE |
| Shape: |
In Line |
| Product Style: |
Female to Female |
Brass Ball Valve Series 525 - Standard Port Female Threads 型号
|
