Parker Fittings接头
Flareless and Bite Type Fittings
Brass flareless tube fitting, Hi-Duty

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.





Parker's Hi-Duty fittings are preassembled with the sleeve machined onto the nut. During assembly the sleeve breaks away from the nut and seals on the tubing. This unique design creates tight joints that withstand pressures of most commonly used types of tubing including seamless steel tubing, copper, brass and thermoplastic tubing. This design also provides a vibration dampener which enables joints to stand up under moderate vibration.



Brass flareless tube fitting, Hi-Duty







Markets:
- Mobile
- Industrial
- Lubrication
- Agriculture

Features/Benefits:
- All brass construction
- No flaring, soldering or other tube preparation
- One piece nut and sleeve reduces installation time
- Use with copper, seamless steel and thermoplastic tubing
- Steel tubing must be cold drawn and annealed seamless low-carbon per SAE J524 with a maximum hardness of Rockwell B65

Applications:
- Engines
- Oil lines
- Lubrication lines
- Coolant lines
- Process plants
- Laboratory equipment

Custom configurations and sizes are available upon request. Contact us for additional information.





Technical Specifications

Connection Type: Compression, Thread
Shape: Various
Minimum Operating Temperature: -65 °F, -54 °C
Maximum Operating Temperature: 250 °F, 121 °C
Maximum Operating Pressure: 4300 psi, 296 bar
Tube Material: Tube Assemblies, Engine, Compressors
Application: Tube Assemblies, Engine, Compressors
Materials of Construction: Brass
Nut Material: Brass
Sleeve Material: Brass



Brass flareless tube fitting, Hi-Duty型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Style

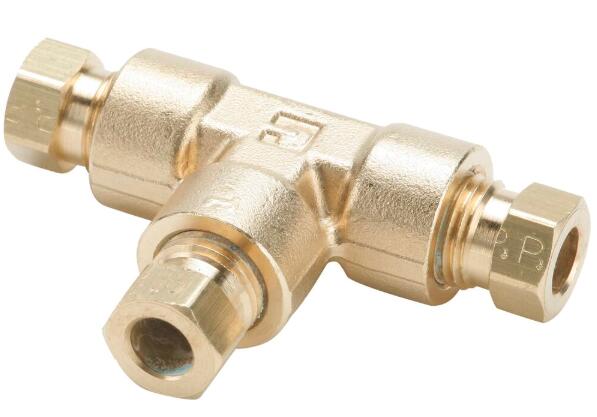

164HD-4 Tee Tube to Tube 1/4 Compression na 1/4 Compression
164HD-6 Tee Tube to Tube 3/8 Compression na 3/8 Compression
164HD-8 Tee Tube to Tube 1/2 Compression na 1/2 Compression
165HD-4 90° Elbow Tube to Tube 1/4 Compression na 1/4 Compression
165HD-6 90° Elbow Tube to Tube 3/8 Compression na 3/8 Compression
165HD-8 90° Elbow Tube to Tube 1/2 Compression na 1/2 Compression
169HD-10-6 90° Elbow Tube to Pipe 5/8 Compression 3/8 na Male Pipe
169HD-10-8 90° Elbow Tube to Pipe 5/8 Compression 1/2 na Male Pipe
169HD-2-2 90° Elbow Tube to Pipe 1/8 Compression 1/8 na Male Pipe
169HD-3-2 90° Elbow Tube to Pipe 3/16 Compression 1/8 na Male Pipe
169HD-4-2 90° Elbow Tube to Pipe 1/4 Compression 1/8 na Male Pipe
169HD-4-4 90° Elbow Tube to Pipe 1/4 Compression 1/4 na Male Pipe
169HD-5-2 90° Elbow Tube to Pipe 5/16 Compression 1/8 na Male Pipe
169HD-5-4 90° Elbow Tube to Pipe 5/16 Compression 1/4 na Male Pipe
169HD-6-2 90° Elbow Tube to Pipe 3/8 Compression 1/8 na Male Pipe
169HD-6-4 90° Elbow Tube to Pipe 3/8 Compression 1/4 na Male Pipe
169HD-6-6 90° Elbow Tube to Pipe 3/8 Compression 3/8 na Male Pipe
169HD-6-8 90° Elbow Tube to Pipe 3/8 Compression 1/2 na Male Pipe
169HD-8-4 90° Elbow Tube to Pipe 1/2 Compression 1/4 na Male Pipe
169HD-8-6 90° Elbow Tube to Pipe 1/2 Compression 3/8 na Male Pipe
169HD-8-8 90° Elbow Tube to Pipe 1/2 Compression 1/2 na Male Pipe

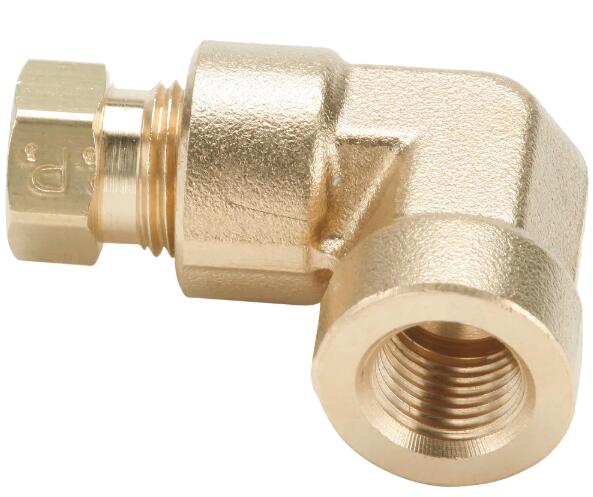

170HD-2-2 90° Elbow Tube to Female Pipe 1/8 Compression 1/8 na Female Pipe
170HD-4-2 90° Elbow Tube to Female Pipe 1/4 Compression 1/8 na Female Pipe
170HD-4-4 90° Elbow Tube to Female Pipe 1/4 Compression 1/4 na Female Pipe
170HD-6-2 90° Elbow Tube to Female Pipe 3/8 Compression 1/8 na Female Pipe
170HD-6-4 90° Elbow Tube to Female Pipe 3/8 Compression 1/4 na Female Pipe
170HD-6-6 90° Elbow Tube to Female Pipe 3/8 Compression 3/8 na Female Pipe
170HD-8-6 90° Elbow Tube to Female Pipe 1/2 Compression 3/8 na Female Pipe
171HD-4-2 Run Tee Tube to Pipe 1/4 Compression 1/8 na Male Pipe
171HD-4-4 Run Tee Tube to Pipe 1/4 Compression 1/4 na Male Pipe
171HD-6-4 Run Tee Tube to Pipe 3/8 Compression 1/4 na Male Pipe
172HD-4-2 Branch Tee Tube to Pipe 1/4 Compression 1/8 na Male Pipe
172HD-4-4 Branch Tee Tube to Pipe 1/4 Compression 1/4 na Male Pipe
172HD-6-6 Branch Tee Tube to Pipe 3/8 Compression 3/8 na Male Pipe
177HD-4-2 Branch Tee Tube to Pipe 1/4 Compression 1/8 na Female Pipe
177HD-4-4 Branch Tee Tube to Pipe 1/4 Compression 1/4 na Female Pipe
177HD-6-4 Branch Tee Tube to Pipe 3/8 Compression 1/4 na Female Pipe

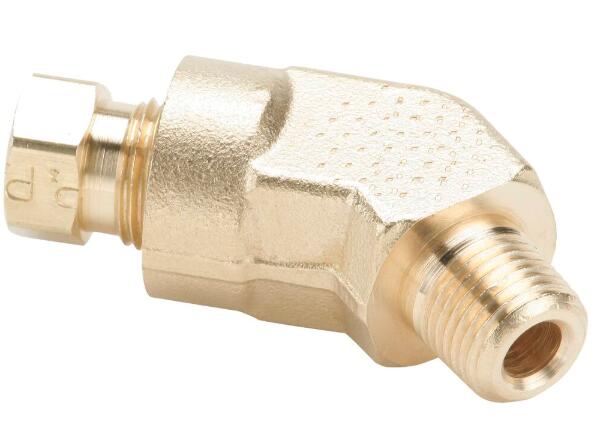

179HD-4-2 45° Elbow Tube to Pipe 1/4 Compression 1/8 na Male Pipe
179HD-6-4 45° Elbow Tube to Pipe 3/8 Compression 1/4 na Male Pipe
59HD-4 Plug Tube 1/4 Compression na na na
59HD-6 Plug Tube 3/8 Compression na na na
61HD-10 Nut/Sleeve Tube 5/8 Compression na na na
61HD-2 Nut/Sleeve Tube 1/8 Compression na na na
61HD-3 Nut/Sleeve Tube 3/16 Compression na na na
61HD-4 Nut/Sleeve Tube 1/4 Compression na na na
61HD-5 Nut/Sleeve Tube 5/16 Compression na na na
61HD-6 Nut/Sleeve Tube 3/8 Compression na na na
61HD-8 Nut/Sleeve Tube 1/2 Compression na na na
62HD-10 Union Tube to Tube 5/8 Compression na 5/8 Compression
62HD-2 Union Tube to Tube 1/8 Compression na 1/8 Compression
62HD-3 Union Tube to Tube 3/16 Compression na 3/16 Compression
62HD-4 Union Tube to Tube 1/4 Compression na 1/4 Compression
62HD-6 Union Tube to Tube 3/8 Compression na 3/8 Compression
62HD-6-4 Union Tube to Tube 3/8 Compression na 1/4 Compression
62HD-8 Union Tube to Tube 1/2 Compression na 1/2 Compression
62HD-8-4 Union Tube to Tube 1/2 Compression na 1/4 Compression
62HD-8-6 Union Tube to Tube 1/2 Compression na 3/8 Compression
62HDBH-2 Bulkhead Tube to Tube 1/8 Compression na 1/8 Compression
62HDBH-4 Bulkhead Tube to Tube 1/4 Compression na 1/4 Compression

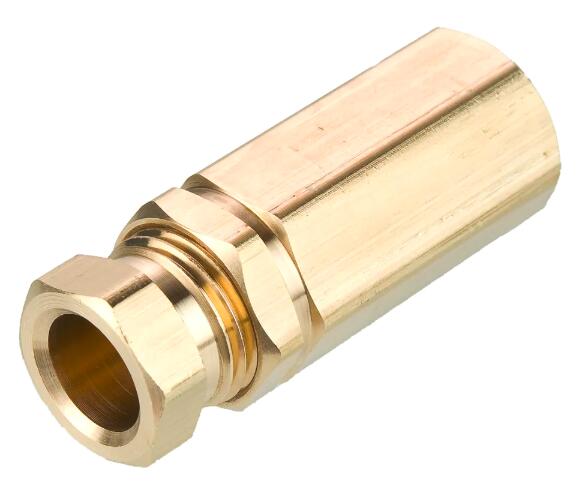

66HD-2-2 Connector Tube to Female Pipe 1/8 Compression 1/8 na Female Pipe
66HD-4-2 Connector Tube to Female Pipe 1/4 Compression 1/8 na Female Pipe
66HD-4-4 Connector Tube to Female Pipe 1/4 Compression 1/4 na Female Pipe
66HD-6-2 Connector Tube to Female Pipe 3/8 Compression 1/8 na Female Pipe
66HD-6-4 Connector Tube to Female Pipe 3/8 Compression 1/4 na Female Pipe
66HD-6-6 Connector Tube to Female Pipe 3/8 Compression 3/8 na Female Pipe
68HD-10-6 Connector Tube to Pipe 5/8 Compression 3/8 na Male Pipe
68HD-10-8 Connector Tube to Pipe 5/8 Compression 1/2 na Male Pipe
68HD-2-2 Connector Tube to Pipe 1/8 Compression 1/8 na Male Pipe
68HD-3-2 Connector Tube to Pipe 3/16 Compression 1/8 na Male Pipe
68HD-4-2 Connector Tube to Pipe 1/4 Compression 1/8 na Male Pipe
68HD-4-4 Connector Tube to Pipe 1/4 Compression 1/4 na Male Pipe
68HD-4-6 Connector Tube to Pipe 1/4 Compression 3/8 na Male Pipe
68HD-4-8 Connector Tube to Pipe 1/4 Compression 1/2 na Male Pipe
68HD-5-2 Connector Tube to Pipe 5/16 Compression 1/8 na Male Pipe
68HD-5-4 Connector Tube to Pipe 5/16 Compression 1/4 na Male Pipe
68HD-6-2 Connector Tube to Pipe 3/8 Compression 1/8 na Male Pipe
68HD-6-4 Connector Tube to Pipe 3/8 Compression 1/4 na Male Pipe
68HD-6-6 Connector Tube to Pipe 3/8 Compression 3/8 na Male Pipe
68HD-6-8 Connector Tube to Pipe 3/8 Compression 1/2 na Male Pipe
68HD-8-12 Connector Tube to Pipe 1/2 Compression 3/4 na Male Pipe
68HD-8-4 Connector Tube to Pipe 1/2 Compression 1/4 na Male Pipe
68HD-8-6 Connector Tube to Pipe 1/2 Compression 3/8 na Male Pipe
68HD-8-8 Connector Tube to Pipe 1/2 Compression 1/2 na Male Pipe
