Parker Fittings接头
Barbed Fittings

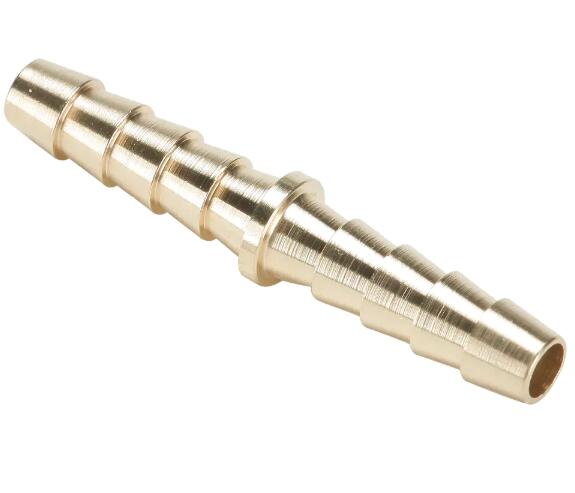

Brass Hose Barb Fittings

Parker's brass hose barb fittings are an economical choice for general purpose fluid handling and pneumatics, available in both tapered and beaded barb styles.





Parker's hose barb fittings are an economical choice for general purpose fluid handling and pneumatics. Manufactured in both tapered and beaded hose barb styles hose barbs are reusable and offer good vibration resistance. These hose barb fittings are intended for use with Parker's 97HC hose clamps, similar type clamps or a crimped ferrule. Parker's hose barb fittings are available for both inch and metric size hoses with NPTF, BSPT, SAE straight thread and metric threads.


Markets:
- Industrial
- Construction
- Heavy duty truck
- Mobile

Features/Benefits:
- Beaded Hose barb to straight thread port connections
- Up to 1” hose, -14 SAE and M33
- Eliminates system contamination from rust
- One piece forging
- Smaller than J1231 steel alternatives for use in confined areas

Applications:
- Compressed air lines
- Water lines
- Cooling lines





Technical Specifications

Connection Type: Barb, Clamp and Thread
Shape: Various
Minimum Operating Temperature: -40 °F, -40 °C
Maximum Operating Temperature: 160 °F, 71 °C
Maximum Operating Pressure: 150 psi, 10 bar
Tube Material: Rubber Hose, GPH Hose
Media: Water, Coolant, Compressed Air
Application: Air powered Tools, Coolant Lines, Fuel Lines
Specifications Met: Clamp or Crimped Ferrule must be used with fittings
Materials of Construction: Brass
O-Ring Material: Fluorocarbon



Brass Hose Barb Fittings型号

Part Shape Style Connection 1 Hose I.D. (inch) Connection 1 Style Connection 2 Hose I.D. (inch) Connection 2 Thread Size (inch) Connection 2 Thread Size (mm) Connection 2 Style
122HB-3 Mender Barb to Barb 3/16 Barb 3/16 na na Barb
122HBL-12 Mender Barb to Barb 3/4 Barb 3/4 na na Barb
122HBL-4 Mender Barb to Barb 1/4 Barb 1/4 na na Barb
122HBL-5 Mender Barb to Barb 5/16 Barb 5/16 na na Barb
122HBL-6 Mender Barb to Barb 3/8 Barb 3/8 na na Barb
122HBL-8 Mender Barb to Barb 1/2 Barb 1/2 na na Barb
125HB-2-2 Connector Barb to Pipe 1/8 Barb na 1/8 na Male Pipe
125HB-3-2 Connector Barb to Pipe 3/16 Barb na 1/8 na Male Pipe
125HB-3-4 Connector Barb to Pipe 3/16 Barb na 1/4 na Male Pipe
125HBL-10-12 Connector Barb to Pipe 5/8 Barb na 3/4 na Male Pipe
125HBL-10-6 Connector Barb to Pipe 5/8 Barb na 3/8 na Male Pipe
125HBL-10-8 Connector Barb to Pipe 5/8 Barb na 1/2 na Male Pipe
125HBL-12-12 Connector Barb to Pipe 3/4 Barb na 3/4 na Male Pipe
125HBL-12-8 Connector Barb to Pipe 3/4 Barb na 1/2 na Male Pipe
125HBL-16-12 Connector Barb to Pipe 1 Barb na 3/4 na Male Pipe
125HBL-16-16 Connector Barb to Pipe 1 Barb na 1 na Male Pipe
125HBL-4-2 Connector Barb to Pipe 1/4 Barb na 1/8 na Male Pipe
125HBL-4-4 Connector Barb to Pipe 1/4 Barb na 1/4 na Male Pipe
125HBL-4-6 Connector Barb to Pipe 1/4 Barb na 3/8 na Male Pipe
125HBL-5-2 Connector Barb to Pipe 5/16 Barb na 1/8 na Male Pipe
125HBL-5-4 Connector Barb to Pipe 5/16 Barb na 1/4 na Male Pipe
125HBL-5-6 Connector Barb to Pipe 5/16 Barb na 3/8 na Male Pipe
125HBL-6-2 Connector Barb to Pipe 3/8 Barb na 1/8 na Male Pipe
125HBL-6-4 Connector Barb to Pipe 3/8 Barb na 1/4 na Male Pipe
125HBL-6-6 Connector Barb to Pipe 3/8 Barb na 3/8 na Male Pipe
125HBL-6-8 Connector Barb to Pipe 3/8 Barb na 1/2 na Male Pipe
125HBL-8-12 Connector Barb to Pipe 1/2 Barb na 3/4 na Male Pipe
125HBL-8-4 Connector Barb to Pipe 1/2 Barb na 1/4 na Male Pipe
125HBL-8-6 Connector Barb to Pipe 1/2 Barb na 3/8 na Male Pipe
125HBL-8-8 Connector Barb to Pipe 1/2 Barb na 1/2 na Male Pipe
125HBLSV-4-4 Swivel Connector Barb to Pipe 1/4 Barb na 1/4 na Male Pipe
125HBLSV-6-4 Swivel Connector Barb to Pipe 3/8 Barb na 1/4 na Male Pipe
125HBLSV-6-6 Swivel Connector Barb to Pipe 3/8 Barb na 3/8 na Male Pipe
125HBLSV-8-8 Swivel Connector Barb to Pipe 1/2 Barb na 1/2 na Male Pipe
126HBL-12-12 Connector Barb to Female Pipe 3/4 Barb na 3/4 na Female pipe
126HBL-4-2 Connector Barb to Female Pipe 1/4 Barb na 1/8 na Female pipe
126HBL-4-4 Connector Barb to Female Pipe 1/4 Barb na 1/4 na Female pipe
126HBL-5-4 Connector Barb to Female Pipe 5/16 Barb na 1/4 na Female pipe
126HBL-6-2 Connector Barb to Female Pipe 3/8 Barb na 1/8 na Female pipe
126HBL-6-4 Connector Barb to Female Pipe 3/8 Barb na 1/4 na Female pipe
126HBL-6-6 Connector Barb to Female Pipe 3/8 Barb na 3/8 na Female pipe
126HBL-8-6 Connector Barb to Female Pipe 1/2 Barb na 3/8 na Female pipe
126HBL-8-8 Connector Barb to Female Pipe 1/2 Barb na 1/2 na Female pipe
127HB-4-2 Ball End Adapter Pipe to Pipe 1/4 NPSM na 1/8 na Male Pipe
127HB-4-4 Ball End Adapter Pipe to Pipe 1/4 NPSM na 1/4 na Male Pipe
127HB-6-4 Ball End Adapter Pipe to Pipe 3/8 NPSM na 1/4 na Male Pipe
127HB-6-6 Ball End Adapter Pipe to Pipe 3/8 NPSM na 3/8 na Male Pipe
127HB-8-6 Ball End Adapter Pipe to Pipe 1/2 NPSM na 3/8 na Male Pipe
127HB-8-8 Ball End Adapter Pipe to Pipe 1/2 NPSM na 1/2 na Male Pipe
128HBLSV-4-4 Swivel Female Ball-End Barb to Female Pipe 1/4 Barb na 1/4 na Female NPSM
128HBLSV-5-4 Swivel Female Ball-End Barb to Female Pipe 5/16 Barb na 1/4 na Female NPSM
128HBLSV-6-4 Swivel Female Ball-End Barb to Female Pipe 3/8 Barb na 1/4 na Female NPSM
128HBLSV-6-6 Swivel Female Ball-End Barb to Female Pipe 3/8 Barb na 3/8 na Female NPSM
128HBLSV-8-8 Swivel Female Ball-End Barb to Female Pipe 1/2 Barb na 1/2 na Female NPSM
1295HB-6-6 90° Elbow Barb to Straight Thread 3/8 Barb na 9/16-18 na Straight Thread
129HB-12-12 90° Elbow Barb to Pipe 3/4 Barb na 3/4 na Male Pipe
129HB-3-2 90° Elbow Barb to Pipe 3/16 Barb na 1/8 na Male Pipe
129HB-4-2 90° Elbow Barb to Pipe 1/4 Barb na 1/8 na Male Pipe
129HB-4-4 90° Elbow Barb to Pipe 1/4 Barb na 1/4 na Male Pipe
129HB-4-6 90° Elbow Barb to Pipe 1/4 Barb na 3/8 na Male Pipe
129HB-5-2 90° Elbow Barb to Pipe 5/16 Barb na 1/8 na Male Pipe
129HB-5-4 90° Elbow Barb to Pipe 5/16 Barb na 1/4 na Male Pipe
129HB-5-6 90° Elbow Barb to Pipe 5/16 Barb na 3/8 na Male Pipe
129HB-6-2 90° Elbow Barb to Pipe 3/8 Barb na 1/8 na Male Pipe
129HB-6-4 90° Elbow Barb to Pipe 3/8 Barb na 1/4 na Male Pipe
129HB-6-6 90° Elbow Barb to Pipe 3/8 Barb na 3/8 na Male Pipe
129HB-6-8 90° Elbow Barb to Pipe 3/8 Barb na 1/2 na Male Pipe
129HB-8-4 90° Elbow Barb to Pipe 1/2 Barb na 1/4 na Male Pipe
129HB-8-6 90° Elbow Barb to Pipe 1/2 Barb na 3/8 na Male Pipe
129HB-8-8 90° Elbow Barb to Pipe 1/2 Barb na 1/2 na Male Pipe
139HB-4-2 45° Elbow Barb to Pipe 1/4 Barb na 1/8 na Male Pipe
139HB-4-4 45° Elbow Barb to Pipe 1/4 Barb na 1/4 na Male Pipe
139HB-6-4 45° Elbow Barb to Pipe 3/8 Barb na 1/4 na Male Pipe
146HBLFSV-4-4 Swivel Female Flare Barb to Female Flare 1/4 Barb na 1/4 na Female Flare
146HBLFSV-4-6 Swivel Female Flare Barb to Female Flare 1/4 Barb na 3/8 na Female Flare
146HBLFSV-6-6 Swivel Female Flare Barb to Female Flare 3/8 Barb na 3/8 na Female Flare
164HB-6 Tee Barb to Barb 3/8 Barb 3/8 na na Barb
1695HB-10-8 90° Beaded Barb Elbow Barb to Straight Thread 5/8 Beaded Barb na 3/4-16 na Straight Thread
1695HB-12-10 90° Beaded Barb Elbow Barb to Straight Thread 3/4 Beaded Barb na 7/8-14 na Straight Thread
1695HB-12-12 90° Beaded Barb Elbow Barb to Straight Thread 3/4 Beaded Barb na 1 1/6-12 na Straight Thread
1695HB-12-8 90° Beaded Barb Elbow Barb to Straight Thread 3/4 Beaded Barb na 3/4-16 na Straight Thread
1695HB-16-12 90° Beaded Barb Elbow Barb to Straight Thread 1 Beaded Barb na 1 1/6-12 na Straight Thread
1695HB-6-4 90° Beaded Barb Elbow Barb to Straight Thread 3/8 Beaded Barb na 7/16-20 na Straight Thread
1695HB-8-6 90° Beaded Barb Elbow Barb to Straight Thread 1/2 Beaded Barb na 9/16-18 na Straight Thread
1695HB-8-8 90° Beaded Barb Elbow Barb to Straight Thread 1/2 Beaded Barb na 3/4-16 na Straight Thread
169HB-16-MI27 90° Beaded Barb Elbow Barb to Metric 1 Beaded Barb na na M27x2.0 Metric
169HB-16-MI33 90° Beaded Barb Elbow Barb to Metric 1 Beaded Barb na na M33x2.0 Metric
171HB-4-4 Run Tee Barb to Pipe 1/4 Barb na 1/4 na Male Pipe
1725HB-6-6 Branch Tee Barb to Straight Thread 3/8 Barb na 9/16-18 na Straight Thread
1795HB-10-8 45° Beaded Barb Elbow Barb to Straight Thread 5/8 Beaded Barb na 3/4-16 na Straight Thread
1795HB-12-12 45° Beaded Barb Elbow Barb to Straight Thread 3/4 Beaded Barb na 1 1/16-12 na Straight Thread
1795HB-12-8 45° Beaded Barb Elbow Barb to Straight Thread 3/4 Beaded Barb na 3/4-16 na Straight Thread
1795HB-16-12 45° Beaded Barb Elbow Barb to Straight Thread 1 Beaded Barb na 1 1/16-12 na Straight Thread
1795HB-16-14 45° Beaded Barb Elbow Barb to Straight Thread 1 Beaded Barb na 1 3/16-12 na Straight Thread
1795HB-8-8 45° Beaded Barb Elbow Barb to Straight Thread 1/2 Beaded Barb na 3/4-16 na Straight Thread
179HB-10-8 45° Beaded Barb Elbow Barb to Pipe 5/8 Beaded Barb na 1/2 na Male Pipe
179HB-12-8 45° Beaded Barb Elbow Barb to Pipe 3/4 Beaded Barb na 1/2 na Male Pipe
179HB-6-4 45° Beaded Barb Elbow Barb to Pipe 3/8 Beaded Barb na 1/4 na Male Pipe
179HB-6-6 45° Beaded Barb Elbow Barb to Pipe 3/8 Beaded Barb na 3/8 na Male Pipe
269HB-10-4 90° Beaded Barb Elbow Barb to Pipe 5/8 Beaded Barb na 1/4 na Male Pipe
269HB-10-6 90° Beaded Barb Elbow Barb to Pipe 5/8 Beaded Barb na 3/8 na Male Pipe
269HB-10-8 90° Beaded Barb Elbow Barb to Pipe 5/8 Beaded Barb na 1/2 na Male Pipe
269HB-12-12 90° Beaded Barb Elbow Barb to Pipe 3/4 Beaded Barb na 3/4 na Male Pipe
269HB-12-8 90° Beaded Barb Elbow Barb to Pipe 3/4 Beaded Barb na 1/2 na Male Pipe
269HB-6-6 90° Beaded Barb Elbow Barb to Pipe 3/8 Beaded Barb na 3/8 na Male Pipe
269HB-8-4 90° Beaded Barb Elbow Barb to Pipe 1/2 Beaded Barb na 1/4 na Male Pipe
269HB-8-6 90° Beaded Barb Elbow Barb to Pipe 1/2 Beaded Barb na 3/8 na Male Pipe
269HB-8-8 90° Beaded Barb Elbow Barb to Pipe 1/2 Beaded Barb na 1/2 na Male Pipe
279HB-16-12 45° Beaded Barb Elbow Barb to Pipe 1 Beaded Barb na 3/4 na Male Pipe
685HB-10-8 Beaded Barb Connector Barb to Straight Thread 5/8 Beaded Barb na 3/4-16 na Straight Thread
685HB-12-12 Beaded Barb Connector Barb to Straight Thread 3/4 Beaded Barb na 1 1/16-12 na Straight Thread
685HB-12-8 Beaded Barb Connector Barb to Straight Thread 3/4 Beaded Barb na 3/4-16 na Straight Thread
685HB-16-12 Beaded Barb Connector Barb to Straight Thread 1 Beaded Barb na 1 1/6-12 na Straight Thread
685HB-16-8 Beaded Barb Connector Barb to Straight Thread 1 Beaded Barb na 3/4-16 na Straight Thread
685HB-4-4 Beaded Barb Connector Barb to Straight Thread 1/4 Beaded Barb na 7/16-20 na Straight Thread
685HB-6-4 Beaded Barb Connector Barb to Straight Thread 3/8 Beaded Barb na 7/16-20 na Straight Thread
685HB-8-8 Beaded Barb Connector Barb to Straight Thread 1/2 Beaded Barb na 3/4-16 na Straight Thread
68HB-10-6 Beaded Barb Connector Barb to Pipe 5/8 Beaded Barb na 3/8 na Male Pipe
68HB-10-8 Beaded Barb Connector Barb to Pipe 5/8 Beaded Barb na 1/2 na Male Pipe
68HB-12-12 Beaded Barb Connector Barb to Pipe 3/4 Beaded Barb na 3/4 na Male Pipe
68HB-12-8 Beaded Barb Connector Barb to Pipe 3/4 Beaded Barb na 1/2 na Male Pipe
68HB-16-12 Beaded Barb Connector Barb to Pipe 1 Beaded Barb na 3/4 na Male Pipe
68HB-16-16 Beaded Barb Connector Barb to Pipe 1 Beaded Barb na 1 na Male Pipe
68HB-6-6 Beaded Barb Connector Barb to Pipe 3/8 Beaded Barb na 3/8 na Male Pipe
68HB-8-4 Beaded Barb Connector Barb to Pipe 1/2 Beaded Barb na 1/4 na Male Pipe
68HB-8-6 Beaded Barb Connector Barb to Pipe 1/2 Beaded Barb na 3/8 na Male Pipe
68HB-8-8 Beaded Barb Connector Barb to Pipe 1/2 Beaded Barb na 1/2 na Male Pipe
97HC-12 Worm Clamp Hose 3/4 Clamp na na na na
97HC-3 Worm Clamp Hose 3/16 Clamp na na na na
97HC-6 Worm Clamp Hose 3/8 Clamp na na na na
97HC-8 Worm Clamp Hose 1/2 Clamp na na na na
