Parker Fittings接头
Flare Fittings
Brass Inverted Flare Fittings

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512





Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.

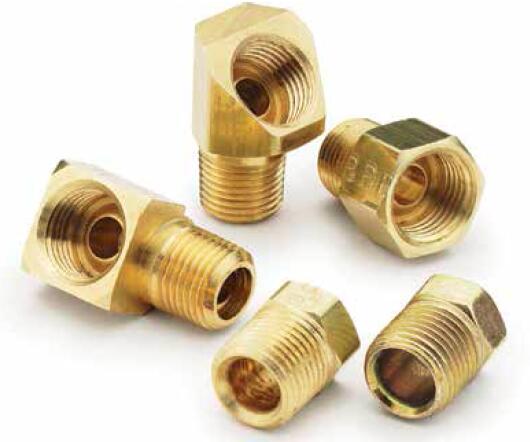

Brass Inverted Flare Fittings



Markets:
- Mobile
- Engines
- Marine
- Air conditioning

Features/Benefits:
- All brass construction
- Internal flare for tighter bends
- Steel Zinc Chromate nut available
- U.L. listed for flammable liquids
- Meets functional requirements of SAE J512
- Economical
- Metal-to-metal seal
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared

Applications:
- Hydraulic brake
- Power steering
- Fuel lines
- Transmission cooler lines
- Flammable liquids and gases

Technical Specifications

Connection Type: Flare, Thread
Shape: Various
Minimum Operating Temperature: -65 °F, -53 °C
Maximum Operating Temperature: 250 °F, 121 °C
Maximum Operating Pressure: 1900 (-3), 1400 (-4), 1200 (-5), 1000 (-6), 750 (-8), 650 (-10), 2800 (-2), 550 (-12) psi, 131 (-3), 96 (-4), 83 (-5), 69 (-6), 52(-8), 45 (-10), 193 (-2), 38 (-12) bar
Tube Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Application: Pumps, Brake Lines
Specifications Met: SAE J512
Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Materials of Construction: Brass
Nut Material: Brass, Zinc Chromate Steel



Brass Inverted Flare Fittings 型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Style
244IFHD-3 Tee Flare to Flare 3/16 Inverted Flare na 3/16 Inverted Flare
244IFHD-4 Tee Flare to Flare 1/4 Inverted Flare na 1/4 Inverted Flare
244IFHD-5 Tee Flare to Flare 5/16 Inverted Flare na 5/16 Inverted Flare
244IFHD-6 Tee Flare to Flare 3/8 Inverted Flare na 3/8 Inverted Flare
244IFHD-8 Tee Flare to Flare 1/2 Inverted Flare na 1/2 Inverted Flare
245IFHD-4-2 Branch Tee Flare to Pipe 1/4 Inverted Flare 1/8 na Male Pipe
245IFHD-6-4 Branch Tee Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
249IF-6-4 90° Elbow Light Duty Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
249IF-8-6 90° Elbow Light Duty Flare to Pipe 1/2 Inverted Flare 3/8 na Male Pipe
249IFHD-10-6 90° Elbow Flare to Pipe 5/8 Inverted Flare 3/8 na Male Pipe
249IFHD-10-8 90° Elbow Flare to Pipe 5/8 Inverted Flare 1/2 na Male Pipe
249IFHD-2-2 90° Elbow Flare to Pipe 1/8 Inverted Flare 1/8 na Male Pipe
249IFHD-3-2 90° Elbow Flare to Pipe 3/16 Inverted Flare 1/8 na Male Pipe
249IFHD-4-2 90° Elbow Flare to Pipe 1/4 Inverted Flare 1/8 na Male Pipe
249IFHD-4-4 90° Elbow Flare to Pipe 1/4 Inverted Flare 1/4 na Male Pipe
249IFHD-5-4 90° Elbow Flare to Pipe 5/16 Inverted Flare 1/4 na Male Pipe
249IFHD-6-2 90° Elbow Flare to Pipe 3/8 Inverted Flare 1/8 na Male Pipe
249IFHD-6-4 90° Elbow Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
249IFHD-6-6 90° Elbow Flare to Pipe 3/8 Inverted Flare 3/8 na Male Pipe
249IFHD-8-4 90° Elbow Flare to Pipe 1/2 Inverted Flare 1/4 na Male Pipe
249IFHD-8-6 90° Elbow Flare to Pipe 1/2 Inverted Flare 3/8 na Male Pipe
249IFHD-8-8 90° Elbow Flare to Pipe 1/2 Inverted Flare 1/2 na Male Pipe
250IFHD-3-2 90° Elbow Flare to Female Pipe 3/16 Inverted Flare 1/8 na Female Pipe
250IFHD-4-2 90° Elbow Flare to Female Pipe 1/4 Inverted Flare 1/8 na Female Pipe
250IFHD-5-2 90° Elbow Flare to Female Pipe 5/16 Inverted Flare 1/8 na Female Pipe
250IFHD-6-4 90° Elbow Flare to Female Pipe 3/8 Inverted Flare 1/4 na Female Pipe
251IFHD-3-2 Run Tee Flare to Pipe 3/16 Inverted Flare 1/8 na Male Pipe
251IFHD-5-2 Run Tee Flare to Pipe 5/16 Inverted Flare 1/8 na Male Pipe
251IFHD-6-4 Run Tee Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
252IFHD-5-2 Branch Tee Flare to Female Pipe 5/16 Inverted Flare 1/8 na Male Pipe
252IFHD-6-4 Branch Tee Flare to Female Pipe 3/8 Inverted Flare 1/4 na Male Pipe
259IFHD-10-8 45° Elbow Flare to Pipe 5/8 Inverted Flare 1/2 na Male Pipe
259IFHD-3-2 45° Elbow Flare to Pipe 3/16 Inverted Flare 1/8 na Male Pipe
259IFHD-4-2 45° Elbow Flare to Pipe 1/4 Inverted Flare 1/8 na Male Pipe
259IFHD-5-2 45° Elbow Flare to Pipe 5/16 Inverted Flare 1/8 na Male Pipe
259IFHD-5-4 45° Elbow Flare to Pipe 5/16 Inverted Flare 1/4 na Male Pipe
259IFHD-6-4 45° Elbow Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
259IFHD-8-6 45° Elbow Flare to Pipe 1/2 Inverted Flare 3/8 na Male Pipe
41IF-2 Nut Flare 1/8 Inverted Flare na na na
41IF-3 Nut Flare 3/16 Inverted Flare na na na
41IF-4 Nut Flare 1/4 Inverted Flare na na na
41IF-5 Nut Flare 5/16 Inverted Flare na na na
41IF-6 Nut Flare 3/8 Inverted Flare na na na
41IF-8 Nut Flare 1/2 Inverted Flare na na na
41IFF-2 Piltoed Nut Flare 1/8 Inverted Flare na na na
41IFF-3 Piltoed Nut Flare 3/16 Inverted Flare na na na
41IFF-4 Piltoed Nut Flare 1/4 Inverted Flare na na na
41IFF-5 Piltoed Nut Flare 5/16 Inverted Flare na na na
41IFF-6 Piltoed Nut Flare 3/8 Inverted Flare na na na
41IFF-8 Piltoed Nut Flare 1/2 Inverted Flare na na na
41IFS-10 Zinc Nut Flare 5/8 Inverted Flare na na na
41IFS-12 Zinc Nut Flare 3/4 Inverted Flare na na na
41IFS-3 Zinc Nut Flare 3/16 Inverted Flare na na na
41IFS-4 Zinc Nut Flare 1/4 Inverted Flare na na na
41IFS-5 Zinc Nut Flare 5/16 Inverted Flare na na na
41IFS-6 Zinc Nut Flare 3/8 Inverted Flare na na na
41IFS-8 Zinc Nut Flare 1/2 Inverted Flare na na na
42IFHD-2 Union Flare to Flare 1/8 Inverted Flare na 1/8 Inverted Flare
42IFHD-3 Union Flare to Flare 3/16 Inverted Flare na 3/16 Inverted Flare
42IFHD-4 Union Flare to Flare 1/4 Inverted Flare na 1/4 Inverted Flare
42IFHD-5 Union Flare to Flare 5/16 Inverted Flare na 5/16 Inverted Flare
42IFHD-6 Union Flare to Flare 3/8 Inverted Flare na 3/8 Inverted Flare
42IFHD-8 Union Flare to Flare 1/2 Inverted Flare na 1/2 Inverted Flare
46IFHD-3-2 Connector Flare to Female Pipe 3/16 Inverted Flare 1/8 na Female Pipe
46IFHD-4-2 Connector Flare to Female Pipe 1/4 Inverted Flare 1/8 na Female Pipe
46IFHD-5-2 Connector Flare to Female Pipe 5/16 Inverted Flare 1/8 na Female Pipe
46IFHD-6-4 Connector Flare to Female Pipe 3/8 Inverted Flare 1/4 na Female Pipe
46IFHD-8-6 Connector Flare to Female Pipe 1/2 Inverted Flare 3/8 na Female Pipe
48IFHD-10-8 Connector Flare to Pipe 5/8 Inverted Flare 1/2 na Male Pipe
48IFHD-12-12 Connector Flare to Pipe 3/4 Inverted Flare 3/4 na Male Pipe
48IFHD-2-2 Connector Flare to Pipe 1/8 Inverted Flare 1/8 na Male Pipe
48IFHD-3-2 Connector Flare to Pipe 3/16 Inverted Flare 1/8 na Male Pipe
48IFHD-4-2 Connector Flare to Pipe 1/4 Inverted Flare 1/8 na Male Pipe
48IFHD-4-4 Connector Flare to Pipe 1/4 Inverted Flare 1/4 na Male Pipe
48IFHD-5-2 Connector Flare to Pipe 5/16 Inverted Flare 1/8 na Male Pipe
48IFHD-5-4 Connector Flare to Pipe 5/16 Inverted Flare 1/4 na Male Pipe
48IFHD-6-2 Connector Flare to Pipe 3/8 Inverted Flare 1/8 na Male Pipe
48IFHD-6-4 Connector Flare to Pipe 3/8 Inverted Flare 1/4 na Male Pipe
48IFHD-6-6 Connector Flare to Pipe 3/8 Inverted Flare 3/8 na Male Pipe
48IFHD-8-4 Connector Flare to Pipe 1/2 Inverted Flare 1/4 na Male Pipe
48IFHD-8-6 Connector Flare to Pipe 1/2 Inverted Flare 3/8 na Male Pipe
48IFHD-8-8 Connector Flare to Pipe 1/2 Inverted Flare 1/2 na Male Pipe
