Parker Fittings接头
Parker Adapters

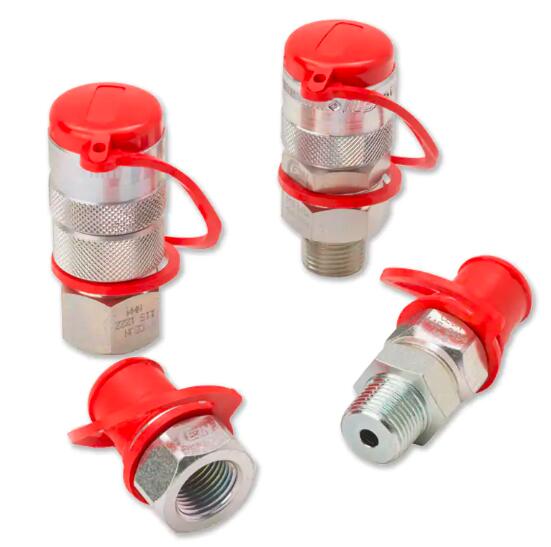

Ultra High Pressure Hydraulic Quick Coupling - C Series

Parker's C Series Quick Couplings are available with NPT, BSP and "High Pressure" thread styles with working pressures ranging from 14,500 psi to 29,000 psi.





Parker's C Series Quick Couplings provide non-drip valving for clean, safe, trouble-free performance and minimal air inclusion. Protective dust caps are included to prevent damage and fluid contamination. These quick couplings are available in a variety of thread styles (NPT, BSP and "High Pressure") with working pressures ranging from 14,500 psi to 29,000 psi. Applications include hydraulic tools and rescue equipment, hydrostatic testing and Blow-out Preventers.



Ultra High Pressure Hydraulic Quick Coupling - C Series



Markets:
- High pressure hydraulics
- Oil & Gas

Features / Benefits:
- Quick couplings offer ease of connection to high pressure hoses and fixed ports
- Built-in safety locking device to prevent accidental disconnect
- Protective dust caps are included to prevent damage and fluid contamination in disconnected position
- Rugged design and construction for long life in demanding applications

Applications:
- Hydraulic tools and rescue equipment
- Hydrostatic testing
- Blow-out Preventers



Technical Specifications

Connection 1 Thread Size: 1/4" Male BSP w/120° external cone, 120° internal cone or 60° internal cone, 1/4" NPT Male
Media: Hydraulic Fluid, Lubricants, Chemical Fluids
Valve Type: Check Valve
Application: Oilfield
Brand: Parker
Coupling Half: Female, Male
Diameter: 10 nom
Fitting Connection Type: BSPP, NPT / NPTF, Face Seal, Female Thread, Male Thread, Pipe Thread
Maximum Operating Pressure: 2,000 bar, 29,000 psi, 100 or 200 MPa
Seal Material: Buna-N
Connection 2 Thread Size: 1/4" High Pressure Male, 1/4" Male BSP w/ 120° external cone, 1/4" Male BSP w/ 60° internal cone or 9/16" - 18 UNF w/ 60° external cone
Overall Length: 0.08 to 1.76 inch, 2.03 to 45.72 mm
Hex Size: 0.08 to 0.94 inch, 2.03 to 23.88 mm
Materials of Construction: Steel, Zinc Plated



Ultra High Pressure Hydraulic Quick Coupling - C Series型号

Part Connection Style Connection 1 Thread Style Connection 2 Thread Style
C09-125-1680 Quick Coupling Adapter 1/4" Male BSP w/ 120° external cone 1/4" High Pressure Male
C10-115-1202 115 Coupler 1/4" BSP Female (thru type) n/a
C10-115-1222 115 Coupler 1/4" BSP Female (with built-in locking device) n/a
C10-115-1401 115 Coupler 1/8" NPT Female n/a
C10-115-1402 115 Coupler 1/4" NPT Female n/a
C10-115-1404 115 Coupler 3/8" NPT Female n/a
C10-115-1422 115 Coupler 1/4" NPT Female (with built-in locking device) n/a
C10-115-1452 115 Coupler 1/4" NPT Male n/a
C10-115-1454 115 Coupler 3/8" NPT Male n/a
C10-115-6202 115 Nipple 1/4 BSP Female n/a
C10-115-6204 115 Nipple 3/8 BSP Female n/a
C10-115-6401 115 Nipple 1/8 NPT Female n/a
C10-115-6402 115 Nipple 1/4 NPT Female n/a
C10-115-6404 115 Nipple 3/8 NPT Female n/a
C10-115-6452 115 Nipple 1/4 NPT Male n/a
C10-115-6454 115 Nipple 3/8 NPT Male n/a
C10-116-1202 116 Coupler 1/4" BSP Female n/a
C10-116-1222 116 Coupler 1/4" BSP Female (with built-in locking device) n/a
C10-116-1402 116 Coupler 1/4" NPT Female n/a
C10-116-1422 116 Coupler 1/4" NPT Female (with built-in locking device) n/a
C10-116-5202 116 Nipple 1/4 BSP Female (thru type) n/a
C10-116-6202 116 Nipple 1/4 BSP Female n/a
C10-116-6402 116 Nipple 1/4 NPT Female n/a
C10-125-1202 125 Coupler 1/4 BSP Female n/a
C10-125-5202 125 Nipple 1/4 BSP Female (thru type) n/a
C10-125-6202 125 Nipple 1/4 BSP Female n/a
C19-950-0029 Quick Coupling Adapter 1/4" Male BSP w/ 120° external cone 9/16" - 18 UNF w/ 60° external cone
C19-950-0062 Rubber Metal Seal 1/4" Parallel male thread n/a
C19-950-0064 Rubber Metal Seal 3/8" Parallel male thread n/a
C19-950-1600 Plug 1/4" Male BSP w/ 120° external cone n/a
C19-950-1601 Quick Coupling Adapter 1/4" Male BSP w/ 120° external cone 1/4" Male BSP w/ 120° external cone
C19-950-1602 Quick Coupling Adapter 1/4" Male BSP w/ 120° external cone 1/4" Male BSP w/ 60° internal cone
C19-950-1622 Quick Coupling Adapter 1/4" Male BSP w/ 60° internal cone 1/4" Male BSP w/ 60° internal cone
C19-950-1623 Quick Coupling Adapter 1/4" NPT Male 1/4" Male BSP w/ 60° internal cone
C19-950-1680 Porting Block 1/4" BSP w/ 120° internal cone n/a
HAHM4BMH Quick Coupling Adapter 1/4" Male BSP w/ 60° internal cone 1/4" High Pressure Male
