Compression Fittings

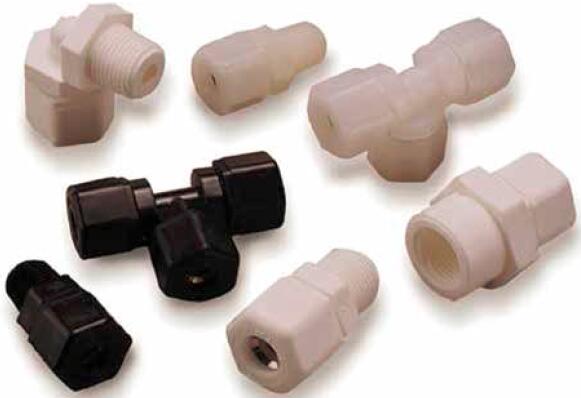

Compression Style Plastic Fittings, Fast-Tite
Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Parker's Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure, leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates a positive seal and assures good tube retention with only hand tight assembly.
Use with soft metal, glass tubing and the following Parker Parflex Division tubing.
Compression Style Plastic Fittings, Fast-Tite
- Polyethylene
- Nylon
- Polypropylene
- Polyurethane
- PTFE
- FEP
- PFA
Markets:
- Water Filtration
- Beverage Dispensing
- Packaging
- Life Science
- Bottling
- Semi-Conductor
Features/Benefits:
- White or black Polypropylene or white Nylon
- Installs in seconds without tools
- 302 stainless steel grab ring for tube retention
- Nitrile O-ring for positive seal
- FDA compliant , NSF-51
- Hand tight assembly
Applications:
- Water Lines
- Beverage Lines
- Food
- Cooling Systems
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Compression, Thread |
| Materials of Construction: |
Nylon, Polypropylene |
| Shape: |
Various |
| Minimum Operating Temperature: |
-40 (Nylon) -0 (Polypropylene) °F, -40 (Nylon) -18 (Polypropylene) °C |
| Maximum Operating Temperature: |
200 (Nylon) 212 (Polypropylene °F, 93 (Nylon) 100 (Polypropylene) °C |
| Maximum Operating Pressure: |
50 - 300 psi, 3.5 - 20 bar |
| Tube Material: |
Thermoplastic, Glass, Soft Metal |
| Media: |
Water, Air, Other Compatible Fluids |
| Application: |
Filtration, Purification, Dispensing |
| Gripping Ring Material: |
302 Stainless Steel |
| O-Ring Material: |
NitrileSpecifications |
| Met: |
FDA, NSF-51 |
Compression Style Plastic Fittings, Fast-Tite型号
| Part |
Shape |
Style |
Body Material |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
| 100R |
O-ring |
Tube |
na |
5/8 |
Tube |
na |
na |
na |
| 10GR |
Grab Ring |
Tube |
na |
5/8 |
Tube |
na |
na |
na |
| 10GRP |
Plastic Grab Ring |
Tube |
na |
5/8 |
Tube |
na |
na |
na |
| 40R |
O-ring |
Tube |
na |
1/4 |
Tube |
na |
na |
na |
| 4GR |
Grab Ring |
Tube |
na |
1/4 |
Tube |
na |
na |
na |
| 4GRP |
Plastic Grab Ring |
Tube |
na |
1/4 |
Tube |
na |
na |
na |
| 50R |
O-ring |
Tube |
na |
5/16 |
Tube |
na |
na |
na |
| 5GR |
Grab Ring |
Tube |
na |
5/16 |
Tube |
na |
na |
na |
| 5GRP |
Plastic Grab Ring |
Tube |
na |
5/16 |
Tube |
na |
na |
na |
| 60R |
O-ring |
Tube |
na |
3/8 |
Tube |
na |
na |
na |
| 6GR |
Grab Ring |
Tube |
na |
3/8 |
Tube |
na |
na |
na |
| 6GRP |
Plastic Grab Ring |
Tube |
na |
3/8 |
Tube |
na |
na |
na |
| 80R |
O-ring |
Tube |
na |
1/2 |
Tube |
na |
na |
na |
| 8GR |
Grab Ring |
Tube |
na |
1/2 |
Tube |
na |
na |
na |
| 8GRP |
Plastic Grab Ring |
Tube |
na |
1/2 |
Tube |
na |
na |
na |
| N10EU10 |
90° Elbow |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
5/8 |
Compression |
| N10FC8 |
Connector |
Tube to Female Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10FE8 |
90° Elbow |
Tube to Female Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10MC12 |
Connector |
Tube to Pipe |
Nylon |
5/8 |
Compression |
3/4 |
na |
NPTF |
| N10MC4 |
Connector |
Tube to Pipe |
Nylon |
5/8 |
Compression |
1/4 |
na |
NPTF |
| N10MC6 |
Connector |
Tube to Pipe |
Nylon |
5/8 |
Compression |
3/8 |
na |
NPTF |
| N10MC8 |
Connector |
Tube to Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10ME8 |
90° Elbow |
Tube to Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10MR8 |
Male Run Tee |
Tube to Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10MT8 |
Male Branch Tee |
Tube to Pipe |
Nylon |
5/8 |
Compression |
1/2 |
na |
NPTF |
| N10NS |
Nut and Spacer |
Tube |
Nylon |
5/8 |
Tube |
na |
na |
na |
| N10TS8 |
Tube Support |
Tube |
Nylon |
5/8 |
Tube |
na |
na |
na |
| N10TU10 |
Tee |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
5/8 |
Compression |
| N10TU6 |
Tee |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
3/8 |
Compression |
| N10UC10 |
Union |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
5/8 |
Compression |
| N10UC6 |
Union |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
3/8 |
Compression |
| N10UC8 |
Union |
Tube to Tube |
Nylon |
5/8 |
Compression |
na |
1/2 |
Compression |
| N4BU4 |
Bulkhead |
Tube to Tube |
Nylon |
1/4 |
Compression |
na |
1/4 |
Compression |
| N4EU4 |
90° Elbow |
Tube to Tube |
Nylon |
1/4 |
Compression |
na |
1/4 |
Compression |
| N4FC2 |
Connector |
Tube to Female Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4FC4 |
Connector |
Tube to Female Pipe |
Nylon |
1/4 |
Compression |
1/4 |
na |
NPTF |
| N4FE2 |
90° Elbow |
Tube to Female Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4FE4 |
90° Elbow |
Tube to Female Pipe |
Nylon |
1/4 |
Compression |
1/4 |
na |
NPTF |
| N4MC2 |
Connector |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4MC4 |
Connector |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/4 |
na |
NPTF |
| N4MC6 |
Connector |
Tube to Pipe |
Nylon |
1/4 |
Compression |
3/8 |
na |
NPTF |
| N4ME2 |
90° Elbow |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4ME4 |
90° Elbow |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/4 |
na |
NPTF |
| N4ME6 |
90° Elbow |
Tube to Pipe |
Nylon |
1/4 |
Compression |
3/8 |
na |
NPTF |
| N4MR2 |
Male Run Tee |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4MT2 |
Male Branch Tee |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/8 |
na |
NPTF |
| N4MT4 |
Male Branch Tee |
Tube to Pipe |
Nylon |
1/4 |
Compression |
1/4 |
na |
NPTF |
| N4NS |
Nut and Spacer |
Tube |
Nylon |
1/4 |
Tube |
na |
na |
na |
| N4TS3 |
Tube Support |
Tube |
Nylon |
1/4 |
Tube |
na |
na |
na |
| N4TU4 |
Tee |
Tube to Tube |
Nylon |
1/4 |
Compression |
na |
1/4 |
Compression |
| N4UC4 |
Union |
Tube to Tube |
Nylon |
1/4 |
Compression |
na |
1/4 |
Compression |
| N5BU5 |
Bulkhead |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
5/16 |
Compression |
| N5EU4 |
90° Elbow |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
1/4 |
Compression |
| N5EU5 |
90° Elbow |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
5/16 |
Compression |
| N5FE2 |
90° Elbow |
Tube to Female Pipe |
Nylon |
5/16 |
Compression |
1/8 |
na |
NPTF |
| N5MC2 |
Connector |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/8 |
na |
NPTF |
| N5MC4 |
Connector |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/4 |
na |
NPTF |
| N5ME2 |
90° Elbow |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/8 |
na |
NPTF |
| N5ME4 |
90° Elbow |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/4 |
na |
NPTF |
| N5ME6 |
90° Elbow |
Tube to Pipe |
Nylon |
5/16 |
Compression |
3/8 |
na |
NPTF |
| N5MT2 |
Male Branch Tee |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/8 |
na |
NPTF |
| N5MT4 |
Male Branch Tee |
Tube to Pipe |
Nylon |
5/16 |
Compression |
1/4 |
na |
NPTF |
| N5NS |
Nut and Spacer |
Tube |
Nylon |
5/16 |
Tube |
na |
na |
na |
| N5TS3 |
Tube Support |
Tube |
Nylon |
5/16 |
Tube |
na |
na |
na |
| N5TU5 |
Tee |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
5/16 |
Compression |
| N5UC4 |
Union |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
1/4 |
Compression |
| N5UC5 |
Union |
Tube to Tube |
Nylon |
5/16 |
Compression |
na |
5/16 |
Compression |
| N6BU6 |
Bulkhead |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
3/8 |
Compression |
| N6EU4 |
90° Elbow |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
1/4 |
Compression |
| N6EU5 |
90° Elbow |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
5/16 |
Compression |
| N6EU6 |
90° Elbow |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
3/8 |
Compression |
| N6FC4 |
Connector |
Tube to Female Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6FC6 |
Connector |
Tube to Female Pipe |
Nylon |
3/8 |
Compression |
3/8 |
na |
NPTF |
| N6FC8 |
Connector |
Tube to Female Pipe |
Nylon |
3/8 |
Compression |
1/2 |
na |
NPTF |
| N6FE4 |
90° Elbow |
Tube to Female Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6FE6 |
90° Elbow |
Tube to Female Pipe |
Nylon |
3/8 |
Compression |
3/8 |
na |
NPTF |
| N6MC12 |
Connector |
Tube to Pipe |
Nylon |
3/8 |
Compression |
3/4 |
na |
NPTF |
| N6MC2 |
Connector |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/8 |
na |
NPTF |
| N6MC4 |
Connector |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6MC6 |
Connector |
Tube to Pipe |
Nylon |
3/8 |
Compression |
3/8 |
na |
NPTF |
| N6MC8 |
Connector |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/2 |
na |
NPTF |
| N6ME12 |
90° Elbow |
Tube to Pipe |
Nylon |
3/8 |
Compression |
3/4 |
na |
NPTF |
| N6ME4 |
90° Elbow |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6ME6 |
90° Elbow |
Tube to Pipe |
Nylon |
3/8 |
Compression |
3/8 |
na |
NPTF |
| N6ME8 |
90° Elbow |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/2 |
na |
NPTF |
| N6MR4 |
Male Run Tee |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6MT4 |
Male Branch Tee |
Tube to Pipe |
Nylon |
3/8 |
Compression |
1/4 |
na |
NPTF |
| N6MT6 |
Male Branch Tee |
Tube to Pipe |
Nylon |
3/8 |
Compression |
3/8 |
na |
NPTF |
| N6NS |
Nut and Spacer |
Tube |
Nylon |
3/8 |
Tube |
na |
na |
na |
| N6TS4 |
Tube Support |
Tube |
Nylon |
3/8 |
Tube |
na |
na |
na |
| N6TU6 |
Tee |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
3/8 |
Compression |
| N6UC4 |
Union |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
1/4 |
Compression |
| N6UC5 |
Union |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
5/16 |
Compression |
| N6UC6 |
Union |
Tube to Tube |
Nylon |
3/8 |
Compression |
na |
3/8 |
Compression |
| N8BU8 |
Bulkhead |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
1/2 |
Compression |
| N8EU6 |
90° Elbow |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
3/8 |
Compression |
| N8EU8 |
90° Elbow |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
1/2 |
Compression |
| N8FC6 |
Connector |
Tube to Female Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8FC8 |
Connector |
Tube to Female Pipe |
Nylon |
1/2 |
Compression |
1/2 |
na |
NPTF |
| N8FE6 |
90° Elbow |
Tube to Female Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8FE8 |
90° Elbow |
Tube to Female Pipe |
Nylon |
1/2 |
Compression |
1/2 |
na |
NPTF |
| N8MC12 |
Connector |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/4 |
na |
NPTF |
| N8MC2 |
Connector |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/8 |
na |
NPTF |
| N8MC4 |
Connector |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/4 |
na |
NPTF |
| N8MC6 |
Connector |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8MC8 |
Connector |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/2 |
na |
NPTF |
| N8ME12 |
90° Elbow |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/4 |
na |
NPTF |
| N8ME4 |
90° Elbow |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/4 |
na |
NPTF |
| N8ME6 |
90° Elbow |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8ME8 |
90° Elbow |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/2 |
na |
NPTF |
| N8MR6 |
Male Run Tee |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8MT6 |
Male Branch Tee |
Tube to Pipe |
Nylon |
1/2 |
Compression |
3/8 |
na |
NPTF |
| N8MT8 |
Male Branch Tee |
Tube to Pipe |
Nylon |
1/2 |
Compression |
1/2 |
na |
NPTF |
| N8NS |
Nut and Spacer |
Tube |
Nylon |
1/2 |
Compression |
na |
na |
na |
| N8TS6 |
Tube Support |
Tube |
Nylon |
1/2 |
Tube |
na |
na |
na |
| N8TU6 |
Tee |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
3/8 |
Compression |
| N8TU8 |
Tee |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
1/2 |
Compression |
| N8UC6 |
Union |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
3/8 |
Compression |
| N8UC8 |
Union |
Tube to Tube |
Nylon |
1/2 |
Compression |
na |
1/2 |
Compression |
| P10EU10 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| P10FC8 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10FE8 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10MC12 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
3/4 |
na |
NPTF |
| P10MC2 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/8 |
na |
NPTF |
| P10MC4 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/4 |
na |
NPTF |
| P10MC6 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
3/8 |
na |
NPTF |
| P10MC8 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10ME12 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
3/4 |
na |
NPTF |
| P10ME8 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10MR8 |
Male Run Tee |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10MT8 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| P10NS |
Nut and Spacer |
Tube |
Black Polypropylene |
5/8 |
Tube |
na |
na |
na |
| P10TS8 |
Tube Support |
Tube |
Black Polypropylene |
5/8 |
Tube |
na |
na |
na |
| P10TU10 |
Tee |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| P10TU6 |
Tee |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
3/8 |
Compression |
| P10UC10 |
Union |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| P10UC6 |
Union |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
3/8 |
Compression |
| P10UC8 |
Union |
Tube to Tube |
Black Polypropylene |
5/8 |
Compression |
na |
1/2 |
Compression |
| P4BU4 |
Bulkhead |
Tube to Tube |
Black Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| P4EU4 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| P4FC2 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4FC4 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| P4FE2 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4FE4 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| P4MC2 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4MC4 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| P4MC4-B |
na |
Body Only |
Black Polypropylene |
1/4 |
na |
1/4 |
na |
na |
| P4MC6 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
3/8 |
na |
NPTF |
| P4ME2 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4ME4 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| P4ME6 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
3/8 |
na |
NPTF |
| P4MR2 |
Male Run Tee |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4MT2 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| P4MT4 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| P4NS |
Nut and Spacer |
Tube |
Black Polypropylene |
1/4 |
Tube |
na |
na |
na |
| P4TS3 |
Tube Support |
Tube |
Black Polypropylene |
1/4 |
Tube |
na |
na |
na |
| P4TU4 |
Tee |
Tube to Tube |
Black Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| P4UC4 |
Union |
Tube to Tube |
Black Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| P5BU5 |
Bulkhead |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| P5EU4 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
1/4 |
Compression |
| P5EU5 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| P5FE2 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| P5MC2 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| P5MC4 |
Connector |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| P5ME2 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| P5ME4 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| P5ME6 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
3/8 |
na |
NPTF |
| P5MT2 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| P5MT4 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| P5NS |
Nut and Spacer |
Tube |
Black Polypropylene |
5/16 |
Tube |
na |
na |
na |
| P5TS3 |
Tube Support |
Tube |
Black Polypropylene |
5/16 |
Tube |
na |
na |
na |
| P5TU5 |
Tee |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| P5UC4 |
Union |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
1/4 |
Compression |
| P5UC5 |
Union |
Tube to Tube |
Black Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| P6BU6 |
Bulkhead |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| P6EU4 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
1/4 |
Compression |
| P6EU5 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
5/16 |
Compression |
| P6EU6 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| P6FC4 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6FC6 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| P6FC8 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| P6FE4 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6FE6 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| P6MC12 |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
3/4 |
na |
NPTF |
| P6MC2 |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/8 |
na |
NPTF |
| P6MC4 |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6MC6 |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| P6MC8 |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| P6ME12 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
3/4 |
na |
NPTF |
| P6ME4 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6ME6 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| P6ME8 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| P6MR4 |
Male Run Tee |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6MT4 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| P6MT6 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| P6NS |
Nut and Spacer |
Tube |
Black Polypropylene |
3/8 |
Tube |
na |
na |
na |
| P6TS4 |
Tube Support |
Tube |
Black Polypropylene |
3/8 |
Tube |
na |
na |
na |
| P6TU6 |
Tee |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| P6UC4 |
Union |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
1/4 |
Compression |
| P6UC5 |
Union |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
5/16 |
Compression |
| P6UC6 |
Union |
Tube to Tube |
Black Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| P8BU8 |
Bulkhead |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| P8EU6 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| P8EU8 |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| P8FC6 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8FC8 |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| P8FE6 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8FE8 |
90° Elbow |
Tube to Female Pipe |
Black Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| P8MC12 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/4 |
na |
NPTF |
| P8MC2 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/8 |
na |
NPTF |
| P8MC4 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/4 |
na |
NPTF |
| P8MC6 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8MC8 |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| P8ME12 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/4 |
na |
NPTF |
| P8ME4 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/4 |
na |
NPTF |
| P8ME6 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8ME8 |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| P8MR6 |
Male Run Tee |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8MT6 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| P8MT8 |
Branch Tee |
Tube to Pipe |
Black Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| P8NS |
Nut and Spacer |
Tube |
Black Polypropylene |
1/2 |
Tube |
na |
na |
na |
| P8TS6 |
Tube Support |
Tube |
Black Polypropylene |
1/2 |
Tube |
na |
na |
na |
| P8TU6 |
Tee |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| P8TU8 |
Tee |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| P8UC6 |
Union |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| P8UC8 |
Union |
Tube to Tube |
Black Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| W10EU10 |
90° Elbow |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| W10FC8 |
Connector |
Tube to Female Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10FE8 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10MC12 |
Connector |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
3/4 |
na |
NPTF |
| W10MC2 |
Connector |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/8 |
na |
NPTF |
| W10MC4 |
Connector |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/4 |
na |
NPTF |
| W10MC6 |
Connector |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
3/8 |
na |
NPTF |
| W10MC8 |
Connector |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10ME8 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10MR8 |
Male Run Tee |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10MT8 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
5/8 |
Compression |
1/2 |
na |
NPTF |
| W10NS |
Nut and Spacer |
Tube |
White Polypropylene |
5/8 |
Tube |
na |
na |
na |
| W10TU10 |
Tee |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| W10TU6 |
Tee |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
3/8 |
Compression |
| W10UC10 |
Union |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
5/8 |
Compression |
| W10UC6 |
Union |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
3/8 |
Compression |
| W10UC8 |
Union |
Tube to Tube |
White Polypropylene |
5/8 |
Compression |
na |
1/2 |
Compression |
| W4BU4 |
Bulkhead |
Tube to Tube |
White Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| W4EU4 |
90° Elbow |
Tube to Tube |
White Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| W4FC2 |
Connector |
Tube to Female Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4FC4 |
Connector |
Tube to Female Pipe |
White Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| W4FE2 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4FE4 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| W4MC2 |
Connector |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4MC4 |
Connector |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| W4MC6 |
Connector |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
3/8 |
na |
NPTF |
| W4ME2 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4ME4 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| W4ME6 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
3/8 |
na |
NPTF |
| W4MR2 |
Male Run Tee |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4MT2 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/8 |
na |
NPTF |
| W4MT4 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
1/4 |
Compression |
1/4 |
na |
NPTF |
| W4NS |
Nut and Spacer |
Tube |
White Polypropylene |
1/4 |
Tube |
na |
na |
na |
| W4TU4 |
Tee |
Tube to Tube |
White Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| W4UC4 |
Union |
Tube to Tube |
White Polypropylene |
1/4 |
Compression |
na |
1/4 |
Compression |
| W5BU5 |
Bulkhead |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| W5EU4 |
90° Elbow |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
1/4 |
Compression |
| W5EU5 |
90° Elbow |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| W5FE2 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| W5MC2 |
Connector |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| W5MC4 |
Connector |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| W5ME2 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| W5ME4 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| W5ME6 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
3/8 |
na |
NPTF |
| W5MT2 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/8 |
na |
NPTF |
| W5MT4 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
5/16 |
Compression |
1/4 |
na |
NPTF |
| W5NS |
Nut and Spacer |
Tube |
White Polypropylene |
5/16 |
Tube |
na |
na |
na |
| W5TU5 |
Tee |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| W5UC4 |
Union |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
1/4 |
Compression |
| W5UC5 |
Union |
Tube to Tube |
White Polypropylene |
5/16 |
Compression |
na |
5/16 |
Compression |
| W6BU6 |
Bulkhead |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| W6EU4 |
90° Elbow |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
1/4 |
Compression |
| W6EU5 |
90° Elbow |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
5/16 |
Compression |
| W6EU6 |
90° Elbow |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| W6FC4 |
Connector |
Tube to Female Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6FC6 |
Connector |
Tube to Female Pipe |
White Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| W6FC8 |
Connector |
Tube to Female Pipe |
White Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| W6FE4 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6FE6 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| W6MC12 |
Connector |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
3/4 |
na |
NPTF |
| W6MC2 |
Connector |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/8 |
na |
NPTF |
| W6MC4 |
Connector |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6MC6 |
Connector |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| W6MC8 |
Connector |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| W6ME12 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
3/4 |
na |
NPTF |
| W6ME4 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6ME6 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| W6ME8 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/2 |
na |
NPTF |
| W6MR4 |
Male Run Tee |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6MT4 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
1/4 |
na |
NPTF |
| W6MT6 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
3/8 |
Compression |
3/8 |
na |
NPTF |
| W6NS |
Nut and Spacer |
Tube |
White Polypropylene |
3/8 |
Tube |
na |
na |
na |
| W6TU6 |
Tee |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| W6UC4 |
Union |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
1/4 |
Compression |
| W6UC5 |
Union |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
5/16 |
Compression |
| W6UC6 |
Union |
Tube to Tube |
White Polypropylene |
3/8 |
Compression |
na |
3/8 |
Compression |
| W8BU8 |
Bulkhead |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| W8EU6 |
90° Elbow |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| W8EU8 |
90° Elbow |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| W8FC6 |
Connector |
Tube to Female Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8FC8 |
Connector |
Tube to Female Pipe |
White Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| W8FE6 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8FE8 |
90° Elbow |
Tube to Female Pipe |
White Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| W8MC12 |
Connector |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/4 |
na |
NPTF |
| W8MC2 |
Connector |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/8 |
na |
NPTF |
| W8MC4 |
Connector |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/4 |
na |
NPTF |
| W8MC6 |
Connector |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8MC8 |
Connector |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| W8ME12 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/4 |
na |
NPTF |
| W8ME4 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/4 |
na |
NPTF |
| W8ME6 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8ME8 |
90° Elbow |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| W8MR6 |
Male Run Tee |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8MT6 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
3/8 |
na |
NPTF |
| W8MT8 |
Branch Tee |
Tube to Pipe |
White Polypropylene |
1/2 |
Compression |
1/2 |
na |
NPTF |
| W8NS |
Nut and Spacer |
Tube |
White Polypropylene |
1/2 |
Tube |
na |
na |
na |
| W8TU6 |
Tee |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| W8TU8 |
Tee |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
| W8UC6 |
Union |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
3/8 |
Compression |
| W8UC8 |
Union |
Tube to Tube |
White Polypropylene |
1/2 |
Compression |
na |
1/2 |
Compression |
|
