Parker Adapters

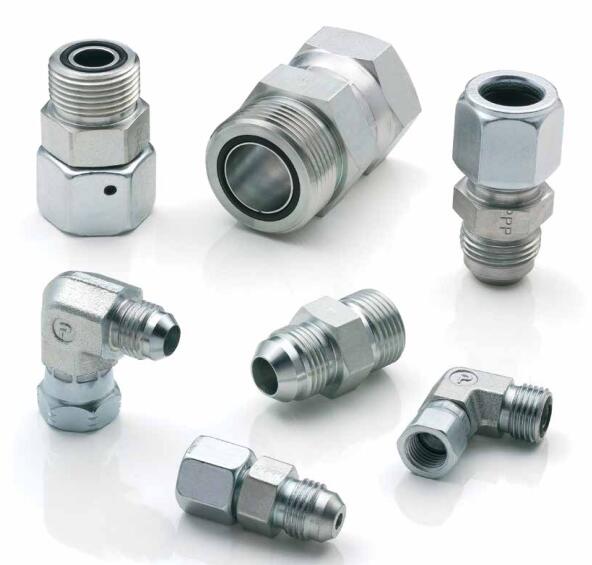

Conversion Adapters for Tube and Hose Connections

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

Parker's Conversion Adapters feature many different tube and hose end conversions needed in the market today, including Parker's Triple-Lok 37° flare, Seal-Lok O-ring Face Seal (ORFS), Seal-Lok ORFS swivel, Triple-Lok 37° flare swivel, Ferulok SAE flareless, EO 24° flareless metric swivel, Ferulok SAE flareless bulkhead, BSPP 60° cone swivel, and metric swivel.

Conversion Adapters for Tube and Hose Connections

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Alternative Energy
- Transportation
- Off-Shore
- Oil & Gas

Features/Benefits:
- Meet or exceed all pertinent industry requirements of SAE J1453, SAE J514, and ISO 8434-1.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility. This enhanced performance provides customers with a competitive advantage through extended equipment life, leading to increased revenues and reduced warranty costs.
- Parker's Trap-Seal for Seal-Lok ORFS fittings improves customer experience by eliminating potential hydraulic leaks caused by O-ring fall-out and O-ring pinch during assembly. This provides customers a competitive advantage while leading to reduced overall cost.
- Offered in steel, stainless steel and brass in sizes 1/8” through 2” with pressures up to 7700 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

Conversion Adapters for Tube and Hose Connections型号
