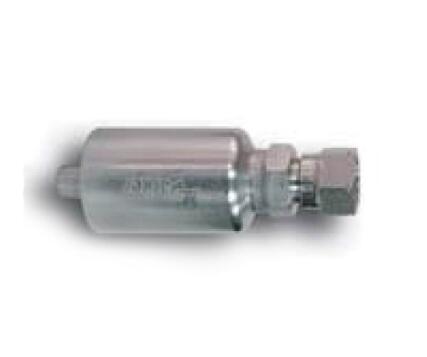

Crimped Thermoplastic Oil & Gas Hose Fittings, CR Series
Parker CR Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for Seawolf hose types with working pressure up to 43 MPa.
Parker CR Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient.
Markets:
- Oil & Gas
- Marine
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Subsea umbilicals
- Small OD
- Suitable for Seawolf hose types with working pressure up to 43 MPa (5000 psi)
Technical Specifications
| Connection Thread Size: |
3/4 (16UNF), 1-5/16 (12UNF) inch |
| Shape: |
Straight, 45°, 90° |
| Application: |
Oilfield |
| Connection Type: |
Crimped |
| Hose Inside Diameter: |
1/2, 1 inch, 13, 25 mm |
| Maximum Operating Pressure: |
345 bar, 34.5 MPa, 5,000 psi |
| Length: |
98,6, 137 mm, 3,88, 5,39 inch |
| Fitting Type: |
6 |
| Product Style: |
JIC female swivel fitting |
| Materials of Construction: |
Stainless Steel |
Crimped Thermoplastic Oil & Gas Hose Fittings, CR Series 型号
| Part |
Maximum Working Pressure (MPa) |
Style |
Shape |
Connection Thread Size (inch) |
| 606CR-16-16C |
34.5 |
JIC female swivel fitting |
Straight |
1 5/16 - 12UNF |
| 606CR-8-8C |
34.5 |
JIC female swivel fitting |
Straight |
3/4 - 16UNF |
|
