Parker Ball Valves
Cryogenic Ball Valves
Parker Bestobell's cryogenic ball valves are ideal where excellent full flow characteristics are required with no delay in filling time. They are widely used in gas production, transportation and storage, offering long term performance.
Parker Bestobell's cryogenic ball valves are specially designed for use in liquefied gas production, transportation and storage. These valves are ideal where the customer requires excellent full flow characteristics and long term performance. The innovative design of the valve allows for full flow of media from filling stations and portable delivery systems with low pressure loss, resulting in no delay in filling time.
These ball valves feature an innovative free floating ball design that allows the force of upstream pressure to push the ball hard against the downstream seats. The higher the pressure, the more seating force and torque is required to operate the valve.
Available in Bronze and Stainless Steel, the ball valves feature a spring-loaded gland seal, which provides low torque level under both ambient and cryogenic conditions.
Parker Bestobell's cryogenic ball valves are designed to eliminate leakages, maximise lifetime operation and reduce maintenance costs.

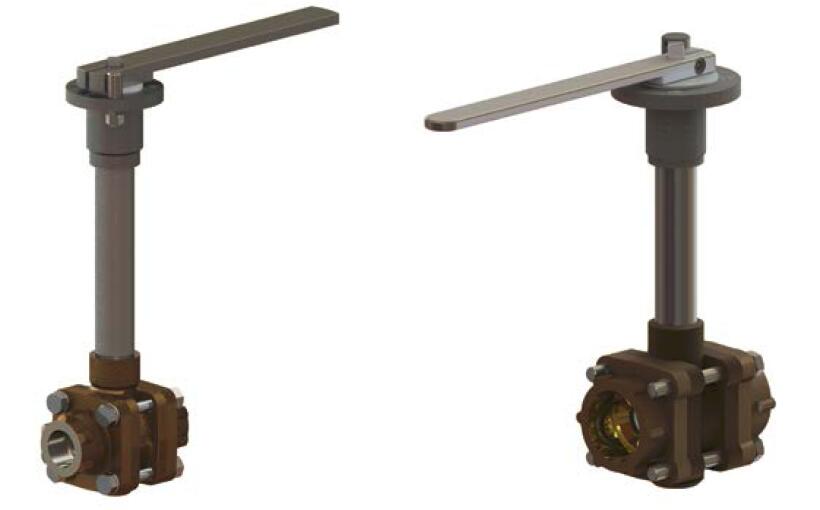

Cryogenic Ball Valves
Markets:
Industrial Gas
Features / Benefits:
- Excellent flow characteristics, with low pressure loss
- Designed to prevent incorrect re-assembly after maintenance due to bespoke machining of the stem
- Anti-blowout stem to optimise safety
- Relief hole to prevent trapping of liquefied gases
- Removable centre section to allow inter-changeability in existing installations

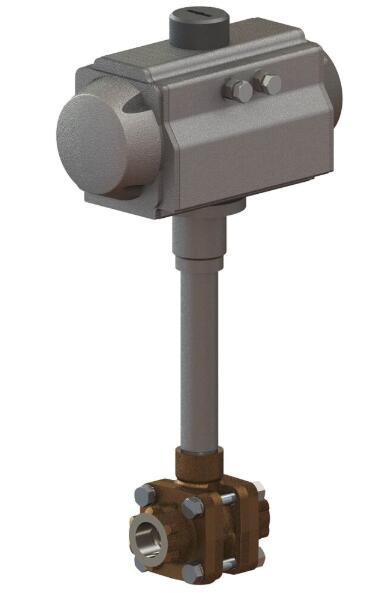

- Suitable for retrofitting of electric or pneumatic actuators.
Applications:
- Transport
- Storage
- Defence
- Processing
Liquid / Gas Type:
- Oxygen (O2)
- Nitrogen (N2)
- Argon (Ar)
- Carbon Dioxide (CO2)
- Krypton (Kr)
- Neon (Ne)
- Hydrogen (H2)
- Nitrous Oxide (N2O)
- Sulphur Hexafluoride (SF6)
- Natural Gas (CH4)
- Ethylene (C2H4)
- Trifluoromethane (CHF3)
Technical Specifications
| Diameter: |
DN15-DN80 nom |
| Connection Type: |
BSP-PL, NPT, Butt Weld Schedule 10, Socket Weld |
| Stem Length: |
230 mm |
| Body Material: |
Bronze, Stainless Steel |
| Valve Type: |
Manual, Wafer, Actuated |
| Maximum Operating Pressure: |
725 psi, 50 bar |
| Minimum Operating Temperature: |
-196 °C |
| Maximum Operating Temperature: |
+65 °C |
| Weight: |
2-16 kg |
| Flow Rate: |
9-300 Gal/min |
| Packing Material: |
Virgin PTFE |
| Stem Material: |
Stainless Steel |
