Parker 仪表阀
Parker Instrumentation Valves

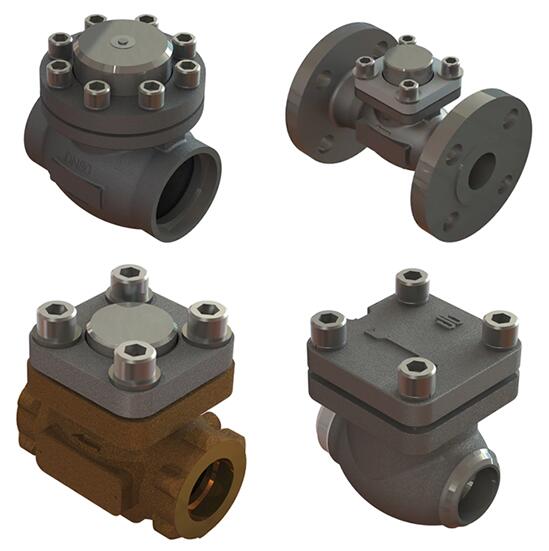

Cryogenic Check Valves

Parker Bestobell's cryogenic lift and swing check valves are designed with a loose flange bolted bonnet design that allows for thermal expansion and contraction and eliminates leakage, therefore enhancing safety.





Parker Bestobell's range of cryogenic lift check and swing check valves feature an innovative loose flange bolted bonnet design that allows for thermal expansion and contraction, therefore eliminating leakage.

Available in Stainless Steel and Bronze, Parker Bestobell's check valves are fitted with a swing return, allowing for use in any position. The PTFE seal incorporated into the valve disc ensures a drop tight shut off at ambient temperatures. With the swing check valve, wide openings also allow high flow rates at low-pressure drops.

Standardised parts are used in Parker Bestobell's swing valves, globe, ball and gate valves. Parker Bestobell's lift check valves are often specified in conjunction with globe valves and swing check valves would be used in conjunction with gate or ball valves.

The lift check valves feature a cone seat design for zero leak shut off, therefore maximising safety and performance.



Cryogenic Check Valves



Markets:
Industrial Gas

Features / Benefits:
- Unique Parker Bestobell loose flange bolted bonnet design allows for thermal expansion and contraction and eliminates leakage at the bonnet gasket.
- PTFE seal to ensure tight shut off at all times, enhancing safety.
- Quick and easy maintenance of PTFE components

Applications:
- Transport
- Storage
- Defence
- Processing

Liquid / Gas Type:
- Oxygen (O2)
- Nitrogen (N2)
- Argon (Ar)
- Carbon Dioxide (CO2)
- Krypton (Kr)
- Neon (Ne)
- Hydrogen (H2)
- Nitrous Oxide (N2O)
- Sulphur Hexafluoride (SF6)
- Natural Gas (CH4)
- Ethylene (C2H4)
- Trifluoromethane (CHF3)



Technical Specifications

Diameter: DN6-DN50 nom
Connection Type: Butt Weld Schedule 10, BSP-PL, Flange Class 150, Flange Class 300, NPT, Socket Weld, Stainless Steel Stubs
Body Material: Stainless Steel, Bronze
Valve Type: Lift, Swing
Maximum Operating Pressure: 725 psi, 50 bar
Minimum Operating Temperature: -196 °C
Maximum Operating Temperature: +65 °C
Weight: 1-125 kg
Flow Rate: 3.6-400 Gal/min



Cryogenic Check Valves 型号

Part Maximum Working Pressure (Bar) Valve Type Body Material Diameter Nominal (DN) Connection Type Maximum Working Pressure (psi)
CGB10SSTB0C 50 Lift Bronze DN6 Stainless Steel Stubs 725
CGB10TAB0C 50 Lift Bronze DN6 BSP-PL 725
CGB10TEB0C 50 Lift Bronze DN6 NPT 725
CGB20SSTB0C 50 Lift Bronze DN10 Stainless Steel Stubs 725
CGB20TAB0C 50 Lift Bronze DN10 BSP-PL 725
CGB20TEB0C 50 Lift Bronze DN10 NPT 725
CGB30SSTB0C 50 Lift Bronze DN15 Stainless Steel Stubs 725
CGB30TAB0C 50 Lift Bronze DN15 BSP-PL 725
CGB30TEB0C 50 Lift Bronze DN15 NPT 725
CGB40SSTB0C 50 Lift Bronze DN20 Stainless Steel Stubs 725
CGB40TAB0C 50 Lift Bronze DN20 BSP-PL 725
CGB40TEB0C 50 Lift Bronze DN20 NPT 725
CGB50SSTB0C 50 Lift Bronze DN25 Stainless Steel Stubs 725
CGB50TAB0C 50 Lift Bronze DN25 BSP-PL 725
CGB50TEB0C 50 Lift Bronze DN25 NPT 725
CGB70SSTB0C 50 Lift Bronze DN40 Stainless Steel Stubs 725
CGB70TAB0C 50 Lift Bronze DN40 BSP-PL 725
CGB70TEB0C 50 Lift Bronze DN40 NPT 725
CGB80SSTB0C 50 Lift Bronze DN50 Stainless Steel Stubs 725
CGB80TAB0C 50 Lift Bronze DN50 BSP-PL 725
CGB80TEB0C 50 Lift Bronze DN50 NPT 725
CGT10B1B0C 50 Lift Stainless Steel DN6 Butt Weld Schedule 10 725
CGT10FAB0C 50 Lift Stainless Steel DN6 Flange Class 150 725
CGT10SNEB0C 50 Lift Stainless Steel DN6 Socket Weld 725
CGT20B1B0C 50 Lift Stainless Steel DN10 Butt Weld Schedule 10 725
CGT20FAB0C 50 Lift Stainless Steel DN10 Flange Class 150 725
CGT20SNEB0C 50 Lift Stainless Steel DN10 Socket Weld 725
CGT30B1B0C 50 Lift Stainless Steel DN15 Butt Weld Schedule 10 725
CGT30FAB0C 50 Lift Stainless Steel DN15 Flange Class 150 725
CGT30FCB0C 50 Lift Stainless Steel DN15 Flange Class 300 725
CGT30SNEB0C 50 Lift Stainless Steel DN15 Socket Weld 725
CGT40B1B0C 50 Lift Stainless Steel DN20 Butt Weld Schedule 10 725
CGT40FAB0C 50 Lift Stainless Steel DN20 Flange Class 150 725
CGT40FCB0C 50 Lift Stainless Steel DN20 Flange Class 300 725
CGT40SNEB0C 50 Lift Stainless Steel DN20 Socket Weld 725
CGT50B1B0C 50 Lift Stainless Steel DN25 Butt Weld Schedule 10 725
CGT50FAB0C 50 Lift Stainless Steel DN25 Flange Class 150 725
CGT50FCB0C 50 Lift Stainless Steel DN25 Flange Class 300 725
CGT50SNEB0C 50 Lift Stainless Steel DN25 Socket Weld 725
CGT70B1B0C 50 Lift Stainless Steel DN40 Butt Weld Schedule 10 725
CGT70FAB0C 50 Lift Stainless Steel DN40 Flange Class 150 725
CGT70FCB0C 50 Lift Stainless Steel DN40 Flange Class 300 725
CGT70SNEB0C 50 Lift Stainless Steel DN40 Socket Weld 725
CGT80B1B0C 50 Lift Stainless Steel DN50 Butt Weld Schedule 10 725
CGT80FAB0C 50 Lift Stainless Steel DN50 Flange Class 150 725
CGT80FCB0C 50 Lift Stainless Steel DN50 Flange Class 300 725
CGT80SNEB0C 50 Lift Stainless Steel DN50 Socket Weld 725
CGT90B1B0C 50 Lift Stainless Steel DN65 Butt Weld Schedule 10 725
CGT90FAB0C 50 Lift Stainless Steel DN65 Flange Class 150 725
CGT90FCB0C 50 Lift Stainless Steel DN65 Flange Class 300 725
CGT90SNEB0C 50 Lift Stainless Steel DN65 Socket Weld 725
CGTA0B1B0C 50 Lift Stainless Steel DN80 Butt Weld Schedule 10 725
CGTA0FAB0C 50 Lift Stainless Steel DN80 Flange Class 150 725
CGTA0FCB0C 50 Lift Stainless Steel DN80 Flange Class 300 725
CGTA0SNEB0C 50 Lift Stainless Steel DN80 Socket Weld 725
CGTB0B1B0C 50 Lift Stainless Steel DN100 Butt Weld Schedule 10 725
CGTB0FAB0C 50 Lift Stainless Steel DN100 Flange Class 150 725
CGTB0FCB0C 50 Lift Stainless Steel DN100 Flange Class 300 725
CGTB0SNEB0C 50 Lift Stainless Steel DN100 Socket Weld 725
CGTD0B1B0C 50 Lift Stainless Steel DN150 Butt Weld Schedule 10 725
CGTD0FAB0C 50 Lift Stainless Steel DN150 Flange Class 150 725
CGTD0SNEB0C 50 Lift Stainless Steel DN150 Socket Weld 725
CHC50UB100 50 Swing Stainless Steel DN25 Butt Weld Schedule 10 725
CHC50UFC00 50 Swing Stainless Steel DN25 Flange Class 300 725
CHC70UB100 50 Swing Stainless Steel DN40 Butt Weld Schedule 10 725
CHC80UB100 50 Swing Stainless Steel DN50 Butt Weld Schedule 10 725
CHC80UFC00 50 Swing Stainless Steel DN50 Flange Class 300 725
CHCA0UB100 50 Swing Stainless Steel DN80 Butt Weld Schedule 10 725
CHCA0UFC00 50 Swing Stainless Steel DN80 Flange Class 300 725
