Parker 减压阀
Parker Pressure Relief Valves
Cryogenic Thermal Relief Valve

Parker Bestobell's cryogenic thermal relief valve is designed to prevent damage to piping and equipment caused by the expansion of liquefied gases. It prevents liquefied gases being trapped between two closed valves.





Parker Bestobell's compact cryogenic thermal relief valve is designed to prevent damage to piping and equipment caused by the expansion of liquefied gases. This thermal relief valve will lift at =/- 3% of set pressure rating. When liquefied gases are trapped between two closed valves (known as liquid lock), reheating and boiling can lead to a dangerous rise in pressure. The Parker Bestobell's thermal relief valve has been designed to prevent pressure build up.
Its tried and trusted design means that the valve will not stick in its seat, even when it has been left unused for long periods of time. The valve also reseats correctly after venting off the expanding fluid, thus preventing gas wastage. It is available with a variety of outlet connections to suit customer requirements.

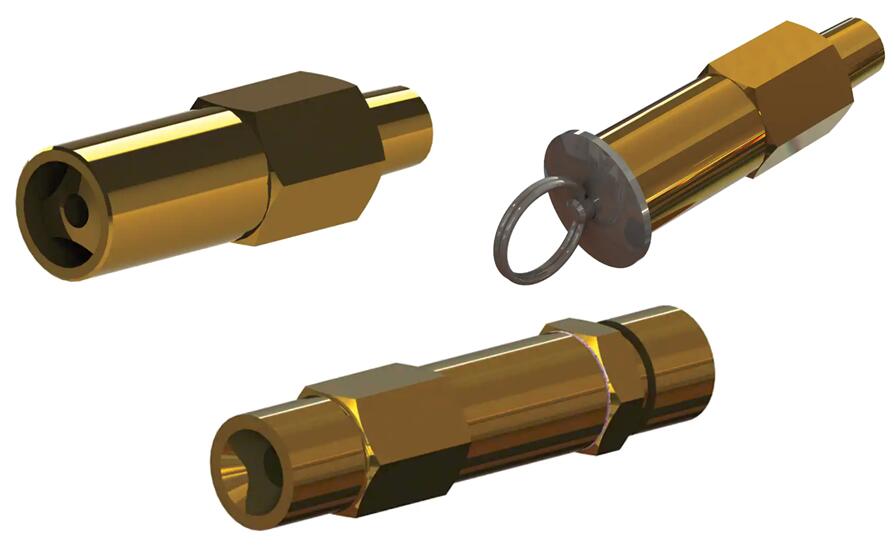

Cryogenic Thermal Relief Valve



Markets:
- Industrial gas

Features / Benefits:
- Accuracy of lifting pressure is +/- 3%
- Reassurance as valve lifts within tight tolerances
- Valve is tight up until 90% of set pressure
- Design allows the valve to reseat correctly after venting off the expanding fluid which prevents wastage of cryogenic gases.
- Valve reseats before 50% of set pressure
- Enhances safety and security
- Designed and engineered for use with Group 1 gases.
- Valve is designed not to stick, even when left unused for long periods of time
- Protects equipment and valves
- Allows for protection of assets
- Offers protection against operator error

Applications:
- Transport
- Storage
- Defence
- Processing



Technical Specifications

Orifice Size: 8 mm
Inlet Connection Size: 1/4" BSP-TR Male, 1/2" BSP-TR Male, 1/4" NPT Male, 1/2" NPT Male
Outlet Connection Size: 1/2" BSP-TR Male, 1/2" NPT, Open to Atmosphere, Ring Pull
Pressure Rating: 25-580 psi, 1.7-40 bar
Options: No Drain
Body Material: Brass
Stem Material: Stainless Steel
Spring Material: Stainless Steel
Minimum Operating Temperature: -196 °C
Maximum Operating Temperature: +65 °C



Cryogenic Thermal Relief Valve 型号

Part Orifice Size (mm) Inlet Connection Outlet Connection Pressure Range (psi) Pressure Range (bar) Body Material Options
CVF10B107N00 8 1/4" BSP-TR Male Open to Atmosphere 25-49 1.7-3.3 Brass No Drain
CVF10B115N00 8 1/4" BSP-TR Male Open to Atmosphere 50-99 3.4-6.8 Brass No Drain
CVF10B129N00 8 1/4" BSP-TR Male Open to Atmosphere 100-199 6.9-13.7 Brass No Drain
CVF10B132N00 8 1/4" BSP-TR Male Open to Atmosphere 112-148 7.7-10.2 Brass No Drain
CVF10B145N00 8 1/4" BSP-TR Male Open to Atmosphere 200-434 13.8-29.9 Brass No Drain
CVF10B160N00 8 1/4" BSP-TR Male Open to Atmosphere 435-580 30-40 Brass No Drain
CVF10B307N00 8 1/4" BSP-TR Male Ring Pull 25-49 1.7-3.3 Brass No Drain
CVF10B315N00 8 1/4" BSP-TR Male Ring Pull 50-99 3.4-6.8 Brass No Drain
CVF10B329N00 8 1/4" BSP-TR Male Ring Pull 100-199 6.9-13.7 Brass No Drain
CVF10B332N00 8 1/4" BSP-TR Male Ring Pull 112-148 7.7-10.2 Brass No Drain
CVF10B345N00 8 1/4" BSP-TR Male Ring Pull 200-434 13.8-29.9 Brass No Drain
CVF10B360N00 8 1/4" BSP-TR Male Ring Pull 435-580 30-40 Brass No Drain
CVF10BC07N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 25-49 1.7-3.3 Brass No Drain
CVF10BC15N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 50-99 3.4-6.8 Brass No Drain
CVF10BC29N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 100-199 6.9-13.7 Brass No Drain
CVF10BC32N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 112-148 7.7-10.2 Brass No Drain
CVF10BC45N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 200-434 13.8-29.9 Brass No Drain
CVF10BC60N00 8 1/4" BSP-TR Male 1/2" BSP-TR Male 435-580 30-40 Brass No Drain
CVF10BF07N00 8 1/4" BSP-TR Male 1/2" NPT Male 25-49 1.7-3.3 Brass No Drain
CVF10BF15N00 8 1/4" BSP-TR Male 1/2" NPT Male 50-99 3.4-6.8 Brass No Drain
CVF10BF29N00 8 1/4" BSP-TR Male 1/2" NPT Male 100-199 6.9-13.7 Brass No Drain
CVF10BF32N00 8 1/4" BSP-TR Male 1/2" NPT Male 112-148 7.7-10.2 Brass No Drain
CVF10BF45N00 8 1/4" BSP-TR Male 1/2" NPT Male 200-434 13.8-29.9 Brass No Drain
CVF10BF60N00 8 1/4" BSP-TR Male 1/2" NPT Male 435-580 30-40 Brass No Drain
CVF10C107N00 8 1/4" NPT Male Open to Atmosphere 25-49 1.7-3.3 Brass No Drain
CVF10C115N00 8 1/4" NPT Male Open to Atmosphere 50-99 3.4-6.8 Brass No Drain
CVF10C129N00 8 1/4" NPT Male Open to Atmosphere 100-199 6.9-13.7 Brass No Drain
CVF10C132N00 8 1/4" NPT Male Open to Atmosphere 112-148 7.7-10.2 Brass No Drain
CVF10C145N00 8 1/4" NPT Male Open to Atmosphere 200-434 13.8-29.9 Brass No Drain
CVF10C160N00 8 1/4" NPT Male Open to Atmosphere 435-580 30-40 Brass No Drain
CVF10C307N00 8 1/4" NPT Male Ring Pull 25-49 1.7-3.3 Brass No Drain
CVF10C315N00 8 1/4" NPT Male Ring Pull 50-99 3.4-6.8 Brass No Drain
CVF10C329N00 8 1/4" NPT Male Ring Pull 100-199 6.9-13.7 Brass No Drain
CVF10C332N00 8 1/4" NPT Male Ring Pull 112-148 7.7-10.2 Brass No Drain
CVF10C345N00 8 1/4" NPT Male Ring Pull 200-434 13.8-29.9 Brass No Drain
CVF10C360N00 8 1/4" NPT Male Ring Pull 435-580 30-40 Brass No Drain
CVF10CC07N00 8 1/4" NPT Male 1/2" BSP-TR Male 25-49 1.7-3.3 Brass No Drain
CVF10CC15N00 8 1/4" NPT Male 1/2" BSP-TR Male 50-99 3.4-6.8 Brass No Drain
CVF10CC29N00 8 1/4" NPT Male 1/2" BSP-TR Male 100-199 6.9-13.7 Brass No Drain
CVF10CC32N00 8 1/4" NPT Male 1/2" BSP-TR Male 112-148 7.7-10.2 Brass No Drain
CVF10CC45N00 8 1/4" NPT Male 1/2" BSP-TR Male 200-434 13.8-29.9 Brass No Drain
CVF10CC60N00 8 1/4" NPT Male 1/2" BSP-TR Male 435-580 30-40 Brass No Drain
CVF10CF07N00 8 1/4" NPT Male 1/2" NPT Male 25-49 1.7-3.3 Brass No Drain
CVF10CF15N00 8 1/4" NPT Male 1/2" NPT Male 50-99 3.4-6.8 Brass No Drain
CVF10CF29N00 8 1/4" NPT Male 1/2" NPT Male 100-199 6.9-13.7 Brass No Drain
CVF10CF32N00 8 1/4" NPT Male 1/2" NPT Male 112-148 7.7-10.2 Brass No Drain
CVF10CF45N00 8 1/4" NPT Male 1/2" NPT Male 200-434 13.8-29.9 Brass No Drain
CVF10CF60N00 8 1/4" NPT Male 1/2" NPT Male 435-580 30-40 Brass No Drain
CVF10K107N00 8 1/2" BSP-TR Male Open to Atmosphere 25-49 1.7-3.3 Brass No Drain
CVF10K115N00 8 1/2" BSP-TR Male Open to Atmosphere 50-99 3.4-6.8 Brass No Drain
CVF10K129N00 8 1/2" BSP-TR Male Open to Atmosphere 100-199 6.9-13.7 Brass No Drain
CVF10K132N00 8 1/2" BSP-TR Male Open to Atmosphere 112-148 7.7-10.2 Brass No Drain
CVF10K145N00 8 1/2" BSP-TR Male Open to Atmosphere 200-434 13.8-29.9 Brass No Drain
CVF10K160N00 8 1/2" BSP-TR Male Open to Atmosphere 435-580 30-40 Brass No Drain
CVF10K307N00 8 1/2" BSP-TR Male Ring Pull 25-49 1.7-3.3 Brass No Drain
CVF10K315N00 8 1/2" BSP-TR Male Ring Pull 50-99 3.4-6.8 Brass No Drain
CVF10K329N00 8 1/2" BSP-TR Male Ring Pull 100-199 6.9-13.7 Brass No Drain
CVF10K332N00 8 1/2" BSP-TR Male Ring Pull 112-148 7.7-10.2 Brass No Drain
CVF10K345N00 8 1/2" BSP-TR Male Ring Pull 200-434 13.8-29.9 Brass No Drain
CVF10K360N00 8 1/2" BSP-TR Male Ring Pull 435-580 30-40 Brass No Drain
CVF10KC07N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 25-49 1.7-3.3 Brass No Drain
CVF10KC15N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 50-99 3.4-6.8 Brass No Drain
CVF10KC29N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 100-199 6.9-13.7 Brass No Drain
CVF10KC32N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 112-148 7.7-10.2 Brass No Drain
CVF10KC45N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 200-434 13.8-29.9 Brass No Drain
CVF10KC60N00 8 1/2" BSP-TR Male 1/2" BSP-TR Male 435-580 30-40 Brass No Drain
CVF10KF07N00 8 1/2" BSP-TR Male 1/2" NPT Male 25-49 1.7-3.3 Brass No Drain
CVF10KF15N00 8 1/2" BSP-TR Male 1/2" NPT Male 50-99 3.4-6.8 Brass No Drain
CVF10KF29N00 8 1/2" BSP-TR Male 1/2" NPT Male 100-199 6.9-13.7 Brass No Drain
CVF10KF32N00 8 1/2" BSP-TR Male 1/2" NPT Male 112-148 7.7-10.2 Brass No Drain
CVF10KF45N00 8 1/2" BSP-TR Male 1/2" NPT Male 200-434 13.8-29.9 Brass No Drain
CVF10KF60N00 8 1/2" BSP-TR Male 1/2" NPT Male 435-580 30-40 Brass No Drain
CVF10L107N00 8 1/2" NPT Male Open to Atmosphere 25-49 1.7-3.3 Brass No Drain
CVF10L115N00 8 1/2" NPT Male Open to Atmosphere 50-99 3.4-6.8 Brass No Drain
CVF10L129N00 8 1/2" NPT Male Open to Atmosphere 100-199 6.9-13.7 Brass No Drain
CVF10L132N00 8 1/2" NPT Male Open to Atmosphere 112-148 7.7-10.2 Brass No Drain
CVF10L145N00 8 1/2" NPT Male Open to Atmosphere 200-434 13.8-29.9 Brass No Drain
CVF10L160N00 8 1/2" NPT Male Open to Atmosphere 435-580 30-40 Brass No Drain
CVF10L307N00 8 1/2" NPT Male Ring Pull 25-49 1.7-3.3 Brass No Drain
CVF10L315N00 8 1/2" NPT Male Ring Pull 50-99 3.4-6.8 Brass No Drain
CVF10L329N00 8 1/2" NPT Male Ring Pull 100-199 6.9-13.7 Brass No Drain
CVF10L332N00 8 1/2" NPT Male Ring Pull 112-148 7.7-10.2 Brass No Drain
CVF10L345N00 8 1/2" NPT Male Ring Pull 200-434 13.8-29.9 Brass No Drain
CVF10L360N00 8 1/2" NPT Male Ring Pull 435-580 30-40 Brass No Drain
CVF10LC07N00 8 1/2" NPT Male 1/2" BSP-TR Male 25-49 1.7-3.3 Brass No Drain
CVF10LC15N00 8 1/2" NPT Male 1/2" BSP-TR Male 50-99 3.4-6.8 Brass No Drain
CVF10LC29N00 8 1/2" NPT Male 1/2" BSP-TR Male 100-199 6.9-13.7 Brass No Drain
CVF10LC32N00 8 1/2" NPT Male 1/2" BSP-TR Male 112-148 7.7-10.2 Brass No Drain
CVF10LC45N00 8 1/2" NPT Male 1/2" BSP-TR Male 200-434 13.8-29.9 Brass No Drain
CVF10LC60N00 8 1/2" NPT Male 1/2" BSP-TR Male 435-580 30-40 Brass No Drain
CVF10LF07N00 8 1/2" NPT Male 1/2" NPT Male 25-49 1.7-3.3 Brass No Drain
CVF10LF15N00 8 1/2" NPT Male 1/2" NPT Male 50-99 3.4-6.8 Brass No Drain
CVF10LF29N00 8 1/2" NPT Male 1/2" NPT Male 100-199 6.9-13.7 Brass No Drain
CVF10LF32N00 8 1/2" NPT Male 1/2" NPT Male 112-148 7.7-10.2 Brass No Drain
CVF10LF45N00 8 1/2" NPT Male 1/2" NPT Male 200-434 13.8-29.9 Brass No Drain
CVF10LF60N00 8 1/2" NPT Male 1/2" NPT Male 435-580 30-40 Brass No Drain
