Parker Quick Couplings

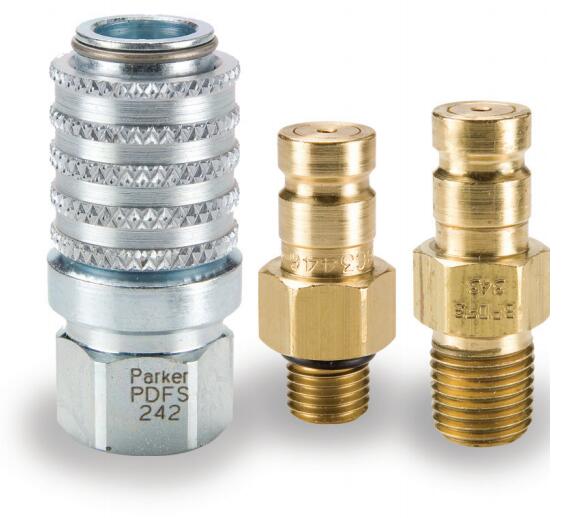

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

These diagnostic fluid sampling products are designed to provide an easy access point for obtaining fluid samples. A permanently mounted test point eliminates the need to shut down or break lines when taking samples and reduces the chances of contamination.

Fluid analysis is crucial in both engines and hydraulic systems as it can reveal problems with filtration and other internal components. Early detection can prevent costly repairs, unscheduled maintenance and production downtime. Fluid sampling nipples should be installed in either low pressure or return lines. For the most accurate monitoring, fluid samples should be consistantly taken from the same location.

Fluid Sampling probe is part number PDFS-PROBE.

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS

Technical Characteristics:
- Size: 1/8"
- Rated Pressure: 500 psi
- Materials: Steel, Brass
- Port Ends: Female NPTF, Male NPTF, Male ORB
- Seal Material: Fluorcarbon

Markets:
- Industrial
- Construction
- Mobile Equipment
- Testing
- Maintenance and Repair, MRO

Features/Benefits:
- Provides an easy access point for obtaining fluid samples
- Coupler is steel and nipples are brass with Fluorocarbon seals
- Fluid analysis can provide valuable diagnostic information and prevent costly repairs and unscheduled downtime

Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization

Technical Specifications

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS 型号
