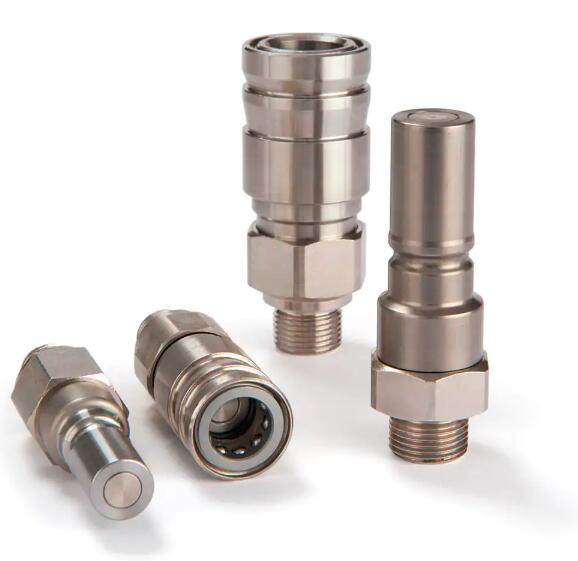

Dry Break Quick Connect Coupling, Series NSI
Dry break quick coupling system with nominal diameter 3/6/9/12 for thermal management applications up to 60 bar. Available made of brass/stainless steel.
Parker's Quick Connect Coupling Series NSI are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces. The series NSI is a coupling system with two-hand operation, i.e. both hands are required when connect/disconnect. Series NSI can be used either with water and heat transfer oils.
Dry Break Quick Connect Coupling, Series NSI
Markets:
- Industrial mold machinery
- Electronic cooling
- Power conversion and storage
Features/Benefits:
- Low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Excellent resistance to vibrations and mechanical stresses
Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
6, 9, 12 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
French Profile |
| Maximum Operating Pressure: |
870.24 psi, 60 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Valve Included: |
Yes |
| Version: |
Flat-sealing |
| Length: |
55,0 up to 99,3 mm |
| Hex Size: |
19 up to 35 mm |
| Outside Diameter: |
22, 30, 42 mm |
| Materials of Construction: |
Brass/Stainless steel |
| Seal Material: |
FKM |
Dry Break Quick Connect Coupling, Series NSI 型号
|
