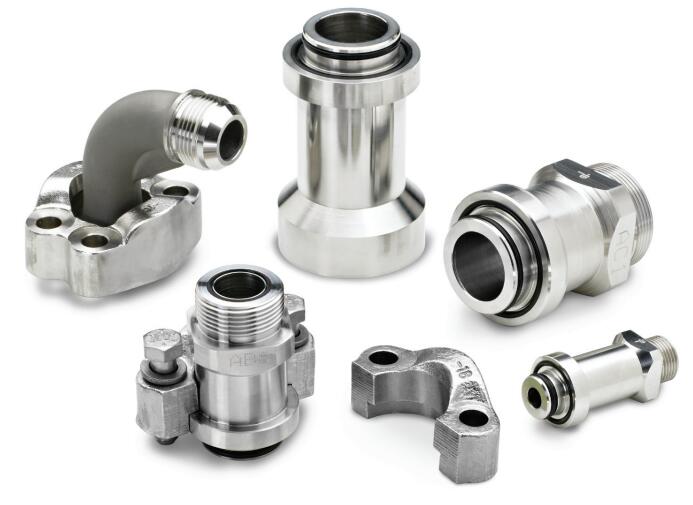

Dual Seal Subsea Flange Adapters
Parker's Dual Seal Flange Adapter product line provides a solution for subsea high-vibration and shock situations.
Parker's innovative Dual Seal Flange Adapters improve the reliability of high-vibration, high-shock hydraulic four-bolt connections in critical oil and gas applications. Incorporating both radial and face seal technologies, which reduces the potential for system leakage and air or water ingression caused by side loading of traditional flange face seal connections.
Dual Seal Subsea Flange Adapters
Markets:
- Oil & Gas
Features/Benefits:
- NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
- Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
- Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
- Available in 316/316L stainless steel with full heat code traceability in sizes ?”, 1” and 1 ?” with working pressures up to 7500 psi and 515 bar
Applications:
- Subsea
- BOP Stacks
Technical Specifications
| Maximum Operating Pressure: |
7500 (Dynamic Pressure) psi, 51 (Dynamic Pressure) MPa, 517 (Dynamic Pressure) bar |
| Connection Type: |
Flare, O-ring Face Seal |
| Materials of Construction: |
Stainless Steel |
| Application: |
Various |
| Shape: |
Straight |
| Specifications Met: |
NACE MR0175, ISO 6162-2 and SAE J518 Code 62 |
| O-Ring Material: |
90 Durometer Nitrile |
