Flareless and Bite Type Fittings

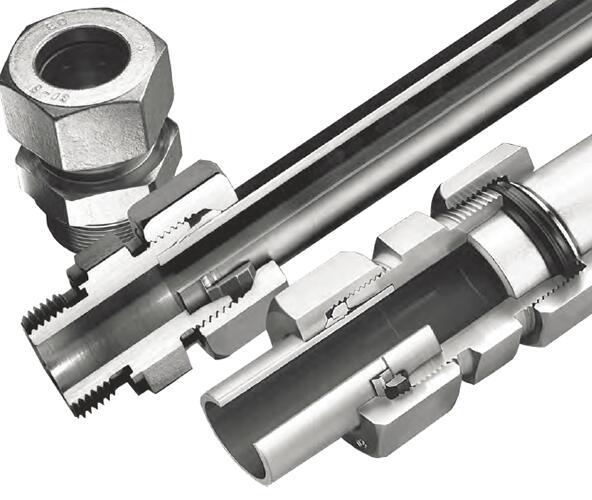

Ermeto DIN fitting components for high pressure hydraulic tube fittings
Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).
Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM). The FM EO-2 functional nut is available with sealing NBR or sealing FKM.
Ermeto DIN fitting components for high pressure hydraulic tube fittings
Markets:
- Automotive
- Defense
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
- Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Ermeto DIN fitting components for high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- Depending on the specific requirements, the FM EO-2 functional nut can be delivered with sealing NBR or sealing FKM. This feature increase the range of applications.
Technical Specifications
| Product Series: |
Very light, Light, Heavy |
| Size: |
na, M 08x1.0 to M42x2.0 |
| Materials of Construction: |
Steel/NBR, Steel/FKM, Stainless steel/FKM, Stainless steel/NBR, Steel/Stainless steel/NBR, Steel/Stainless steel/FKM, Steel, Stainless steel, Stainless steel SPH |
| Seal Material: |
na, NBR, FKM |
| Tube Outside Diameter: |
6-42 mm |
| Shape: |
EO2-Functional nut, EO2-FORM Set for steel and stainless steel tubes, EO2-FORM Set for stainless steel tubes, Nut EO 24° Cone end, Cutting ring, Progressive stop ring, Progressive ring, Sleeve screw for threaded ports acc. to DIN 3854 |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Specifications Met: |
DIN ISO 8434 |
Ermeto DIN fitting components for high pressure hydraulic tube fittings型号
| Part |
Shape |
Series |
Seal Material |
Size |
Material |
Tube O.D. (mm) |
| D04LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
4 |
| D04LLX |
Cutting ring |
Very light |
na |
na |
Steel |
4 |
| D06LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
6 |
| D06LLX |
Cutting ring |
Very light |
na |
na |
Steel |
6 |
| D08LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
8 |
| D08LLX |
Cutting ring |
Very light |
na |
na |
Steel |
8 |
| D10LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
10 |
| D10LLX |
Cutting ring |
Very light |
na |
na |
Steel |
10 |
| D12LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
12 |
| D12LLX |
Cutting ring |
Very light |
na |
na |
Steel |
12 |
| DPR06L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
6 |
| DPR06LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
6 |
| DPR08L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
8 |
| DPR08LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
8 |
| DPR10L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
10 |
| DPR10LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
10 |
| DPR12L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
12 |
| DPR12LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
12 |
| DPR14S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
14 |
| DPR14SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
14 |
| DPR15L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
15 |
| DPR15LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
15 |
| DPR16S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
16 |
| DPR16SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
16 |
| DPR18L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
18 |
| DPR18LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
18 |
| DPR20S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
20 |
| DPR20SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
20 |
| DPR22L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
22 |
| DPR22LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
22 |
| DPR25S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
25 |
| DPR25SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
25 |
| DPR28L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
28 |
| DPR28LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
28 |
| DPR30S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
30 |
| DPR30SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
30 |
| DPR35L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
35 |
| DPR35LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
35 |
| DPR38S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
38 |
| DPR38SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
38 |
| DPR42L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
42 |
| DPR42LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
42 |
| FM04LLCF |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| FM04LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel/Stainless steel |
4 |
| FM06L71 |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FM06LCF |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 10x1.0 |
Steel/Stainless steel |
6 |
| FM06LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FM06LSSA |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06LVITCF |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06S71 |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FM06SCF |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FM06SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM06SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM08L71 |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FM08LCF |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FM08LSSA |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08LVITCF |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08S71 |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FM08SCF |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FM08SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM08SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM10L71 |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FM10LCF |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FM10LSSA |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10LVITCF |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10S71 |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FM10SCF |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FM10SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM10SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM12L71 |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FM12LCF |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FM12LSSA |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12LVITCF |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12S71 |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FM12SCF |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FM12SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM12SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM14S71 |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FM14SCF |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FM14SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM14SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM15L71 |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FM15LCF |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FM15LSSA |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM15LVITCF |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM16S71 |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FM16SCF |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FM16SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM16SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM18L71 |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FM18LCF |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FM18LSSA |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM18LVITCF |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM20S71 |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FM20SCF |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FM20SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM20SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM22L71 |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FM22LCF |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FM22LSSA |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM22LVITCF |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM25S71 |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FM25SCF |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FM25SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM25SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM28L71 |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FM28LCF |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FM28LSSA |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM28LVITCF |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM30S71 |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FM30SCF |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FM30SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM30SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM35L71 |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FM35LCF |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FM35LSSA |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM35LVITCF |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM38S71 |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FM38SCF |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FM38SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM38SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM42L71 |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FM42LCF |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FM42LSSA |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FM42LVITCF |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FORM06L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM08L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM10L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM12L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM14S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM14SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM15L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM15LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM16S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM16SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM18L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM18LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM20S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM20SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM22L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM22LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM25S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM25SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM28L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM28LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM30S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM30SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM35L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM35LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM38S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM38SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM42L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FORM42LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M04LLCFX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| M04LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| M06LCFX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| M06LEODURX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| M06LLCFX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Steel, Chromium-6 Free |
6 |
| M06LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| M06SCFX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| M06SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Stainless steel |
6 |
| M08LCFX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| M08LEODURX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| M08LLCFX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Steel, Chromium-6 Free |
8 |
| M08LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| M08SCFX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| M08SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Stainless steel |
8 |
| M10LCFX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| M10LEODURX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| M10LLCFX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Steel, Chromium-6 Free |
10 |
| M10LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Stainless steel |
10 |
| M10SCFX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| M10SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Stainless steel |
10 |
| M12LCFX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| M12LEODURX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| M12LLCFX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Steel, Chromium-6 Free |
12 |
| M12LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Stainless steel |
12 |
| M12SCFX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| M12SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Stainless steel |
12 |
| M14SCFX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| M14SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Stainless steel |
14 |
| M15LCFX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| M15LEODURX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Stainless steel |
15 |
| M16SCFX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| M16SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Stainless steel |
16 |
| M18LCFX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| M18LEODURX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Stainless steel |
18 |
| M20SCFX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| M20SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Stainless steel |
20 |
| M22LCFX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| M22LEODURX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Stainless steel |
22 |
| M25SCFX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| M25SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Stainless steel |
25 |
| M28LCFX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| M28LEODURX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Stainless steel |
28 |
| M30SCFX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| M30SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Stainless steel |
30 |
| M35LCFX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| M35LEODURX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Stainless steel |
35 |
| M38SCFX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| M38SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Stainless steel |
38 |
| M42LCFX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M42LEODURX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Stainless steel |
42 |
| PSR06LX |
Progressive stop ring |
Light |
na |
na |
Steel |
6 |
| PSR08LX |
Progressive stop ring |
Light |
na |
na |
Steel |
8 |
| PSR10LX |
Progressive stop ring |
Light |
na |
na |
Steel |
10 |
| PSR12LX |
Progressive stop ring |
Light |
na |
na |
Steel |
12 |
| PSR14SX |
Progressive stop ring |
Light |
na |
na |
Steel |
14 |
| PSR15LX |
Progressive stop ring |
Light |
na |
na |
Steel |
15 |
| PSR16SX |
Progressive stop ring |
Light |
na |
na |
Steel |
16 |
| PSR18LX |
Progressive stop ring |
Light |
na |
na |
Steel |
18 |
| PSR20SX |
Progressive stop ring |
Light |
na |
na |
Steel |
20 |
| PSR22LX |
Progressive stop ring |
Light |
na |
na |
Steel |
22 |
| PSR25SX |
Progressive stop ring |
Light |
na |
na |
Steel |
25 |
| PSR28LX |
Progressive stop ring |
Light |
na |
na |
Steel |
28 |
| PSR30SX |
Progressive stop ring |
Light |
na |
na |
Steel |
30 |
| PSR35LX |
Progressive stop ring |
Light |
na |
na |
Steel |
35 |
| PSR38SX |
Progressive stop ring |
Light |
na |
na |
Steel |
38 |
| PSR42LX |
Progressive stop ring |
Light |
na |
na |
Steel |
42 |
| S04LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| S04LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Steel |
4 |
| S06L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| S06LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Steel |
6 |
| S06LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| S06LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Steel |
6 |
| S08L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| S08LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Steel |
8 |
| S08LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| S08LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Steel |
8 |
| S10L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| S10LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Steel |
10 |
| S12L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| S12LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Steel |
12 |
|
