Flareless and Bite Type Fittings

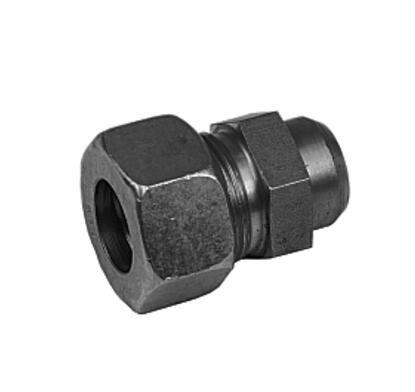

Ermeto high pressure hydraulic tube to weld fittings

Ermeto tube to weld fittings are suitable for all popular weld fittings and meet the stringent requirements which are placed on individual components in complex welding procedures.

Ermeto tube to weld nipple, types AS and WAS can be assembled in any Ermeto tube fitting. Ermeto tube to weld fittings are available in steel, stainless steel and all sizes from 6 - 38/42 in the light and heavy series. The Ermeto tube to weld nipple is welded to the tube end without the O-ring. Assembling beforehand a retaining nut with the right size and orientation should not be forgotten. Special guidelines and regulations may apply to the pre-handling of the tube-end, the welding procedure, welding personnel qualifications, post-processing and testing and documentation of the weld connection.

Ermeto high pressure hydraulic tube to weld fittings

Markets:
- Press construction
- Heavy machinery building
- Power station construction
- Shipbuilding

Applications:
- Suitable for general hydraulic applications.

Features/ benefits:
- Ermeto tube to weld fittings can be combined with all EO fittings, so that the fittings can be used in a broad range of applications.
- The elastomeric seal acts as a primary sealing element, making the connection leak-proof. So maintenance and re-work costs are substantially reduced.
- Even after continuous operation for years under extreme conditions, the component does not have to be retightened. This means that the connector has a long life cycle and maintenance and servicing costs are noticeably diminished.
- Insufficiently assembled tube to weld connections do not come apart without warning. The user can react early enough because the connectors indicate the problem by leaking and they can be retightened.
- Ermeto tube to weld fittings can be undone and then re-assembled any number of times. The longevity of the connector is thereby increased and costs saved.

Technical Specifications

Ermeto high pressure hydraulic tube to weld fittings型号
