Parker Fittings接头
Hose Fittings

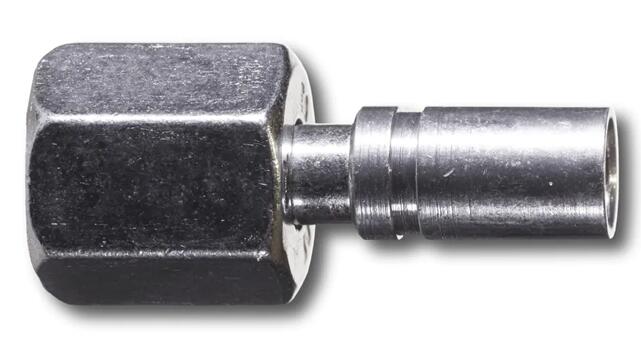

Crimped Thermoplastic Hydraulic Hose Fittings, EX Series

Parker EX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose types 2010N, 2020N, 2010H.





Parker EX Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.



Crimped Thermoplastic Hydraulic Hose Fittings, EX Series



Markets:
- Industrial
- Transportation
- Mobile Offroad
- Agriculture
- Material Handling

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Gas handling & transfer
- Paint spray equipment
- Machine tools
- Wind turbines
- Metal plants
- Construction Equipment
- Suitable for diagnostic hose types 2010N, 2020N, 2010H with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)



Technical Specifications

Nominal Hose Inside Diameter: 2, 4, 3 mm
Hose I.D. (size): -12, -25, -2
Hose Inside Diameter: 2, 4, 3,2 mm, 5/64, 5/32, 1/8 inch
Connection Thread Size: 1/4 - 18, 1/8 - 27, 3/8 - 24, 7/16 - 20, NA, 1/4, 3/8, 9/16 - 18, 11/16 - 16 inch
Connection Type: NPTF, UNF, NA, BSP, Metric
Tube Outside Diameter: NA, 1/4, 3/8 inch
Length: 1,5, 1,8, 2, 0,9, 1, 2,1, 2,2, 1,7, 1,6, 1,3, 1,1, 1,2 inch
Shape: Straight
Product Style: National Pipe Tapered (NPT) male, SAE (JIC) 37° female swivel, Metric standpipe, Banjo union, BSP female swivel 60° cone, BSP female, Metric female swivel 24° with O-ring, BSP male, O-Lok? ORFS swivel nut, Quick connect fitting with metric swivel nut, Qui
Materials of Construction: Galvanised steel



Crimped Thermoplastic Hydraulic Hose Fittings, EX Series型号

Part Maximum Working Pressure (MPa) Connection Thread Size (mm) Fitting Type Length (mm) Tube O.D. (mm)
101EX-2-025 34.5 NA 1 46 NA
101EX-4-012 34.5 NA 1 39 NA
101EX-4-025 34.5 NA 1 50 NA
106EX-3-012 41 NA 6 23 NA
106EX-4-012 41 NA 6 25 NA
11DEX-4-012 25 NA 1D 37 4
11DEX-4-025 25 NA 1D 52 4
11DEX-6-025 25 NA 1D 54 6
13DEX-6-012 63 NA 3D 37 6
13DEX-8-012 63 NA 3D 37 8
13DEX-8-025 63 NA 3D 56 8
149EX-10-025 20 NA 49 44 10
149EX-8-02 20 NA 49 23 8
192EX-4-025 63 NA 92 39 NA
192EX-6-025 55 NA 92 40 NA
1BPEX-4-012 34.5 NA BP 39 NA
1C9EX-6-012 63 14x1.5 C9 32 6
1C9EX-8-012 63 16x1.5 C9 37 8
1C9EX-8-02 63 16x1.5 C9 32 8
1C9EX-8-025 63 16x1.5 C9 45 8
1CAEX-6-012 31.5 12x1.5 CA 32 6
1CAEX-6-025 31.5 12x1.5 CA 42 6
1CAEX-8-012 42.5 14x1.5 CA 37 8
1D9EX-4-012 63 NA D9 40 NA
1JCEX-4-012 41 NA JC 28 NA
1JCEX-6-012 41 NA JC 26 NA
1R8EX-11-012 63 16x2 R8 30 NA
1YPEX-3-012 63 NA YP 28 NA
1YREX-10-012 63 16x1.5 YR 30 NA
1YREX-11-012 63 16x2 YR 30 NA
