Parker Fittings接头
Hose Fittings

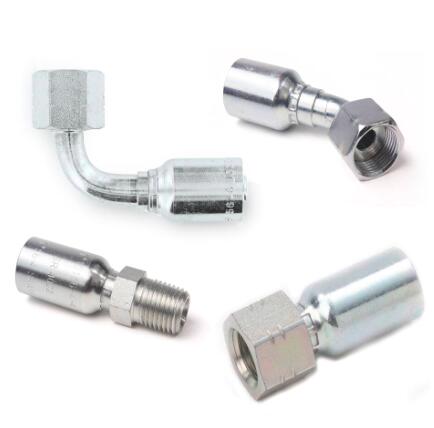

Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.





The new and improved Global 56 Series, which consolidates the 55 Series and the 58 Series into one. The 56 Series is shorter and more compact than the 55/58 Series Fittings, allowing for a system weight reduction of up to 20% and easier routing of assemblies during installation in tight, condensed spaces. In addition, the crimping process for the 56 Series is simpler, faster and safer since the sleeve is crimped at full length; therefore, no marking is necessary. Check crimpsource for the most up-to-date die and crimping recommendations. http://www.parker.com/crimpsource



Global Fittings - 56 Series - Inch



Markets:
- Industrial
- Mobile Equipment
- Transportation

Features/Benefits:
- Consolidation of two series into one (55 and 58 = 56), thus reducing the customer inventory
- Shorter and more compact than 55/58 Series for easier routing of assemblies in tight installation areas; short length may allow use of hose routing to replace current elbow fittings
- Full length crimp of the sleeve (no marking of crimp length needed); therefore easier, safer and faster crimping in comparison to 55 Series
- Weight reduction up to 20%
- Global part numbering with metric & inch hex and end connections to allow for global availability
- Current 55 Series dies are qualified and can be used with the 56

Applications:
- Medium pressure hydraulic applications
- Agricultural equipment
- Construction
- Lubricating oils
- Material Handling equipment
- Machine tools
- Waste and refuse trucks
- Utility equipment

Technical Specifications:
- Some styles are available with metric hex; contact Parflex Customer Service for assistance



Technical Specifications

Hose Inside Diameter: 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4, 1 inch, 3, 5, 6, 8, 10, 13, 19, 25 mm
Application: Various
Connection Type: Crimped
Materials of Construction: Steel, Stainless Steel
Port Size: 3/16 - 1-1/4 inch
Connection Thread Size: varies
Tube Outside Diameter: 1/4 - 1 inch, 6 - 25 mm
Shape: Straight, Elbow, Stub End



Global Fittings - 56 Series - Inch型号

Part Hose I.D. (inch) Style Connection Thread Size (inch) Length (inch) Materials of Construction
10156-12-10 0.625 Male NPTF Pipe - Rigid - Straight 3/4-14 2.88 Steel
10156-12-12 0.75 Male NPTF Pipe - Rigid - Straight 3/4-14 2.97 Steel
10156-12-12C 0.75 Male NPTF Pipe - Rigid - Straight 3/4-14 2.97 Stainless Steel
10156-16-16 1 Male NPTF Pipe - Rigid - Straight 1-11-1/2 3.76 Steel
10156-2-2 0.125 Male NPTF Pipe - Rigid - Straight 1/8-27 1.35 Steel
10156-2-3 0.188 Male NPTF Pipe - Rigid - Straight 1/8-27 1.6 Steel
10156-2-4 0.25 Male NPTF Pipe - Rigid - Straight 1/8-27 1.91 Steel
10156-4-2 0.125 Male NPTF Pipe - Rigid - Straight 1/4-18 1.56 Steel
10156-4-3 0.188 Male NPTF Pipe - Rigid - Straight 1/4-18 1.82 Steel
10156-4-4 0.25 Male NPTF Pipe - Rigid - Straight 1/4-18 2.09 Steel
10156-4-4C 0.25 Male NPTF Pipe - Rigid - Straight 1/4-18 2.09 Stainless Steel
10156-4-5 0.313 Male NPTF Pipe - Rigid - Straight 1/4-18 2.16 Steel
10156-4-6 0.375 Male NPTF Pipe - Rigid - Straight 1/4-18 2.16 Steel
10156-4-6C 0.375 Male NPTF Pipe - Rigid - Straight 1/4-18 2.16 Stainless Steel
10156-6-4 0.250 Male NPTF Pipe - Rigid - Straight 3/8-18 2.14 Steel
10156-6-5 0.313 Male NPTF Pipe - Rigid - Straight 3/8-18 2.23 Steel
10156-6-6 0.375 Male NPTF Pipe - Rigid - Straight 3/8-18 2.16 Steel
10156-6-6C 0.375 Male NPTF Pipe - Rigid - Straight 3/8-18 2.16 Stainless Steel
10156-6-8 0.500 Male NPTF Pipe - Rigid - Straight 3/8-18 2.28 Steel
10156-8-6 0.375 Male NPTF Pipe - Rigid - Straight 1/2-14 2.44 Steel
10156-8-8 0.5 Male NPTF Pipe - Rigid - Straight 1/2-14 2.55 Steel
10156-8-8C 0.5 Male NPTF Pipe - Rigid - Straight 1/2-14 2.55 Stainless Steel
10256-4-4 0.25 Female NPTF Pipe - Rigid - Straight 1/4-18 1.99 Steel
10256-4-4C 0.25 Female NPTF Pipe - Rigid - Straight 1/4-18 1.99 Stainless Steel
10256-6-6 0.375 Female NPTF Pipe - Rigid - Straight 3/8-18 2.04 Steel
10256-8-8 0.500 Female NPTF Pipe - Rigid - Straight 1/2-14 2.42 Steel
10356-10-8 0.5 Male JIC 37° - Rigid - Straight 7/8-14 2.6 Steel
10356-12-10 0.625 Male JIC 37° - Rigid - Straight 1-1/16-12 2.97 Steel
10356-12-12 0.75 Male JIC 37° - Rigid - Straight 1-1/16-12 3.07 Steel
10356-16-16 1 Male JIC 37° - Rigid - Straight 1-5/16-12 3.66 Steel
10356-4-2 0.125 Male JIC 37° - Rigid - Straight 7/16-20 1.55 Steel
10356-4-3 0.188 Male JIC 37° - Rigid - Straight 7/16-20 1.83 Steel
10356-4-4 0.25 Male JIC 37° - Rigid - Straight 7/16-20 2.1 Steel
10356-4-4C 0.25 Male JIC 37° - Rigid - Straight 7/16-20 2.10 Stainless Steel
10356-5-4 0.25 Male JIC 37° - Rigid - Straight 1/2-20 2.1 Steel
10356-5-5 0.313 Male JIC 37° - Rigid - Straight 1/2-20 2.13 Steel
10356-5-6 0.375 Male JIC 37° - Rigid - Straight 1/2-20 2.14 Steel
10356-6-4 0.25 Male JIC 37° - Rigid - Straight 9/16-18 2.14 Steel
10356-6-5 0.313 Male JIC 37° - Rigid - Straight 9/16-18 2.22 Steel
10356-6-6 0.375 Male JIC 37° - Rigid - Straight 9/16-18 2.15 Steel
10356-6-6C 0.375 Male JIC 37° - Rigid - Straight 9/16-18 2.15 Stainless Steel
10356-8-6 0.375 Male JIC 37° - Rigid - Straight 3/4-16 2.25 Steel
10356-8-8 0.5 Male JIC 37° - Rigid - Straight 3/4-16 2.4 Steel
10356-8-8C 0.5 Male JIC 37° - Rigid - Straight 3/4-16 2.4 Stainless Steel
10456-12-12 0.75 Male SAE 45° - Rigid - Straight 1-1/16-14 3.11 Steel
10456-4-3 0.188 Male SAE 45° - Rigid - Straight 7/16-20 1.71 Steel
10456-5-4 0.25 Male SAE 45° - Rigid - Straight 1/2-20 2.11 Steel
10456-6-5 0.313 Male SAE 45° - Rigid - Straight 5/8-18 2.18 Steel
10456-6-6 0.5 Male SAE 45° - Rigid - Straight 5/8-18 2.16 Steel
10456-6-8 0.5 Male SAE 45° - Rigid - Straight 5/8-18 2.37 Steel
10456-8-8 0.5 Male SAE 45° - Rigid - Straight 3/4-16 0.25 Steel
10556-10-8 0.5 Male SAE Straight Thread with O-ring - Rigid - Straight 7/8-14 2.28 Steel
10556-4-3 0.188 Male SAE Straight Thread with O-ring - Rigid - Straight 7/16-20 1.61 Steel
10556-4-4 0.25 Male SAE Straight Thread with O-ring - Rigid - Straight 7/16-20 1.84 Steel
10556-4-5 0.313 Male SAE Straight Thread with O-ring - Rigid - Straight 7/16-20 1.91 Steel
10556-5-4 0.25 Male SAE Straight Thread with O-ring - Rigid - Straight 1/2-20 1.84 Steel
10556-5-5 0.313 Male SAE Straight Thread with O-ring - Rigid - Straight 1/2-20 1.91 Steel
10556-6-3 0.188 Male SAE Straight Thread with O-ring - Rigid - Straight 9/16-18 1.64 Steel
10556-6-4 0.25 Male SAE Straight Thread with O-ring - Rigid - Straight 9/16-18 1.91 Steel
10556-6-6 0.375 Male SAE Straight Thread with O-ring - Rigid - Straight 9/16-18 1.95 Steel
10556-8-6 0.375 Male SAE Straight Thread with O-ring - Rigid - Straight 3/4-16 1.98 Steel
10556-8-8 0.5 Male SAE Straight Thread with O-ring - Rigid - Straight 3/4-16 2.21 Steel
10656-10-10 0.625 Female JIC 37° - Swivel - Straight 7/8-14 2.99 Steel
10656-10-12 0.75 Female JIC 37° - Swivel - Straight 7/8-14 2.88 Steel
10656-10-8 0.5 Female JIC 37° - Swivel - Straight 7/8-14 2.64 Steel
10656-10-8C 0.5 Female JIC 37° - Swivel - Straight 7/8-14 2.64 Stainless Steel
10656-12-10 0.625 Female JIC 37° - Swivel - Straight 1-1/16-12 3.06 Steel
10656-12-12 0.75 Female JIC 37° - Swivel - Straight 1-1/16-12 3.06 Steel
10656-12-12C 0.75 Female JIC 37° - Swivel - Straight 1-1/16-12 3.06 Stainless Steel
10656-12-8 0.5 Female JIC 37° - Swivel - Straight 1-1/16-12 2.72 Steel
10656-16-12 0.75 Female JIC 37° - Swivel - Straight 1-5/16-12 3.27 Steel
10656-16-16 1 Female JIC 37° - Swivel - Straight 1-5/16-12 3.81 Steel
10656-16-16C 1 Female JIC 37° - Swivel - Straight 1-5/16-12 3.81 Stainless Steel
10656-2-2 0.125 Female JIC 37° - Swivel - Straight 5/16-24 1.63 Steel
10656-2-4 0.25 Female JIC 37° - Swivel - Straight 3/8-24 1.98 Steel
10656-20-16 1 Female JIC 37° - Swivel - Straight 1-5/8-12 3.96 Steel
10656-3-2 0.125 Female JIC 37° - Swivel - Straight 3/8-24 1.6 Steel
10656-3-3 0.188 Female JIC 37° - Swivel - Straight 3/8-24 1.91 Steel
10656-4-2 0.125 Female JIC 37° - Swivel - Straight 7/16-20 1.68 Steel
10656-4-2C 0.125 Female JIC 37° - Swivel - Straight 7/16-20 1.68 Stainless Steel
10656-4-3 0.188 Female JIC 37° - Swivel - Straight 7/16-20 1.78 Steel
10656-4-3C 0.188 Female JIC 37° - Swivel - Straight 7/16-20 1.78 Stainless Steel
10656-4-4 0.25 Female JIC 37° - Swivel - Straight 7/16-20 2.05 Steel
10656-4-4C 0.25 Female JIC 37° - Swivel - Straight 7/16-20 2.05 Stainless Steel
10656-4-5 0.313 Female JIC 37° - Swivel - Straight 7/16-20 2.1 Steel
10656-4-6 0.375 Female JIC 37° - Swivel - Straight 7/16-20 2.09 Steel
10656-5-3 0.188 Female JIC 37° - Swivel - Straight 1/2-20 1.84 Steel
10656-5-4 0.25 Female JIC 37° - Swivel - Straight 1/2-20 2.12 Steel
10656-5-4C 0.25 Female JIC 37° - Swivel - Straight 1/2-20 2.12 Stainless Steel
10656-5-5 0.313 Female JIC 37° - Swivel - Straight 1/2-20 2.21 Steel
10656-5-6 0.375 Female JIC 37° - Swivel - Straight 1/2-20 2.23 Steel
10656-6-4 0.25 Female JIC 37° - Swivel - Straight 9/16-18 2.14 Steel
10656-6-4C 0.25 Female JIC 37° - Swivel - Straight 9/16-18 2.14 Stainless Steel
10656-6-5 0.313 Female JIC 37° - Swivel - Straight 9/16-18 2.23 Steel
10656-6-5C 0.313 Female JIC 37° - Swivel - Straight 9/16-18 2.23 Stainless Steel
10656-6-6 0.375 Female JIC 37° - Swivel - Straight 9/16-18 2.22 Steel
10656-6-6C 0.375 Female JIC 37° - Swivel - Straight 9/16-18 2.22 Stainless Steel
10656-6-8 0.5 Female JIC 37° - Swivel - Straight 9/16-18 2.42 Steel
10656-8-10 0.625 Female JIC 37° - Swivel - Straight 3/4-16 2.73 Steel
10656-8-6 0.375 Female JIC 37° - Swivel - Straight 3/4-16 2.37 Steel
10656-8-6C 0.375 Female JIC 37° - Swivel - Straight 3/4-16 2.37 Stainless Steel
10656-8-8 0.5 Female JIC 37° - Swivel - Straight 3/4-16 2.54 Steel
10656-8-8C 0.5 Female JIC 37° - Swivel - Straight 3/4-16 2.54 Stainless Steel
10756-12-12 0.75 Female NPSM Pipe - Swivel - Straight (60° Cone) 3/4-14 2.98 Steel
10756-16-16 1 Female NPSM Pipe - Swivel - Straight (60° Cone) 1-11 1/2 3.74 Steel
10756-4-4 0.25 Female NPSM Pipe - Swivel - Straight (60° Cone) 1/4-18 2.03 Steel
10756-4-5 0.313 Female NPSM Pipe - Swivel - Straight (60° Cone) 1/4-18 2.09 Steel
10756-6-6 0.375 Female NPSM Pipe - Swivel - Straight (60° Cone) 3/8-18 2.13 Steel
10756-8-8 0.5 Female NPSM Pipe - Swivel - Straight (60° Cone) 1/2-14 2.4 Steel
10856-12-12 0.75 Female SAE 45° - Swivel - Straight 1-1/16-14 3.06 Steel
10856-6-4 0.25 Female SAE 45° - Swivel - Straight 5/8-18 2.19 Steel
10856-6-5 0.313 Female SAE 45° - Swivel - Straight 5/8-18 2.28 Steel
10856-6-6 0.375 Female SAE 45° - Swivel - Straight 5/8-18 2.36 Steel
11156-6-4 0.25 Male NPTF Pipe - Swivel - Straight 9/16-18 1.99 Steel
11356-12-12 0.75 Male NPTF Pipe - Swivel - Straight 3/4-14 3.71 Steel
11356-16-16 1 Male NPTF Pipe - Swivel - Straight 1-11 1/2 4.64 Steel
11356-2-2 0.125 Male NPTF Pipe - Swivel - Straight 1/8-27 2.85 Steel
11356-2-3 0.188 Male NPTF Pipe - Swivel - Straight 1/8-27 2.85 Steel
11356-4-3 0.188 Male NPTF Pipe - Swivel - Straight 1/4-18 2.59 Steel
11356-4-4 0.25 Male NPTF Pipe - Swivel - Straight 1/4-18 2.95 Steel
11356-4-4C 0.25 Male NPTF Pipe - Swivel - Straight 1/4-18 2.95 Stainless Steel
11356-4-5 0.313 Male NPTF Pipe - Swivel - Straight 1/4-18 2.95 Steel
11356-6-6 0.375 Male NPTF Pipe - Swivel - Straight 3/8-18 3.06 Steel
11356-8-6 0.375 Male NPTF Pipe - Swivel - Straight 1/2-14 3.24 Steel
11356-8-8 0.5 Male NPTF Pipe - Swivel - Straight 1/2-14 3.37 Steel
11356-8-8C 0.5 Male NPTF Pipe - Swivel - Straight 1/2-14 3.37 Stainless Steel
13756-10-10 0.625 Female JIC 37° - Swivel - 45° Elbow - Short Drop 7/8-14 3.23 Steel
13756-10-8 0.5 Female JIC 37° - Swivel - 45° Elbow - Short Drop 7/8-14 2.87 Steel
13756-12-10 0.625 Female JIC 37° - Swivel - 45° Elbow - Short Drop 1-1/16-12 3.74 Steel
13756-12-12 0.75 Female JIC 37° - Swivel - 45° Elbow - Short Drop 1-1/16-12 3.86 Steel
13756-16-16 1 Female JIC 37° - Swivel - 45° Elbow - Short Drop 1-5/16-12 4.72 Steel
13756-4-2 0.125 Female JIC 37° - Swivel - 45° Elbow - Short Drop 7/16-20 1.98 Steel
13756-4-3 0.188 Female JIC 37° - Swivel - 45° Elbow - Short Drop 7/16-20 1.93 Steel
13756-4-4 0.25 Female JIC 37° - Swivel - 45° Elbow - Short Drop 7/16-20 2.19 Steel
13756-5-4 0.25 Female JIC 37° - Swivel - 45° Elbow - Short Drop 1/2-20 2.46 Steel
13756-6-4 0.25 Female JIC 37° - Swivel - 45° Elbow - Short Drop 9/16-18 2.24 Steel
13756-6-5 0.313 Female JIC 37° - Swivel - 45° Elbow - Short Drop 9/16-18 2.53 Steel
13756-6-6 0.375 Female JIC 37° - Swivel - 45° Elbow - Short Drop 9/16-18 2.57 Steel
13756-8-6 0.375 Female JIC 37° - Swivel - 45° Elbow - Short Drop 3/4-16 2.76 Steel
13756-8-8 0.5 Female JIC 37° - Swivel - 45° Elbow - Short Drop 3/4-16 2.72 Steel
13956-10-10 0.625 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/8-14 2.96 Steel
13956-10-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/8-14 2.6 Steel
13956-12-10 0.625 Female JIC 37° - Swivel - 90° Elbow - Short Drop 1-1/16-12 3.39 Steel
13956-12-12 0.75 Female JIC 37° - Swivel - 90° Elbow - Short Drop 1-1/16-12 3.89 Steel
13956-16-16 1 Female JIC 37° - Swivel - 90° Elbow - Short Drop 1-5/16-12 4.66 Steel
13956-4-2 0.125 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 1.83 Steel
13956-4-3 0.188 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 0.175 Steel
13956-4-4 0.250 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 2.19 Steel
13956-4-4C 0.250 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 2.19 Stainless Steel
13956-5-4 0.250 Female JIC 37° - Swivel - 90° Elbow - Short Drop 1/2-20 2.01 Steel
13956-6-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 2.01 Steel
13956-6-5 0.313 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 2.14 Steel
13956-6-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 2.22 Steel
13956-6-6C 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 2.22 Stainless Steel
13956-8-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 2.55 Steel
13956-8-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 2.48 Steel
13956-8-8C 0.5 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 2.48 Stainless Steel
13E56-4-4 0.25 Male (JIC) 37° Long 7/16-20 2.8 Steel
13E56-6-5 0.313 Male (JIC) 37° Long 9/16-18 2.97 Steel
13E56-6-6 0.375 Male (JIC) 37° Long 9/16-18 2.97 Steel
13E56-8-8 0.5 Male (JIC) 37° Long 3/4-16 3.24 Steel
14156-10-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Long Drop 7/8-14 2.48 Steel
14156-12-12 0.75 Female JIC 37° - Swivel - 90° Elbow - Long Drop 1-1/16-12 3.59 Steel
14156-16-16 1 Female JIC 37° - Swivel - 90° Elbow - Long Drop 1-5/16-12 4.36 Steel
14156-4-3 0.188 Female JIC 37° - Swivel - 90° Elbow - Long Drop 7/16-20 1.73 Steel
14156-4-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Long Drop 7/16-20 2.01 Steel
14156-5-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Long Drop 1/2-20 2.01 Steel
14156-6-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Long Drop 9/16-18 2.01 Steel
14156-6-5 0.313 Female JIC 37° - Swivel - 90° Elbow - Long Drop 9/16-18 2.14 Steel
14156-6-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Long Drop 9/16-18 2.22 Steel
14156-8-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Long Drop 3/4-16 2.22 Steel
14156-8-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Long Drop 3/4-16 2.48 Steel
1AL56-4-4 0.25 Female A-Lok? Compression 7/16-20 1.91 Steel
1AL56-4-4C 0.25 Female A-Lok? Compression 7/16-20 1.91 Stainless Steel
1AL56-6-6 0.375 Female A-Lok? Compression 9/16-20 2.09 Steel
1AL56-6-6C 0.375 Female A-Lok? Compression 9/16-20 2.09 Stainless Steel
1AL56-8-8 0.375 Female A-Lok? Compression 3/4-20 2.21 Steel
1FU56-12-12 3/4 (JIS)/BSP 30° Flare Female Swivel G 3/4-14 3.02 Steel
1FU56-16-16 1 (JIS)/BSP 30° Flare Female Swivel G 1-11 3.76 Steel
1FU56-4-4 1/4 (JIS)/BSP 30° Flare Female Swivel G 1/4-19 2.19 Steel
1FU56-6-6 3/8 (JIS)/BSP 30° Flare Female Swivel G 3/8-19 2.36 Steel
1FU56-8-8 1/2 (JIS)/BSP 30° Flare Female Swivel G 1/2-14 2.68 Steel
1GU56-4-4 0.25 Female BSP Parallel Pipe - Swivel - Straight - 60° Cone 1/4-19 2.19 Steel
1GU56-6-6 0.375 Female BSP Parallel Pipe - Swivel - Straight - 60° Cone 3/8-19 2.38 Steel
1GU56-8-8 0.5 Female BSP Parallel Pipe - Swivel - Straight - 60° Cone 1/2-19 2.73 Steel
1J056-4-4 0.25 Male Seal-Lok - Rigid - Straight (with O-ring) 9/16-18 1.93 Steel
1J056-6-4 0.25 Male Seal-Lok - Rigid - Straight (with O-ring) 11/16-16 2.01 Steel
1J056-6-6 0.375 Male Seal-Lok - Rigid - Straight (with O-ring) 11/16-16 1.98 Steel
1J056-8-6 0.5 Male Seal-Lok - Rigid - Straight (with O-ring) 13/16-16 2.16 Steel
1J056-8-8 0.5 Male Seal-Lok - Rigid - Straight (with O-ring) 13/16-16 2.18 Steel
1J156-12-12 0.75 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 1-3/16-12 3.59 Steel
1J156-16-16 1 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 1-7/16-12 4.36 Steel
1J156-4-3 0.188 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 9/16-18 1.89 Steel
1J156-4-4 0.25 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 9/16-18 2.09 Steel
1J156-6-4 0.25 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 11/16-16 2.09 Steel
1J156-6-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 11/16-16 2.22 Steel
1J156-8-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 13/16-16 2.22 Steel
1J156-8-8 0.5 Female Seal-Lok - Swivel - 90° Elbow - Long Drop 13/16-16 2.48 Steel
1J256-8-8 0.5 Female Seal-Lok - Swivel - 30° Elbow 13/16-16 2.84 Steel
1J556-6-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Medium Drop 11/16-16 2.22 Steel
1J756-10-10 0.625 Female Seal-Lok - Swivel - 45° Elbow 1-14 3.27 Steel
1J756-12-12 0.75 Female Seal-Lok - Swivel - 45° Elbow 1-3/16-12 4.03 Steel
1J756-16-16 1 Female Seal-Lok - Swivel - 45° Elbow 1-7/16-12 4.73 Steel
1J756-4-2 0.125 Female Seal-Lok - Swivel - 45° Elbow 9/16-18 2.07 Steel
1J756-4-3 0.188 Female Seal-Lok - Swivel - 45° Elbow 9/16-18 2 Steel
1J756-4-4 0.25 Female Seal-Lok - Swivel - 45° Elbow 9/16-18 2.25 Steel
1J756-4-6 0.375 Female Seal-Lok - Swivel - 45° Elbow 9/16-18 2.25 Steel
1J756-6-4 0.25 Female Seal-Lok - Swivel - 45° Elbow 11/16-16 2.27 Steel
1J756-6-5 0.313 Female Seal-Lok - Swivel - 45° Elbow 11/16-16 2.32 Steel
1J756-6-6 0.375 Female Seal-Lok - Swivel - 45° Elbow 11/16-16 2.35 Steel
1J756-8-6 0.375 Female Seal-Lok - Swivel - 45° Elbow 13/16-16 2.54 Steel
1J756-8-8 0.5 Female Seal-Lok - Swivel - 45° Elbow 13/16-16 2.72 Steel
1J956-10-10 0.625 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 1-14 3.14 Steel
1J956-10-8 0.5 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 1-14 2.48 Steel
1J956-12-12 0.75 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 1-3/16-12 3.89 Steel
1J956-16-16 1 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 1-7/16-12 4.66 Steel
1J956-4-2 0.125 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 9/16-18 2.04 Steel
1J956-4-3 0.188 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 9/16-18 1.89 Steel
1J956-4-4 0.25 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 9/16-18 2.14 Steel
1J956-6-4 0.25 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 11/16-16 2.14 Steel
1J956-6-5 0.313 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 11/16-16 2.28 Steel
1J956-6-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 11/16-16 2.22 Steel
1J956-6-6C 0.375 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 11/16-16 2.22 Stainless Steel
1J956-8-6 0.375 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 13/16-16 2.22 Steel
1J956-8-8 0.5 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 13/16-16 2.48 Steel
1J956-8-8C 0.5 Female Seal-Lok - Swivel - 90° Elbow - Short Drop 13/16-16 2.48 Stainless Steel
1JC56-10-10 0.625 Female Seal-Lok - Swivel - Straight - Short 1-14 2.48 Steel
1JC56-10-12 0.75 Female Seal-Lok - Swivel - Straight - Short 1-14 2.5 Steel
1JC56-10-8 0.5 Female Seal-Lok - Swivel - Straight - Short 1-14 2.3 Steel
1JC56-12-10 0.625 Female Seal-Lok - Swivel - Straight - Short 1-3/16-12 2.61 Steel
1JC56-12-12 0.75 Female Seal-Lok - Swivel - Straight - Short 1-3/16-12 2.54 Steel
1JC56-16-16 1 Female Seal-Lok - Swivel - Straight - Short 1-7/16-12 3.21 Steel
1JC56-4-2 0.125 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.34 Steel
1JC56-4-3 0.188 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.58 Steel
1JC56-4-4 0.25 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.86 Steel
1JC56-4-4C 0.25 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.86 Stainless Steel
1JC56-4-5 0.313 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.81 Steel
1JC56-4-6 0.375 Female Seal-Lok - Swivel - Straight - Short 9/16-18 1.91 Steel
1JC56-6-4 0.25 Female Seal-Lok - Swivel - Straight - Short 11/16-16 1.9 Steel
1JC56-6-5 0.313 Female Seal-Lok - Swivel - Straight - Short 11/16-16 1.95 Steel
1JC56-6-6 0.375 Female Seal-Lok - Swivel - Straight - Short 11/16-16 1.89 Steel
1JC56-6-6C 0.375 Female Seal-Lok - Swivel - Straight - Short 11/16-16 1.89 Stainless Steel
1JC56-8-6 0.375 Female Seal-Lok - Swivel - Straight - Short 13/16-16 2 Steel
1JC56-8-6C 0.375 Female Seal-Lok - Swivel - Straight - Short 13/16-16 2 Stainless Steel
1JC56-8-8 0.5 Female Seal-Lok - Swivel - Straight - Short 13/16-16 2.13 Steel
1JC56-8-8C 0.5 Female Seal-Lok - Swivel - Straight - Short 13/16-16 2.13 Stainless Steel
1JS56-10-10 0.625 Female Seal-Lok - Swivel - Straight - Long 1-14 2.92 Steel
1JS56-10-8 0.5 Female Seal-Lok - Swivel - Straight - Long 1-14 2.68 Steel
1JS56-12-12 0.75 Female Seal-Lok - Swivel - Straight - Long 1-3/16-12 3.17 Steel
1JS56-16-16 1 Female Seal-Lok - Swivel - Straight - Long 1-7/16-12 3.76 Steel
1JS56-4-3 0.188 Female Seal-Lok - Swivel - Straight - Long 9/16-18 1.89 Steel
1JS56-4-4 0.25 Female Seal-Lok - Swivel - Straight - Long 9/16-18 2.17 Steel
1JS56-6-4 0.25 Female Seal-Lok - Swivel - Straight - Long 11/16-16 2.24 Steel
1JS56-6-5 0.313 Female Seal-Lok - Swivel - Straight - Long 11/16-16 2.29 Steel
1JS56-6-6 0.375 Female Seal-Lok - Swivel - Straight - Long 11/16-16 2.28 Steel
1JS56-6-8 0.5 Female Seal-Lok - Swivel - Straight - Long 11/16-16 2.4 Steel
1JS56-8-6 0.375 Female Seal-Lok - Swivel - Straight - Long 13/16-16 2.4 Steel
1JS56-8-8 0.5 Female Seal-Lok - Swivel - Straight - Long 13/16-16 2.52 Steel
1L756-6-6 0.375 Female JIC 37° - Swivel - 45° Elbow - Medium Drop 9/16-18 2.65 Steel
1L956-10-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 7/8-14 2.48 Steel
1L956-12-12 0.75 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 1-1/16-12 3.89 Steel
1L956-16-16 1 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 1-5/16-12 4.66 Steel
1L956-4-3 0.188 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 7/16-20 1.75 Steel
1L956-4-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 7/16-20 2.01 Steel
1L956-5-4 0.25 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 1/2-20 2.01 Steel
1L956-6-5 0.313 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 9/16-18 2.14 Steel
1L956-6-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 9/16-18 2.22 Steel
1L956-8-6 0.375 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 3/4-16 2.22 Steel
1L956-8-8 0.5 Female JIC 37° - Swivel - 90° Elbow - Medium Drop 3/4-16 2.48 Steel
1TU56-12-12 0.75 Universal Tube Stub na 2.88 Steel
1TU56-12-12C 0.75 Universal Tube Stub na 2.88 Stainless Steel
1TU56-16-16 1 Universal Tube Stub na 4.03 Steel
1TU56-4-4 0.25 Universal Tube Stub na 2.35 Steel
1TU56-4-4C 0.25 Universal Tube Stub na 2.35 Stainless Steel
1TU56-6-4 0.25 Universal Tube Stub na 2.41 Steel
1TU56-6-6 0.375 Universal Tube Stub na 2.46 Steel
1TU56-6-6C 0.375 Universal Tube Stub na 2.46 Stainless Steel
1TU56-8-8 0.5 Universal Tube Stub na 2.68 Steel
1TU56-8-8C 0.5 Universal Tube Stub na 2.68 Stainless Steel









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
