Parker Fittings接头
Hose Fittings

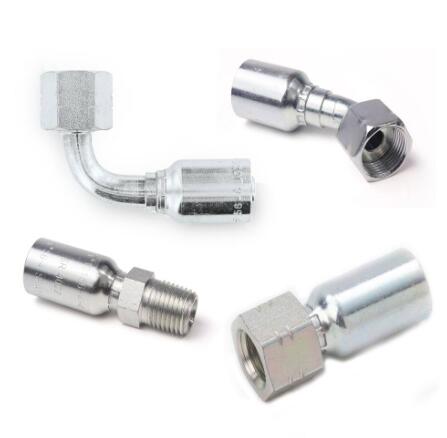

Global Fittings - 56 Series - Metric

The Global 56 metric series replaces the 55/58 metric series. It is shorter, more compact, and is 20% lighter than comparable fittings.





The new and improved Global 56 Series consolidates the 55 Series and the 58 Series into one. The 56 Series is shorter and more compact than the 55/58 Series Fittings, allowing for a system weight reduction of up to 20% and easier routing of assemblies during installation in tight, condensed spaces. In addition, the crimping process for the 56 Series is simpler, faster and safer since the sleeve is crimped at full length; therefore, no marking is necessary. Check crimpsource for the most up-to-date die and crimping recommendations. http://www.parker.com/crimpsource



Global Fittings - 56 Series - Metric



Markets:
- Industrial
- Mobile Equipment
- Transportation

Features/Benefits:
- Consolidation of two series into one (55 and 58 = 56), thus reducing the customer inventory
- Shorter and more compact than 55/58 Series for easier routing of assemblies in tight installation areas; short length may allow use of hose routing to replace current elbow fittings
- Full length crimp of the sleeve (no marking of crimp length needed); therefore easier, safer and faster crimping in comparison to 55 Series
- Weight reduction up to 20%
- Global part numbering with metric & inch hex and end connections to allow for global availability
- Current 55 Series dies are qualified and can be used with the 56

Applications:
- Medium pressure hydraulic applications
- Agricultural equipment
- Construction
- Lubricating oils
- Material Handling equipment
- Machine tools
- Waste and refuse trucks
- Utility equipment

Technical Specifications:
- Some styles are available with metric hex; contact Parflex Customer Service for assistance



Technical Specifications

Application: Various
Materials of Construction: Steel, Stainless Steel
Connection Type: Crimped, Metric, BSP, Specialty, Pipe, NPTF, 37° Flare, Seal-Lok
Hose Inside Diameter: 3/16 to 1 inch, 5, 6, 8, 10, 13, 19, 25 mm
Port Size: 3/8 - 1.00 inch
Tube Outside Diameter: 1/4 - 1.000 inch, 6 - 92 mm
Shape: Straight, 30°, 45°, 90°, Banjo
External Hex Size: metric
Nominal Hose Inside Diameter: DN6 - 16
Hose I.D. (size): (-04) - (-16)
Maximum Operating Pressure: 16 - 63 Mpa



Global Fittings - 56 Series - Metric型号

Part Hose I.D. (inch) Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Length (inch)
10156-4-5-SM 0.313 Male NPTF Pipe - Rigid - Straight 1/4 - 18 NPTF na 2.11
10356-5-5-SM 0.313 Male JIC 37° - Swivel - Straight 1/2 - 20 UNF na 2.07
10656-4-3C-SM 0.188 Female JIC 37° - Swivel - Straight 7/16-20 na 1.78
10656-4-4C-SM 0.25 Female JIC 37° - Swivel - Straight 7/16-20 na 2.05
10656-6-5-SM 0.313 Female JIC 37° - Swivel - Straight 9/16 - 18 UNF na 2.23
10656-6-5C-SM 0.313 Female JIC 37° - Swivel - Straight 9/16-18 na 2.23
10656-6-6C-SM 0.375 Female JIC 37° - Swivel - Straight 9/16-18 na 2.22
10656-8-6-SM 0.375 Female JIC 37° - Swivel - Straight 3/4 - 16 UNF na 2.37
10656-8-8-SM 0.5 Female JIC 37° - Swivel - Straight 3/4 - 16 UNF na 2.54
10656-8-8C-SM 0.5 Female JIC 37° - Swivel - Straight 3/4-16 na 2.54
10C56-10-4 0.25 Female Metric S - Swivel - 45° Elbow (24° Cone with O-Ring) na M18x1.5 2.51
10C56-12-5 0.313 Female Metric S - Swivel - 45° Elbow (24° Cone with O-Ring) na M20x1.5 3.89
10C56-12-6 0.375 Female Metric S - Swivel - 45° Elbow (24° Cone with O-Ring) na M20x1.5 2.94
10C56-16-8 0.5 Female Metric S - Swivel - 45° Elbow (24° Cone with O-Ring) na M24x1.5 3.13
10C56-8-3 0.188 Female Metric S - Swivel - 45° Elbow (24° Cone with O-Ring) na M16x1.5 2.32
11C56-10-4 0.25 Female Metric S - Swivel - 90° Elbow (24° Cone with O-Ring) na M18x1.5 2.09
11C56-12-5 0.313 Female Metric S - Swivel - 90° Elbow (24° Cone with O-Ring) na M20x1.5 2.56
11C56-12-6 0.375 Female Metric S - Swivel - 90° Elbow (24° Cone with O-Ring) na M20x1.5 2.48
11C56-16-8 0.5 Female Metric S - Swivel - 90° Elbow (24° Cone with O-Ring) na M24x1.5 2.68
11C56-8-3 0.188 Female Metric S - Swivel - 90° Elbow (24° Cone with O-Ring) na M16x1.5 1.89
11D56-10-6 0.375 Male Standpipe Metric L - Rigid na M16x1 2.36
11D56-12-6 0.375 Male Standpipe Metric L - Rigid na M18x1 2.40
11D56-15-8 0.500 Male Standpipe Metric L - Rigid na M22x1.5 2.60
11D56-6-3 0.313 Male Standpipe Metric L - Rigid na M12x1.5 1.97
11D56-8-4 0.250 Male Standpipe Metric L - Rigid na M14x1.5 2.24
13956-4-3C-SM 0.188 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 na 1.75
13956-4-4C-SM 0.25 Female JIC 37° - Swivel - 90° Elbow - Short Drop 7/16-20 na 2.01
13956-6-5C-SM 0.313 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 na 2.14
13956-6-6C-SM 0.375 Female JIC 37° - Swivel - 90° Elbow - Short Drop 9/16-18 na 2.22
13956-8-8C-SM 0.5 Female JIC 37° - Swivel - 90° Elbow - Short Drop 3/4-16 na 2.48
14956-12-4 0.25 DIN Metric Banjo - Straight na 12 1.1
14956-12-5 0.313 DIN Metric Banjo - Straight na 12 1.14
14956-14-3 0.188 DIN Metric Banjo - Straight na 14 1.21
14956-14-4 0.25 DIN Metric Banjo - Straight na 14 1.26
14956-14-5 0.313 DIN Metric Banjo - Straight na 14 1.2
14956-17-6 0.375 DIN Metric Banjo - Straight na 17 1.15
19256-12-12 3/4 Female BSP swivel 60° cone na G3/4 2.37
19256-16-16 1 Female BSP swivel 60° cone na G1 2.9
19256-4-3 3/16 Female BSP swivel 60° cone na G1/4 1.37
19256-4-3C 0.188 Female BSP swivel 60° cone G1/4 na 2.48
19256-4-4 1/4 Female BSP swivel 60° cone na G1/4 1.65
19256-4-4C 0.25 Female BSP swivel 60° cone G1/4 na 1.65
19256-4-5 5/16 Female BSP swivel 60° cone na G1/4 1.85
19256-6-4 1/4 Female BSP swivel 60° cone na G3/8 1.77
19256-6-5 5/16 Female BSP swivel 60° cone na G3/8 1.82
19256-6-5C 0.313 Female BSP swivel 60° cone G3/8 na 1.77
19256-6-6 3/8 Female BSP swivel 60° cone na G3/8 1.81
19256-6-6C 0.375 Female BSP swivel 60° cone G3/8 na 1.81
19256-8-6 3/8 Female BSP swivel 60° cone na G1/2 1.89
19256-8-6C 0.375 Female BSP swivel 60° cone G1/2 na 1.81
19256-8-8 1/2 Female BSP swivel 60° cone na G1/2 2.02
19256-8-8C 0.5 Female BSP swivel 60° cone G1/2 na 2.02
1B156-4-3 0.188 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) G1/4 na 2.24
1B156-4-4 0.25 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) G1/4 na 2.44
1B156-6-5 0.313 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) G3/8 na 2.56
1B156-6-6 0.375 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) G3/8 na 2.64
1B156-8-8 0.5 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) G1/2 na 3.03
1B256-12-12 0.75 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G3/4 na 3.64
1B256-16-16 1 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1 na 4.92
1B256-4-3 0.188 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/4 na 1.89
1B256-4-3C 0.188 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/4 na 2.01
1B256-4-4 0.25 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/4 na 2.09
1B256-4-4C 0.25 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/4 na 2.01
1B256-6-5 0.313 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G3/8 na 2.17
1B256-6-5C 0.313 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G3/8 na 2.01
1B256-6-6 0.375 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G3/8 na 2.6
1B256-6-6C 0.375 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G3/8 na 2.01
1B256-8-8 0.5 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/2 na 2.76
1B256-8-8C 0.5 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) G1/2 na 2.01
1B456-4-4 0.25 Female BSP Parallel Pipe - Swivel - 90° Elbow - Block Type (60° Cone) G1/4 na 1.83
1B456-6-6 0.375 Female BSP Parallel Pipe - Swivel - 90° Elbow - Block Type (60° Cone) G3/8 na 2.06
1B456-8-8 0.5 Female BSP Parallel Pipe - Swivel - 90° Elbow - Block Type (60° Cone) G1/2 na 2.26
1C356-10-4 0.25 Female Metric L - Swivel - Straight (Ball Nose) na M16x1.5 1.77
1C356-10-5 0.313 Female Metric L - Swivel - Straight (Ball Nose) na M16x1.5 1.81
1C356-10-6 0.375 Female Metric L - Swivel - Straight (Ball Nose) na M16x1.5 1.8
1C356-12-5 0.313 Female Metric L - Swivel - Straight (Ball Nose) na M18x1.5 1.85
1C356-12-6 0.375 Female Metric L - Swivel - Straight (Ball Nose) na M18x1.5 1.83
1C356-15-8 0.5 Female Metric L - Swivel - Straight (Ball Nose) na M22x1.5 1.95
1C356-18-12 0.75 Female Metric L - Swivel - Straight (Ball Nose) na M26x1.5 2.27
1C356-22-12 0.75 Female Metric L - Swivel - Straight (Ball Nose) na M30x2 2.38
1C356-6-3 0.188 Female Metric L - Swivel - Straight (Ball Nose) na M12x1.5 1.47
1C356-8-4 0.25 Female Metric L - Swivel - Straight (Ball Nose) na M14x1.5 1.74
1C456-10-5 0.313 Female Metric L - Swivel - 45° Elbow (Ball Nose) na M16x1.5 2.44
1C456-12-6 0.375 Female Metric L - Swivel - 45° Elbow (Ball Nose) na M18x1.5 2.85
1C456-15-8 0.5 Female Metric L - Swivel - 45° Elbow (Ball Nose) na M22x1.5 3
1C456-6-3 0.188 Female Metric L - Swivel - 45° Elbow (Ball Nose) na M12x1.5 2.24
1C456-8-4 0.25 Female Metric L - Swivel - 45° Elbow (Ball Nose) na M14x1.5 2.36
1C556-10-4 0.25 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M16x1.5 2.09
1C556-10-5 0.313 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M18x1.5 2.6
1C556-10-6 0.375 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M16x1.5 2.48
1C556-15-8 0.5 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M22x1.5 3.81
1C556-6-3 0.188 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M12x1.5 1.89
1C556-8-4 0.25 Female Metric L - Swivel - 90° Elbow (Ball Nose) na M14x1.5 2.09
1C656-10-4 0.25 Female Metric S - Swivel - Straight (Ball Nose) na M18x1.5 1.83
1C656-12-5 0.313 Female Metric S - Swivel - Straight (Ball Nose) na M20x1.5 1.95
1C656-12-6 0.375 Female Metric S - Swivel - Straight (Ball Nose) na M20x1.5 1.94
1C656-14-6 0.375 Female Metric S - Swivel - Straight (Ball Nose) na M22x1.5 1.91
1C656-16-8 0.5 Female Metric S - Swivel - Straight (Ball Nose) na M24x1.5 2.1
1C656-20-12 0.75 Female Metric S - Swivel - Straight (Ball Nose) na M30x2 2.4
1C656-8-3 0.188 Female Metric S - Swivel - Straight (Ball Nose) na M16x1.5 1.5
1C956-10-4 0.25 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 1.87
1C956-10-5 0.313 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 1.92
1C956-12-4 0.25 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M20x1.5 1.91
1C956-12-5 0.313 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M20x1.5 1.96
1C956-12-6 0.375 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M20x1.5 1.94
1C956-14-6 0.375 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M22x1.5 1.94
1C956-16-8 0.5 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M24x1.5 2.19
1C956-25-12 0.75 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M36x2 2.6
1C956-8-3 0.188 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 1.59
1C956-8-4 0.25 Female Metric S - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 1.89
1CA56-10-4 0.25 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 1.83
1CA56-10-5 0.313 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 1.89
1CA56-10-5C 0.313 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 2.01
1CA56-10-6 0.375 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M16x1.5 1.87
1CA56-12-4 0.25 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 1.83
1CA56-12-5 0.313 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 1.89
1CA56-12-6 0.375 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 1.87
1CA56-12-6C 0.375 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M18x1.5 2.01
1CA56-15-6 0.375 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M22x1.5 1.89
1CA56-15-8 0.5 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M22x1.5 2.1
1CA56-15-8C 0.5 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M22x1.5 2.01
1CA56-18-10 0.625 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M26x1.5 2.35
1CA56-18-12 0.75 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M26x1.5 2.35
1CA56-18-8 0.5 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M26x1.5 2.1
1CA56-22-12 0.75 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M30x2 2.27
1CA56-28-16 1 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M36x2 3.05
1CA56-6-3 0.188 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M12x1.5 1.56
1CA56-6-3C 0.188 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M12x1.5 1.54
1CA56-6-4 0.25 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M12x1.5 1.89
1CA56-8-4 0.25 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M14x1.5 1.85
1CA56-8-4C 0.25 Female Metric L - Swivel - Straight (24° Cone with O-Ring) na M14x1.5 1.61
1CE56-10-4 0.25 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M16x1.5 2.44
1CE56-10-5 0.313 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M16x1.5 2.83
1CE56-10-6 0.375 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M16x1.5 2.95
1CE56-12-6 0.375 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M18x1.5 2.87
1CE56-15-8 0.5 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M22x1.5 3.08
1CE56-22-12 0.75 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M30x2 3.94
1CE56-28-16 1 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M36x2 5.26
1CE56-6-3 0.188 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M12x1.5 2.24
1CE56-8-4 0.25 Female Metric L - Swivel - 45° Elbow (24° Cone with O-Ring) na M14x1.5 2.44
1CF56-10-4 0.25 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M16x1.5 2.17
1CF56-10-5 0.313 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M16x1.5 2.6
1CF56-10-5C 0.313 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M16x1.5 2.09
1CF56-10-6 0.375 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M16x1.5 2.52
1CF56-12-5 0.313 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M18x1.5 2.56
1CF56-12-6 0.375 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M18x1.5 2.48
1CF56-12-6C 0.375 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M18x1.5 2.09
1CF56-15-8 0.5 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M22x1.5 2.68
1CF56-15-8C 0.5 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M22x1.5 2.09
1CF56-18-10 0.625 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M26x1.5 3.45
1CF56-22-12 0.75 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M30x2 3.61
1CF56-28-16 1 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M36x2 4.8
1CF56-6-3 0.188 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M12x1.5 1.89
1CF56-6-3C 0.188 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M12x1.5 2.09
1CF56-6-4 0.25 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M12x1.5 2.09
1CF56-8-4 0.25 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M14x1.5 2.17
1CF56-8-4C 0.25 Female Metric L - Swivel - 90° Elbow (24° Cone with O-Ring) na M14x1.5 2.09
1D056-10-5 0.313 Male Metric L - Rigid - Straight (24° Cone) na M16x1.5 1.96
1D056-10-6 0.375 Male Metric L - Rigid - Straight (24° Cone) na M16x1.5 1.95
1D056-12-5 0.313 Male Metric L - Rigid - Straight (24° Cone) na M18x1.5 2.04
1D056-12-6 0.375 Male Metric L - Rigid - Straight (24° Cone) na M18x1.5 1.95
1D056-15-6 0.375 Male Metric L - Rigid - Straight (24° Cone) na M22x1.5 2.04
1D056-15-8 0.5 Male Metric L - Rigid - Straight (24° Cone) na M22x1.5 2.16
1D056-18-10 0.625 Male Metric L - Rigid - Straight (24° Cone) na M26x1.5 2.5
1D056-22-12 0.75 Male Metric L - Rigid - Straight (24° Cone) na M30x2 2.66
1D056-28-16 1 Male Metric L - Rigid - Straight (24° Cone) na M36x2 3.22
1D056-6-3 0.188 Male Metric L - Rigid - Straight (24° Cone) na M12x1.5 1.61
1D056-8-4 0.25 Male Metric L - Rigid - Straight (24° Cone) na M14x1.5 1.85
1D256-10-4 0.25 Male Metric S - Rigid - Straight (24° Cone) na M18x1.5 2.03
1D256-10-5 0.313 Male Metric S - Rigid - Straight (24° Cone) na M18x1.5 2.08
1D256-12-5 0.313 Male Metric S - Rigid - Straight (24° Cone) na M20x1.5 2.08
1D256-12-6 0.375 Male Metric S - Rigid - Straight (24° Cone) na M20x1.5 2.07
1D256-14-6 0.375 Male Metric S - Rigid - Straight (24° Cone) na M22x1.5 2.22
1D256-16-6 0.375 Male Metric S - Rigid - Straight (24° Cone) na M24x1.5 2.22
1D256-16-8 0.5 Male Metric S - Rigid - Straight (24° Cone) na M24x1.5 2.35
1D256-20-12 0.75 Male Metric S - Rigid - Straight (24° Cone) na M30x2 2.84
1D256-8-3 0.188 Male Metric S - Rigid - Straight (24° Cone) na M16x1.5 1.67
1D956-12-12 0.75 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G3/4 NA 2.96
1D956-16-16 1 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G1 NA 3.56
1D956-4-3 0.188 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G1/4 NA 1.75
1D956-4-4 0.25 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G1/4 NA 2.03
1D956-6-5 0.313 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G3/8 NA 2.09
1D956-6-6 0.375 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G3/8 NA 2.08
1D956-8-8 0.5 Male BSP Parallel Pipe - Rigid - Straight (60° Cone) G1/2 NA 2.36
1EN56-10-4 0.25 Male ?UPTC? Quick Connect - Straight na 10 1.06
1EN56-10-5 0.313 Male ?UPTC? Quick Connect - Straight na 10 1.1
1EN56-12-6 0.375 Male ?UPTC? Quick Connect - Straight na 12 1.18
1EN56-15-8 0.5 Male ?UPTC? Quick Connect - Straight na 15 1.18
1EN56-18-10 0.625 Male ?UPTC? Quick Connect - Straight na 18 1.38
1EN56-22-12 0.75 Male ?UPTC? Quick Connect - Straight na 22 1.38
1EN56-6-3 0.188 Male ?UPTC? Quick Connect - Straight na 6 0.94
1EN56-8-4 0.25 Male ?UPTC? Quick Connect - Straight na 8 1.02
1ET56-10-4 0.25 Male ?UPTC? Quick Connect - 90° Elbow na 10 1.1
1ET56-10-5 0.313 Male ?UPTC? Quick Connect - 90° Elbow na 10 1.14
1ET56-12-6 0.375 Male ?UPTC? Quick Connect - 90° Elbow na 12 1.26
1ET56-15-8 0.5 Male ?UPTC? Quick Connect - 90° Elbow na 15 1.54
1ET56-18-10 0.625 Male ?UPTC? Quick Connect - 90° Elbow na 18 1.61
1ET56-22-12 0.75 Male ?UPTC? Quick Connect - 90° Elbow na 22 2.28
1ET56-6-3 0.188 Male ?UPTC? Quick Connect - 90° Elbow na 6 1.1
1ET56-8-4 0.25 Male ?UPTC? Quick Connect - 90° Elbow na 8 1.1
1EU56-10-4 0.25 Male ?UPTC? Quick Connect - 45° Elbow na 10 1.69
1EU56-10-5 0.313 Male ?UPTC? Quick Connect - 45° Elbow na 10 1.73
1EU56-12-6 0.375 Male ?UPTC? Quick Connect - 45° Elbow na 12 1.85
1EU56-15-8 0.5 Male ?UPTC? Quick Connect - 45° Elbow na 15 1.93
1EU56-18-10 0.625 Male ?UPTC? Quick Connect - 45° Elbow na 18 2.28
1EU56-22-12 0.75 Male ?UPTC? Quick Connect - 45° Elbow na 22 2.76
1EU56-6-3 0.188 Male ?UPTC? Quick Connect - 45° Elbow na 6 1.65
1EU56-8-4 0.25 Male ?UPTC? Quick Connect - 45° Elbow na 8 1.73
1JC56-16-16-SM 1 Female Seal-Lok - Swivel - Straight - Short 1-7/16-12 NA 3.21









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
