Parker Hydraulic Valves

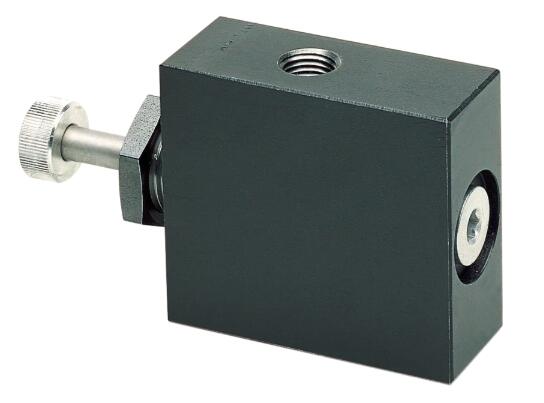

In-line Push-to-Read Gauge Isolator Valve - GT Series
Parker's GT series valves isolate gages from damage and inaccurate readings caused by line pressure surges and hydraulic hammer.
Parker's GT Series valve has a push-to-read knob that delivers instant pressure to the gauge, yet isolates the gauge from the fluid line until the knob is pressed. When the knob is released, a spring-loaded spool closes instantly and drains all fluid from the gauge back into the reservoir.
In-line Push-to-Read Gauge Isolator Valve - GT Series
Markets:
- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities
Features/Benefits:
- Has a hardened steel spool
- Partial Snubbing action protects the gauge from surge
- Optional panel mount
Applications:
- Suitable for general hydraulic applications
Technical Specifications
| Product Style: |
Push-to-Read Gauge Isolator Valve |
| Connection Type: |
Female-Male |
| Body Material: |
Steel |
| Maximum Operating Pressure: |
3000 psi |
| Maximum Operating Temperature: |
207 °F |
| Brand: |
Colorflow |
| Media: |
Oil |
