Hose Fittings

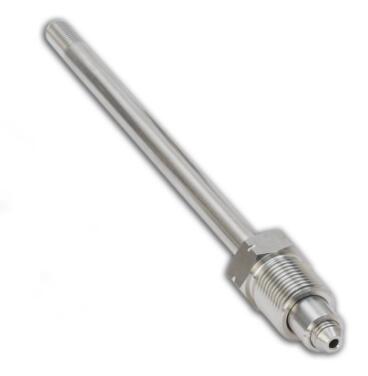

High Pressure Nipples
High pressure nipples are designed to be used with Polyflex fittings.
High pressure nipples are designed to be used with Polyflex fittings.
Markets:
- Hydraulics
- Industrial
- Oil & Gas
Technical Specifications
| Tube Outside Diameter: |
1/4, 3/8, 9/16, 3/4, 1 inch |
| Shape: |
Straight |
| Application: |
Oilfield, Marine |
| Connection Type: |
Field-Attachable |
| Maximum Operating Pressure: |
4140 bar, 414 MPa, 60,000 psi |
| Length: |
2-3/4, 3, 4, 6, 8, 10, 12 |
| Materials of Construction: |
Stainless Steel |

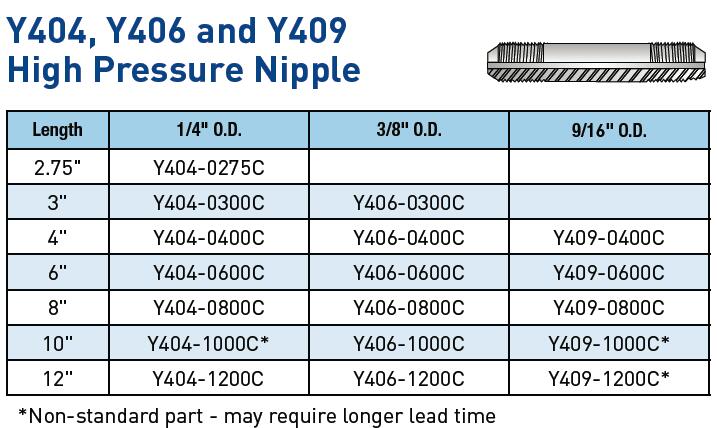

High Pressure Nipples 型号
|
