Parker Fittings接头

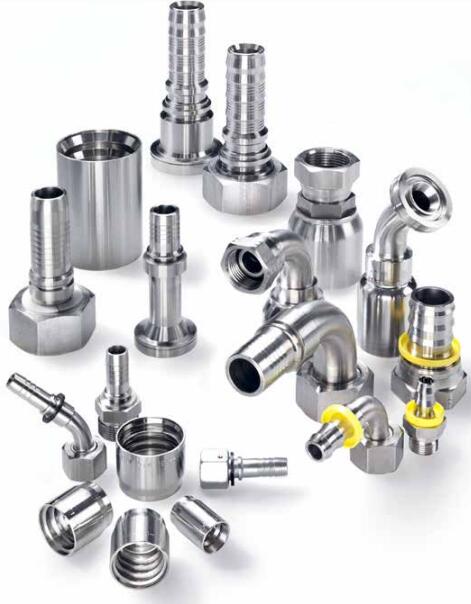

Hose Fittings
High Pressure ParLock Skive Fittings - V4 - V5 - V6 Series

The ParLock multispiral hydraulic hose and fittings range features Interlock technology with external and internal skive.





Parker's ParLock skive fittings feature internal and external skives for applications requiring multispiral hose assemblies.
The ParLock design is approved by the German Accident Prevention & Insurance Association (Berufsgenossenschaft) conforming to EN 201 (approved for injection-moulding machine applications).



High Pressure ParLock Skive Fittings - V4 - V5 - V6 Series



Markets:
- Construction Equipment
- Injection Moulding
- Mining and Tunneling
- Forestry and Agriculture
- Materials Handling
- Oil & Gas

Features/Benefits:
- Matched hose und fitting system guarantees an approved and safe combination for extremely dynamic pressure
applications.
- Skive technology offers superb mechanical grip for safety and impulse life .

Applications:
- Hydrostatic transmissions (combine harvesters, large tractors, excavators etc.)
- Vibratory hammers
- Large injection moulding machines
- Tunneling and forestry machines
- Container handling machines
- Blow-out preventer in oil and gas
- Cementing hose applications


Parker ParLock V4 series high pressure fittings are compatible with the following hoses:
- H31, H31TC, H31ST, R42, R42TC, R42ST (Size -10 to -16)
- R35, R35TC (Size -12 to -20)
- H29, H29TC, H29ST, H29RH (all Sizes)

Parker ParLock V6 series high pressure fittings are compatible with the following hoses:
- R35, R35TC (Size -24 to -32)
- R42, R42TC, R42ST (Size -20 to -32)
- CEM69TC

Parker ParLock V5 series high pressure fittings are compatible with the following hoses:
- R56TC



Technical Specifications

Materials of Construction: Steel, Stainless Steel
Application: Hydraulic
Maximum Operating Temperature: various by part, various by part °F
Minimum Operating Temperature: various by part, various by part °F
Maximum Operating Pressure: various by part, various by part MPa, various by part bar
Hose Inside Diameter: 15.9 - 76.2 mm, 3/8 to 3 inch
Banjo Port Diameter: na
Connection Type: Shell, Female, Male, Flange
Port Size: various
Shape: various
Connection Thread Size: various, various mm
Nominal Hose Inside Diameter: DN10 to 76



High Pressure ParLock Skive Fittings - V4 - V5 - V6 Series型号

Part Port Type Hose I.D. (size) Style Port Size Shape Series
100V4-10 na -10 na na Straight V4
100V4-12 na -12 na na Straight V4
100V4-16 na -16 na na Straight V4
100V4-20 na -20 na na Straight V4
100V4-24 na -24 na na Straight V4
100V4-32 na -32 na na Straight V4
100V5-6 na -6 na na Straight V5
100V5-8 na -8 na na Straight V5
100V6-20 na -20 na na Straight V6
100V6-24 na -24 na na Straight V6
100V6-32 na -32 na na Straight V6
100V6-40 na -40 na na Straight V6
100V6-48 na -48 na na Straight V6
K01V4-12-12 Male NPTF Pipe - Rigid -12 Male NPTF Pipe - Rigid - Straight 3/4 Straight V4
K01V4-16-16 Male NPTF Pipe - Rigid -16 Male NPTF Pipe - Rigid - Straight 1 Straight V4
K01V4-20-20 Male NPTF Pipe - Rigid -20 Male NPTF Pipe - Rigid - Straight 1 1/4 Straight V4
K01V4-24-24 Male NPTF Pipe - Rigid -24 Male NPTF Pipe - Rigid - Straight 1 1/2 Straight V4
K01V4-32-32 Male NPTF Pipe - Rigid -32 Male NPTF Pipe - Rigid - Straight 2 Straight V4
K01V6-20-20 Male NPTF Pipe - Rigid -20 Male NPTF Pipe - Rigid - Straight 1 1/4 Straight V6
K01V6-24-24 Male NPTF Pipe - Rigid -24 Male NPTF Pipe - Rigid - Straight 1 1/2 Straight V6
K01V6-32-32 Male NPTF Pipe - Rigid -32 Male NPTF Pipe - Rigid - Straight 2 Straight V6
K03V4-12-12 JIC -12 Male JIC 37° - Rigid 1 1/16 Straight V4
K03V4-16-12 JIC -12 Male JIC 37° - Rigid 1 5/16 Straight V4
K03V4-16-16 JIC -16 Male JIC 37° - Rigid 1 5/16 Straight V4
K03V4-20-16 JIC -16 Male JIC 37° - Rigid 2 1/8" Straight V4
K03V4-20-20 JIC -20 Male JIC 37° - Rigid 2 1/8" Straight V4
K03V4-24-20 JIC -20 Male JIC 37° - Rigid 1 7/8 Straight V4
K03V4-24-24 JIC -24 Male JIC 37° - Rigid 1 7/8 Straight V4
K03V4-32-32 JIC -32 Male JIC 37° - Rigid 2 1/2 Straight V4
K03V6-20-20 JIC -20 Male JIC 37° - Rigid 2 1/8" Straight V6
K03V6-24-24 JIC -24 Male JIC 37° - Rigid 1 7/8 Straight V6
K03V6-32-32 JIC -32 Male JIC 37° - Rigid 2 1/2 Straight V6
K06V4-12-12 JIC -12 Female JIC 37° - Swivel 1 1/16 Straight V4
K06V4-16-12 JIC -12 Female JIC 37° - Swivel 1 5/16 Straight V4
K06V4-16-16 JIC -16 Female JIC 37° - Swivel 1 5/16 Straight V4
K06V4-20-16 JIC -16 Female JIC 37° - Swivel 2 1/8" Straight V4
K06V4-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" Straight V4
K06V4-24-20 JIC -20 Female JIC 37° - Swivel 1 7/8 Straight V4
K06V4-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 Straight V4
K06V4-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 Straight V4
K06V6-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" Straight V6
K06V6-24-20 JIC -20 Female JIC 37° - Swivel 1 7/8 Straight V6
K06V6-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 Straight V6
K06V6-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 Straight V6
K0CV4-20-10 DKOS -10 Female Metric S - Swivel - (24° Cone with O-Ring) 20 45° Elbow V4
K0CV4-20-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 20 45° Elbow V4
K0CV4-25-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 25 45° Elbow V4
K0CV4-25-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 25 45° Elbow V4
K0CV4-30-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 30 45° Elbow V4
K0CV4-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 45° Elbow V4
K0CV4-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 45° Elbow V4
K0CV4-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 45° Elbow V4
K0CV5-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 45° Elbow V5
K0CV5-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 45° Elbow V5
K0CV6-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 45° Elbow V6
K0CV6-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 45° Elbow V6
K0CV6-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 45° Elbow V6
K15V4-12-12 SFL -12 SAE Code 61 Flange Head 3/4 Straight V4
K15V4-12-16 SFL -16 SAE Code 61 Flange Head 3/4 Straight V4
K15V4-16-12 SFL -12 SAE Code 61 Flange Head 1 Straight V4
K15V4-16-16 SFL -16 SAE Code 61 Flange Head 1 Straight V4
K15V4-16-20 SFL -20 SAE Code 61 Flange Head 1 Straight V4
K15V6-16-20 SFL -20 SAE Code 61 Flange Head 1 Straight V6
K17V4-12-12 SFL -12 SAE Code 61 Flange Head 3/4 45° Elbow V4
K17V4-16-12 SFL -12 SAE Code 61 Flange Head 1 45° Elbow V4
K17V4-16-16 SFL -16 SAE Code 61 Flange Head 1 45° Elbow V4
K17V4-16-20 SFL -20 SAE Code 61 Flange Head 1 45° Elbow V4
K17V6-16-20 SFL -20 SAE Code 61 Flange Head 1 45° Elbow V6
K19V4-12-12 SFL -12 SAE Code 61 Flange Head 3/4 90° Elbow V4
K19V4-16-12 SFL -12 SAE Code 61 Flange Head 1 90° Elbow V4
K19V4-16-16 SFL -16 SAE Code 61 Flange Head 1 90° Elbow V4
K19V4-16-20 SFL -20 SAE Code 61 Flange Head 1 90° Elbow V4
K19V6-16-20 SFL -20 SAE Code 61 Flange Head 1 90° Elbow V6
K1CV4-20-10 DKOS -10 Female Metric S - Swivel - (24° Cone with O-Ring) 20 90° Elbow V4
K1CV4-20-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 20 90° Elbow V4
K1CV4-25-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 25 90° Elbow V4
K1CV4-25-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 25 90° Elbow V4
K1CV4-30-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 30 90° Elbow V4
K1CV4-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 90° Elbow V4
K1CV4-38-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 38 90° Elbow V4
K1CV4-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 90° Elbow V4
K1CV4-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 90° Elbow V4
K1CV5-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 90° Elbow V5
K1CV5-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 90° Elbow V5
K1CV6-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 90° Elbow V6
K1CV6-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 90° Elbow V6
K1CV6-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 90° Elbow V6
K37V4-12-12 JIC -12 Female JIC 37° - Swivel 1 1/16 45° Elbow - Short Drop V4
K37V4-16-16 JIC -16 Female JIC 37° - Swivel 1 5/16 45° Elbow - Short Drop V4
K37V4-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" 45 ° Elbow - Short Drop V4
K37V4-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 45° Elbow - Short Drop V4
K37V4-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 45° Elbow - Short Drop V4
K37V6-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" 45° Elbow - Short Drop V6
K37V6-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 45° Elbow - Short Drop V6
K37V6-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 45° Elbow - Short Drop V6
K39V4-12-12 JIC -12 Female JIC 37° - Swivel 1 1/16 90° Elbow V4
K39V4-16-12 JIC -12 Female JIC 37° - Swivel 1 5/16 90° Elbow V4
K39V4-16-16 JIC -16 Female JIC 37° - Swivel 1 5/16 90° Elbow V4
K39V4-20-16 JIC -16 Female JIC 37° - Swivel 2 1/8" 90° Elbow V4
K39V4-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" 90° Elbow V4
K39V4-24-20 JIC -20 Female JIC 37° - Swivel 1 7/8 90° Elbow V4
K39V4-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 90° Elbow V4
K39V4-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 90° Elbow V4
K39V6-20-20 JIC -20 Female JIC 37° - Swivel 2 1/8" 90° Elbow V6
K39V6-24-24 JIC -24 Female JIC 37° - Swivel 1 7/8 90° Elbow V6
K39V6-32-32 JIC -32 Female JIC 37° - Swivel 2 1/2 90° Elbow V6
K4AV4-20-16 SFL -16 SAE Code 61 Flange Head 1 1/4 Straight V4
K4AV4-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 Straight V4
K4AV4-20-24 SFL -24 SAE Code 61 Flange Head 1 1/4 Straight V4
K4AV4-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 Straight V4
K4AV4-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 Straight V4
K4AV4-32-24 SFL -24 SAE Code 61 Flange Head 2 Straight V4
K4AV4-32-32 SFL -32 SAE Code 61 Flange Head 2 Straight V4
K4AV6-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 Straight V6
K4AV6-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 Straight V6
K4AV6-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 Straight V6
K4AV6-32-24 SFL -24 SAE Code 61 Flange Head 2 Straight V6
K4AV6-32-32 SFL -32 SAE Code 61 Flange Head 2 Straight V6
K4FV4-20-12 SFL -12 SAE Code 61 Flange Head 1 1/4 45° Elbow V4
K4FV4-20-16 SFL -16 SAE Code 61 Flange Head 1 1/4 45° Elbow V4
K4FV4-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 45° Elbow V4
K4FV4-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 45° Elbow V4
K4FV4-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 45° Elbow V4
K4FV4-32-32 SFL -32 SAE Code 61 Flange Head 2 45° Elbow V4
K4FV6-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 45° Elbow V6
K4FV6-20-24 SFL -24 SAE Code 61 Flange Head 1 1/4 45° Elbow V6
K4FV6-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 45° Elbow V6
K4FV6-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 45° Elbow V6
K4FV6-32-24 SFL -24 SAE Code 61 Flange Head 2 45° Elbow V6
K4FV6-32-32 SFL -32 SAE Code 61 Flange Head 2 45° Elbow V6
K4NV4-20-16 SFL -16 SAE Code 61 Flange Head 1 1/4 90° Elbow V4
K4NV4-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 90° Elbow V4
K4NV4-20-24 SFL -24 SAE Code 61 Flange Head 1 1/4 90° Elbow V4
K4NV4-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 90° Elbow V4
K4NV4-24-20-SL110 SFL -20 SAE Code 61 Flange Head 1 1/2 90° Elbow - drop 110 V4
K4NV4-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 90° Elbow V4
K4NV4-24-24-SL150 SFL -24 SAE Code 61 Flange Head 1 1/2 90° Elbow - drop 150 V4
K4NV4-24-24-SL200 SFL -24 SAE Code 61 Flange Head 1 1/2 90° Elbow - drop 200 V4
K4NV4-24-32 SFL -32 SAE Code 61 Flange Head 1 1/2 90° Elbow V4
K4NV4-32-24 SFL -24 SAE Code 61 Flange Head 2 90° Elbow V4
K4NV4-32-32 SFL -32 SAE Code 61 Flange Head 2 90° Elbow V4
K4NV6-20-20 SFL -20 SAE Code 61 Flange Head 1 1/4 90° Elbow V6
K4NV6-20-24 SFL -24 SAE Code 61 Flange Head 1 1/4 90° Elbow V6
K4NV6-24-20 SFL -20 SAE Code 61 Flange Head 1 1/2 90° Elbow V6
K4NV6-24-24 SFL -24 SAE Code 61 Flange Head 1 1/2 90° Elbow V6
K4NV6-32-24 SFL -24 SAE Code 61 Flange Head 2 90° Elbow V6
K4NV6-32-32 SFL -32 SAE Code 61 Flange Head 2 90° Elbow V6
K6AV4-12-10 SFS -10 SAE Code 62 Flange Head 3/4 Straight V4
K6AV4-12-12 SFS -12 SAE Code 62 Flange Head 3/4 Straight V4
K6AV4-12-16 SFS -16 SAE Code 62 Flange Head 3/4 Straight V4
K6AV4-16-12 SFS -12 SAE Code 62 Flange Head 1 Straight V4
K6AV4-16-16 SFS -16 SAE Code 62 Flange Head 1 Straight V4
K6AV4-16-20 SFS -20 SAE Code 62 Flange Head 1 Straight V4
K6AV4-20-16 SFS -16 SAE Code 62 Flange Head 1 1/4 Straight V4
K6AV4-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 Straight V4
K6AV4-20-24 SFS -24 SAE Code 62 Flange Head 1 1/4 Straight V4
K6AV4-24-16 SFS -16 SAE Code 62 Flange Head 1 1/2 Straight V4
K6AV4-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 Straight V4
K6AV4-24-32 SFS -32 SAE Code 62 Flange Head 1 1/2 Straight V4
K6AV4-32-24 SFS -24 SAE Code 62 Flange Head 2 Straight V4
K6AV4-32-32 SFS -32 SAE Code 62 Flange Head 2 Straight V4
K6AV4-8-10 SFS -10 SAE Code 62 Flange Head 1/2 Straight V4
K6AV6-16-20 SFS -20 SAE Code 62 Flange Head 1 Straight V6
K6AV6-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 Straight V6
K6AV6-20-24 SFS -24 SAE Code 62 Flange Head 1 1/4 Straight V6
K6AV6-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 Straight V6
K6AV6-24-24 SFS -24 SAE Code 62 Flange Head 1 1/2 Straight V6
K6AV6-24-32 SFS -32 SAE Code 62 Flange Head 1 1/2 Straight V6
K6AV6-32-24 SFS -24 SAE Code 62 Flange Head 2 Straight V6
K6AV6-32-32 SFS -32 SAE Code 62 Flange Head 2 Straight V6
K6AV6-32-40 SFS -40 SAE Code 62 Flange Head 2 Straight V6
K6AV6-40-40 SFS -40 SAE Code 62 Flange Head 2 1/2 Straight V6
K6AV6-48-40 SFS -40 SAE Code 62 Flange Head 3 Straight V6
K6AV6-48-48 SFS -48 SAE Code 62 Flange Head 3 Straight V6
K6FV4-12-12 SFS -12 SAE Code 62 Flange Head 3/4 45° Elbow V4
K6FV4-12-12-SL55 SFS -12 SAE Code 62 Flange Head 3/4 45° Elbow - drop 55 V4
K6FV4-12-16 SFS -16 SAE Code 62 Flange Head 3/4 45° Elbow V4
K6FV4-16-12 SFS -12 SAE Code 62 Flange Head 1 45° Elbow V4
K6FV4-16-12-SL55 SFS -12 SAE Code 62 Flange Head 1 45° Elbow - drop 55 V4
K6FV4-16-16 SFS -16 SAE Code 62 Flange Head 1 45° Elbow V4
K6FV4-16-16-SL55 SFS -16 SAE Code 62 Flange Head 1 45° Elbow - drop 55 V4
K6FV4-16-20 SFS -20 SAE Code 62 Flange Head 1 45° Elbow V4
K6FV4-20-16 SFS -16 SAE Code 62 Flange Head 1 1/4 45° Elbow V4
K6FV4-20-16-SL55 SFS -16 SAE Code 62 Flange Head 1 1/4 45° Elbow - drop 55 V4
K6FV4-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 45° Elbow V4
K6FV4-20-20-SL60 SFS -20 SAE Code 62 Flange Head 1 1/4 45° Elbow - drop 60 V4
K6FV4-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 45° Elbow V4
K6FV4-24-20-SL60 SFS -20 SAE Code 62 Flange Head 1 1/2 45° Elbow - drop 60 V4
K6FV4-24-24 SFS -24 SAE Code 62 Flange Head 1 1/2 45° Elbow V4
K6FV4-24-24-SL70 SFS -24 SAE Code 62 Flange Head 1 1/2 45° Elbow - drop 70 V4
K6FV4-32-24 SFS -24 SAE Code 62 Flange Head 2 45° Elbow V4
K6FV4-32-32 SFS -32 SAE Code 62 Flange Head 2 45° Elbow V4
K6FV4-32-32-SL70 SFS -32 SAE Code 62 Flange Head 2 45° Elbow - drop 70 V4
K6FV4-8-10 SFS -10 SAE Code 62 Flange Head 1/2 45° Elbow V4
K6FV6-16-20 SFS -20 SAE Code 62 Flange Head 1 45° Elbow V6
K6FV6-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 45° Elbow V6
K6FV6-20-20-SL60 SFS -20 SAE Code 62 Flange Head 1 1/4 45° Elbow - drop 60 V6
K6FV6-20-24 SFS -24 SAE Code 62 Flange Head 1 1/4 45° Elbow V6
K6FV6-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 45° Elbow V6
K6FV6-24-24 SFS -24 SAE Code 62 Flange Head 1 1/2 45° Elbow V6
K6FV6-24-24-SL70 SFS -24 SAE Code 62 Flange Head 1 1/2 45° Elbow - drop 70 V6
K6FV6-24-32 SFS -32 SAE Code 62 Flange Head 1 1/2 45° Elbow V6
K6FV6-32-24 SFS -24 SAE Code 62 Flange Head 2 45° Elbow V6
K6FV6-32-32 SFS -32 SAE Code 62 Flange Head 2 45° Elbow V6
K6NV4-12-10 SFS -10 SAE Code 62 Flange Head 3/4 90° Elbow V4
K6NV4-12-12 SFS -12 SAE Code 62 Flange Head 3/4 90° Elbow V4
K6NV4-12-12-SL100 SFS -12 SAE Code 62 Flange Head 3/4 90° Elbow - drop 100 V4
K6NV4-12-16 SFS -16 SAE Code 62 Flange Head 3/4 90° Elbow V4
K6NV4-12-16-SL55 SFS -16 SAE Code 62 Flange Head 3/4 90° Elbow - drop 55 V4
K6NV4-16-12 SFS -12 SAE Code 62 Flange Head 1 90° Elbow V4
K6NV4-16-12-SL100 SFS -12 SAE Code 62 Flange Head 1 90° Elbow - drop 100 V4
K6NV4-16-16 SFS -16 SAE Code 62 Flange Head 1 90° Elbow V4
K6NV4-16-16-SL100 SFS -16 SAE Code 62 Flange Head 1 90° Elbow - drop 100 V4
K6NV4-16-20 SFS -20 SAE Code 62 Flange Head 1 90° Elbow V4
K6NV4-20-16 SFS -16 SAE Code 62 Flange Head 1 1/4 90° Elbow V4
K6NV4-20-16-SL115 SFS -16 SAE Code 62 Flange Head 1 1/4 90° Elbow - drop 115 V4
K6NV4-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 90° Elbow V4
K6NV4-20-20-SL120 SFS -20 SAE Code 62 Flange Head 1 1/4 90° Elbow - drop 120 V4
K6NV4-20-20-SL330 SFS -20 SAE Code 62 Flange Head 1 1/4 90° Elbow - drop 330 V4
K6NV4-20-24 SFS -24 SAE Code 62 Flange Head 1 1/4 90° Elbow V4
K6NV4-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 90° Elbow V4
K6NV4-24-20-SL135 SFS -20 SAE Code 62 Flange Head 1 1/2 90° Elbow - drop 135 V4
K6NV4-24-24 SFS -24 SAE Code 62 Flange Head 1 1/2 90° Elbow V4
K6NV4-24-24-SL140 SFS -24 SAE Code 62 Flange Head 1 1/2 90° Elbow - drop 140 V4
K6NV4-24-24-SL160 SFS -24 SAE Code 62 Flange Head 1 1/2 90° Elbow - drop 160 V4
K6NV4-24-24-SL200 SFS -24 SAE Code 62 Flange Head 1 1/2 90° Elbow - drop 200 V4
K6NV4-32-24 SFS -24 SAE Code 62 Flange Head 2 90° Elbow V4
K6NV4-8-10 SFS -10 SAE Code 62 Flange Head 1/2 90° Elbow V4
K6NV6-16-20 SFS -20 SAE Code 62 Flange Head 1 90° Elbow V6
K6NV6-20-20 SFS -20 SAE Code 62 Flange Head 1 1/4 90° Elbow V6
K6NV6-20-20-SL120 SFS -20 SAE Code 62 Flange Head 1 1/4 90° Elbow - drop 120 V6
K6NV6-20-24 SFS -24 SAE Code 62 Flange Head 1 1/4 90° Elbow V6
K6NV6-24-20 SFS -20 SAE Code 62 Flange Head 1 1/2 90° Elbow V6
K6NV6-24-24 SFS -24 SAE Code 62 Flange Head 1 1/2 90° Elbow V6
K6NV6-24-32 SFS -32 SAE Code 62 Flange Head 1 1/2 90° Elbow V6
K6NV6-32-24 SFS -24 SAE Code 62 Flange Head 2 90° Elbow V6
K6NV6-32-32 SFS -32 SAE Code 62 Flange Head 2 90° Elbow V6
K8AV4-12-10 SFS 8000 PSi -10 SAE Code 62 Flange Head, 8000 PSi 3/4 Straight V4
K8AV4-12-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 3/4 Straight V4
K8AV4-16-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 1 Straight V4
K8AV4-16-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 Straight V4
K8AV4-20-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 1/4 Straight V4
K8AV6-20-20 SFS 8000 PSi -20 SAE Code 62 Flange Head, 8000 PSi 1 1/4 Straight V6
K8FV4-12-10 SFS 8000 PSi -10 SAE Code 62 Flange Head, 8000 PSi 3/4 45° Elbow V4
K8FV4-12-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 3/4 45° Elbow V4
K8FV4-16-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 1 45° Elbow V4
K8FV4-16-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 45° Elbow V4
K8FV4-20-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 1/4 45° Elbow V4
K8FV6-20-20 SFS 8000 PSi -20 SAE Code 62 Flange Head, 8000 PSi 1 1/4 45° Elbow V6
K8NV4-12-10 SFS 8000 PSi -10 SAE Code 62 Flange Head, 8000 PSi 3/4 90° Elbow V4
K8NV4-12-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 3/4 90° Elbow V4
K8NV4-16-12 SFS 8000 PSi -12 SAE Code 62 Flange Head, 8000 PSi 1 90° Elbow V4
K8NV4-16-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 90° Elbow V4
K8NV4-20-16 SFS 8000 PSi -16 SAE Code 62 Flange Head, 8000 PSi 1 1/4 90° Elbow V4
K8NV6-20-20 SFS 8000 PSi -20 SAE Code 62 Flange Head, 8000 PSi 1 1/4 90° Elbow V6
K91V4-12-12 BSP -12 Male BSP Taper Pipe - Rigid - Straight (60° Cone) 3/4 Straight V4
K91V4-16-16 BSP -16 Male BSP Taper Pipe - Rigid - Straight (60° Cone) 1 Straight V4
K91V4-20-20 BSP -20 Male BSP Taper Pipe - Rigid - Straight (60° Cone) 1 1/4 Straight V4
K91V4-24-24 BSP -24 Male BSP Taper Pipe - Rigid - Straight (60° Cone) 1 1/2 Straight V4
K91V4-32-32 BSP -32 Male BSP Taper Pipe - Rigid - Straight (60° Cone) 2 Straight V4
K92V4-10-10 BSP -10 Female BSP Parallel Pipe - Swivel - (60° Cone) 5/8 Straight V4
K92V4-12-12 BSP -12 Female BSP Parallel Pipe - Swivel - (60° Cone) 3/4 Straight V4
K92V4-16-12 BSP -12 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 Straight V4
K92V4-16-16 BSP -16 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 Straight V4
K92V4-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 1/4 Straight V4
K92V4-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 1/2 Straight V4
K92V4-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - (60° Cone) 2 Straight V4
K92V6-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 1/4 Straight V6
K92V6-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - (60° Cone) 1 1/2 Straight V6
K92V6-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - (60° Cone) 2 Straight V6
KB1V4-12-12 BSP -12 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 3/4 45° Elbow V4
KB1V4-16-16 BSP -16 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1 45° Elbow V4
KB1V4-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1 1/4 45° Elbow V4
KB1V4-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1 1/2 45° Elbow V4
KB1V4-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 2 45° Elbow V4
KB1V6-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1 1/4 45° Elbow V6
KB1V6-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1 1/2 45° Elbow V6
KB1V6-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 2 45° Elbow V6
KB2V4-12-12 BSP -12 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 3/4 90° Elbow V4
KB2V4-16-16 BSP -16 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1 90° Elbow V4
KB2V4-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1 1/4 90° Elbow V4
KB2V4-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1 1/2 90° Elbow V4
KB2V4-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 2 90° Elbow V4
KB2V6-20-20 BSP -20 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1 1/4 90° Elbow V6
KB2V6-24-24 BSP -24 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1 1/2 90° Elbow V6
KB2V6-32-32 BSP -32 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 2 90° Elbow V6
KC9V4-20-10 DKOS -10 Female Metric S - Swivel - (24° Cone with O-Ring) 20 Straight V4
KC9V4-20-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 20 Straight V4
KC9V4-25-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 25 Straight V4
KC9V4-25-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 25 Straight V4
KC9V4-30-12 DKOS -12 Female Metric S - Swivel - (24° Cone with O-Ring) 30 Straight V4
KC9V4-30-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 30 Straight V4
KC9V4-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 Straight V4
KC9V4-38-16 DKOS -16 Female Metric S - Swivel - (24° Cone with O-Ring) 38 Straight V4
KC9V4-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 Straight V4
KC9V4-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 Straight V4
KC9V5-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 Straight V5
KC9V5-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 Straight V5
KC9V6-30-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 30 Straight V6
KC9V6-38-20 DKOS -20 Female Metric S - Swivel - (24° Cone with O-Ring) 38 Straight V6
KC9V6-38-24 DKOS -24 Female Metric S - Swivel - (24° Cone with O-Ring) 38 Straight V6
KC9V6-54-32 DKOS -32 Female Metric S - Swivel - (24° Cone with O-Ring) 54 Straight V6
KCAV4-22-12 DKOL -12 Female Metric L - Swivel - (24° Cone with O-Ring) 22 Straight V4
KCAV4-28-16 DKOL -16 Female Metric L - Swivel - (24° Cone with O-Ring) 28 Straight V4
KCAV4-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 35 Straight V4
KCAV4-42-24 DKOL -24 Female Metric L - Swivel - (24° Cone with O-Ring) 42 Straight V4
KCAV6-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 1 1/16 Straight V6
KCAV6-42-24 DKOL -24 Female Metric L - Swivel - (24° Cone with O-Ring) 42 Straight V6
KCEV4-22-12 DKOL -12 Female Metric L - Swivel - (24° Cone with O-Ring) 22 45° Elbow V4
KCEV4-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 35 45° Elbow V4
KCEV6-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 35 45° Elbow V6
KCEV6-42-24 DKOL -24 Female Metric L - Swivel - (24° Cone with O-Ring) 42 45° Elbow V6
KCFV4-22-16 DKOL -16 Female Metric L - Swivel - (24° Cone with O-Ring) 22 90° Elbow V4
KCFV4-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 35 90° Elbow V4
KCFV6-35-20 DKOL -20 Female Metric L - Swivel - (24° Cone with O-Ring) 35 90° Elbow V6
KCFV6-42-24 DKOL -24 Female Metric L - Swivel - (24° Cone with O-Ring) 42 90° Elbow V6
KD2V4-20-12 DKOS -12 Male Metric S - Rigid - (24° Cone) 20 Straight V4
KD2V4-25-12 DKOS -12 Male Metric S - Rigid - (24° Cone) 25 Straight V4
KD2V4-25-16 DKOS -16 Male Metric S - Rigid - (24° Cone) 25 Straight V4
KD2V4-30-16 DKOS -16 Male Metric S - Rigid - (24° Cone) 30 Straight V4
KD2V4-38-20 DKOS -20 Male Metric S - Rigid - (24° Cone) 38 Straight V4
KD2V4-38-24 DKOS -24 Male Metric S - Rigid - (24° Cone) 38 Straight V4
KD2V6-30-20 DKOS -20 Male Metric S - Rigid - (24° Cone) 30 Straight V6
KD2V6-38-20 DKOS -20 Male Metric S - Rigid - (24° Cone) 38 Straight V6
KD2V6-38-24 DKOS -24 Male Metric S - Rigid - (24° Cone) 38 Straight V6
KD9V4-10-10 BSP -10 Male BSP Parallel Pipe - Rigid - (60° Cone) 5/8 Straight V4
KD9V4-12-12 BSP -12 Male BSP Parallel Pipe - Rigid - (60° Cone) 3/4 Straight V4
KD9V4-16-16 BSP -16 Male BSP Parallel Pipe - Rigid - (60° Cone) 1 Straight V4
KD9V4-20-20 BSP -20 Male BSP Parallel Pipe - Rigid - (60° Cone) 1 1/4 Straight V4
KD9V4-24-24 BSP -24 Male BSP Parallel Pipe - Rigid - (60° Cone) 1 1/2 Straight V4
KD9V4-32-32 BSP -32 Male BSP Parallel Pipe - Rigid - (60° Cone) 2 Straight V4
KD9V6-20-20 BSP -20 Male BSP Parallel Pipe - Rigid - (60° Cone) 1 1/4 Straight V6
KD9V6-24-24 BSP -24 Male BSP Parallel Pipe - Rigid - (60° Cone) 1 1/2 Straight V6
KD9V6-32-32 BSP -32 Male BSP Parallel Pipe - Rigid - (60° Cone) 2 Straight V6
KF4V4-27-12 French Standard -12 Female French Gaz Series -Swivel - (Ball Nose) 27 Straight V4
KFGV4-27-12 French Standard -12 Male french gas series rigid - 24° cone 27 Straight V4
KFGV4-33-16 French Standard -16 Male french gas series rigid - 24° cone 33 Straight V4
KHEV6-32-32-FLAT na -32 Hammer Union Female incl. nut 2 Straight V6
KHEV6-32-32N-FLAT na -32 Hammer Union Female w/o nut 2 Straight V6
KHNV6-32-32 na -32 Hammer Union Male 2 Straight V6
KJ7V4-12-12 ORFS -12 Female ORFS swivel 1 3/16 45° Elbow V4
KJ7V4-16-12 ORFS -12 Female ORFS swivel 1 7/16 45° Elbow V4
KJ7V4-16-16 ORFS -16 Female ORFS swivel 1 7/16 45° Elbow V4
KJ7V4-20-16 ORFS -16 Female ORFS swivel 1 11/16 45° Elbow V4
KJ7V4-20-20 ORFS -20 Female ORFS swivel 1 11/16 45° Elbow V4
KJ7V4-24-24 ORFS -24 Female ORFS swivel 2 45° Elbow V4
KJ7V6-20-20 ORFS -20 Female ORFS swivel 1 11/16 45° Elbow V6
KJ7V6-24-20 ORFS -20 Female ORFS swivel 2 45° Elbow V6
KJ7V6-24-24 ORFS -24 Female ORFS swivel 2 45° Elbow V6
KJ9V4-12-12 ORFS -12 Female ORFS swivel 1 3/16 90° Elbow - Short Drop V4
KJ9V4-16-12 ORFS -12 Female ORFS swivel 1 7/16 90° Elbow - Short Drop V4
KJ9V4-16-16 ORFS -16 Female ORFS swivel 1 7/16 90° Elbow - Short Drop V4
KJ9V4-20-16 ORFS -16 Female ORFS swivel 1 11/16 90° Elbow - Short Drop V4
KJ9V4-20-20 ORFS -20 Female ORFS swivel 1 11/16 90° Elbow - Short Drop V4
KJ9V4-24-24 ORFS -24 Female ORFS swivel 2 90° Elbow - Short Drop V4
KJ9V6-20-20 ORFS -20 Female ORFS swivel 1 11/16 90° Elbow - Short Drop V6
KJ9V6-24-20 ORFS -20 Female ORFS swivel 2 90° Elbow - Short Drop V6
KJ9V6-24-24 ORFS -24 Female ORFS swivel 2 90° Elbow - Short Drop V6
KJCV4-12-12 ORFS -12 Female ORFS swivel 1 3/16 Straight - Short V4
KJCV4-12-16 ORFS -16 Female ORFS swivel 1 3/16 Straight - Short V4
KJCV4-16-16 ORFS -16 Female ORFS swivel 1 7/16 Straight - Short V4
KJCV4-16-20 ORFS -20 Female ORFS swivel 1 7/16 Straight - Short V4
KJCV4-20-16 ORFS -16 Female ORFS swivel 1 11/16 Straight - Short V4
KJCV4-20-20 ORFS -20 Female ORFS swivel 1 11/16 Straight - Short V4
KJCV4-24-24 ORFS -24 Female ORFS swivel 2 Straight - Short V4
KJCV6-20-20 ORFS -20 Female ORFS swivel 1 11/16 Straight - Short V6
KJCV6-24-20 ORFS -20 Female ORFS swivel 2 Straight - Short V6
KJCV6-24-24 ORFS -24 Female ORFS swivel 2 Straight - Short V6
KJMV4-12-12 ORFS -12 ORFS male 1 3/16 Straight V4
KJMV4-16-12 ORFS -12 ORFS male 1 7/16 Straight V4
KJSV4-16-16 ORFS -16 Female ORFS swivel - long 1 7/16 Straight - Long V4
KJSV4-20-16 ORFS -16 Female ORFS swivel - long 1 11/16 Straight - Long V4
KJSV4-20-20 ORFS -20 Female ORFS swivel - long 1 11/16 Straight - Long V4
KX5V6-20-20 SFL /SFS -20 Full flange system, ISO 6162-1 or 6162-2 1 1/4 Straight V6
KX5V6-24-24 SFL /SFS -24 Full flange system, ISO 6162-1 or 6162-2 1 1/2 Straight V6
KX5V6-32-32 SFL /SFS -32 Full flange system, ISO 6162-1 or 6162-2 2 Straight V6
KX5V6-40-40 SFL /SFS -40 Full flange system, ISO 6162-1 or 6162-2 2 1/2 Straight V6
KX5V6-48-48 SFL /SFS -48 Full flange system, ISO 6162-1 or 6162-2 3 Straight V6
KX7V6-20-20 SFL /SFS -20 Full flange system, ISO 6162-1 or 6162-2 1 1/4 45° Elbow V6
KX7V6-24-24 SFL /SFS -24 Full flange system, ISO 6162-1 or 6162-2 1 1/2 45° Elbow V6
KX7V6-32-32 SFL /SFS -32 Full flange system, ISO 6162-1 or 6162-2 2 45° Elbow V6
KX9V6-20-20 SFL /SFS -20 Full flange system, ISO 6162-1 or 6162-2 1 1/4 90° Elbow V6
KX9V6-24-24 SFL /SFS -24 Full flange system, ISO 6162-1 or 6162-2 1 1/2 90° Elbow V6
KX9V6-32-32 SFL /SFS -32 Full flange system, ISO 6162-1 or 6162-2 2 90° Elbow V6
KXAV4-12-12 Flange Caterpillar -12 Flange Caterpillar 3/4 Straight V4
KXAV4-16-12 Flange Caterpillar -12 Flange Caterpillar 1 Straight V4
KXAV4-16-16 Flange Caterpillar -16 Flange Caterpillar 1 Straight V4
KXAV4-20-16 Flange Caterpillar -16 Flange Caterpillar 1 1/4 Straight V4
KXAV6-20-20 Flange Caterpillar -20 Flange Caterpillar 1 1/4 Straight V6
KXAV6-24-20 Flange Caterpillar -20 Flange Caterpillar 1 1/2 Straight V6
KXAV6-24-24 Flange Caterpillar -24 Flange Caterpillar 1 1/2 Straight V6
KXFV4-12-12 Flange Caterpillar -12 Flange Caterpillar 3/4 45° Elbow V4
KXFV4-16-16 Flange Caterpillar -16 Flange Caterpillar 1 45° Elbow V4
KXFV4-20-16 Flange Caterpillar -16 Flange Caterpillar 1 1/4 45° Elbow V4
KXFV6-20-20 Flange Caterpillar -20 Flange Caterpillar 1 1/4 45° Elbow V6
KXFV6-24-20 Flange Caterpillar -20 Flange Caterpillar 1 1/2 45° Elbow V6
KXGV4-16-12 Flange Caterpillar -12 Flange Caterpillar 1 60° Elbow V4
KXGV4-16-16 Flange Caterpillar -16 Flange Caterpillar 1 60° Elbow V4
KXGV4-20-16 Flange Caterpillar -16 Flange Caterpillar 1 1/4 60° Elbow V4
KXGV6-20-20 Flange Caterpillar -20 Flange Caterpillar 1 1/4 60° Elbow V6
KXGV6-24-20 Flange Caterpillar -20 Flange Caterpillar 1 1/2 60° Elbow V6
KXGV6-24-24 Flange Caterpillar -24 Flange Caterpillar 1 1/2 60° Elbow V6
KXNV4-12-12 Flange Caterpillar -12 Flange Caterpillar 3/4 90° Elbow V4
KXNV4-16-12 Flange Caterpillar -12 Flange Caterpillar 1 90° Elbow V4
KXNV4-16-16 Flange Caterpillar -16 Flange Caterpillar 1 90° Elbow V4
KXNV4-20-16 Flange Caterpillar -16 Flange Caterpillar 1 1/4 90° Elbow V4
KXNV6-20-20 Flange Caterpillar -20 Flange Caterpillar 1 1/4 90° Elbow V6
KXNV6-24-20 Flange Caterpillar -20 Flange Caterpillar 1 1/2 90° Elbow V6
KXNV6-24-24 Flange Caterpillar -24 Flange Caterpillar 1 1/2 90° Elbow V6









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
