Parker Fittings接头
Hose Fittings

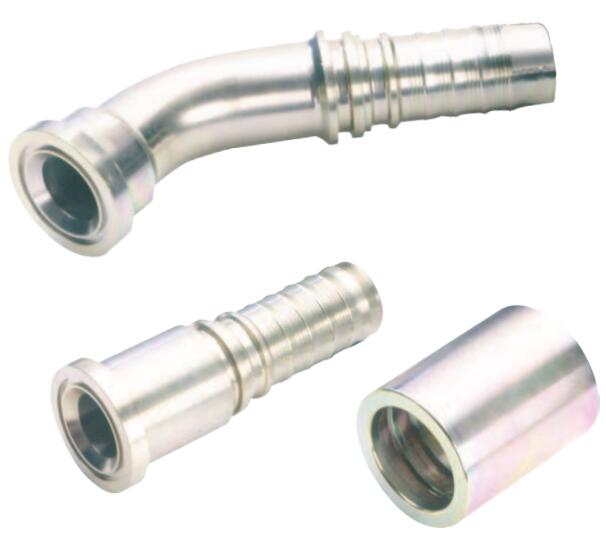

High Pressure ParLock Skive Fittings - VS Series

High Pressure ParLock hydraulic hoses fittings with Interlock technology; external skive





Parker's ParLock skive fitting series VS is part of the ParLock fitting range. ParLock hose and fittings is the system for extremely dynamic pressure applications and is locking the metal reinforcement directy between the metal shell and the nipple. This system is generally called "Interlock". Some applications are requiring the ParLock system. The ParLock sive fitting series VS has a chromium-6-free plating and is available in steel and stainless steel for Parker ParLock skive hoses.



High Pressure ParLock Skive Fittings - VS Series



Markets:
- Mobile
- Industrial
- Materials Handling
- Oil and Gas

Features/Benefits:
- Matched hose und fitting system guarantees an approved and safe combination for extremely dynamic pressure applications.
- Skive technology offers superb mechanical grip for safety and impulse life .

Applications:
- All construction equipment machines
- Agriculture and forestry machines
- Injection Moulding machines
- Materials handling applications (excavator booms)
- Vibratory hammers
- Blow-out prevendors in oil and gas
- General high pressure hydraulic applications

Parker ParLock VS series high pressure fittings are compatible with the following hoses:
- H31, H31TC, H31ST (all in sizes -4, -6, -8)



Technical Specifications

Materials of Construction: Steel, Stainless Steel
Application: Hydraulic
Maximum Operating Temperature: various by part, various by part °F
Minimum Operating Temperature: various by part, various by part °F
Maximum Operating Pressure: various by part, various by part MPa, various by part bar
Hose Inside Diameter: 6.4 - 12.7 mm, 1/4 to 1/2 inch
Banjo Port Diameter: na
Connection Type: Shell, Female, Male; Flange
Port Size: various
Shape: various
Connection Thread Size: various, various mm
Nominal Hose Inside Diameter: 6 to 12 mm



High Pressure ParLock Skive Fittings - VS Series 型号

Part Port Type Hose I.D. (size) Style Port Size Shape
100VS-4 na -4 Shell na Straight
100VS-6 na -6 Shell na Straight
100VS-8 na -8 Shell na Straight
K01VS-6-6 Male NPTF Pipe - Rigid -6 Male NPTF Pipe - Rigid - Straight 3/8 Straight
K01VS-8-8 Male NPTF Pipe - Rigid -8 Male NPTF Pipe - Rigid - Straight 1/2 Straight
K03VS-10-8 JIC -8 Male JIC 37° - Rigid 7/8 Straight
K03VS-6-6 JIC -6 Male JIC 37° - Rigid 9/16 Straight
K03VS-8-6 JIC -6 Male JIC 37° - Rigid 3/4 Straight
K03VS-8-8 JIC -8 Male JIC 37° - Rigid 3/4 Straight
K06VS-12-6 JIC -6 Female JIC 37° - Swivel 1 1/16 Straight
K06VS-12-8 JIC -8 Female JIC 37° - Swivel 1 1/16 Straight
K06VS-6-6 JIC -6 Female JIC 37° - Swivel 9/16 Straight
K0CVS-10-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 10 45° Elbow
K0CVS-12-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 12 45° Elbow
K0CVS-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 45° Elbow
K0CVS-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 45° Elbow
K0CVS-8-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 8 45° Elbow
K15VS-12-8 SFL -8 SAE Code 61 Flange Head 3/4 Straight
K15VS-8-8 SFL -8 SAE Code 61 Flange Head 1/2 Straight
K17VS-12-8 SFL -8 SAE Code 61 Flange Head 3/4 45° Elbow
K17VS-8-8 SFL -8 SAE Code 61 Flange Head 1/2 45° Elbow
K19VS-12-8 SFL -8 SAE Code 61 Flange Head 3/4 90° Elbow
K19VS-8-8 SFL -8 SAE Code 61 Flange Head 1/2 90° Elbow
K1CVS-10-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 10 90° Elbow
K1CVS-12-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 12 90° Elbow
K1CVS-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 90° Elbow
K1CVS-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 90° Elbow
K1CVS-8-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 8 90° Elbow
K37VS-12-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 1 1/16 45° Elbow
K37VS-6-6 JIC -6 Female JIC 37° - Swivel 9/16 45° Elbow - Short Drop
K39VS-6-6 JIC -6 Female JIC 37° - Swivel 9/16 90° Elbow - Short Drop
K3VVS-10-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 7/8 45° Elbow - Short Drop
K3VVS-8-6 JIC / SAE -6 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 45° Elbow - Short Drop
K3VVS-8-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 45° Elbow - Short Drop
K3WVS-10-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 7/8 90° Elbow - Short Drop
K3WVS-8-6 JIC / SAE -6 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 90° Elbow - Short Drop
K3WVS-8-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 90° Elbow - Short Drop
K68VS-10-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 7/8 Straight
K68VS-4-4 JIC / SAE -4 Female JIC 37°/SAE 45° Dual Flare - Swivel 7/16 Straight
K68VS-8-6 JIC / SAE -6 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 Straight
K68VS-8-8 JIC / SAE -8 Female JIC 37°/SAE 45° Dual Flare - Swivel 3/4 Straight
K6AVS-12-8 SFS -8 SAE Code 62 Flange Head 3/4 Straight
K6AVS-8-8 SFS -8 SAE Code 62 Flange Head 1/2 Straight
K6FVS-12-8 SFS -8 SAE Code 62 Flange Head 3/4 45° Elbow
K6FVS-8-8 SFS -8 SAE Code 62 Flange Head 1/2 45° Elbow
K6NVS-12-8 SFS -8 SAE Code 62 Flange Head 3/4 90° Elbow
K6NVS-8-8 SFS -8 SAE Code 62 Flange Head 1/2 90° Elbow
K92VS-10-8 BSP -8 Female BSP Parallel Pipe - Swivel - (60° Cone) 5/8 Straight
K92VS-6-6 BSP -6 Female BSP Parallel Pipe - Swivel - (60° Cone) 3/8 Straight
K92VS-8-6 BSP -6 Female BSP Parallel Pipe - Swivel - (60° Cone) 1/2 Straight
K92VS-8-8 BSP -8 Female BSP Parallel Pipe - Swivel - (60° Cone) 1/2 Straight
KB1VS-10-8 BSP -8 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 5/8 45° Elbow
KB1VS-6-6 BSP -6 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 3/8 45° Elbow
KB1VS-8-6 BSP -6 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1/2 45° Elbow
KB1VS-8-8 BSP -8 Female BSP Parallel Pipe - Swivel - 45° Elbow (60° Cone) 1/2 45° Elbow
KB2VS-10-8 BSP -8 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 5/8 90° Elbow
KB2VS-6-6 BSP -6 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 3/8 90° Elbow
KB2VS-8-6 BSP -6 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1/2 90° Elbow
KB2VS-8-8 BSP -8 Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone) 1/2 90° Elbow
KC9VS-10-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 10 Straight
KC9VS-12-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 12 Straight
KC9VS-14-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 14 Straight
KC9VS-16-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 16 Straight
KC9VS-20-8 DKOS -8 Female Metric S - Swivel - (24° Cone with O-Ring) 20 Straight
KC9VS-8-4 DKOS -4 Female Metric S - Swivel - (24° Cone with O-Ring) 8 Straight
KC9VS-8-6 DKOS -6 Female Metric S - Swivel - (24° Cone with O-Ring) 8 Straight
KCAVS-10-6 DKOL -6 Female Metric L - Swivel - (24° Cone with O-Ring) 10 Straight
KCAVS-12-6 DKOL -6 Female Metric L - Swivel - (24° Cone with O-Ring) 12 Straight
KCAVS-15-8 DKOL -8 Female Metric L - Swivel - (24° Cone with O-Ring) 15 Straight
KCEVS-12-6 DKOL -6 Female Metric L - Swivel - (24° Cone with O-Ring) 12 45° Elbow
KCEVS-15-8 DKOL -8 Female Metric L - Swivel - (24° Cone with O-Ring) 15 45° Elbow
KCFVS-12-6 DKOL -6 Female Metric L - Swivel - (24° Cone with O-Ring) 12 90° Elbow
KCFVS-15-8 DKOL -8 Female Metric L - Swivel - (24° Cone with O-Ring) 15 90° Elbow
KD0VS-12-6 DKOL -6 Male Metric L - Rigid - (24° Cone) 12 Straight
KD0VS-15-8 DKOL -8 Male Metric L - Rigid - (24° Cone) 15 Straight
KD2VS-12-6 DKOS -6 Male Metric S - Rigid - (24° Cone) 12 Straight
KD2VS-14-6 DKOS -6 Male Metric S - Rigid - (24° Cone) 14 Straight
KD2VS-16-8 DKOS -8 Male Metric S - Rigid - (24° Cone) 16 Straight
KD9VS-4-4 BSP -4 Male BSP Parallel Pipe - Rigid - (60° Cone) 1/4 Straight
KD9VS-6-6 BSP -6 Male BSP Parallel Pipe - Rigid - (60° Cone) 3/8 Straight
KD9VS-8-8 BSP -8 Male BSP Parallel Pipe - Rigid - (60° Cone) 1/2 Straight
KF4VS-13-6 French Standard -6 Female French Gaz Series -Swivel - (Ball Nose) 13 Straight
KF4VS-17-8 French Standard -8 Female French Gaz Series -Swivel - (Ball Nose) 17 Straight
KFGVS-13-6 French Standard -6 Male french gas series rigid - 24° cone 13 Straight
KFGVS-17-8 French Standard -8 Male french gas series rigid - 24° cone 17 Straight
KJ7VS-10-8 ORFS -8 Female ORFS swivel 1 45° Elbow
KJ7VS-6-6 ORFS -6 Female ORFS swivel 11/16 45° Elbow
KJ7VS-8-6 ORFS -6 Female ORFS swivel 13/16 45° Elbow
KJ7VS-8-8 ORFS -8 Female ORFS swivel 13/16 45° Elbow
KJ9VS-10-8 ORFS -8 Female ORFS swivel 1 90° Elbow - Short Drop
KJ9VS-6-6 ORFS -6 Female ORFS swivel 11/16 90° Elbow
KJ9VS-8-6 ORFS -6 Female ORFS swivel 13/16 90° Elbow - Short Drop
KJ9VS-8-8 ORFS -8 Female ORFS swivel 13/16 90° Elbow - Short Drop
KJCVS-10-8 ORFS -8 Female ORFS swivel 1 Straight - Short
KJCVS-6-6 ORFS -6 Female ORFS swivel 11/16 Straight - Short
KJCVS-8-6 ORFS -6 Female ORFS swivel 13/16 Straight - Short
KJCVS-8-8 ORFS -8 Female ORFS swivel 13/16 Straight - Short
