Parker 针阀
Parker Needle Valves

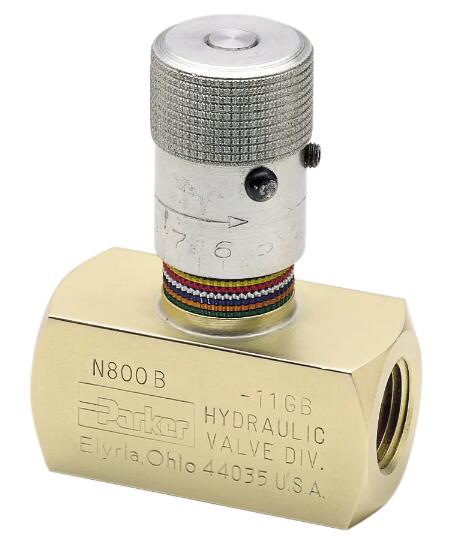

In-Line General Purpose Needle Valve – N Series

The N series of hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.

Parker's N series valve is a two-step needle that allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow and provides standard throttling adjustments.

In-Line General Purpose Needle Valve – N Series

Markets:
- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities

Features/Benefits:
- Tamperproof option available
- Set screw locks the valve on a desired setting
- Port sizes available in 8 sizes from 1/8” to 1 1/4”
- Material offerings are brass, steel and stainless steel
- Port options include ISO 6149, NPT, BSPP, BSPT and SAE
- The exclusive “Colorflow” color-band provide an accurate visual indication of setting

Applications:
- Suitable for general hydraulic applications

Technical Specifications

Product Style:	Needle Valve
Connection Type:	Female - Female
Maximum Flow Rate:	30, 57, 95, 151, 264, 11, 19 L/min, 8, 15, 25, 40, 70, 3, 5 Gal/min
Maximum Operating Pressure:	5000, 2000, 500, 3000 psi
Maximum Operating Temperature:	+250, +400 °F, +121, +205 °C
Minimum Operating Temperature:	-40°, -15° °F, -40°, -26° °C
Mounting Type:	Inline
Brand:	Colorflow
Media:	Hydraulic Oil and Air

In-Line General Purpose Needle Valve – N Series 型号

Part	Thread Type	Seal Material	Knob Option	Needle option	Valve Body Material	Port Size
8N600S	BSPT	Nitrile	Standard Knob	Standard	Steel	3/8
8N800B	BSPT	Nitrile	Standard Knob	Standard	Brass	1/2
8N800S	BSPT	Nitrile	Standard Knob	Standard	Steel	1/2
9N1200B	BSPP	Nitrile	Standard Knob	Standard	Brass	12
9N1200B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	12
9N1200BF	BSPP	Nitrile	Finger Screw	Standard	Brass	12
9N1200BF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Brass	12
9N1200S	BSPP	Nitrile	Standard Knob	Standard	Steel	12
9N1200S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	12
9N1200SF	BSPP	Nitrile	Finger Screw	Standard	Steel	12
9N1200SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	12
9N1200ST	BSPP	Nitrile	Tamperproof	Standard	Steel	12
9N1600B	BSPP	Nitrile	Standard Knob	Standard	Brass	1
9N1600B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	1
9N1600BF	BSPP	Nitrile	Finger Screw	Standard	Brass	1
9N1600S	BSPP	Nitrile	Standard Knob	Standard	Steel	1
9N1600S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	1
9N1600SF	BSPP	Nitrile	Finger Screw	Standard	Steel	1
9N1600SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	1
9N2000S	BSPP	Nitrile	Standard Knob	Standard	Steel	1-1/4
9N2000S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	1-1/4
9N200B	BSPP	Nitrile	Standard Knob	Standard	Brass	1/8
9N200B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	1/8
9N200B4	BSPP	Nitrile	Standard Knob	Fine Metering	Brass	1/8
9N200BF	BSPP	Nitrile	Finger Screw	Standard	Brass	1/8
9N200BF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Brass	1/8
9N200S	BSPP	Nitrile	Standard Knob	Standard	Steel	1/8
9N200S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	1/8
9N200S4	BSPP	Nitrile	Standard Knob	Fine Metering	Steel	1/8
9N200S4F	BSPP	Nitrile	Finger Screw	Fine Metering	Steel	1/8
9N200S4F-V	BSPP	Fluorocarbon	Finger Screw	Fine Metering	Steel	1/8
9N200S4T	BSPP	Nitrile	Tamperproof	Fine Metering	Steel	1/8
9N200SF	BSPP	Nitrile	Finger Screw	Standard	Steel	1/8
9N200SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	1/8
9N400B	BSPP	Nitrile	Standard Knob	Standard	Brass	1/4
9N400B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	1/4
9N400B4	BSPP	Nitrile	Standard Knob	Fine Metering	Brass	1/4
9N400B4F	BSPP	Nitrile	Finger Screw	Fine Metering	Brass	1/4
9N400BF	BSPP	Nitrile	Finger Screw	Standard	Brass	1/4
9N400BF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Brass	1/4
9N400BT	BSPP	Nitrile	Tamperproof	Standard	Brass	1/4
9N400S	BSPP	Nitrile	Standard Knob	Standard	Steel	1/4
9N400S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	1/4
9N400S4	BSPP	Nitrile	Standard Knob	Fine Metering	Steel	1/4
9N400S4F	BSPP	Nitrile	Finger Screw	Fine Metering	Steel	1/4
9N400S4F-V	BSPP	Fluorocarbon	Finger Screw	Fine Metering	Steel	1/4
9N400SF	BSPP	Nitrile	Finger Screw	Standard	Steel	1/4
9N400SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	1/4
9N400SS	BSPP	Nitrile	Standard Knob	Standard	303 Stainless Steel	1/4
9N400ST	BSPP	Nitrile	Tamperproof	Standard	Steel	1/4
9N600B	BSPP	Nitrile	Standard Knob	Standard	Brass	3/8
9N600B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	3/8
9N600BF	BSPP	Nitrile	Finger Screw	Standard	Brass	3/8
9N600BF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Brass	3/8
9N600BT	BSPP	Nitrile	Tamperproof	Standard	Brass	3/8
9N600S	BSPP	Nitrile	Standard Knob	Standard	Steel	3/8
9N600S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	3/8
9N600S4	BSPP	Nitrile	Standard Knob	Fine Metering	Steel	3/8
9N600S4-V	BSPP	Fluorocarbon	Standard Knob	Fine Metering	Steel	3/8
9N600S4F	BSPP	Nitrile	Finger Screw	Fine Metering	Steel	3/8
9N600SF	BSPP	Nitrile	Finger Screw	Standard	Steel	3/8
9N600SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	3/8
9N600SS	BSPP	Nitrile	Standard Knob	Standard	303 Stainless Steel	3/8
9N600ST	BSPP	Nitrile	Tamperproof	Standard	Steel	3/8
9N800B	BSPP	Nitrile	Standard Knob	Standard	Brass	1/2
9N800B-V	BSPP	Fluorocarbon	Standard Knob	Standard	Brass	1/2
9N800BF	BSPP	Nitrile	Finger Screw	Standard	Brass	1/2
9N800BF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Brass	1/2
9N800S	BSPP	Nitrile	Standard Knob	Standard	Steel	1/2
9N800S-V	BSPP	Fluorocarbon	Standard Knob	Standard	Steel	1/2
9N800SF	BSPP	Nitrile	Finger Screw	Standard	Steel	1/2
9N800SF-V	BSPP	Fluorocarbon	Finger Screw	Standard	Steel	1/2
9N800SS	BSPP	Nitrile	Standard Knob	Standard	303 Stainless Steel	1/2
9N800ST	BSPP	Nitrile	Tamperproof	Standard	Steel	1/2
N1020S	SAE	Nitrile	Standard Knob	Standard	Steel	10
N1020S-F	SAE	Nitrile	Finger Screw	Standard	Steel	10
N1020S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	10
N1200B	NPT	Nitrile	Standard Knob	Standard	Brass	12
N1200B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	12
N1200BF	NPT	Nitrile	Finger Screw	Standard	Brass	12
N1200BF-V	NPT	Fluorocarbon	Finger Screw	Standard	Brass	12
N1200BT	NPT	Nitrile	Tamperproof	Standard	Brass	12
N1200BT-V	NPT	Fluorocarbon	Tamperproof	Standard	Brass	12
N1200S	NPT	Nitrile	Standard Knob	Standard	Steel	12
N1200S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	12
N1200SF	NPT	Nitrile	Finger Screw	Standard	Steel	12
N1200SF-V	NPT	Fluorocarbon	Finger Screw	Standard	Steel	12
N1200ST	NPT	Nitrile	Tamperproof	Standard	Steel	12
N1200ST-V	NPT	Fluorocarbon	Tamperproof	Standard	Steel	12
N1220S	SAE	Nitrile	Standard Knob	Standard	Steel	12
N1220S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	12
N1220SF	SAE	Nitrile	Finger Screw	Standard	Steel	12
N1220SF-V	SAE	Fluorocarbon	Finger Screw	Standard	Steel	12
N1220ST	SAE	Nitrile	Tamperproof	Standard	Steel	12
N1220ST-V	SAE	Fluorocarbon	Tamperproof	Standard	Steel	12
N1600B	NPT	Nitrile	Standard Knob	Standard	Brass	1
N1600B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	1
N1600BF	NPT	Nitrile	Finger Screw	Standard	Brass	1
N1600S	NPT	Nitrile	Standard Knob	Standard	Steel	1
N1600S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	1
N1600SF	NPT	Nitrile	Finger Screw	Standard	Steel	1
N1600SF-V	NPT	Fluorocarbon	Finger Screw	Standard	Steel	1
N1620S	SAE	Nitrile	Standard Knob	Standard	Steel	16
N1620S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	16
N1620SF-V	SAE	Fluorocarbon	Finger Screw	Standard	Steel	16
N2000S	NPT	Nitrile	Standard Knob	Standard	Steel	1-1/4
N2000S-F	NPT	Nitrile	Finger Screw	Standard	Steel	1-1/4
N2000S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	1-1/4
N200B	NPT	Nitrile	Standard Knob	Standard	Brass	1/8
N200B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	1/8
N200B4	NPT	Nitrile	Standard Knob	Fine Metering	Brass	1/8
N200B4F	NPT	Nitrile	Finger Screw	Fine Metering	Brass	1/8
N200B4F-V	NPT	Fluorocarbon	Finger Screw	Fine Metering	Brass	1/8
N200B4T	NPT	Nitrile	Tamperproof	Fine Metering	Brass	1/8
N200BF	NPT	Nitrile	Finger Screw	Standard	Brass	1/8
N200BT	NPT	Nitrile	Tamperproof	Standard	Brass	1/8
N200S	NPT	Nitrile	Standard Knob	Standard	Steel	1/8
N200S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	1/8
N200S4	NPT	Nitrile	Standard Knob	Fine Metering	Steel	1/8
N200S4-V	NPT	Fluorocarbon	Standard Knob	Fine Metering	Steel	1/8
N200S4F	NPT	Nitrile	Finger Screw	Fine Metering	Steel	1/8
N200SF	NPT	Nitrile	Finger Screw	Standard	Steel	1/8
N200ST	NPT	Nitrile	Tamperproof	Standard	Steel	1/8
N2020S	SAE	Nitrile	Standard Knob	Standard	Steel	20
N2020S-F	SAE	Nitrile	Finger Screw	Standard	Steel	20
N2020S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	20
N400B	NPT	Nitrile	Standard Knob	Standard	Brass	1/4
N400B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	1/4
N400B4	NPT	Nitrile	Standard Knob	Fine Metering	Brass	1/4
N400B4-V	NPT	Fluorocarbon	Standard Knob	Fine Metering	Brass	1/4
N400B4F	NPT	Nitrile	Finger Screw	Fine Metering	Brass	1/4
N400B4T	NPT	Nitrile	Tamperproof	Fine Metering	Brass	1/4
N400B4T-V	NPT	Fluorocarbon	Tamperproof	Fine Metering	Brass	1/4
N400BF	NPT	Nitrile	Finger Screw	Standard	Brass	1/4
N400BT	NPT	Nitrile	Tamperproof	Standard	Brass	1/4
N400S	NPT	Nitrile	Standard Knob	Standard	Steel	1/4
N400S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	1/4
N400S4	NPT	Nitrile	Standard Knob	Fine Metering	Steel	1/4
N400S4-V	NPT	Fluorocarbon	Standard Knob	Fine Metering	Steel	1/4
N400S4F	NPT	Nitrile	Finger Screw	Fine Metering	Steel	1/4
N400S4T	NPT	Nitrile	Tamperproof	Fine Metering	Steel	1/4
N400S4T-V	NPT	Fluorocarbon	Tamperproof	Fine Metering	Steel	1/4
N400SF	NPT	Nitrile	Finger Screw	Standard	Steel	1/4
N400SF-V	NPT	Fluorocarbon	Finger Screw	Standard	Steel	1/4
N400SS	NPT	Nitrile	Standard Knob	Standard	303 Stainless Steel	1/4
N400SS4	NPT	Nitrile	Standard Knob	Fine Metering	303 Stainless Steel	1/4
N400SS4F	NPT	Nitrile	Finger Screw	Fine Metering	303 Stainless Steel	1/4
N400SS4T	NPT	Nitrile	Tamperproof	Fine Metering	303 Stainless Steel	1/4
N400SSF	NPT	Nitrile	Finger Screw	Standard	303 Stainless Steel	1/4
N400SST	NPT	Nitrile	Tamperproof	Standard	303 Stainless Steel	1/4
N400ST	NPT	Nitrile	Tamperproof	Standard	Steel	1/4
N400ST-V	NPT	Fluorocarbon	Tamperproof	Standard	Steel	1/4
N420B	SAE	Nitrile	Standard Knob	Standard	Brass	4
N420S	SAE	Nitrile	Standard Knob	Standard	Steel	4
N420S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	4
N420S4	SAE	Nitrile	Standard Knob	Fine Metering	Steel	4
N420S4T	SAE	Nitrile	Tamperproof	Fine Metering	Steel	4
N420SF	SAE	Nitrile	Finger Screw	Standard	Steel	4
N420ST	SAE	Nitrile	Tamperproof	Standard	Steel	4
N600B	NPT	Nitrile	Standard Knob	Standard	Brass	3/8
N600B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	3/8
N600B4-T	NPT	Nitrile	Tamperproof	Fine Metering	Brass	3/8
N600B4-V	NPT	Fluorocarbon	Standard Knob	Fine Metering	Brass	3/8
N600B4F-V	NPT	Fluorocarbon	Finger Screw	Fine Metering	Brass	3/8
N600BF	NPT	Nitrile	Finger Screw	Standard	Brass	3/8
N600BT	NPT	Nitrile	Tamperproof	Standard	Brass	3/8
N600BT-V	NPT	Fluorocarbon	Tamperproof	Standard	Brass	3/8
N600S	NPT	Nitrile	Standard Knob	Standard	Steel	3/8
N600S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	3/8
N600S4	NPT	Nitrile	Standard Knob	Fine Metering	Steel	3/8
N600S4F	NPT	Nitrile	Finger Screw	Fine Metering	Steel	3/8
N600S4F-V	NPT	Fluorocarbon	Finger Screw	Fine Metering	Steel	3/8
N600SF	NPT	Nitrile	Finger Screw	Standard	Steel	3/8
N600SS	NPT	Nitrile	Standard Knob	Standard	303 Stainless Steel	3/8
N600SS4	NPT	Nitrile	Standard Knob	Fine Metering	303 Stainless Steel	3/8
N600SS4T	NPT	Nitrile	Tamperproof	Fine Metering	303 Stainless Steel	3/8
N600SST	NPT	Nitrile	Tamperproof	Standard	303 Stainless Steel	3/8
N600ST	NPT	Nitrile	Tamperproof	Standard	Steel	3/8
N600ST-V	NPT	Fluorocarbon	Tamperproof	Standard	Steel	3/8
N620B	SAE	Nitrile	Standard Knob	Standard	Brass	6
N620BFV	SAE	Fluorocarbon	Finger Screw	Standard	Brass	6
N620S	SAE	Nitrile	Standard Knob	Standard	Steel	6
N620S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	6
N620S4	SAE	Nitrile	Standard Knob	Fine Metering	Steel	6
N620S4-V	SAE	Fluorocarbon	Standard Knob	Fine Metering	Steel	6
N620S4F	SAE	Nitrile	Finger Screw	Fine Metering	Steel	6
N620S4T	SAE	Nitrile	Tamperproof	Fine Metering	Steel	6
N620S4T-V	SAE	Fluorocarbon	Tamperproof	Fine Metering	Steel	6
N620SF	SAE	Nitrile	Finger Screw	Standard	Steel	6
N620ST	SAE	Nitrile	Tamperproof	Standard	Steel	6
N620ST-V	SAE	Fluorocarbon	Tamperproof	Standard	Steel	6
N800B	NPT	Nitrile	Standard Knob	Standard	Brass	1/2
N800B-V	NPT	Fluorocarbon	Standard Knob	Standard	Brass	1/2
N800BF	NPT	Nitrile	Finger Screw	Standard	Brass	1/2
N800BT	NPT	Nitrile	Tamperproof	Standard	Brass	1/2
N800BT-V	NPT	Fluorocarbon	Tamperproof	Standard	Brass	1/2
N800S	NPT	Nitrile	Standard Knob	Standard	Steel	1/2
N800S-V	NPT	Fluorocarbon	Standard Knob	Standard	Steel	1/2
N800SF	NPT	Nitrile	Finger Screw	Standard	Steel	1/2
N800SF-V	NPT	Fluorocarbon	Finger Screw	Standard	Steel	1/2
N800SS	NPT	Nitrile	Standard Knob	Standard	303 Stainless Steel	1/2
N800SST	NPT	Nitrile	Tamperproof	Standard	303 Stainless Steel	1/2
N800ST	NPT	Nitrile	Tamperproof	Standard	Steel	1/2
N800ST-V	NPT	Fluorocarbon	Tamperproof	Standard	Steel	1/2
N820B	SAE	Nitrile	Standard Knob	Standard	Brass	8
N820BF-V	SAE	Fluorocarbon	Finger Screw	Standard	Brass	8
N820BT	SAE	Nitrile	Tamperproof	Standard	Brass	8
N820S	SAE	Nitrile	Standard Knob	Standard	Steel	8
N820S-V	SAE	Fluorocarbon	Standard Knob	Standard	Steel	8
N820S4	SAE	Nitrile	Standard Knob	Fine Metering	Steel	8
N820S4-V	SAE	Fluorocarbon	Standard Knob	Fine Metering	Steel	8
N820S4F	SAE	Nitrile	Finger Screw	Fine Metering	Steel	8
N820SF	SAE	Nitrile	Finger Screw	Standard	Steel	8
N820SF-V	SAE	Fluorocarbon	Finger Screw	Standard	Steel	8
N820ST	SAE	Nitrile	Tamperproof	Standard	Steel	8
N820ST-V	SAE	Fluorocarbon	Tamperproof	Standard	Steel	8

信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762

京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
