Parker Needle Valves

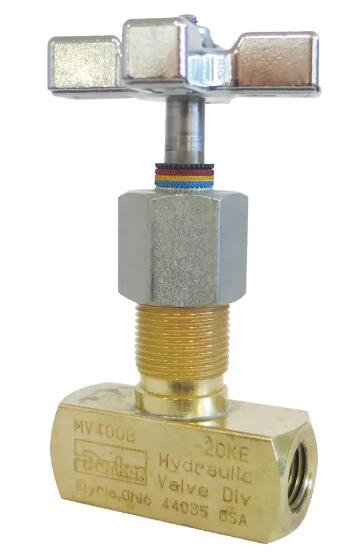

In-Line Precision Needle Valve – MV Series

Parker's MV series valves is a high precision adjust needle valve that meters flow in both directions.

Parker's MV series valves allow extremely close control of fluids used in actuating and governing equipment. The needle allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow, and provides standard throttling adjustment.

In-Line Precision Needle Valve – MV Series

Markets:
- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities

Features/Benefits:
- Port options include NPT and SAE
- Material offerings are brass and steel
- Available in an in-line or right angle style
- Port sizes are available in 7 sizes from 1/8” to 1”
- MVK mounting kits make panel mounting simple
- High efficiency o-ring stem seal eliminates packing
- Fine and micro-fine needles available for extremely fine control
- The exclusive “Colorflow” color-band provide an accurate visual indication of setting

Applications:
- Suitable for general hydraulic applications

Technical Specifications

In-Line Precision Needle Valve – MV Series 型号
