Parker Ball Valves

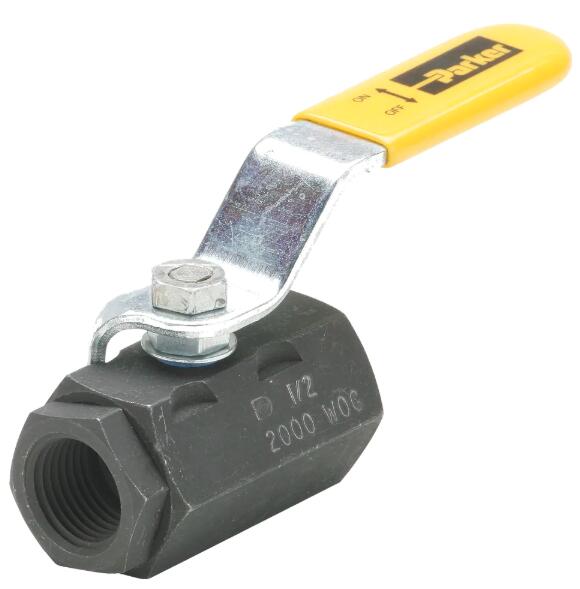

Industrial Ball Valves - Carbon Steel
Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.
Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Industrial Ball Valves - Carbon Steel
Parker's carbon steel ball valves are available in the following styles.
- Female Pipe x Female Pipe
- Female Straight Thread x Female Straight Thread
- Panel Mount
- High Pressure 6,000 psi
Options for the carbon steel ball valve include:
- Tee Handle
- Oval Handle

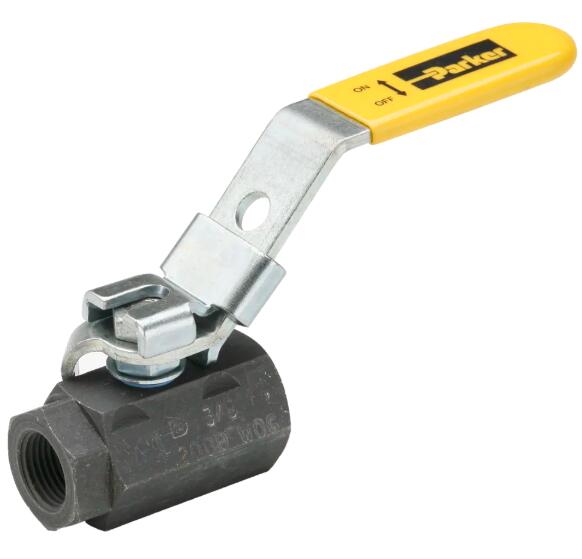

- Padlocking Handle
Markets:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
Features/Benefits:
- Carbon Steel Phosphate Coated Body
- Steel Ball
- PTFE Seats/Seals
- Delrin with Molybdenum Disulphide Seats (Series 500HP, 506HP)
Applications:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Hydraulic Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
Technical Specifications
| Minimum Operating Temperature: |
-20 to -10 °F, -28 to -23 °C |
| Maximum Operating Temperature: |
210 to 425 °F, 99 to 218 °C |
| Maximum Operating Pressure: |
103 to 413 bar |
| Connection Type: |
NPT, Straight Thread, SAE J1926-1 |
| Body Material: |
Carbon Steel |
| Ball Material: |
Steel |
| Seat Material: |
Delrin Molybdenum Disulphide, PTFE |
Industrial Ball Valves - Carbon Steel 型号
| Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
| V500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500CS-12-04 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Tee |
Non-Locking |
| V500CS-12-21 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Oval |
Non-Locking |
| V500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500CS-16-04 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Tee |
Non-Locking |
| V500CS-16-21 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Oval |
Non-Locking |
| V500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500CS-4-04 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Tee |
Non-Locking |
| V500CS-4-21 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
| V500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500CS-6-04 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Tee |
Non-Locking |
| V500CS-6-21 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Oval |
Non-Locking |
| V500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500CS-8-04 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Tee |
Non-Locking |
| V500CS-8-21 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
| V500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
| V500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
| V502CS-20-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
| V502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V502CS-24-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
| V502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
| V502CS-32-21 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Oval |
Non-Locking |
| V506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
| V506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
| V506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
| V506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
| V506CS-8 |
3000 |
Straight Thread Ends |
In Line |
3/4-16 |
SAE Straight Thread |
3/4-16 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
| V506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| V506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
| VP500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
| VP500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
| VP500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
| VP500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
| VP502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
| VP502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
| VP502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
| VP506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
| VP506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
| VP506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Padlock |
| VP506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Padlock |
| VP506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
| VP506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
|
