Parker 球阀
Parker Ball Valves
Industrial Ball Valves - Chrome Plated Brass Ball Valves

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.





Parker's industrial chrome plated brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications.







Technical Specifications

Minimum Operating Temperature: 0 °F, -17 °C
Maximum Operating Temperature: 200 °F, 93 °C
Connection Type: NPT
Body Material: Chrome Plated Brass
Ball Material: Chrome Plated Brass
Seat Material: PTFE
Lock Type: Non-Locking



Industrial Ball Valves - Chrome Plated Brass Ball Valves 型号

Part Maximum Working Pressure (Bar) Style Handle Vacuum Rating (inch of Hg) Maximum Working Pressure (psi) Connection 1 Thread Size (inch) Connection 1 Thread Style Connection 2 Thread Size (inch) Connection 2 Thread Style
MV200-2 13.7 Female Pipe Ends Polyamide Lever na 200 1/8 Female Pipe 1/8 Female Pipe
MV200-4 13.7 Female Pipe Ends Polyamide Lever na 200 1/4 Female Pipe 1/4 Female Pipe
MV200-6 13.7 Female Pipe Ends Polyamide Lever na 200 3/8 Female Pipe 3/8 Female Pipe
MV200-8 13.7 Female Pipe Ends Polyamide Lever na 200 1/2 Female Pipe 1/2 Female Pipe

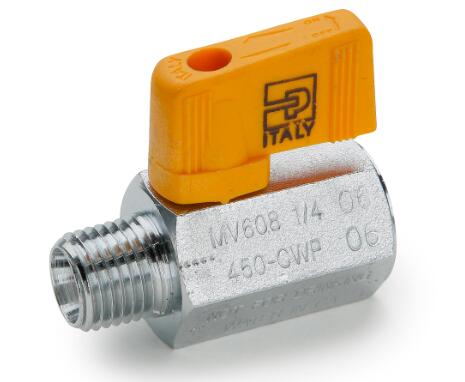

MV608-2 31 Male to Female Pipe Ends Polyamide Wedge Lever 28 450 1/8 Male Pipe 1/8 Female Pipe
MV608-4 31 Male to Female Pipe Ends Polyamide Wedge Lever 28 450 1/4 Male Pipe 1/4 Female Pipe
MV608-6 31 Male to Female Pipe Ends Polyamide Wedge Lever 28 450 3/8 Male Pipe 3/8 Female Pipe
MV608-8 31 Male to Female Pipe Ends Polyamide Wedge Lever 28 450 1/2 Male Pipe 1/2 Female Pipe
MV609-2 31 Female Pipe Ends Polyamide Wedge Lever 28 450 1/8 Female Pipe 1/8 Female Pipe
MV609-4 31 Female Pipe Ends Polyamide Wedge Lever 28 450 1/4 Female Pipe 1/4 Female Pipe
MV609-6 31 Female Pipe Ends Polyamide Wedge Lever 28 450 3/8 Female Pipe 3/8 Female Pipe
MV609-6-4 31 Female Pipe Ends Polyamide Wedge Lever 28 450 3/8 x 1/4 Female Pipe 3/8 x 1/4 Female Pipe
MV609-8 31 Female Pipe Ends Polyamide Wedge Lever 28 450 1/2 Female Pipe 1/2 Female Pipe
