Parker Ball Valves
Industrial Ball Valves - Stainless Steel
Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

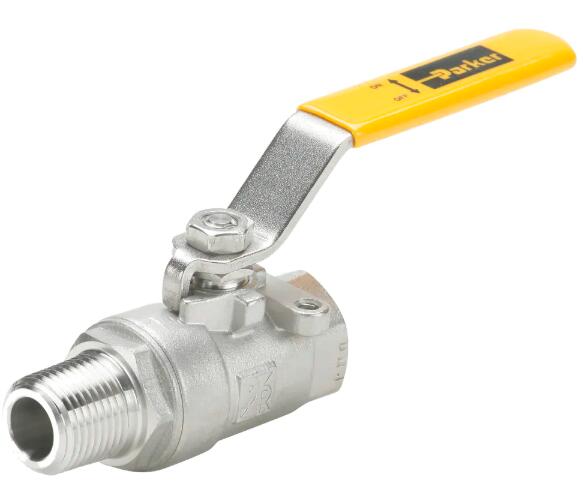

Parker's industrial stainless steel ball valve line is intended for general purpose use. Stainless steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's stainless steel ball valves meet the material requirements of of NACE MR-01-75.
Industrial Ball Valves - Stainless Steel
Parker's stainless steel ball valves are available in the following styles.
- Male Pipe x Female Pipe
- Female Pipe x Female Pipe
- Panel Mount
Options for the stainless steel ball valve include:
- Oval Handle
- Short Handle
- Padlocking Handle
- Welded Retainer Nut
- Actuator Kit
Markets:
- Petrochemical
- Refineries
- Steel
- Agriculture
- Food Processing
- Industrial
Features/Benefits:
- CF-8M Stainless Steel Body
- Stainless Steel Ball
- PTFE Seats/Seals
- Meets Material Requirements NACE MR-01-75
Applications:
- Fuel Lines
- Chemical Lines
- Wash Down
- Plant Design Plumbing Requiring Total Shutoff Capability
Technical Specifications
| Minimum Operating Temperature: |
0 °F, -17 °C |
| Maximum Operating Temperature: |
400 °F, 204 °C |
| Maximum Operating Pressure: |
2000 (1/4 - 1), 1500 (1 1/4 - 2) psi, 103 - 138 bar |
| Connection Type: |
NPT |
| Body Material: |
CF-8M Stainless Steel |
| Ball Material: |
Stainless Steel |
| Seat Material: |
PTFE |
| Specifications Met: |
NACE MR-01-75 |
| Vacuum Pressure Rating: |
28 Inch-Hg |
Industrial Ball Valves - Stainless Steel 型号
| Part |
Shape |
Style |
Locking Mechanism |
Handle |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
| V501SS-12 |
Panel mount |
Male to Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
| V501SS-16 |
Panel mount |
Male to Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1 |
Male Pipe |
1 |
Female Pipe |
| V501SS-4 |
Panel mount |
Male to Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
| V501SS-6 |
Panel mount |
Male to Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
| V501SS-8 |
Panel mount |
Male to Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
| V502SS-12 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
| V502SS-12-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
| V502SS-16 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1 |
Female Pipe |
1 |
Female Pipe |
| V502SS-20 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
| V502SS-20-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
| V502SS-24 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
| V502SS-24-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
| V502SS-32 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
2 |
Female Pipe |
2 |
Female Pipe |
| V502SS-32-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
2 |
Female Pipe |
2 |
Female Pipe |
| V502SS-4 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| V502SS-4-20 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Short Stainless Steel |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| V502SS-4-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| V502SS-4-ACT |
Panel mount |
Female Pipe Ends |
Non-Locking |
Actuator |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| V502SS-4-SUB |
Panel mount |
Female Pipe Ends |
Non-Locking |
na |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| V502SS-6 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| V502SS-6-20 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Short Stainless Steel |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| V502SS-6-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| V502SS-6-ACT |
Panel mount |
Female Pipe Ends |
Non-Locking |
Actuator |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| V502SS-6-SUB |
Panel mount |
Female Pipe Ends |
Non-Locking |
na |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| V502SS-8 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Lever |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| V502SS-8-20 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Short Stainless Steel |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| V502SS-8-21 |
Panel mount |
Female Pipe Ends |
Non-Locking |
Stainless Steel Oval |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| V502SS-8-ACT |
Panel mount |
Female Pipe Ends |
Non-Locking |
Actuator |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| V502SS-8-SUB |
Panel mount |
Female Pipe Ends |
Non-Locking |
na |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| VP502SS-12 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
| VP502SS-16 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
1 |
Female Pipe |
1 |
Female Pipe |
| VP502SS-20 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
| VP502SS-24 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
| VP502SS-32 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
2 |
Female Pipe |
2 |
Female Pipe |
| VP502SS-4 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| VP502SS-6 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| VP502SS-8 |
Panel mount |
Female Pipe Ends |
Padlock |
Stainless Steel Lever |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
| VP502SS-8-20 |
Panel mount |
Female Pipe Ends |
Padlock |
Short Handle |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
|
