Parker 球阀
Parker Ball Valves

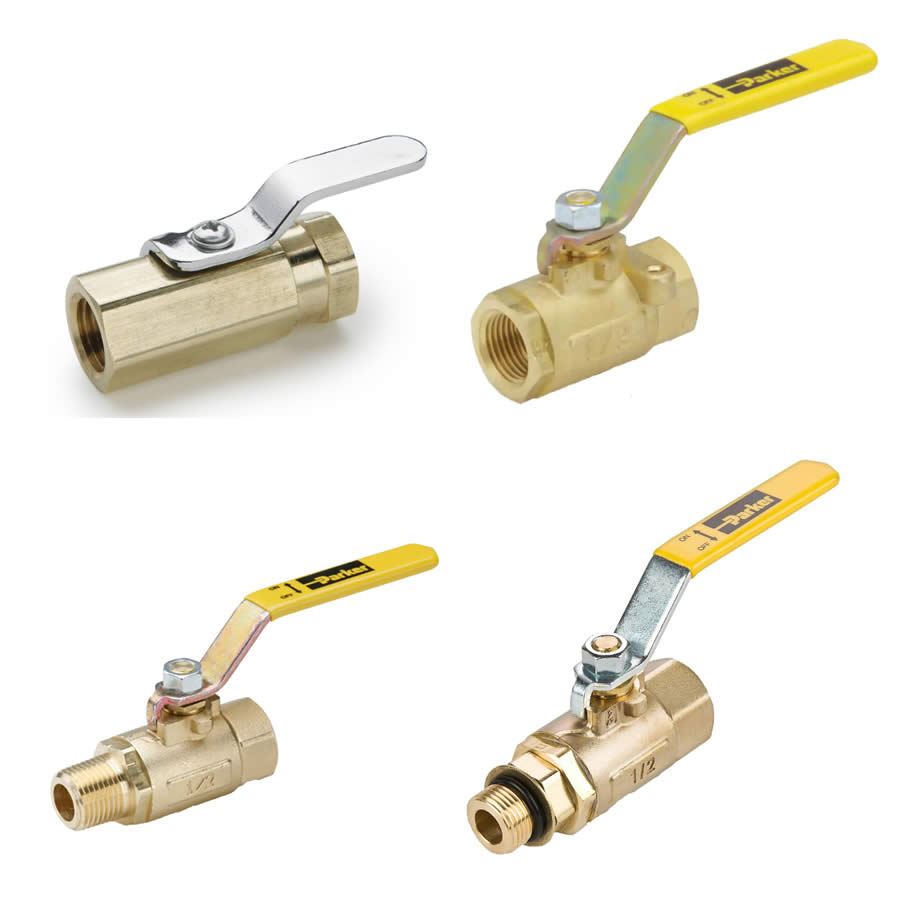

Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.





Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.



Industrial Brass Ball Valves




Parker's brass ball valves are available in a range of styles including:
- Female x Female
- Female x Male
- Panel Mount
- Female Straight Thread x Female Straight Thread
- Solder ends
- Female Straight Thread x Male Straight Thread
- 3 and 4 Way Diversion
- 90? Valves
- Beaded Hose Barb End
- 6 Port Valve

Options for the brass ball valves include:
- Nickel Plating
- Venting
- Padlocking Handles
- Stainless Steel Ball & Stem
- Stainless Steel Handle & Nut
- Tee Handle
- Oval Handle
- Plain Yellow Vinyl Handle Cover
- Actuator Kit

Markets:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial

Features/Benefits:
- Forged Body for Added Strength
- Chrome Plated Brass Ball
- PTFE Seats and Seals
- Wide Range of Styles
- Quarter Turn Handle Provides Positive Stop Action for Full Shutoff

Applications:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Air Service lines
- Water Service Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Minimum Operating Temperature: -50 to 0 °F, -45 to -17 °C
Maximum Operating Temperature: 250 to 350 °F, 121 to 176 °C
Maximum Operating Pressure: 10 to 41 bar
Connection Type: NPT, Straight Thread, Solder
Body Material: Brass
Ball Material: Chrome Plated Brass
Seat Material: PTFE



Industrial Brass Ball Valves 型号

Part Maximum Working Pressure (psi) Style Shape Connection 1 Thread Size (inch) Connection 1 Thread Style Connection 2 Thread Size (inch) Connection 2 Thread Style Connection 1 Solder O.D. (inch) Connection 2 Solder O.D. (inch) Handle Locking Mechanism Vented
MV708-2 500 Male to Female In Line 1/8 Male Pipe 1/8 Female Pipe na na Chrome Plated Steel Non-Locking No
MV708-4 500 Male to Female In Line 1/4 Male Pipe 1/4 Female Pipe na na Chrome Plated Steel Non-Locking No
MV709-2 500 Female to Female In Line 1/8 Female Pipe 1/8 Female Pipe na na Chrome Plated Steel Non-Locking No
MV709-4 500 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Chrome Plated Steel Non-Locking No
V500P-12 600 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking No
V500P-12-04 600 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Tee Handle Non-Locking No
V500P-12-16HB 150 Female to Hose Barb In Line 1 Hose Barb 3/4 Female Pipe na na Steel Lever Non-Locking No
V500P-12-21 600 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Oval Non-Locking No
V500P-16 600 Female to Female In Line 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking No
V500P-16-04 600 Female to Female In Line 1 Female Pipe 1 Female Pipe na na Tee Handle Non-Locking No
V500P-20 600 Female to Female In Line 1 1/4 Female Pipe 1 1/4 Female Pipe na na Steel Lever Non-Locking No
V500P-24 600 Female to Female In Line 1 1/2 Female Pipe 1 1/2 Female Pipe na na Steel Lever Non-Locking No
V500P-32 600 Female to Female In Line 2 Female Pipe 2 Female Pipe na na Steel Lever Non-Locking No
V500P-4 600 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V500P-4-04 600 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Tee Handle Non-Locking No
V500P-6 600 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V500P-6-04 600 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Tee Handle Non-Locking No
V500P-8 600 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V500P-8-02 600 Female to Female In Line 1/2 Female Pipe 1/2 Female Pipe na na Stainless Steel Handle Non-Locking No
V500P-8-04 600 Female to Female In Line 1/2 Female Pipe 1/2 Female Pipe na na Tee Handle Non-Locking No
V501P-12 600 Female to Male In Line 3/4 Male Pipe 3/4 Female Pipe na na Steel Lever Non-Locking No
V501P-12-04 600 Female to Male In Line 3/4 Male Pipe 3/4 Female Pipe na na Steel Tee Non-Locking No
V501P-12-21 600 Female to Male In Line 3/4 Male Pipe 3/4 Female Pipe na na Steel Oval Non-Locking No
V501P-16 600 Female to Male In Line 1 Male Pipe 1 Female Pipe na na Steel Lever Non-Locking No
V501P-16-04 600 Female to Male In Line 1 Male Pipe 1 Female Pipe na na Steel Tee Non-Locking No
V501P-16-21 600 Female to Male In Line 1 Male Pipe 1 Female Pipe na na Steel Oval Non-Locking No
V501P-4 600 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V501P-4-04 600 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Tee Non-Locking No
V501P-4-21 600 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Oval Non-Locking No
V501P-6 600 Female to Male In Line 3/8 Male Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V501P-6-04 600 Female to Male In Line 3/8 Male Pipe 3/8 Female Pipe na na Steel Tee Non-Locking No
V501P-6-21 600 Female to Male In Line 3/8 Male Pipe 3/8 Female Pipe na na Steel Oval Non-Locking No
V501P-8 600 Female to Male In Line 1/2 Male Pipe 1/2 Female Pipe na na Steel Lever Non-Locking No
V501P-8-04 600 Female to Male In Line 1/2 Male Pipe 1/2 Female Pipe na na Steel Tee Non-Locking No
V501P-8-21 600 Female to Male In Line 1/2 Male Pipe 1/2 Female Pipe na na Steel Oval Non-Locking No
V502P-12 600 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking No
V502P-12-04 600 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Tee Non-Locking No
V502P-12-21 600 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Oval Non-Locking No
V502P-12-ACT 600 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na na Non-Locking No
V502P-12-SUB 150 Female to Female Panel Mount Sub Assembly 3/4 Female Pipe 3/4 Female Pipe na na na Non-Locking No
V502P-16 600 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking No
V502P-16-04 600 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Tee Non-Locking No
V502P-16-21 600 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Oval Non-Locking No
V502P-16-ACT 600 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na na Non-Locking No
V502P-16-SUB 150 Female to Female Panel Mount Sub Assembly 1 Female Pipe 1 Female Pipe na na na Non-Locking No
V502P-4 600 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V502P-4-04 600 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Tee Non-Locking No
V502P-4-21 600 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Oval Non-Locking No
V502P-4-ACT 150 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na na Non-Locking No
V502P-4-SUB 150 Female to Female Panel Mount Sub Assembly 1/4 Female Pipe 1/4 Female Pipe na na na Non-Locking No
V502P-6 600 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V502P-6-04 600 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Tee Non-Locking No
V502P-6-21 600 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Oval Non-Locking No
V502P-6-ACT 150 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na na Non-Locking No
V502P-6-SUB 150 Female to Female Panel Mount Sub Assembly 3/8 Female Pipe 3/8 Female Pipe na na na Non-Locking No
V502P-8 600 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Non-Locking No
V502P-8-04 600 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Tee Non-Locking No
V502P-8-08 600 Female to Female In Line 1/2 Female Pipe 1/2 Female Pipe na na Unmarked Yellow Vinyl Handle Cover Non-Locking No
V502P-8-21 600 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Oval Non-Locking No
V502P-8-ACT 150 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na na Non-Locking No
V502P-8-SUB 150 Female to Female Panel Mount Sub Assembly 1/2 Female Pipe 1/2 Female Pipe na na na Non-Locking No
V506P-12 600 Female Straight Thread to Female Straight Thread In Line 1 1/16-12 Female Straight Thread 1 1/16-12 Female Straight Thread na na Steel Lever Non-Locking No
V506P-16 600 Female Straight Thread to Female Straight Thread In Line 1 5/16-12 Female Straight Thread 1 5/16-12 Female Straight Thread na na Steel Lever Non-Locking No
V506P-20 600 Female Straight Thread to Female Straight Thread In Line 1 5/8-12 Female Straight Thread 1 5/8-12 Female Straight Thread na na Steel Lever Non-Locking No
V506P-24 600 Female Straight Thread to Female Straight Thread In Line 1 7/8-12 Female Straight Thread 1 7/8-12 Female Straight Thread na na Steel Lever Non-Locking No
V506P-32 600 Female Straight Thread to Female Straight Thread In Line 2 1/2-12 Female Straight Thread 2 1/2-12 Female Straight Thread na na Steel Lever Non-Locking No
V506P-4 600 Female Straight Thread to Female Straight Thread In Line 7/16-20 Female Straight Thread 7/16-20 Female Straight Thread na na Steel Lever Non-Locking No
V506P-6 600 Female Straight Thread to Female Straight Thread In Line 9/16-18 Female Straight Thread 9/16-18 Female Straight Thread na na Steel Lever Non-Locking No
V506P-6-04 600 Female to Female In Line 9/16-18 Female Pipe 9/16-18 Female Pipe na na Tee Handle Non-Locking No
V506P-8 600 Female Straight Thread to Female Straight Thread In Line 3/4-16 Female Straight Thread 3/4-16 Female Straight Thread na na Steel Lever Non-Locking No
V509P-12 600 Solder to Solder In Line na Solder na Solder 3/4 3/4 Steel Lever Non-Locking No
V509P-16 600 Solder to Solder In Line na Solder na Solder 1 1 Steel Lever Non-Locking No
V509P-20 600 Solder to Solder In Line na Solder na Solder 1 1/4 1 1/4 Steel Lever Non-Locking No
V509P-24 600 Solder to Solder In Line na Solder na Solder 1 1/2 1 1/2 Steel Lever Non-Locking No
V509P-32 600 Solder to Solder In Line na Solder na Solder 2 2 Steel Lever Non-Locking No
V509P-8 600 Solder to Solder In Line na Solder na Solder 1/2 1/2 Steel Lever Non-Locking No
V510P-10 600 Female Straight Thread to Male Straight Thread In Line 7/8-14 Female Straight thread 7/8-14 Male Straight Thread na na Steel Lever Non-Locking No
V510P-10-04 600 Female Straight Thread to Male Straight Thread In Line 7/8-14 Female Straight thread 7/8-14 Male Straight Thread na na Steel Tee Non-Locking No
V510P-12 600 Female Straight Thread to Male Straight Thread In Line 1 1/16-12 Female Straight thread 1 1/16-12 Male Straight Thread na na Steel Lever Non-Locking No
V510P-12-04 600 Female Straight Thread to Male Straight Thread In Line 1 1/16-12 Female Straight thread 1 1/16-12 Male Straight Thread na na Steel Tee Non-Locking No
V510P-12-21 600 Female Straight Thread to Male Straight Thread In Line 1 1/16-12 Female Straight thread 1 1/16-12 Male Straight Thread na na Steel Oval Non-Locking No
V510P-16 600 Female Straight Thread to Male Straight Thread In Line 1 5/16-12 Female Straight thread 1 5/16-12 Male Straight Thread na na Steel Lever Non-Locking No
V510P-16-04 600 Female Straight Thread to Male Straight Thread In Line 1 5/16-12 Female Straight thread 1 5/16-12 Male Straight Thread na na Steel Tee Non-Locking No
V510P-4 600 Female Straight Thread to Male Straight Thread In Line 7/16-20 Female Straight thread 7/16-20 Male Straight Thread na na Steel Lever Non-Locking No
V510P-4-04 600 Female Straight Thread to Male Straight Thread In Line 7/16-20 Female Straight thread 7/16-20 Male Straight Thread na na Steel Tee Non-Locking No
V510P-4-21 600 Female Straight Thread to Male Straight Thread In Line 7/16-20 Female Straight thread 7/16-20 Male Straight Thread na na Steel Oval Non-Locking No
V510P-6 600 Female Straight Thread to Male Straight Thread In Line 9/16-18 Female Straight thread 9/16-18 Male Straight Thread na na Steel Lever Non-Locking No
V510P-6-04 600 Female Straight Thread to Male Straight Thread In Line 9/16-18 Female Straight thread 9/16-18 Male Straight Thread na na Steel Tee Non-Locking No
V510P-6-21 600 Female Straight Thread to Male Straight Thread In Line 9/16-18 Female Straight thread 9/16-18 Male Straight Thread na na Steel Oval Non-Locking No
V510P-8 600 Female Straight Thread to Male Straight Thread In Line 3/4-16 Female Straight thread 3/4-16 Male Straight Thread na na Steel Lever Non-Locking No
V510P-8-04 600 Female Straight Thread to Male Straight Thread In Line 3/4-16 Female Straight thread 3/4-16 Male Straight Thread na na Steel Tee Non-Locking No
V510P-8-21 600 Female Straight Thread to Male Straight Thread In Line 3/4-16 Female Straight thread 3/4-16 Male Straight Thread na na Steel Oval Non-Locking No
V520P-12 600 Female to Female Economy In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking No
V520P-12-04 600 Female to Female Economy In Line 3/4 Female Pipe 3/4 Female Pipe na na Tee Handle Non-Locking No
V520P-16 600 Female to Female Economy In Line 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking No
V520P-20 600 Female to Female Economy In Line 1 1/4 Female Pipe 1 1/4 Female Pipe na na Steel Lever Non-Locking No
V520P-24 600 Female to Female Economy In Line 1 1/2 Female Pipe 1 1/2 Female Pipe na na Steel Lever Non-Locking No
V520P-32 600 Female to Female Economy In Line 2 Female Pipe 2 Female Pipe na na Steel Lever Non-Locking No
V520P-4 600 Female to Female Economy In Line 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V520P-40 600 Female to Female Economy In Line 2 1/2 Female Pipe 2 1/2 Female Pipe na na Steel Lever Non-Locking No
V520P-48 600 Female to Female Economy In Line 3 Female Pipe 3 Female Pipe na na Steel Lever Non-Locking No
V520P-6 600 Female to Female Economy In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V520P-8 600 Female to Female Economy In Line 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Non-Locking No
V533P-12 400 Female to Female 3-Way 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking No
V533P-16 400 Female to Female 3-Way 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking No
V533P-4 400 Female to Female 3-Way 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V533P-4-04 600 Female to Female to Female 3-way 1/4 Female Pipe 1/4 Female Pipe na na Tee Handle Non-Locking No
V533P-6 400 Female to Female 3-Way 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V533P-8 400 Female to Female 3-Way 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Non-Locking No
V540P-4 400 Female to Female 4-Way 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking No
V590P-16 250 Female to Male 90 Valve 1 Female Pipe 1 Male Pipe na na Steel Tee Non-Locking No
V590P-16-04 250 Female to Male 90 Valve 1 Female Pipe 1 Male Pipe na na Steel Lever Non-Locking No
V590P-4 250 Female to Male 90 Valve 1/4 Female Pipe 1/4 Male Pipe na na Steel Tee Non-Locking No
V590P-4-04 250 Female to Male 90 Valve 1/4 Female Pipe 1/4 Male Pipe na na Steel Lever Non-Locking No
V590P-6 250 Female to Male 90 Valve 3/8 Female Pipe 3/8 Male Pipe na na Steel Tee Non-Locking No
V590P-6-04 250 Female to Male 90 Valve 3/8 Female Pipe 3/8 Male Pipe na na Steel Lever Non-Locking No
V590P-8 250 Female to Male 90 Valve 1/2 Female Pipe 1/2 Male Pipe na na Steel Tee Non-Locking No
V590P-8-04 250 Female to Male 90 Valve 1/2 Female Pipe 1/2 Male Pipe na na Steel Lever Non-Locking No
V591P-4 250 Male to Male 90 Valve 1/4 Male Pipe 1/4 Male Pipe na na Steel Tee Non-Locking No
V591P-4-04 250 Male to Male 90 Valve 1/4 Male Pipe 1/4 Male Pipe na na Steel Lever Non-Locking No
V591P-6 250 Male to Male 90 Valve 3/8 Male Pipe 3/8 Male Pipe na na Steel Tee Non-Locking No
V591P-6-04 250 Male to Male 90 Valve 3/8 Male Pipe 3/8 Male Pipe na na Steel Lever Non-Locking No
V591P-8 250 Male to Male 90 Valve 1/2 Male Pipe 1/2 Male Pipe na na Steel Tee Non-Locking No
V591P-8-04 250 Male to Male 90 Valve 1/2 Male Pipe 1/2 Male Pipe na na Steel Lever Non-Locking No
V600P-8-6 150 Female to Female 6 Port 3 position Handle 1/2 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
V633P-8-6 150 Female to Female 6 Port 2 position Handle 1/2 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking No
VP500P-12 600 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Padlock No
VP500P-16 600 Female to Female In Line 1 Female Pipe 1 Female Pipe na na Steel Lever Padlock No
VP500P-20 600 Female to Female In Line 1 1/4 Female Pipe 1 1/4 Female Pipe na na Steel Lever Padlock No
VP500P-24 600 Female to Female In Line 1 1/2 Female Pipe 1 1/2 Female Pipe na na Steel Lever Padlock No
VP500P-32 600 Female to Female In Line 2 Female Pipe 2 Female Pipe na na Steel Lever Padlock No
VP500P-4 600 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Padlock No
VP500P-6 600 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Padlock No
VP501P-12 600 Female to Male In Line 3/4 Female Pipe 3/4 Male Pipe na na Steel Lever Padlock No
VP501P-16 600 Female to Male In Line 1 Female Pipe 1 Male Pipe na na Steel Lever Padlock No
VP501P-4 600 Female to Male In Line 1/4 Female Pipe 1/4 Male Pipe na na Steel Lever Padlock No
VP501P-6 600 Female to Male In Line 3/8 Female Pipe 3/8 Male Pipe na na Steel Lever Padlock No
VP501P-8 600 Female to Male In Line 1/2 Female Pipe 1/2 Male Pipe na na Steel Lever Padlock No
VP502P-12 600 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Padlock No
VP502P-16 600 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Lever Padlock No
VP502P-4 600 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Padlock No
VP502P-6 600 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Padlock No
VP502P-8 600 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Padlock No
VP510P-10 600 Female Straight Thread to Male Straight Thread In Line 7/8-14 Female Straight thread 7/8-14 Male Straight Thread na na Steel Lever Padlock No
VP510P-12 600 Female Straight Thread to Male Straight Thread In Line 1 1/16-12 Female Straight thread 1 1/16-12 Male Straight Thread na na Steel Lever Padlock No
VP510P-4 600 Female Straight Thread to Male Straight Thread In Line 7/16-20 Female Straight thread 7/16-20 Male Straight Thread na na Steel Lever Padlock No
VP510P-6 600 Female Straight Thread to Male Straight Thread In Line 9/16-18 Female Straight thread 9/16-18 Male Straight Thread na na Steel Lever Padlock No
VP510P-8 600 Female Straight Thread to Male Straight Thread In Line 3/4-16 Female Straight thread 3/4-16 Male Straight Thread na na Steel Lever Padlock No
VV500P-12 250 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking Yes
VV500P-16 250 Female to Female In Line 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking Yes
VV500P-4 250 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking Yes
VV500P-6 250 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking Yes
VV500P-8 250 Female to Female In Line 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Non-Locking Yes
VV501P-12 250 Female to Male In Line 3/4 Male Pipe 3/4 Female Pipe na na Steel Lever Non-Locking Yes
VV501P-16 250 Female to Male In Line 1 Male Pipe 1 Female Pipe na na Steel Lever Non-Locking Yes
VV501P-4 250 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Lever Non-Locking Yes
VV501P-6 250 Female to Male In Line 3/8 Male Pipe 3/8 Female Pipe na na Steel Lever Non-Locking Yes
VV501P-8 250 Female to Male In Line 1/2 Male Pipe 1/2 Female Pipe na na Steel Lever Non-Locking Yes
VV502P-12 250 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Non-Locking Yes
VV502P-16 250 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Lever Non-Locking Yes
VV502P-4 250 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Non-Locking Yes
VV502P-6 250 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Non-Locking Yes
VV502P-8 250 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Non-Locking Yes
VVP500P-12 250 Female to Female In Line 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Padlock Yes
VVP500P-16 250 Female to Female In Line 1 Female Pipe 1 Female Pipe na na Steel Lever Padlock Yes
VVP500P-4 250 Female to Female In Line 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Padlock Yes
VVP500P-6 250 Female to Female In Line 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Padlock Yes
VVP500P-8 250 Female to Female In Line 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Padlock Yes
VVP501P-12 250 Female to Male In Line 3/4 Male Pipe 3/4 Female Pipe na na Steel Lever Padlock Yes
VVP501P-16 250 Female to Male In Line 1 Male Pipe 1 Female Pipe na na Steel Lever Padlock Yes
VVP501P-4 250 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Lever Padlock Yes
VVP501P-6 250 Female to Male In Line 3/8 Male Pipe 3/8 Female Pipe na na Steel Lever Padlock Yes
VVP501P-8 250 Female to Male In Line 1/2 Male Pipe 1/2 Female Pipe na na Steel Lever Padlock Yes
VVP502P-12 250 Female to Female Panel Mount 3/4 Female Pipe 3/4 Female Pipe na na Steel Lever Padlock Yes
VVP502P-16 250 Female to Female Panel Mount 1 Female Pipe 1 Female Pipe na na Steel Lever Padlock Yes
VVP502P-4 250 Female to Female Panel Mount 1/4 Female Pipe 1/4 Female Pipe na na Steel Lever Padlock Yes
VVP502P-6 250 Female to Female Panel Mount 3/8 Female Pipe 3/8 Female Pipe na na Steel Lever Padlock Yes
VVP502P-8 250 Female to Female Panel Mount 1/2 Female Pipe 1/2 Female Pipe na na Steel Lever Padlock Yes
XV501PCHP-4 2000 Female to Male In Line 1/4 Male Pipe 1/4 Female Pipe na na Steel Tee Non-Locking No








信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
